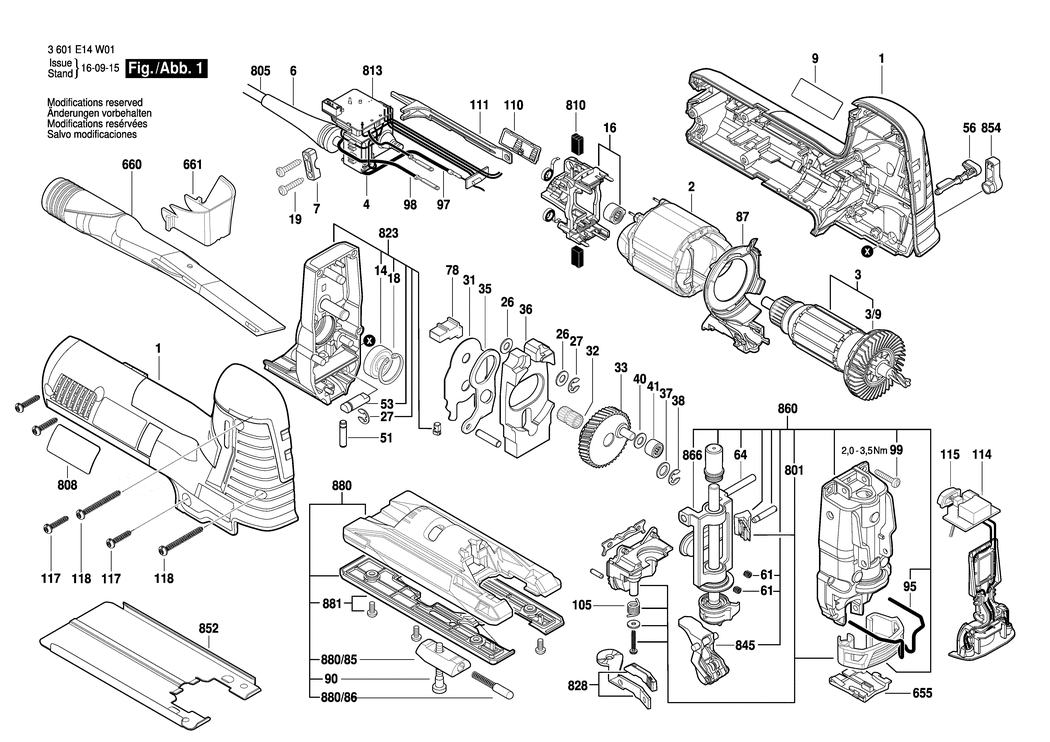

1 - HOUSING SECTION
BSD-2605105187.A0
2605105187
|
£33.74
|
£40.49
|
|
|
2 - FIELD 230-240V
BSD-2604220740.A10
2604220740
|
£37.26
|
£44.71
|
|
|
3 - ARMATURE 230-240V
BSD-2604011420.A7
2604011420
|
£54.42
|
£65.30
|
|
|
3/9 - FAN
BSD-2606610089.A37
2606610089
|
£5.30
|
£6.36
|
|
|
4 - SWITCH
BSD-2607200684.A4
2607200684
|
£21.52
|
£25.83
|
|
|
6 - GROMMET dia6.4-dia7.2x76 MM
BSD-2600703017.A618
2600703017
|
£2.61
|
£3.13
|
|
|
7 - CABLE CLIP
BSD-2601035004.A66
2601035004
|
£2.16
|
£2.59
|
|
|
9 - MANUFACTURER'S NAMEPLATE Würth
BSD-2601112292.A0
2601112292
|
-
|
|
|
|
14 - GROOVE BALL BEARING 9x24x7
BSD-2600905112.A22
2600905112
|
£12.04
|
£14.45
|
|
|
16 - BRUSH PLATE
BSD-2605807137.A5
2605807137
|
£21.68
|
£26.01
|
|
|
18 - SPRING RETAINING RING DIN 472-24x1.2 MM
BSD-2916660008.A489
2916660008
|
£2.16
|
£2.59
|
|
|
19 - SCREW 4x16
BSD-2603490022.A595
2603490022
|
£1.75
|
£2.10
|
|
|
26 - SHIM
BSD-2600100040.A77
2600100040
|
£1.75
|
£2.10
|
|
|
27 - LOCKING WASHER 5 DIN 6799
BSD-2916080908.A186
2916080908
|
£1.75
|
£2.10
|
|
|
31 - SHIM
BSD-2600101124.A7
2600101124
|
£1.75
|
£2.10
|
|
|
32 - NEEDLE-ROLLER ASSEMBLY
BSD-2600913040.A92
2600913040
|
£5.58
|
£6.70
|
|
|
33 - ECCENTRIC COG WHEEL
BSD-2606320107.A15
2606320107
|
£21.52
|
£25.83
|
|
|
35 - FORK LEVER
BSD-2601923015.A26
2601923015
|
£2.80
|
£3.36
|
|
|
36 - COUNTERWEIGHT
BSD-2601098120.A15
2601098120
|
£18.96
|
£22.75
|
|
|
37 - SHIM 0.3 MM
BSD-2600101047.A414
2600101047
|
£1.75
|
£2.10
|
|
|
38 - LOCKING WASHER DIN 6799-6-FST
BSD-2916080909.A37
2916080909
|
£1.75
|
£2.10
|
|
|
40 - SHIM WASHER
BSD-2600101130.A19
2600101130
|
£1.75
|
£2.10
|
|
|
41 - NEEDLE BEARING
BSD-2600917900.A333
2600917900
|
£8.67
|
£10.41
|
|
|
51 - BEARING BOLT
BSD-2603105131.A46
2603105131
|
£2.16
|
£2.59
|
|
|
53 - CONTROL SHAFT
BSD-2603124157.A21
2603124157
|
£5.30
|
£6.36
|
|
|
56 - ROTARY KNOB
BSD-2602026189.A3
2602026189
|
£2.16
|
£2.59
|
|
|
61 - COMPRESSION SPRING
BSD-2604610151.A2
2604610151
|
£1.75
|
£2.10
|
|
|
64 - STRAIGHT PIN
BSD-2601322045.A20
2601322045
|
£1.75
|
£2.10
|
|
|
78 - DAMPING ELEMENT
BSD-2600206031.A20
2600206031
|
£2.61
|
£3.13
|
|
|
87 - AIR-DEFLECTOR RING
BSD-2605500206.A10
2605500206
|
£10.10
|
£12.12
|
|
|
90 - HEX SOCKET HEAD CAP SCREW DIN 7984 M6x30-8.8
BSD-2910131205.A25
2910131205
|
£2.16
|
£2.59
|
|
|
95 - PROTECTING COVER
BSD-2603101060.A41
2603101060
|
£4.26
|
£5.11
|
|
|
97 - EARTH CONDUCTOR
BSD-2604448351.A5
2604448351
|
£2.61
|
£3.13
|
|
|
98 - CONNECTING CABLE
BSD-1619P07299.A23
1619P07299
|
£2.61
|
£3.13
|
|
|
99 - THREAD-FORMING TAP. SCREW
BSD-2603410051.A68
2603410051
|
£1.75
|
£2.10
|
|
|
105 - TORSION SPRING
BSD-2604690060.A7
2604690060
|
£1.75
|
£2.10
|
|
|
110 - OPERATING ELEMENT
BSD-2602026188.A0
2602026188
|
£2.80
|
£3.36
|
|
|
111 - ADJUSTING SLIDE
BSD-2601099223.A14
2601099223
|
£3.72
|
£4.47
|
|
|
114 - EL LUMA MODULE 230V
BSD-1607233384.A11
1607233384
|
£31.64
|
£37.97
|
|
|
115 - HEADLAMP SWITCH
BSD-2600030030.A9
2600030030
|
£2.61
|
£3.13
|
|
|
117 - TORX OVAL-HEAD SCREW 4x20
BSD-2603490023.A1120
2603490023
|
£1.75
|
£2.10
|
|
|
118 - TORX OVAL-HEAD SCREW 4x40
BSD-2603490027.A85
2603490027
|
£1.75
|
£2.10
|
|
|
655 - SPLINTERING PROTECTOR
BSD-2601016093.A71
2601016093
|
£4.26
|
£5.11
|
|
|
660 - SUCTION SOCKET
BSD-2605730061.A17
2605730061
|
£18.96
|
£22.75
|
|
|
661 - COVERING HOOD
BSD-2605510296.A18
2605510296
|
£3.72
|
£4.47
|
|
|
801 - EJECTION LEVER
BSD-2607990070.A1
2607990070
|
£11.30
|
£13.56
|
|
|
805 - POWER SUPPLY CORD EU 230V 4.15m 2 x 1.0mm H05 RN-F
BSD-1607000386.A281
1607000386
|
£21.52
|
£25.83
|
|
|
808 - NAMEPLATE
BSD-160111A208.A0
160111A208
|
£2.61
|
£3.13
|
|
|
810 - CARBON-BRUSH SET
BSD-2604320918.A11
2604320918
|
£12.04
|
£14.45
|
|
|
813 - SPEED GOVERNOR 230V
BSD-16072335AH.A6
16072335AH
|
£40.80
|
£48.96
|
|
|
823 - GEAR HOUSING
BSD-2605806868.A22
2605806868
|
£81.81
|
£98.17
|
|
|
828 - TENSIONING LEVER
BSD-2602098024.A23
2602098024
|
£6.52
|
£7.83
|
|
|
845 - ROLLER LEVER
BSD-2601321909.A6
2601321909
|
£46.37
|
£55.64
|
|
|
852 - WORK BOARD
BSD-2601098121.A28
2601098121
|
£18.96
|
£22.75
|
|
|
854 - ROTARY KNOB
BSD-2602026912.A8
2602026912
|
£2.80
|
£3.36
|
|
|
860 - GEAR COVER
BSD-2605808946.A3
2605808946
|
£156.22
|
£187.46
|
|
|
866 - LIFTING ROD
BSD-1600A00H4H.A22
1600A00H4H
|
£93.88
|
£112.65
|
|
|
880 - BASE PLATE
BSD-2601016911.A6
2601016911
|
£48.38
|
£58.06
|
|
|
880/85 - CLAMPING PIECE
BSD-2602317067.A22
2602317067
|
£4.26
|
£5.11
|
|
|
880/86 - RATCHET CAP
BSD-2600590018.A25
2600590018
|
£2.80
|
£3.36
|
|
|
881 - WORK BOARD
BSD-2601099900.A40
2601099900
|
£14.91
|
£17.89
|
|
