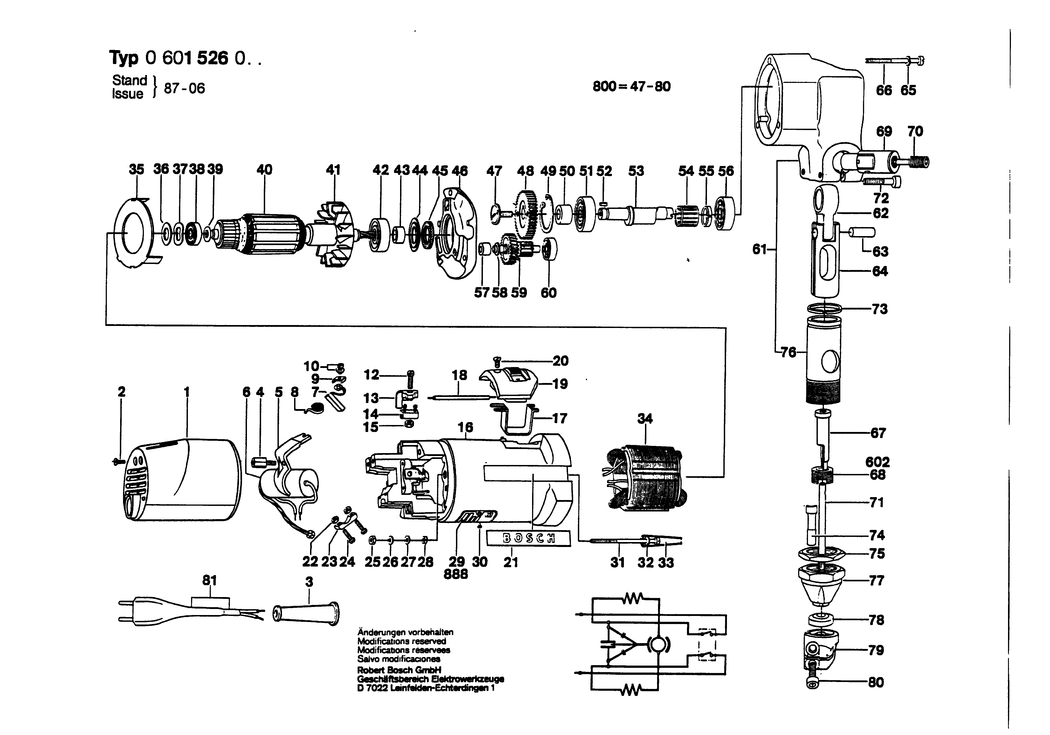

An exploded drawing and listing for the Bosch ---- / 0601526001 / EU 110 Volt
Ex VAT Inc VAT
1 - HOUSING COVER BSD-3600508023.A66 3600508023 £13.41 £16.09
2 - COUNTERSUNK-HEAD SCREW DIN 63-AM3.5x8-5.8 BSD-2910501084.A87 2910501084 -
3 - GROMMET dia7 MM BSD-2600703007.A284 2600703007 -
3 - GROMMET dia8.2 MM BSD-2600703008.A53 2600703008 £1.75 £2.10
3 - GROMMET dia8.2 MM BSD-2600703008.A54 2600703008 £1.75 £2.10
3 - GROMMET dia9.5 MM BSD-2600703006.A100 2600703006 -
4 - HEX SCREW BSD-2603527004.A88 2603527004 £1.75 £2.10
5 - FASTENING CLAMP BSD-2601301002.A91 2601301002 £2.16 £2.59
6 - SUPPRESSION FILTER BSD-2607329048.A79 2607329048 -
8 - SPIRAL SPRING BSD-2604652000.A134 2604652000 -
9 - CLAMPING SADDLE BSD-2601321005.A75 2601321005 -
10 - SOCKET HEAD CAP SCREW BSD-2603410010.A213 2603410010 -
12 - SOCKET HEAD CAP SCREW M 2.6x5 DIN 84 BSD-2910011028.A44 2910011028 -
13 - CLAMPING PIECE BSD-2602305034.A6 2602305034 -
14 - CONNECTING TERMINAL BSD-2604490003.A29 2604490003 -
15 - HEX NUT M 2.6 DIN 934-M-6 BSD-2915011002.A4 2915011002 -
16 - MOTOR HOUSING BSD-2605108032.A81 2605108032 -
17 - INSULATING PART BSD-2601322002.A80 2601322002 £1.75 £2.10
18 - CABLE BSD-2604411061.A25 2604411061 -
19 - SWITCH BSD-2607200045.A8 2607200045 -
20 - COUNTERSUNK-HEAD SCREW M 3x6 DIN 63-5.8 BSD-2910501048.A10 2910501048 -
21 - MANUFACTURER'S NAMEPLATE BSD-2601007003.A193 2601007003 -
22 - HEX NUT M 2.6 DIN 934-M-6 BSD-2915011002.A5 2915011002 -
23 - CABLE CLIP BSD-2601035005.A29 2601035005 £1.75 £2.10
24 - SOCKET HEAD CAP SCREW DIN 84-AM2.6x15-5.8 BSD-2910011033.A7 2910011033 -
25 - HEX NUT DIN 439-BM 3 BSD-2915051103.A12 2915051103 £1.75 £2.10
26 - SPRING LOCK WASHER A3-FSt BSD-2916690001.A118 2916690001 -
27 - PLAIN WASHER DIN 433-3.2-ST 50 BSD-2916011005.A50 2916011005 £1.75 £2.10
28 - HEX NUT DIN 934-M 3-m-8 BSD-2915011003.A105 2915011003 £1.75 £2.10
29 - NAMEPLATE BSD-2601100038.A60 2601100038 -
30 - ROUND-HEAD GROOVED PIN 2x3 DIN 1476 ST BSD-2917724031.A2 2917724031 -
31 - SOCKET HEAD CAP SCREW DIN 84-BM3x50-5.8 BSD-2910011074.A74 2910011074 £1.75 £2.10
32 - PLAIN WASHER DIN 433-3.2-ST 50 BSD-2916011005.A51 2916011005 £1.75 £2.10
33 - CABLE CLIP BSD-2601099015.A29 2601099015 £1.75 £2.10
34 - FIELD 110V BSD-2604220268.A6 2604220268 -
35 - SEAL RING BSD-2600113019.A11 2600113019 £2.80 £3.36
36 - SHIM BSD-2600100699.A77 2600100699 £1.75 £2.10
37 - SHIM BSD-2600150002.A70 2600150002 -
38 - GROOVE BALL BEARING 625-2Z DIN 625 BSD-1900905015.A55 1900905015 £30.42 £36.51
39 - SHIM 0.3 MM BSD-2600100612.A70 2600100612 £2.61 £3.13
40 - ARMATURE WITH FAN 100-115V BSD-2604010278.A6 2604010278 -
41 - FAN BSD-2606610038.A49 2606610038 -
42 - GROOVE BALL BEARING 609-ZY DIN 625 BSD-1900905007.A106 1900905007 -
43 - BEARING SLEEVE BSD-2600300044.A23 2600300044 -
44 - CUPPED WASHER BSD-2600500017.A57 2600500017 £1.75 £2.10
45 - FELT WASHER BSD-2600108026.A67 2600108026 £1.75 £2.10
46 - INTERMEDIATE BEARING BSD-2605700135.A0 2605700135 -
47 - SOCKET HEAD CAP SCREW BSD-1603410007.A0 1603410007 -
48 - TOOTHED GEAR Z=43 BSD-1606316012.A1 1606316012 -
49 - SPRING RETAINING RING DIN 472-26x1.2 MM BSD-2916660010.A35 2916660010 £1.75 £2.10
50 - SPACER SLEEVE BSD-1600300071.A7 1600300071 -
51 - GROOVE BALL BEARING BSD-3600900025.A21 3600900025 £8.67 £10.41
52 - GUIDE BSD-1609223006.A1 1609223006 -
53 - ECCENTRIC SHAFT BSD-1606110001.A1 1606110001 -
54 - NEEDLE-ROLLER BEARING BSD-1609269002.A1 1609269002 -
55 - CLAMP RING BSD-1600224032.A1 1600224032 -
56 - GROOVE BALL BEARING 609-ZY DIN 625 BSD-1900905007.A105 1900905007 -
57 - SINTERED-METAL BUSHING BSD-1900301005.A2 1900301005 -
58 - SHIM 0.3 MM BSD-2600100612.A71 2600100612 £2.61 £3.13
59 - TOOTHED SHAFT Z=31/12 BSD-1606328085.A1 1606328085 -
60 - GROOVE BALL BEARING 5x16x5 BSD-1900900232.A57 1900900232 £16.74 £20.09
61 - GEAR HOUSING BSD-1605110022.A1 1605110022 -
62 - CONNECTING ROD BSD-1602001004.A1 1602001004 -
63 - CONROD PIN BSD-1603100025.A1 1603100025 -
64 - TAPPET BSD-1603104008.A1 1603104008 -
65 - SPRING LOCK WASHER DIN 128-A4-FST BSD-2916690003.A644 2916690003 £1.75 £2.10
66 - SOCKET HEAD CAP SCREW DIN 84-BM4x40-8.8 BSD-2910021138.A57 2910021138 £2.61 £3.13
67 - CUT-OFF PUNCH BSD-1608635032.A7 1608635032 -
68 - THREADED RING BSD-1603344046.A1 1603344046 -
69 - TRANSVERSE MEMBER BSD-1603121015.A7 1603121015 -
70 - SET SCREW BSD-1603402014.A7 1603402014 -
71 - SUPPORT PIN BSD-1603501016.A1 1603501016 -
72 - HEX SOCKET HEAD CAP SCREW DIN 912-M 5x25-8.8 BSD-2910141164.A152 2910141164 £2.16 £2.59
73 - PISTON RING BSD-1609202007.A0 1609202007 -
74 - SUPPORTING PAN BSD-1600311006.A0 1600311006 -
75 - HEX SCREW BSD-1603300007.A1 1603300007 -
76 - GUIDE SLEEVE BSD-1600361009.A1 1600361009 -
77 - GUIDE BUSHING BSD-1603314007.A7 1603314007 -
78 - LOWER DIE BSD-1608635031.A0 1608635031 -
79 - DIE CARRIER BSD-1608042004.A0 1608042004 -
80 - HEX SOCKET HEAD CAP SCREW DIN 912-M5X16-8.8 BSD-2910141158.A157 2910141158 £1.75 £2.10
602 - KEY BSD-1607950033.A1 1607950033 -
603 - OFFSET SCREWDRIVER DIN 911-4 BSD-2607950004.A547 2607950004 £1.75 £2.10
800 - GEAR HEAD BSD-1608584007.A1 1608584007 -
807 - CARBON-BRUSH SET BSD-2604320905.A89 2604320905 -
835 - POWER SUPPLY CORD EU 4.15m 2 x 1.0mm H07 RN-F BSD-1607000227.A477 1607000227 £23.86 £28.63
835/020 - END SPLICE DIN 46 228-A1-6 BSD-1900452012.A26 1900452012 £1.75 £2.10
888 - NAMEPLATE BSD-160111A3H3.A3971 160111A3H3 £2.61 £3.13
