Bosch ---- / 0601526048 / I 220 Volt Spare Parts

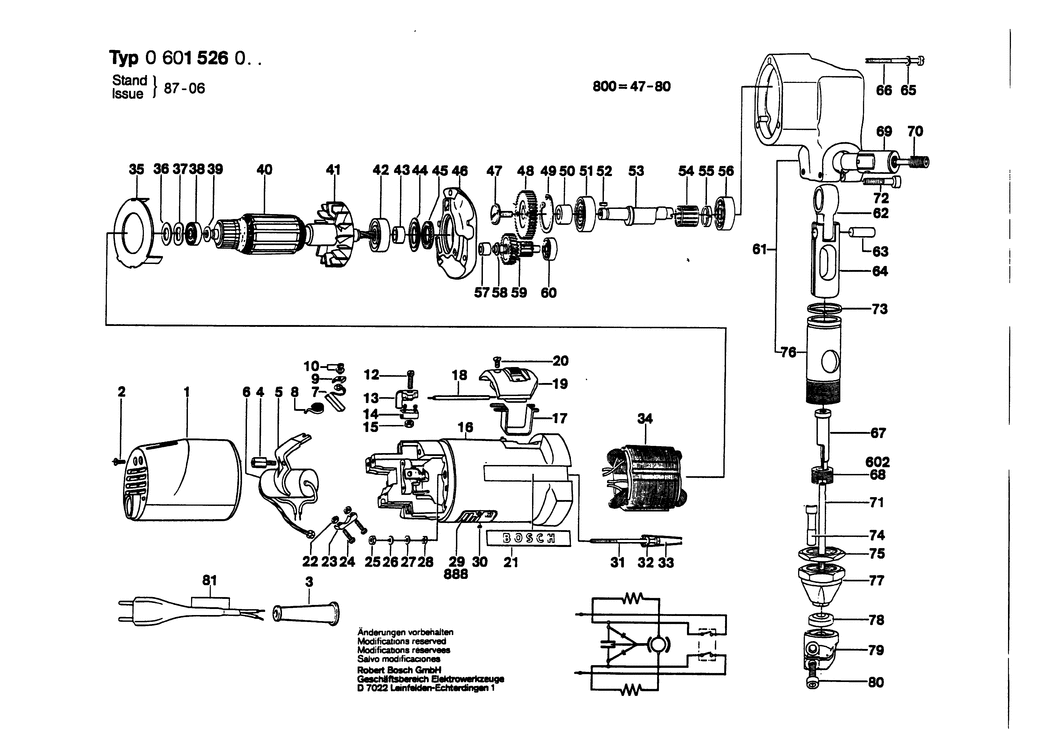

An exploded drawing and listing for the Bosch ---- / 0601526048 / I 220 Volt

	Ex VAT	Inc VAT
1 - HOUSING COVER BSD-3600508023.A63 3600508023	£13.41	£16.09
2 - COUNTERSUNK-HEAD SCREW DIN 63-AM3.5x8-5.8 BSD-2910501084.A82 2910501084	-
3 - GROMMET dia7 MM BSD-2600703007.A288 2600703007	-
3 - GROMMET dia8.2 MM BSD-2600703008.A45 2600703008	£1.75	£2.10
3 - GROMMET dia8.2 MM BSD-2600703008.A46 2600703008	£1.75	£2.10
3 - GROMMET dia9.5 MM BSD-2600703006.A95 2600703006	-
4 - HEX SCREW BSD-2603527004.A84 2603527004	£1.75	£2.10
5 - FASTENING CLAMP BSD-2601301002.A95 2601301002	£2.16	£2.59
6 - SUPPRESSION FILTER BSD-2607329048.A76 2607329048	-
8 - SPIRAL SPRING BSD-2604652000.A137 2604652000	-
9 - CLAMPING SADDLE BSD-2601321005.A71 2601321005	-
10 - SOCKET HEAD CAP SCREW BSD-2603410010.A217 2603410010	-
12 - SOCKET HEAD CAP SCREW M 2.6x5 DIN 84 BSD-2910011028.A39 2910011028	-
13 - CLAMPING PIECE BSD-2602305034.A2 2602305034	-
14 - CONNECTING TERMINAL BSD-2604490003.A26 2604490003	-
15 - HEX NUT M 2.6 DIN 934-M-6 BSD-2915011002.A14 2915011002	-
16 - MOTOR HOUSING BSD-2605108032.A78 2605108032	-
17 - INSULATING PART BSD-2601322002.A84 2601322002	£1.75	£2.10
18 - CABLE BSD-2604411061.A28 2604411061	-
19 - SWITCH BSD-2607200045.A12 2607200045	-
20 - COUNTERSUNK-HEAD SCREW M 3x6 DIN 63-5.8 BSD-2910501048.A15 2910501048	-
21 - MANUFACTURER'S NAMEPLATE BSD-2601007003.A197 2601007003	-
22 - HEX NUT M 2.6 DIN 934-M-6 BSD-2915011002.A15 2915011002	-
23 - CABLE CLIP BSD-2601035005.A25 2601035005	£1.75	£2.10
24 - SOCKET HEAD CAP SCREW DIN 84-AM2.6x15-5.8 BSD-2910011033.A12 2910011033	-
25 - HEX NUT DIN 439-BM 3 BSD-2915051103.A18 2915051103	£1.75	£2.10
26 - SPRING LOCK WASHER A3-FSt BSD-2916690001.A121 2916690001	-
27 - PLAIN WASHER DIN 433-3.2-ST 50 BSD-2916011005.A38 2916011005	£1.75	£2.10
28 - HEX NUT DIN 934-M 3-m-8 BSD-2915011003.A99 2915011003	£1.75	£2.10
29 - NAMEPLATE BSD-2601100038.A56 2601100038	-
30 - ROUND-HEAD GROOVED PIN 2x3 DIN 1476 ST BSD-2917724031.A5 2917724031	-
31 - SOCKET HEAD CAP SCREW DIN 84-BM3x50-5.8 BSD-2910011074.A70 2910011074	£1.75	£2.10
32 - PLAIN WASHER DIN 433-3.2-ST 50 BSD-2916011005.A39 2916011005	£1.75	£2.10
33 - CABLE CLIP BSD-2601099015.A34 2601099015	£1.75	£2.10
34 - FIELD 220-230V BSD-2604220269.A29 2604220269	-
35 - SEAL RING BSD-2600113019.A5 2600113019	£2.80	£3.36
36 - SHIM BSD-2600100699.A71 2600100699	£1.75	£2.10
37 - SHIM BSD-2600150002.A76 2600150002	-
38 - GROOVE BALL BEARING 625-2Z DIN 625 BSD-1900905015.A49 1900905015	£30.42	£36.51
39 - SHIM 0.3 MM BSD-2600100612.A81 2600100612	£2.61	£3.13
40 - ARMATURE 220-230V BSD-2604010275.A9 2604010275	-
41 - FAN BSD-2606610038.A46 2606610038	-
42 - GROOVE BALL BEARING 609-ZY DIN 625 BSD-1900905007.A115 1900905007	-
43 - BEARING SLEEVE BSD-2600300044.A18 2600300044	-
44 - CUPPED WASHER BSD-2600500017.A62 2600500017	£1.75	£2.10
45 - FELT WASHER BSD-2600108026.A72 2600108026	£1.75	£2.10
46 - INTERMEDIATE BEARING BSD-2605700135.A4 2605700135	-
47 - SOCKET HEAD CAP SCREW BSD-1603410007.A3 1603410007	-
48 - TOOTHED GEAR Z=43 BSD-1606316012.A5 1606316012	-
49 - SPRING RETAINING RING DIN 472-26x1.2 MM BSD-2916660010.A40 2916660010	£1.75	£2.10
50 - SPACER SLEEVE BSD-1600300071.A1 1600300071	-
51 - GROOVE BALL BEARING BSD-3600900025.A24 3600900025	£8.67	£10.41
52 - GUIDE BSD-1609223006.A4 1609223006	-
53 - ECCENTRIC SHAFT BSD-1606110001.A5 1606110001	-
54 - NEEDLE-ROLLER BEARING BSD-1609269002.A6 1609269002	-
55 - CLAMP RING BSD-1600224032.A8 1600224032	-
56 - GROOVE BALL BEARING 609-ZY DIN 625 BSD-1900905007.A120 1900905007	-
57 - SINTERED-METAL BUSHING BSD-1900301005.A0 1900301005	-
58 - SHIM 0.3 MM BSD-2600100612.A67 2600100612	£2.61	£3.13
59 - TOOTHED SHAFT Z=31/12 BSD-1606328085.A8 1606328085	-
60 - GROOVE BALL BEARING 5x16x5 BSD-1900900232.A65 1900900232	£16.74	£20.09
61 - GEAR HOUSING BSD-1605110022.A8 1605110022	-
62 - CONNECTING ROD BSD-1602001004.A8 1602001004	-
63 - CONROD PIN BSD-1603100025.A8 1603100025	-
64 - TAPPET BSD-1603104008.A8 1603104008	-
65 - SPRING LOCK WASHER DIN 128-A4-FST BSD-2916690003.A648 2916690003	£1.75	£2.10
66 - SOCKET HEAD CAP SCREW DIN 84-BM4x40-8.8 BSD-2910021138.A55 2910021138	£2.61	£3.13
67 - CUT-OFF PUNCH BSD-1608635032.A0 1608635032	-
68 - THREADED RING BSD-1603344046.A8 1603344046	-
69 - TRANSVERSE MEMBER BSD-1603121015.A0 1603121015	-
70 - SET SCREW BSD-1603402014.A0 1603402014	-
71 - SUPPORT PIN BSD-1603501016.A8 1603501016	-
72 - HEX SOCKET HEAD CAP SCREW DIN 912-M 5x25-8.8 BSD-2910141164.A153 2910141164	£2.16	£2.59
73 - PISTON RING BSD-1609202007.A8 1609202007	-
74 - SUPPORTING PAN BSD-1600311006.A8 1600311006	-
75 - HEX SCREW BSD-1603300007.A8 1603300007	-
76 - GUIDE SLEEVE BSD-1600361009.A8 1600361009	-
77 - GUIDE BUSHING BSD-1603314007.A0 1603314007	-
78 - LOWER DIE BSD-1608635031.A8 1608635031	-
79 - DIE CARRIER BSD-1608042004.A8 1608042004	-
80 - HEX SOCKET HEAD CAP SCREW DIN 912-M5X16-8.8 BSD-2910141158.A156 2910141158	£1.75	£2.10
81 - POWER SUPPLY CORD CH 2.65m 2 x 1.0mm H05 VV-F BSD-1604460427.A123 1604460427	£12.04	£14.45
602 - KEY BSD-1607950033.A8 1607950033	-
603 - OFFSET SCREWDRIVER DIN 911-4 BSD-2607950004.A542 2607950004	£1.75	£2.10
800 - GEAR HEAD BSD-1608584007.A8 1608584007	-
807 - CARBON-BRUSH SET BSD-2604320905.A81 2604320905	-
888 - NAMEPLATE BSD-160111A3H3.A3969 160111A3H3	£2.61	£3.13
