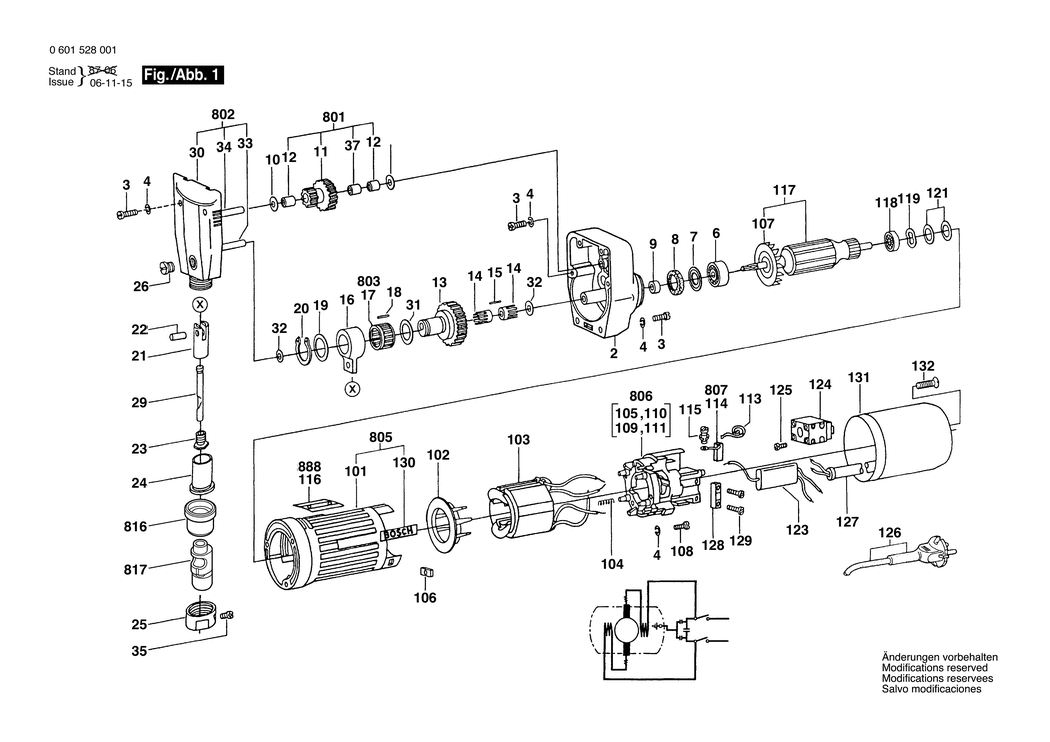

An exploded drawing and listing for the Bosch ---- / 0601528001 / EU 110 Volt
Ex VAT Inc VAT
2 - BEARING FLANGE BSD-2605700015.A1 2605700015 -
3 - SOCKET HEAD CAP SCREW DIN 84-AM4x12-8.8 BSD-2910021122.A204 2910021122 £2.16 £2.59
4 - SPRING LOCK WASHER DIN 128-A4-FST BSD-2916690003.A646 2916690003 £1.75 £2.10
6 - GROOVE BALL BEARING 6000 DIN 625 BSD-1900900270.A32 1900900270 -
7 - CUPPED WASHER BSD-2600500008.A17 2600500008 -
8 - FELT DISC BSD-2600108020.A0 2600108020 -
9 - RECEPTACLE BSD-2600400020.A85 2600400020 -
10 - SHIM 0.5 MM BSD-2600100628.A300 2600100628 £1.75 £2.10
12 - NEEDLE BEARING BSD-2600914004.A102 2600914004 £4.26 £5.11
13 - CYLINDRICAL GEAR Z=58 BSD-2606300016.A7 2606300016 -
14 - NEEDLE-ROLLER CAGE BSD-2600913033.A22 2600913033 -
15 - NEEDLE ROLLER 2x7.8 G 2 DIN 5402 BSD-1903201000.A38 1903201000 -
16 - BEARING HOUSING BSD-2602001006.A22 2602001006 -
18 - NEEDLE ROLLER 2x9.8 G2 DIN 5402 BSD-1903201001.A0 1903201001 -
19 - SHIM 0.8 MM BSD-2600102029.A1 2600102029 -
20 - SPRING RETAINING RING 22x1.2 DIN 471 BSD-2916650012.A0 2916650012 -
21 - POWER PISTON BSD-2603104001.A32 2603104001 £54.42 £65.30
22 - BEARING BOLT BSD-2603100003.A6 2603100003 £2.61 £3.13
23 - HOLLOW BOLT BSD-2603455006.A32 2603455006 £2.80 £3.36
24 - BUSHING BSD-2600422005.A32 2600422005 £18.96 £22.75
25 - UNION NUT BSD-2603314016.A0 2603314016 -
26 - SCREW PLUG BSD-2603463001.A44 2603463001 -
29 - NIBBLING PUNCH BSD-2608639013.A34 2608639013 £24.49 £29.39
31 - SHIM BSD-2600102028.A12 2600102028 -
32 - SHIM 0.5 MM BSD-2600100563.A0 2600100563 -
33 - BEARING BOLT BSD-2603100032.A0 2603100032 -
34 - BEARING BOLT BSD-2603100031.A22 2603100031 -
35 - SOCKET HEAD CAP SCREW DIN 84-AM5x6-5.8 BSD-2910011148.A0 2910011148 £1.75 £2.10
37 - INSULATING BUSHING BSD-2600309003.A0 2600309003 -
102 - COVER DISC BSD-2600522009.A69 2600522009 -
103 - POLE SHOE 110V BSD-2604220250.A10 2604220250 -
104 - COMPRESSION SPRING BSD-2604611024.A83 2604611024 £2.16 £2.59
106 - SQUARE NUT M4 BSD-2603320001.A153 2603320001 £1.75 £2.10
107 - FAN BSD-2606610013.A111 2606610013 -
108 - SOCKET HEAD CAP SCREW DIN 84-AM4x15-8.8 BSD-2910021125.A752 2910021125 £1.75 £2.10
113 - SPIRAL SPRING BSD-2604652000.A131 2604652000 -
115 - SCREW AND WASHER ASSEMBLY DIN7985-M3x6-Z1-4.8 BSD-2914501011.A51 2914501011 £1.75 £2.10
117 - ARMATURE WITH FAN 110V BSD-2604010315.A1 2604010315 -
118 - GROOVE BALL BEARING 6x19x6 BSD-1900905019.A118 1900905019 £14.91 £17.89
119 - SHIM BSD-2600150003.A93 2600150003 £2.16 £2.59
121 - SHIM BSD-2601101655.A0 2601101655 -
121 - SHIM BSD-2601101656.A6 2601101656 -
121 - SHIM BSD-2601101657.A0 2601101657 -
124 - ON-OFF SWITCH BSD-2607200048.A90 2607200048 -
125 - SOCKET HEAD CAP SCREW M3x6.5-4.8 BSD-2603410001.A2383 2603410001 £1.75 £2.10
127 - GROMMET dia8.3-dia9.4x95 MM BSD-2600703011.A567 2600703011 £2.80 £3.36
127 - GROMMET dia6.5-dia6.9x95 MM BSD-2600703012.A654 2600703012 £2.80 £3.36
127 - GROMMET dia7.6-dia8.2x95 MM BSD-2600703013.A569 2600703013 £2.61 £3.13
128 - CABLE CLIP BSD-2601035001.A2353 2601035001 £1.75 £2.10
129 - TAPPING SCREW DIN 7971-ST3.9x16-F BSD-2910211019.A333 2910211019 £1.75 £2.10
130 - MANUFACTURER'S NAMEPLATE BSD-1601110013.A116 1601110013 -
131 - HOUSING COVER BSD-2600508028.A61 2600508028 -
132 - REC CT-SUNK TAPPING SCREW BZ 3.9x19 DIN 7972 BSD-2910601020.A1 2910601020 -
801 - CYLINDRICAL GEAR BSD-2606328903.A5 2606328903 -
802 - GEAR HOUSING BSD-2605806919.A5 2605806919 -
803 - NEEDLE-ROLLER BEARING BSD-2600910002.A21 2600910002 -
805 - GEAR HOUSING BSD-2607010003.A59 2607010003 -
806 - COMMUTATOR END SHIELD BSD-2607010004.A0 2607010004 -
807 - CARBON-BRUSH SET BSD-2604320902.A13 2604320902 -
816 - LOWER DIE RING BSD-3608639030.A9 3608639030 £21.68 £26.01
817 - LOWER DIE BSD-2608639003.A6 2608639003 £81.81 £98.17
888 - NAMEPLATE BSD-160111A3H3.A3963 160111A3H3 £2.61 £3.13
