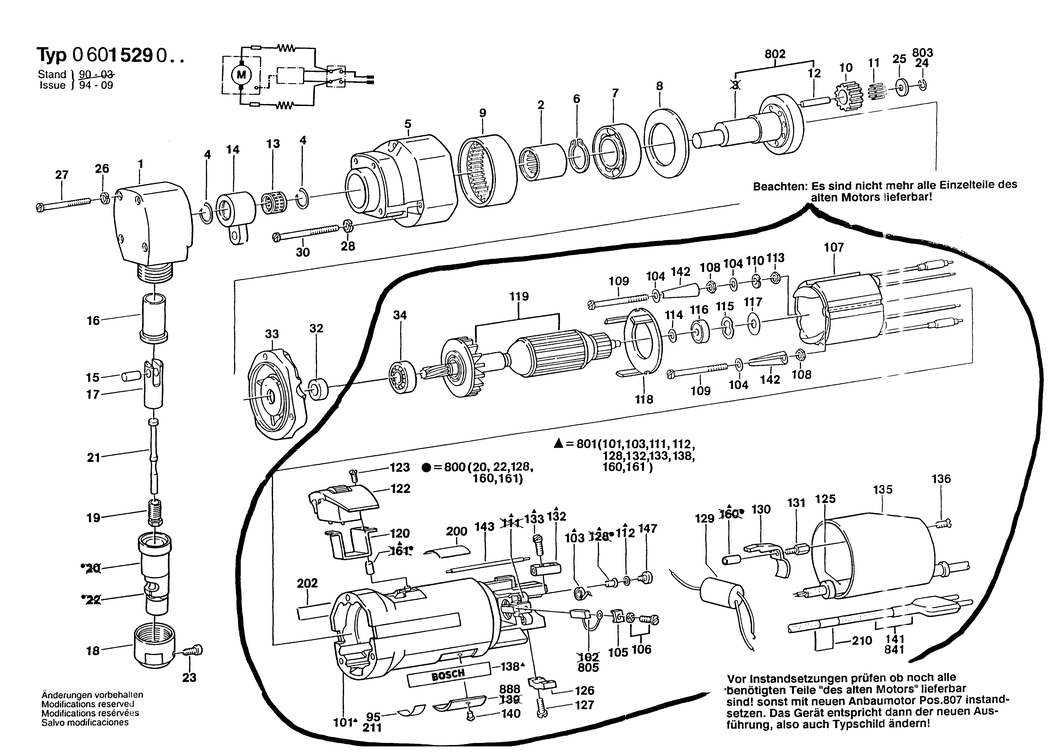

1 - GEAR COVER
BSD-2605500042.A4
2605500042
|
£48.38
|
£58.06
|
|
2 - NEEDLE BEARING
BSD-2600914011.A2
2600914011
|
£21.52
|
£25.83
|
|
4 - RETAINING RING
BSD-2600224009.A0
2600224009
|
£1.75
|
£2.10
|
|
5 - GEAR HOUSING
BSD-2605806306.A2
2605806306
|
-
|
|
|
6 - SPRING RETAINING RING DIN 471 20x1.2
BSD-2916650011.A22
2916650011
|
£2.16
|
£2.59
|
|
7 - GROOVE BALL BEARING 20x42x12
BSD-1900900274.A20
1900900274
|
£27.23
|
£32.68
|
|
8 - DISC SPRING
BSD-2600550017.A13
2600550017
|
£5.58
|
£6.70
|
|
9 - RING GEAR Z=66
BSD-2606334040.A8
2606334040
|
£27.23
|
£32.68
|
|
10 - CYLINDRICAL GEAR Z=29
BSD-2606316033.A0
2606316033
|
-
|
|
|
11 - NEEDLE ROLLER
BSD-1903201520.A14
1903201520
|
£1.75
|
£2.10
|
|
12 - BEARING BOLT
BSD-2603105021.A15
2603105021
|
£2.61
|
£3.13
|
|
13 - NEEDLE-ROLLER CAGE
BSD-2600913035.A12
2600913035
|
£11.30
|
£13.56
|
|
14 - CONNECTING ROD
BSD-2602001001.A14
2602001001
|
£54.42
|
£65.30
|
|
15 - BEARING BOLT
BSD-2603100003.A44
2603100003
|
£2.61
|
£3.13
|
|
16 - BUSHING
BSD-2600422005.A6
2600422005
|
£18.96
|
£22.75
|
|
17 - POWER PISTON
BSD-2603104001.A6
2603104001
|
£54.42
|
£65.30
|
|
18 - UNION NUT
BSD-3603340017.A17
3603340017
|
£33.74
|
£40.49
|
|
19 - HOLLOW BOLT
BSD-2603455006.A22
2603455006
|
£2.80
|
£3.36
|
|
21 - NIBBLING PUNCH
BSD-2608639013.A9
2608639013
|
£24.49
|
£29.39
|
|
23 - HEX SOCKET HEAD CAP SCREW
BSD-2603414003.A2
2603414003
|
£6.52
|
£7.83
|
|
24 - LOCKING WASHER 5 DIN 6799
BSD-2916080908.A224
2916080908
|
£1.75
|
£2.10
|
|
25 - SHIM 1.2 MM
BSD-1600100611.A23
1600100611
|
£1.75
|
£2.10
|
|
26 - SPRING LOCK WASHER DIN 128-A4-FST
BSD-2916690003.A28
2916690003
|
£1.75
|
£2.10
|
|
27 - SOCKET HEAD CAP SCREW DIN 84-BM4x40-8.8
BSD-2910021138.A36
2910021138
|
£2.61
|
£3.13
|
|
28 - SPRING LOCK WASHER DIN 128-A4-FST
BSD-2916690003.A27
2916690003
|
£1.75
|
£2.10
|
|
30 - SOCKET HEAD CAP SCREW DIN 84-BM4x40-8.8
BSD-2910021138.A35
2910021138
|
£2.61
|
£3.13
|
|
32 - SEAL BUSHING
BSD-2600300047.A43
2600300047
|
£2.61
|
£3.13
|
|
33 - BEARING FLANGE
BSD-2605700182.A0
2605700182
|
-
|
|
|
34 - GROOVE BALL BEARING 9x24x7
BSD-2600905021.A455
2600905021
|
£8.67
|
£10.41
|
|
95 - STICKER
BSD-1601110265.A169
1601110265
|
-
|
|
|
101 - MOTOR HOUSING
BSD-2605108032.A51
2605108032
|
-
|
|
|
103 - SPIRAL SPRING
BSD-2604652000.A20
2604652000
|
-
|
|
|
104 - PLAIN WASHER DIN 433-3.2-ST 50
BSD-2916011005.A542
2916011005
|
£1.75
|
£2.10
|
|
105 - CLAMPING SADDLE
BSD-2601321005.A6
2601321005
|
-
|
|
|
106 - SCREW AND WASHER ASSEMBLY DIN7985-M3x6-Z1-4.8
BSD-2914501011.A166
2914501011
|
£1.75
|
£2.10
|
|
107 - FIELD 220-230V
BSD-2604220269.A5
2604220269
|
-
|
|
|
108 - HEX NUT DIN 934-M 3-m-8
BSD-2915011003.A52
2915011003
|
£1.75
|
£2.10
|
|
109 - SOCKET HEAD CAP SCREW DIN 84-BM3x50-5.8
BSD-2910011074.A40
2910011074
|
£1.75
|
£2.10
|
|
110 - SPRING LOCK WASHER A3-FSt
BSD-2916690001.A68
2916690001
|
-
|
|
|
112 - PLAIN WASHER dia 2.6 MM-ST
BSD-2916021007.A16
2916021007
|
-
|
|
|
113 - HEX NUT DIN 439-BM 3
BSD-2915051103.A81
2915051103
|
£1.75
|
£2.10
|
|
114 - SHIM
BSD-2600100699.A24
2600100699
|
£1.75
|
£2.10
|
|
115 - SHIM
BSD-2600150002.A35
2600150002
|
-
|
|
|
116 - GROOVE BALL BEARING 625-2Z DIN 625
BSD-1900905015.A214
1900905015
|
£30.42
|
£36.51
|
|
117 - SHIM 0.3 MM
BSD-2600100612.A21
2600100612
|
£2.61
|
£3.13
|
|
118 - SEAL RING
BSD-2600113019.A70
2600113019
|
£2.80
|
£3.36
|
|
119 - ARMATURE 220-240V
BSD-2604010447.A0
2604010447
|
-
|
|
|
120 - INSULATING PART
BSD-2601322002.A9
2601322002
|
£1.75
|
£2.10
|
|
122 - SWITCH
BSD-2607200045.A76
2607200045
|
-
|
|
|
123 - COUNTERSUNK-HEAD SCREW M 3x6 DIN 963-5.8
BSD-2910771048.A1
2910771048
|
£1.75
|
£2.10
|
|
125 - GROMMET dia8.3-dia9.4x95 MM
BSD-2600703011.A189
2600703011
|
£2.80
|
£3.36
|
|
126 - CABLE CLIP
BSD-2601035005.A84
2601035005
|
£1.75
|
£2.10
|
|
127 - TAPPING SCREW DIN 7971-BZ3.5x13
BSD-2910211011.A241
2910211011
|
£1.75
|
£2.10
|
|
129 - SUPPRESSION FILTER
BSD-2607329048.A11
2607329048
|
-
|
|
|
130 - FASTENING CLAMP
BSD-2601301002.A9
2601301002
|
£2.16
|
£2.59
|
|
131 - HEX SCREW
BSD-2603527004.A24
2603527004
|
£1.75
|
£2.10
|
|
132 - CONNECTING TERMINAL
BSD-2604490005.A1
2604490005
|
£1.75
|
£2.10
|
|
133 - SOCKET HEAD CAP SCREW
BSD-2603410009.A50
2603410009
|
£1.32
|
£1.58
|
|
135 - HOUSING COVER
BSD-3600508004.A1
3600508004
|
£13.41
|
£16.09
|
|
136 - COUNTERSUNK-HEAD SCREW DIN 63-AM3.5x8-5.8
BSD-2910501084.A33
2910501084
|
-
|
|
|
138 - MANUFACTURER'S NAMEPLATE
BSD-2601007003.A89
2601007003
|
-
|
|
|
140 - GROOVED NAIL
BSD-3603133000.A351
3603133000
|
£2.61
|
£3.13
|
|
142 - CABLE CLIP
BSD-2601099015.A57
2601099015
|
£1.75
|
£2.10
|
|
143 - CABLE
BSD-2604411061.A79
2604411061
|
-
|
|
|
147 - RETAINING PIN
BSD-2603123013.A4
2603123013
|
-
|
|
|
654 - OFFSET SCREWDRIVER DIN 911 SW2.5
BSD-1907950003.A9
1907950003
|
£2.61
|
£3.13
|
|
800 - LOWER DIE
BSD-2608639900.A12
2608639900
|
£83.12
|
£99.74
|
|
801 - MOTOR HOUSING
BSD-2605108032.A50
2605108032
|
-
|
|
|
802 - ECCENTRIC SHAFT
BSD-2606122900.A14
2606122900
|
-
|
|
|
803 - LOCKING WASHER DIN 6799-5-FSt
BSD-2916080008.A175
2916080008
|
-
|
|
|
805 - CARBON-BRUSH SET
BSD-2604320905.A35
2604320905
|
-
|
|
|
807 - UN. FLANGE-MTD. MOTOR 230V
BSD-3607220013.A0
3607220013
|
-
|
|
|
841 - POWER SUPPLY CORD EU 4.15m 2 x 1.0mm H07 RN-F
BSD-1607000227.A25
1607000227
|
£23.86
|
£28.63
|
|
888 - NAMEPLATE
BSD-160111A3H3.A1136
160111A3H3
|
£2.61
|
£3.13
|
|
