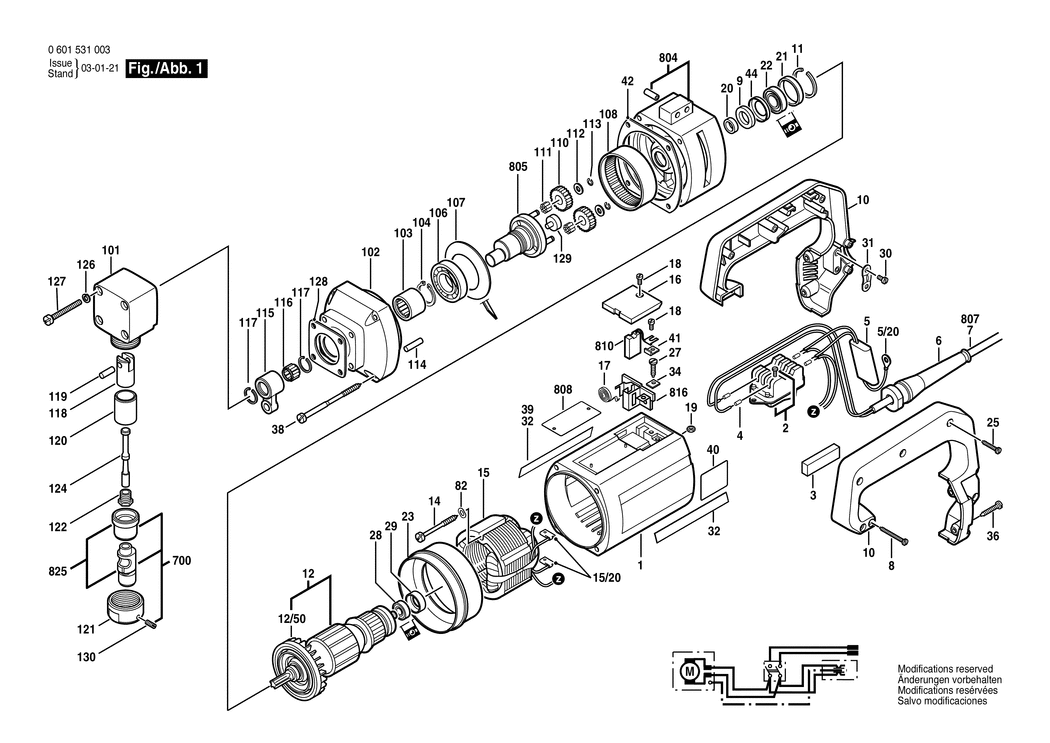

1 - MOTOR HOUSING
BSD-3605108145.A63
3605108145
|
£27.23
|
£32.68
|
|
|
2 - SWITCH
BSD-1607200065.A8
1607200065
|
-
|
|
|
|
3 - INSULATING STRIP 33x10x6 MM
BSD-1602381001.A387
1602381001
|
-
|
|
|
|
4 - END SPLICE DIN 46 228-A2.5-7
BSD-1900452003.A128
1900452003
|
£2.61
|
£3.13
|
|
|
5 - SUPPRESSION CAPACITOR
BSD-1607328012.A1
1607328012
|
-
|
|
|
|
5/20 - TERMINAL LUG
BSD-1601353003.A104
1601353003
|
-
|
|
|
|
6 - GROMMET dia9.2-dia12x120 MM
BSD-3600703011.A968
3600703011
|
£2.80
|
£3.36
|
|
|
6 - GROMMET dia11.5-dia15.0x150 MM
BSD-1600703009.A517
1600703009
|
£5.58
|
£6.70
|
|
|
7 - POWER SUPPLY CORD
BSD-1604460097.A5
1604460097
|
-
|
|
|
|
8 - TAPPING SCREW DIN 7971-3.9x38
BSD-2910215093.A96
2910215093
|
-
|
|
|
|
9 - FELT DISC
BSD-1600108003.A74
1600108003
|
£1.32
|
£1.58
|
|
|
10 - HANDLE
BSD-1605133029.A24
1605133029
|
-
|
|
|
|
11 - RETAINING RING 35 DIN 9045
BSD-2916600018.A46
2916600018
|
£1.75
|
£2.10
|
|
|
12 - ARMATURE 220-230V
BSD-1604010175.A1
1604010175
|
-
|
|
|
|
12/50 - FAN
BSD-1606610107.A0
1606610107
|
-
|
|
|
|
14 - TAPPING SCREW B4.8x50 MM
BSD-1603435012.A28
1603435012
|
£1.75
|
£2.10
|
|
|
15 - FIELD 220-230V
BSD-1604220159.A1
1604220159
|
-
|
|
|
|
15/20 - TERMINAL LUG 1.5-4x4
BSD-1901350003.A169
1901350003
|
£1.75
|
£2.10
|
|
|
16 - SEALING CAP
BSD-1605500129.A0
1605500129
|
-
|
|
|
|
17 - SPIRAL SPRING
BSD-1604652006.A230
1604652006
|
£1.75
|
£2.10
|
|
|
18 - SOCKET HEAD CAP SCREW DIN 84-AM4x8-8.8
BSD-2910021118.A1034
2910021118
|
£1.75
|
£2.10
|
|
|
19 - HEX NUT DIN 934 -M4-m-8
BSD-2915011005.A514
2915011005
|
£1.75
|
£2.10
|
|
|
20 - INTERMEDIATE RING
BSD-1600202036.A7
1600202036
|
-
|
|
|
|
21 - INTERMEDIATE RING
BSD-1600206018.A3
1600206018
|
-
|
|
|
|
22 - GROOVE BALL BEARING 6x19x6
BSD-1900905019.A45
1900905019
|
£14.91
|
£17.89
|
|
|
23 - AIR-DEFLECTOR RING
BSD-1600502015.A4
1600502015
|
-
|
|
|
|
25 - TAPPING SCREW DIN 7971-BZ3.9x25
BSD-2910211022.A45
2910211022
|
£1.75
|
£2.10
|
|
|
27 - TAPPING SCREW DIN 7971-BZ3.5x13
BSD-2910211011.A254
2910211011
|
£1.75
|
£2.10
|
|
|
28 - BALL BEARING 7x19x6
BSD-2600905032.A342
2600905032
|
£5.30
|
£6.36
|
|
|
29 - RUBBER BUSHING
BSD-1600502020.A249
1600502020
|
£2.61
|
£3.13
|
|
|
30 - SOCKET HEAD CAP SCREW DIN 84-AM4x6-8.8
BSD-2910021116.A429
2910021116
|
£2.16
|
£2.59
|
|
|
31 - FASTENING CLAMP
BSD-1601302014.A953
1601302014
|
£2.61
|
£3.13
|
|
|
34 - TAB WASHER
BSD-1601030022.A237
1601030022
|
£1.75
|
£2.10
|
|
|
36 - TORX OVAL-HEAD SCREW
BSD-2914201529.A55
2914201529
|
£1.75
|
£2.10
|
|
|
38 - TAPPING SCREW 79 MM
BSD-2603435012.A118
2603435012
|
-
|
|
|
|
42 - SEALING PLATE
BSD-1601015013.A47
1601015013
|
£1.75
|
£2.10
|
|
|
44 - RETAINING SNAP RING
BSD-1610500004.A11
1610500004
|
-
|
|
|
|
82 - SPRING WASHER DIN 137-A5-FST
BSD-2916060006.A18
2916060006
|
£1.32
|
£1.58
|
|
|
101 - GEAR COVER
BSD-3605806009.A1
3605806009
|
-
|
|
|
|
102 - GEAR HOUSING
BSD-3605110024.A21
3605110024
|
£103.14
|
£123.77
|
|
|
103 - NEEDLE-ROLLER BEARING
BSD-3600910001.A13
3600910001
|
-
|
|
|
|
104 - SPRING RETAINING RING DIN 471 25x1.2
BSD-2916650014.A124
2916650014
|
£1.75
|
£2.10
|
|
|
106 - GROOVE BALL BEARING
BSD-3600905011.A9
3600905011
|
£14.72
|
£17.67
|
|
|
107 - DISC SPRING
BSD-3600550000.A21
3600550000
|
-
|
|
|
|
108 - RING GEAR Z=75
BSD-3606334009.A2
3606334009
|
£120.11
|
£144.13
|
|
|
110 - CYLINDRICAL GEAR Z=35
BSD-3606316015.A13
3606316015
|
£24.45
|
£29.34
|
|
|
111 - NEEDLE ROLLER A 2.5x9.8 G2 DIN 5402
BSD-1903201021.A12
1903201021
|
£1.75
|
£2.10
|
|
|
112 - SHIM 1.2 MM
BSD-1600100611.A33
1600100611
|
£1.75
|
£2.10
|
|
|
113 - LOCKING WASHER 5 DIN 6799
BSD-2916080908.A240
2916080908
|
£1.75
|
£2.10
|
|
|
114 - NEEDLE ROLLER A 3x15.8G2DIN5402
BSD-1903201044.A29
1903201044
|
£2.33
|
£2.80
|
|
|
115 - CONNECTING ROD
BSD-3602001001.A13
3602001001
|
£80.61
|
£96.73
|
|
|
116 - NEEDLE-ROLLER ASSEMBLY
BSD-3600913001.A9
3600913001
|
£11.30
|
£13.56
|
|
|
117 - RETAINING RING
BSD-3600224005.A21
3600224005
|
£1.75
|
£2.10
|
|
|
118 - POWER PISTON
BSD-3608750006.A1
3608750006
|
-
|
|
|
|
119 - STRAIGHT PIN
BSD-3603100000.A24
3603100000
|
£5.01
|
£6.01
|
|
|
120 - BEARING SLEEVE
BSD-3600400002.A2
3600400002
|
-
|
|
|
|
121 - UNION NUT
BSD-3603343001.A1
3603343001
|
-
|
|
|
|
122 - HOLLOW BOLT
BSD-3603457000.A9
3603457000
|
-
|
|
|
|
124 - NIBBLING PUNCH
BSD-3608639001.A1
3608639001
|
-
|
|
|
|
126 - SPRING LOCK WASHER M6
BSD-2916690005.A9
2916690005
|
-
|
|
|
|
127 - SOCKET HEAD CAP SCREW DIN 84-BM 6x50-8.8
BSD-2910021213.A9
2910021213
|
£1.32
|
£1.58
|
|
|
128 - SEAL
BSD-3601015003.A19
3601015003
|
£3.72
|
£4.47
|
|
|
129 - COUNTERWEIGHT
BSD-3603120000.A8
3603120000
|
-
|
|
|
|
130 - SET SCREW M 6x10-DIN 551-5.8
BSD-2912031191.A9
2912031191
|
-
|
|
|
|
804 - ASSEMBLY OF SERVICE PARTS
BSD-3607031160.A7
3607031160
|
-
|
|
|
|
805 - ECCENTRIC SHAFT
BSD-3606110003.A9
3606110003
|
-
|
|
|
|
808 - NAMEPLATE
BSD-160111A3H3.A1083
160111A3H3
|
£2.61
|
£3.13
|
|
|
810 - CARBON-BRUSH SET
BSD-1607014126.A112
1607014126
|
£16.41
|
£19.69
|
|
|
816 - BRUSH HOLDER
BSD-1604336017.A186
1604336017
|
£7.36
|
£8.83
|
|
|
825 - LOWER DIE
BSD-2608639006.A2
2608639006
|
£195.26
|
£234.31
|
|
