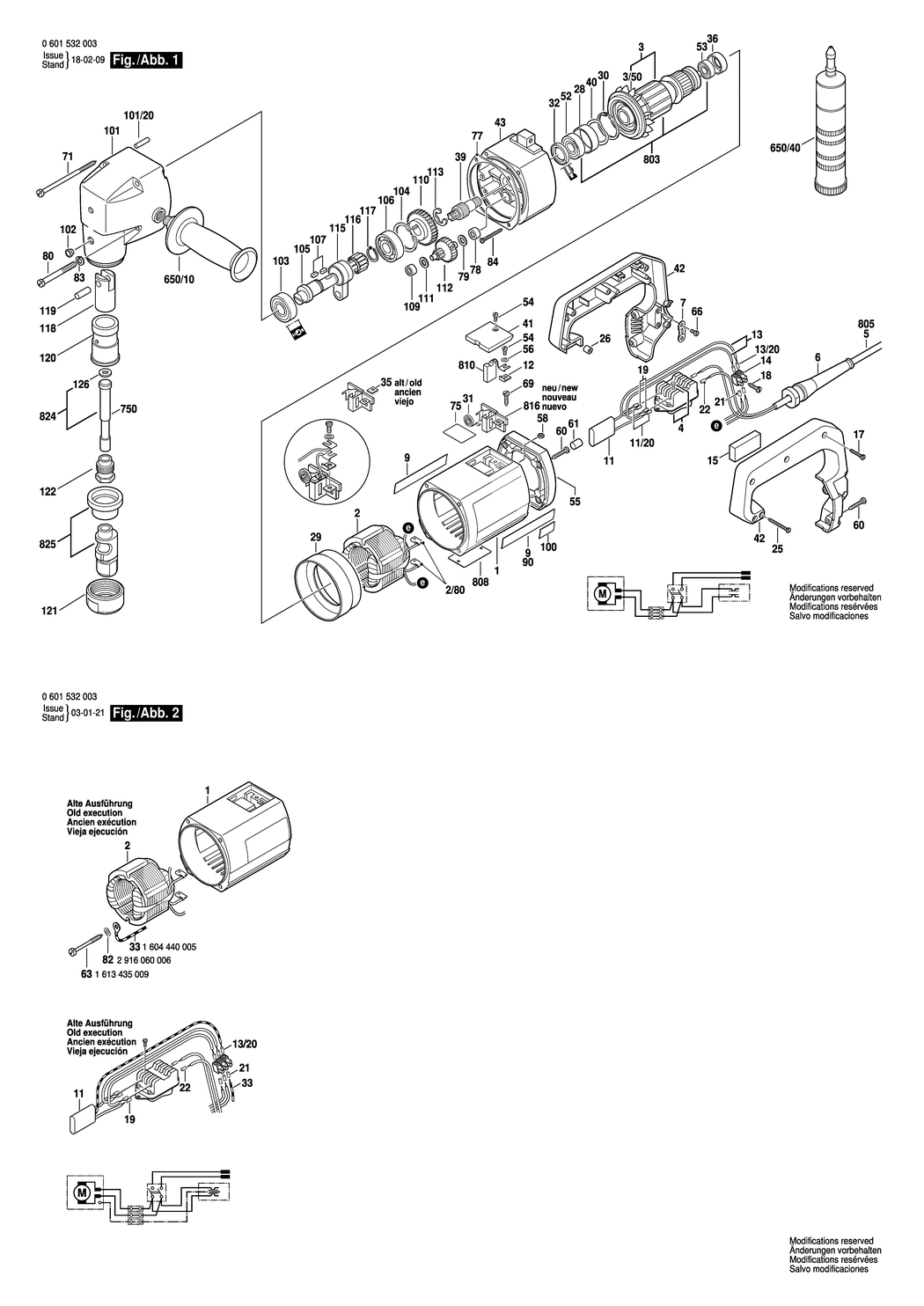

1 - MOTOR HOUSING
BSD-3605108088.A2
3605108088
|
-
|
|
|
2 - FIELD 220-230V
BSD-1604220122.A6
1604220122
|
-
|
|
|
2/80 - TERMINAL LUG 1.5-4x4
BSD-1901350003.A162
1901350003
|
£1.75
|
£2.10
|
|
3 - ARMATURE 220-230V
BSD-1604011236.A0
1604011236
|
-
|
|
|
3/50 - FAN
BSD-1606610133.A6
1606610133
|
-
|
|
|
4 - SWITCH
BSD-1607200065.A10
1607200065
|
-
|
|
|
6 - GROMMET dia9.2-dia12x120 MM
BSD-3600703011.A978
3600703011
|
£2.80
|
£3.36
|
|
7 - FASTENING CLAMP
BSD-1601302014.A965
1601302014
|
£2.61
|
£3.13
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-1601110005.A42
1601110005
|
-
|
|
|
11 - SUPPRESSION FILTER
BSD-1607328034.A443
1607328034
|
£4.26
|
£5.11
|
|
11/20 - END SPLICE
BSD-3604477008.A3
3604477008
|
£1.75
|
£2.10
|
|
13 - POWER SUPPLY CORD
BSD-1604431001.A2
1604431001
|
-
|
|
|
13/20 - END SPLICE
BSD-3604477008.A4
3604477008
|
£1.75
|
£2.10
|
|
14 - STRIP TERMINAL
BSD-1901091110.A23
1901091110
|
£1.75
|
£2.10
|
|
15 - INSULATING STRIP 33x10x6 MM
BSD-1602381001.A382
1602381001
|
-
|
|
|
17 - TAPPING SCREW DIN 7971-BZ3.9x25
BSD-2910211022.A56
2910211022
|
£1.75
|
£2.10
|
|
18 - TAPPING SCREW DIN 7971-BZ2.9x16
BSD-2910211007.A23
2910211007
|
£1.75
|
£2.10
|
|
19 - END SPLICE DIN 46 228-A2.5-7
BSD-1900452003.A125
1900452003
|
£2.61
|
£3.13
|
|
21 - END SPLICE DIN 46 228-A1-6
BSD-1900452012.A359
1900452012
|
£1.75
|
£2.10
|
|
22 - END SPLICE DIN 46 228-A1-6
BSD-1900452012.A360
1900452012
|
£1.75
|
£2.10
|
|
25 - TAPPING SCREW DIN 7971-3.9x38
BSD-2910215093.A85
2910215093
|
-
|
|
|
26 - GUIDE BUSHING
BSD-1610313003.A16
1610313003
|
£5.01
|
£6.01
|
|
28 - RUBBER RING 10 MM
BSD-1600206014.A94
1600206014
|
£1.75
|
£2.10
|
|
29 - AIR-DEFLECTOR RING
BSD-1600502009.A18
1600502009
|
-
|
|
|
30 - SPRING RETAINING RING DIN 472 38X1.5MM
BSD-2916660017.A127
2916660017
|
£4.26
|
£5.11
|
|
31 - SPIRAL SPRING
BSD-1604652006.A217
1604652006
|
£1.75
|
£2.10
|
|
32 - ROTARY SHAFT LIP SEAL
BSD-1600290008.A196
1600290008
|
£2.61
|
£3.13
|
|
35 - TAB WASHER
BSD-1601030022.A239
1601030022
|
£1.75
|
£2.10
|
|
36 - RUBBER BUSHING
BSD-1600502006.A103
1600502006
|
£1.75
|
£2.10
|
|
39 - PINION Z=7
BSD-3606312000.A12
3606312000
|
-
|
|
|
40 - SPRING WASHER dia27.5x38.4 MM
BSD-1600150007.A140
1600150007
|
£1.75
|
£2.10
|
|
41 - SEALING CAP
BSD-1605500089.A280
1605500089
|
-
|
|
|
42 - HANDLE
BSD-1605133029.A37
1605133029
|
-
|
|
|
43 - INTERMEDIATE BEARING
BSD-1605820224.A10
1605820224
|
£167.68
|
£201.22
|
|
52 - GROOVE BALL BEARING 15x35x11
BSD-1900905234.A100
1900905234
|
£31.64
|
£37.97
|
|
53 - GROOVE BALL BEARING 10x26x8
BSD-1900900407.A55
1900900407
|
-
|
|
|
54 - SOCKET HEAD CAP SCREW DIN 84-AM4x8-8.8
BSD-2910021118.A1040
2910021118
|
£1.75
|
£2.10
|
|
55 - INTERMEDIATE FLANGE
BSD-3605700090.A6
3605700090
|
-
|
|
|
58 - HEX NUT DIN 934 -M4-m-8
BSD-2915011005.A518
2915011005
|
£1.75
|
£2.10
|
|
60 - TAPPING SCREW B4.8x27 MM
BSD-1603435018.A12
1603435018
|
-
|
|
|
61 - PLUG
BSD-3600502001.A0
3600502001
|
£1.95
|
£2.34
|
|
66 - SOCKET HEAD CAP SCREW DIN 84-AM4x6-8.8
BSD-2910021116.A423
2910021116
|
£2.16
|
£2.59
|
|
69 - TAPPING SCREW DIN 7971-BZ3.5x13
BSD-2910211011.A251
2910211011
|
£1.75
|
£2.10
|
|
71 - THREAD-FORMING SCREW B4.8x107.5 MM
BSD-1603435009.A6
1603435009
|
£2.16
|
£2.59
|
|
77 - SEALING PLATE
BSD-1601015017.A6
1601015017
|
£2.33
|
£2.80
|
|
78 - NEEDLE BEARING
BSD-1600910013.A122
1600910013
|
£5.58
|
£6.70
|
|
79 - SHIM 0.5 MM
BSD-1600100631.A452
1600100631
|
£1.75
|
£2.10
|
|
80 - SOCKET HEAD CAP SCREW DIN 84-BM5x50-8.8
BSD-2910021174.A0
2910021174
|
£1.32
|
£1.58
|
|
83 - SPRING LOCK WASHER DIN 127-B 5
BSD-2916680006.A293
2916680006
|
-
|
|
|
84 - TAPPING SCREW BZ4.8x63 MM
BSD-1603435008.A222
1603435008
|
£1.32
|
£1.58
|
|
101 - GEAR HOUSING
BSD-3605110025.A0
3605110025
|
-
|
|
|
101/20 - STRAIGHT PIN 4H 8x20 DIN 7
BSD-2917500122.A12
2917500122
|
£1.75
|
£2.10
|
|
102 - LUBRICATING NIPPLE
BSD-3607401000.A4
3607401000
|
£2.52
|
£3.02
|
|
103 - GROOVE BALL BEARING 17x40x12
BSD-1900905281.A1
1900905281
|
£31.64
|
£37.97
|
|
104 - SPRING RETAINING RING DIN 472-42x1.75MM
BSD-2916660019.A70
2916660019
|
£4.26
|
£5.11
|
|
105 - ECCENTRIC SHAFT
BSD-3606110004.A0
3606110004
|
-
|
|
|
106 - GROOVE BALL BEARING 15x42x13
BSD-1900900351.A18
1900900351
|
£24.45
|
£29.34
|
|
107 - PARALLEL KEY
BSD-3602300002.A12
3602300002
|
-
|
|
|
109 - NEEDLE BEARING
BSD-1600910013.A123
1600910013
|
£5.58
|
£6.70
|
|
110 - CYLINDRICAL GEAR Z=47
BSD-3606317000.A0
3606317000
|
-
|
|
|
111 - SHIM 0.5 MM
BSD-1600100631.A451
1600100631
|
£1.75
|
£2.10
|
|
112 - SPINDLE WITH GEAR Z=10/31
BSD-3606320000.A10
3606320000
|
£154.03
|
£184.84
|
|
113 - RETAINING CLIP DIN 471-15x1-FSt
BSD-2916650006.A539
2916650006
|
£1.75
|
£2.10
|
|
115 - CONNECTING ROD
BSD-3602001002.A0
3602001002
|
£88.07
|
£105.68
|
|
116 - NEEDLE-ROLLER ASSEMBLY
BSD-3600915000.A8
3600915000
|
-
|
|
|
117 - SPRING RETAINING RING DIN 471 20x1.2
BSD-2916650011.A4
2916650011
|
£2.16
|
£2.59
|
|
118 - TAPPET
BSD-3608750009.A0
3608750009
|
-
|
|
|
119 - CONROD PIN
BSD-3603200004.A0
3603200004
|
£6.61
|
£7.93
|
|
120 - BUSHING
BSD-3600313004.A2
3600313004
|
-
|
|
|
121 - UNION NUT
BSD-3603342000.A4
3603342000
|
-
|
|
|
122 - HOLLOW BOLT
BSD-3603462003.A0
3603462003
|
-
|
|
|
126 - SHIM 0.5 MM
BSD-1600100617.A51
1600100617
|
£1.75
|
£2.10
|
|
650/10 - AUXILIARY HANDLE M14
BSD-1602025022.A119
1602025022
|
£13.41
|
£16.09
|
|
650/10 - AUXILIARY HANDLE M14. dia37x115 MM
BSD-1602025030.A576
1602025030
|
£18.96
|
£22.75
|
|
650/40 - GREASE GUN
BSD-1615437502.A13
1615437502
|
-
|
|
|
750 - NIBBLING PUNCH
BSD-3608639023.A6
3608639023
|
-
|
|
|
805 - POWER SUPPLY CORD EU 4.15m 2 x 1.5mm H07 RN-F
BSD-1607000228.A675
1607000228
|
£23.86
|
£28.63
|
|
808 - NAMEPLATE
BSD-160111A3H3.A1079
160111A3H3
|
£2.61
|
£3.13
|
|
810 - CARBON-BRUSH SET
BSD-1607014106.A48
1607014106
|
£18.96
|
£22.75
|
|
816 - BRUSH HOLDER
BSD-3604336012.A38
3604336012
|
£5.58
|
£6.70
|
|
824 - NIBBLING PUNCH
BSD-3608639004.A0
3608639004
|
-
|
|
|
825 - LOWER DIE
BSD-3607031129.A2
3607031129
|
-
|
|
|
