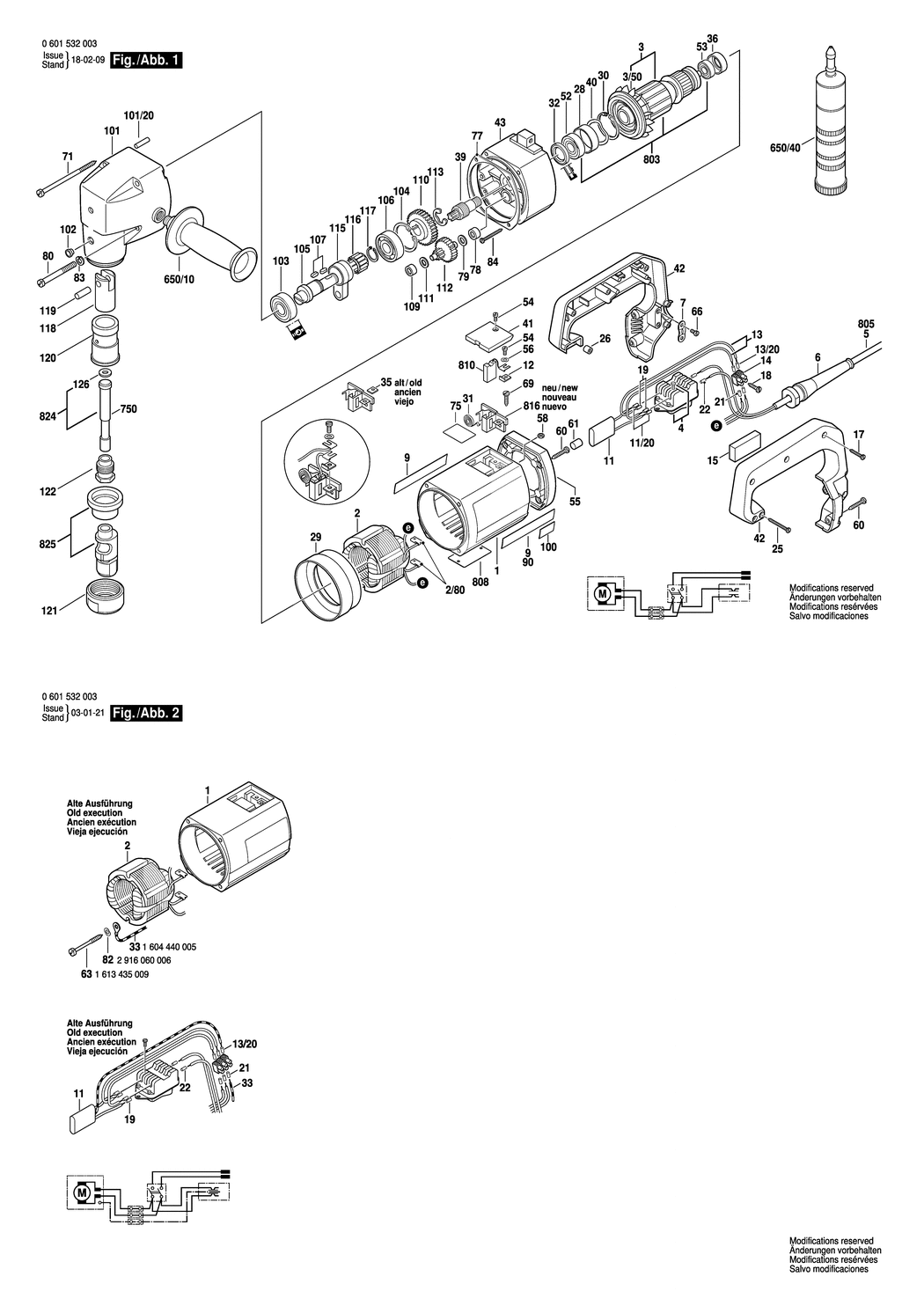

An exploded drawing and listing for the Bosch ---- / 0601532047 / F 110 Volt
Ex VAT Inc VAT
1 - MOTOR HOUSING BSD-3605108088.A3 3605108088 -
2 - POLE SHOE 100-110V BSD-1604220123.A8 1604220123 -
2/80 - TERMINAL LUG 1.5-4x4 BSD-1901350003.A164 1901350003 £1.75 £2.10
3 - ARMATURE 100-110V BSD-1604011237.A7 1604011237 -
3/50 - FAN BSD-1606610133.A10 1606610133 -
4 - SWITCH BSD-1607200065.A15 1607200065 -
6 - GROMMET dia9.2-dia12x120 MM BSD-3600703011.A982 3600703011 £2.80 £3.36
7 - FASTENING CLAMP BSD-1601302014.A967 1601302014 £2.61 £3.13
9 - MANUFACTURER'S NAMEPLATE BSD-1601110005.A39 1601110005 -
11 - SUPPRESSION FILTER BSD-1607328034.A446 1607328034 £4.26 £5.11
11/20 - END SPLICE BSD-3604477008.A7 3604477008 £1.75 £2.10
13 - ELEC. CABLE W/CONNECTION 1x1.5 MM/2 BSD-1604430002.A2 1604430002 -
13/20 - END SPLICE BSD-3604477009.A295 3604477009 £2.61 £3.13
14 - STRIP TERMINAL BSD-1901091110.A21 1901091110 £1.75 £2.10
15 - INSULATING STRIP 33x10x6 MM BSD-1602381001.A380 1602381001 -
17 - TAPPING SCREW DIN 7971-BZ3.9x25 BSD-2910211022.A59 2910211022 £1.75 £2.10
18 - TAPPING SCREW DIN 7971-BZ2.9x16 BSD-2910211007.A26 2910211007 £1.75 £2.10
21 - END SPLICE DIN 46 228-A2.5-7 BSD-1900452003.A122 1900452003 £2.61 £3.13
22 - END SPLICE DIN 46 228-A1-6 BSD-1900452012.A364 1900452012 £1.75 £2.10
25 - TAPPING SCREW DIN 7971-3.9x38 BSD-2910215093.A82 2910215093 -
26 - GUIDE BUSHING BSD-1610313003.A13 1610313003 £5.01 £6.01
28 - RUBBER RING 10 MM BSD-1600206014.A95 1600206014 £1.75 £2.10
29 - AIR-DEFLECTOR RING BSD-1600502009.A15 1600502009 -
30 - SPRING RETAINING RING DIN 472 38X1.5MM BSD-2916660017.A131 2916660017 £4.26 £5.11
31 - SPIRAL SPRING BSD-1604652006.A221 1604652006 £1.75 £2.10
32 - ROTARY SHAFT LIP SEAL BSD-1600290008.A200 1600290008 £2.61 £3.13
35 - TAB WASHER BSD-1601030022.A242 1601030022 £1.75 £2.10
36 - RUBBER BUSHING BSD-1600502006.A106 1600502006 £1.75 £2.10
39 - PINION Z=7 BSD-3606312000.A8 3606312000 -
40 - SPRING WASHER dia27.5x38.4 MM BSD-1600150007.A139 1600150007 £1.75 £2.10
41 - SEALING CAP BSD-1605500089.A284 1605500089 -
42 - HANDLE BSD-1605133029.A34 1605133029 -
43 - INTERMEDIATE BEARING BSD-1605820224.A6 1605820224 £167.68 £201.22
52 - GROOVE BALL BEARING 15x35x11 BSD-1900905234.A98 1900905234 £31.64 £37.97
53 - GROOVE BALL BEARING 10x26x8 BSD-1900900407.A58 1900900407 -
54 - SOCKET HEAD CAP SCREW DIN 84-AM4x8-8.8 BSD-2910021118.A1037 2910021118 £1.75 £2.10
55 - INTERMEDIATE FLANGE BSD-3605700090.A2 3605700090 -
58 - HEX NUT DIN 934 -M4-m-8 BSD-2915011005.A522 2915011005 £1.75 £2.10
60 - TAPPING SCREW B4.8x27 MM BSD-1603435018.A8 1603435018 -
61 - PLUG BSD-3600502001.A4 3600502001 £1.95 £2.34
66 - SOCKET HEAD CAP SCREW DIN 84-AM4x6-8.8 BSD-2910021116.A426 2910021116 £2.16 £2.59
69 - TAPPING SCREW DIN 7971-BZ3.5x13 BSD-2910211011.A248 2910211011 £1.75 £2.10
71 - THREAD-FORMING SCREW B4.8x107.5 MM BSD-1603435009.A10 1603435009 £2.16 £2.59
77 - SEALING PLATE BSD-1601015017.A9 1601015017 £2.33 £2.80
78 - NEEDLE BEARING BSD-1600910013.A131 1600910013 £5.58 £6.70
79 - SHIM 0.5 MM BSD-1600100631.A446 1600100631 £1.75 £2.10
80 - SOCKET HEAD CAP SCREW DIN 84-BM5x50-8.8 BSD-2910021174.A3 2910021174 £1.32 £1.58
83 - SPRING LOCK WASHER DIN 127-B 5 BSD-2916680006.A296 2916680006 -
84 - TAPPING SCREW BZ4.8x63 MM BSD-1603435008.A218 1603435008 £1.32 £1.58
101 - GEAR HOUSING BSD-3605110025.A4 3605110025 -
101/20 - STRAIGHT PIN 4H 8x20 DIN 7 BSD-2917500122.A16 2917500122 £1.75 £2.10
102 - LUBRICATING NIPPLE BSD-3607401000.A6 3607401000 £2.52 £3.02
103 - GROOVE BALL BEARING 17x40x12 BSD-1900905281.A4 1900905281 £31.64 £37.97
104 - SPRING RETAINING RING DIN 472-42x1.75MM BSD-2916660019.A68 2916660019 £4.26 £5.11
105 - ECCENTRIC SHAFT BSD-3606110004.A4 3606110004 -
106 - GROOVE BALL BEARING 15x42x13 BSD-1900900351.A16 1900900351 £24.45 £29.34
107 - PARALLEL KEY BSD-3602300002.A10 3602300002 -
109 - NEEDLE BEARING BSD-1600910013.A130 1600910013 £5.58 £6.70
110 - CYLINDRICAL GEAR Z=47 BSD-3606317000.A4 3606317000 -
111 - SHIM 0.5 MM BSD-1600100631.A447 1600100631 £1.75 £2.10
112 - SPINDLE WITH GEAR Z=10/31 BSD-3606320000.A6 3606320000 £154.03 £184.84
113 - RETAINING CLIP DIN 471-15x1-FSt BSD-2916650006.A543 2916650006 £1.75 £2.10
115 - CONNECTING ROD BSD-3602001002.A2 3602001002 £88.07 £105.68
116 - NEEDLE-ROLLER ASSEMBLY BSD-3600915000.A12 3600915000 -
117 - SPRING RETAINING RING DIN 471 20x1.2 BSD-2916650011.A0 2916650011 £2.16 £2.59
118 - TAPPET BSD-3608750009.A2 3608750009 -
119 - CONROD PIN BSD-3603200004.A2 3603200004 £6.61 £7.93
120 - BUSHING BSD-3600313004.A4 3600313004 -
121 - UNION NUT BSD-3603342000.A2 3603342000 -
122 - HOLLOW BOLT BSD-3603462003.A2 3603462003 -
126 - SHIM 0.5 MM BSD-1600100617.A53 1600100617 £1.75 £2.10
650/10 - AUXILIARY HANDLE M14 BSD-1602025022.A116 1602025022 £13.41 £16.09
650/10 - AUXILIARY HANDLE M14. dia37x115 MM BSD-1602025030.A579 1602025030 £18.96 £22.75
650/40 - GREASE GUN BSD-1615437502.A17 1615437502 -
750 - NIBBLING PUNCH BSD-3608639023.A4 3608639023 -
805 - POWER SUPPLY CORD EU 4.15m 2 x 1.5mm H07 RN-F BSD-1607000228.A673 1607000228 £23.86 £28.63
808 - NAMEPLATE BSD-160111A3H3.A1074 160111A3H3 £2.61 £3.13
810 - CARBON-BRUSH SET BSD-1607014106.A50 1607014106 £18.96 £22.75
816 - BRUSH HOLDER BSD-3604336012.A41 3604336012 £5.58 £6.70
824 - NIBBLING PUNCH BSD-3608639004.A6 3608639004 -
825 - LOWER DIE BSD-3607031129.A6 3607031129 -
