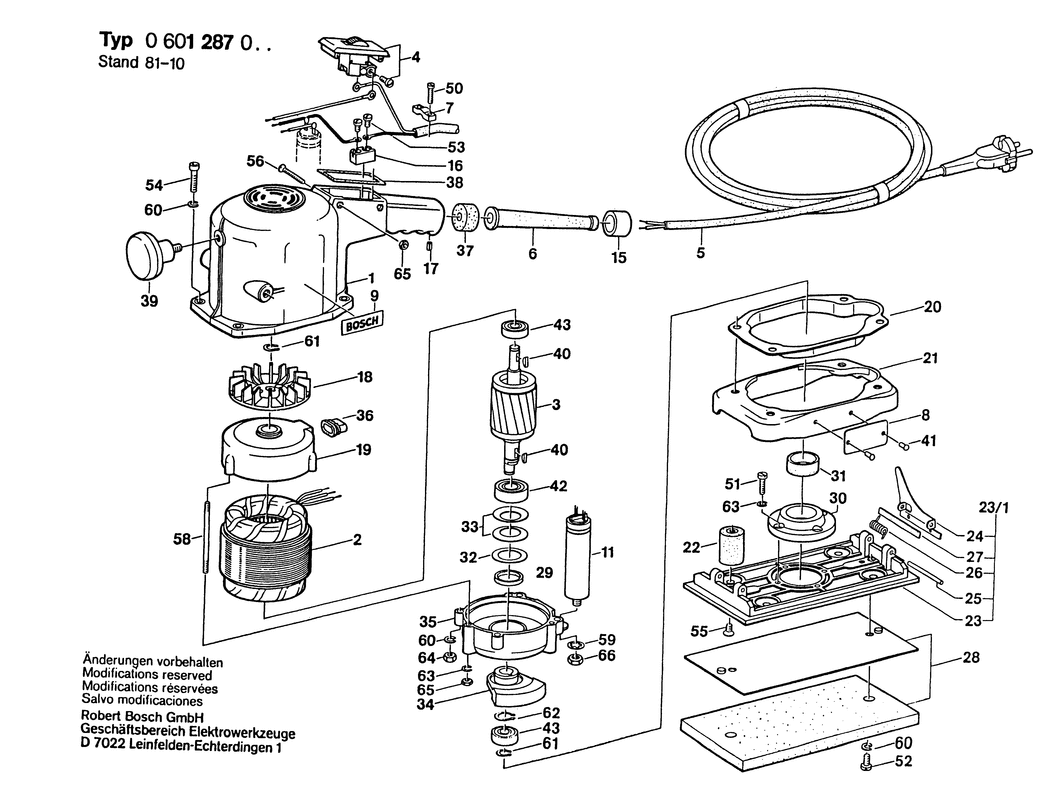

1 - MOTOR HOUSING
BSD-1609330000.A2
1609330000
|
-
|
|
|
|
2 - POLE SHOE 220V
BSD-1609330001.A1
1609330001
|
-
|
|
|
|
3 - ARMATURE 220V
BSD-1609330002.A2
1609330002
|
-
|
|
|
|
4 - ON-OFF SWITCH
BSD-1609330003.A1
1609330003
|
-
|
|
|
|
5 - POWER SUPPLY CORD EU 4.15m 2 x 1.0mm H07 RN-F
BSD-1607000227.A134
1607000227
|
£23.86
|
£28.63
|
|
|
6 - GROMMET
BSD-1609330036.A4
1609330036
|
-
|
|
|
|
7 - FASTENING CLAMP
BSD-1609330005.A2
1609330005
|
-
|
|
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-1601110054.A2
1601110054
|
-
|
|
|
|
11 - MOTOR CAPACITOR
BSD-0670321452.A1
0670321452
|
-
|
|
|
|
15 - GUIDE SLEEVE
BSD-1609330006.A1
1609330006
|
-
|
|
|
|
16 - SOCKET-TERMINAL STRIP 1x1.5 MM/2
BSD-1901091012.A166
1901091012
|
£5.30
|
£6.36
|
|
|
17 - SLOTTED SPRING PIN DIN 1481-4x6
BSD-2917760092.A1
2917760092
|
-
|
|
|
|
18 - FAN
BSD-1609330007.A2
1609330007
|
-
|
|
|
|
19 - FLANGED BEARING
BSD-1609330008.A8
1609330008
|
-
|
|
|
|
20 - INTERMEDIATE PLATE
BSD-1609330009.A2
1609330009
|
-
|
|
|
|
21 - HOUSING COVER
BSD-1609330010.A1
1609330010
|
-
|
|
|
|
22 - RUBBER-METAL
BSD-1609330011.A2
1609330011
|
£7.78
|
£9.33
|
|
|
23 - BASE PLATE
BSD-1609330012.A8
1609330012
|
-
|
|
|
|
23/1 - BASE PLATE
BSD-1609330043.A0
1609330043
|
-
|
|
|
|
24 - CLAMPING SADDLE
BSD-1609330013.A2
1609330013
|
-
|
|
|
|
25 - RIVET-HEADED PIN
BSD-1609330014.A1
1609330014
|
-
|
|
|
|
26 - PARALLEL KEY
BSD-1609330015.A9
1609330015
|
-
|
|
|
|
27 - PRESSURE BAR
BSD-2605510008.A9
2605510008
|
-
|
|
|
|
28 - RUBBER PLATE
BSD-1609330017.A1
1609330017
|
-
|
|
|
|
29 - SEAL RING
BSD-1609330018.A9
1609330018
|
-
|
|
|
|
30 - BEARING COVER
BSD-1609330019.A1
1609330019
|
-
|
|
|
|
31 - BUSHING
BSD-1609330020.A9
1609330020
|
-
|
|
|
|
32 - SEALING DISK
BSD-1609330021.A1
1609330021
|
-
|
|
|
|
33 - DISC SPRING
BSD-1609330022.A9
1609330022
|
-
|
|
|
|
34 - FLYWEIGHT
BSD-1609330023.A1
1609330023
|
-
|
|
|
|
35 - INTERMEDIATE PLATE
BSD-1609330024.A9
1609330024
|
-
|
|
|
|
36 - GROMMET
BSD-1609330025.A1
1609330025
|
-
|
|
|
|
37 - SEAL
BSD-1600113002.A245
1600113002
|
£1.75
|
£2.10
|
|
|
38 - SEAL
BSD-1609330026.A2
1609330026
|
-
|
|
|
|
39 - HANDLE
BSD-1603481001.A36
1603481001
|
-
|
|
|
|
40 - PARALLEL KEY
BSD-1609330027.A1
1609330027
|
-
|
|
|
|
41 - ROUND-HEAD GROOVED PIN DIN 1476-2x3-St
BSD-2917721031.A80
2917721031
|
£1.75
|
£2.10
|
|
|
42 - GROOVE BALL BEARING 15x35x11
BSD-1900905234.A17
1900905234
|
£31.64
|
£37.97
|
|
|
43 - GROOVE BALL BEARING 9x26x8
BSD-1900905046.A9
1900905046
|
-
|
|
|
|
50 - SOCKET HEAD CAP SCREW DIN 84-AM3x12-8.8
BSD-2910021054.A58
2910021054
|
£1.75
|
£2.10
|
|
|
51 - SOCKET HEAD CAP SCREW DIN 84-AM4x12-8.8
BSD-2910021122.A509
2910021122
|
£2.16
|
£2.59
|
|
|
52 - SOCKET HEAD CAP SCREW DIN 84-AM5x10-5.8
BSD-2910011152.A26
2910011152
|
£1.75
|
£2.10
|
|
|
53 - PAN HEAD SCREW AM 35x6 DIN 85-MS
BSD-2910110082.A2
2910110082
|
-
|
|
|
|
54 - HEX SOCKET HEAD CAP SCREW DIN 912-M5x20-8.8
BSD-2910141162.A39
2910141162
|
£2.16
|
£2.59
|
|
|
55 - COUNTERSUNK-HEAD SCREW M5x10 DIN 963-8.8
BSD-2910781152.A2
2910781152
|
-
|
|
|
|
56 - COUNTERSUNK-HEAD SCREW M 4x35 DIN 963-8.8
BSD-2910781136.A3
2910781136
|
-
|
|
|
|
58 - STUD M 4x70-DIN 939-5.6
BSD-1609330029.A3
1609330029
|
-
|
|
|
|
59 - SPRING LOCK WASHER B 8 DIN 127
BSD-2916680009.A27
2916680009
|
-
|
|
|
|
60 - SPRING LOCK WASHER 5 DIN 7980
BSD-2916580002.A1
2916580002
|
-
|
|
|
|
61 - SPRING RETAINING RING DIN 471 9x1MM
BSD-2916640006.A184
2916640006
|
£1.75
|
£2.10
|
|
|
62 - RETAINING CLIP DIN 471-15x1-FSt
BSD-2916650006.A560
2916650006
|
£1.75
|
£2.10
|
|
|
63 - SPRING LOCK WASHER M 4
BSD-2916693003.A0
2916693003
|
-
|
|
|
|
64 - HEX NUT DIN 934-M 5-m-8
BSD-2915011006.A21
2915011006
|
-
|
|
|
|
65 - HEX NUT DIN 439-BM 4-04
BSD-2915051104.A7
2915051104
|
-
|
|
|
|
66 - HEX NUT DIN 439-BM8-04
BSD-2915051107.A79
2915051107
|
£1.75
|
£2.10
|
|
