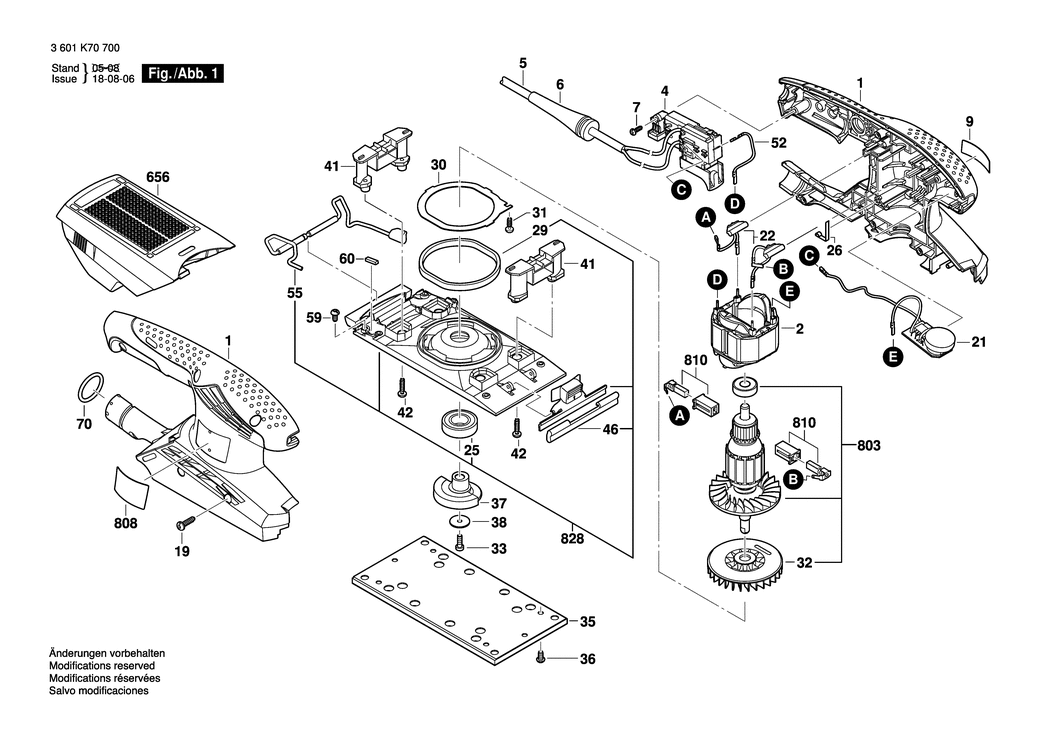

An exploded drawing and listing for the Bosch GSS 23 AE / 3601K70730 / CH 230 Volt
Ex VAT Inc VAT
1 - HOUSING BSD-2609100395.A0 2609100395 £21.52 £25.83
2 - FIELD 230-240V BSD-1604220408.A8 1604220408 £16.41 £19.69
4 - SWITCH BSD-2607200632.A2 2607200632 £7.36 £8.83
5 - POWER SUPPLY CORD CH 230V 4.15m 2 x 1.0mm H05 RN-F BSD-1604460401.A130 1604460401 £19.45 £23.34
6 - GROMMET dia6.4-dia7.2x76 MM BSD-2600703017.A693 2600703017 £2.61 £3.13
7 - TORX OVAL-HEAD SCREW BSD-2609110190.A6 2609110190 £1.75 £2.10
9 - MANUFACTURER'S NAMEPLATE GSS 23AE BSD-2609130839.A1 2609130839 £3.72 £4.47
19 - SCREW 4x16 BSD-2603490022.A735 2603490022 £1.75 £2.10
21 - SPEED GOVERNOR 230-240V BSD-1607233196.A0 1607233196 £21.68 £26.01
22 - SUPPRESSION FILTER BSD-2609120182.A1 2609120182 £3.72 £4.47
25 - GROOVE BALL BEARING 15x32x9 BSD-2600905068.A29 2600905068 £14.91 £17.89
26 - CONTACT SPRING BSD-2601329057.A44 2601329057 -
29 - FELT STRIP BSD-2609170044.A2 2609170044 £1.75 £2.10
30 - SHEET METAL COVER BSD-2609110407.A1 2609110407 £1.75 £2.10
31 - TORX OVAL-HEAD SCREW BSD-2609110190.A5 2609110190 £1.75 £2.10
32 - FAN BSD-2609100544.A2 2609100544 £5.30 £6.36
33 - SOCKET HEAD CAP SCREW M 4x12 BSD-2912731122.A4 2912731122 £1.75 £2.10
35 - FOAM PANEL BSD-2609100543.A1 2609100543 £19.45 £23.34
36 - THREAD-FORMING TAP. SCREW M4x8 BSD-2603410048.A319 2603410048 £1.75 £2.10
37 - COUNTERWEIGHT BSD-2609110405.A2 2609110405 £3.72 £4.47
38 - PLAIN WASHER BSD-2609110409.A2 2609110409 £1.75 £2.10
41 - VIBRATION FOOT BSD-2609100398.A2 2609100398 £2.61 £3.13
42 - SCREW 4x16 BSD-2603490022.A731 2603490022 £1.75 £2.10
46 - RUBBER BAR BSD-2609170042.A1 2609170042 £2.16 £2.59
52 - CONNECTING CABLE BSD-2609120183.A4 2609120183 £1.75 £2.10
55 - CLAMPING SADDLE BSD-2609110415.A2 2609110415 £14.91 £17.89
59 - THREAD-FORMING TAP. SCREW M4x8 BSD-2603410048.A323 2603410048 £1.75 £2.10
60 - RUBBER BUFFER BSD-2609170045.A2 2609170045 £1.75 £2.10
70 - O-RING 23.0x3.0 MM BSD-1610210045.A3 1610210045 £2.61 £3.13
656 - DUST CHAMBER BSD-2609199059.A3 2609199059 £14.91 £17.89
803 - ARMATURE WITH FAN 230-240V BSD-2609199085.A2 2609199085 £31.64 £37.97
808 - NAMEPLATE BSD-1600A00Y7L.A0 1600A00Y7L -
810 - CARBON-BRUSH SET BSD-2609120199.A14 2609120199 £10.10 £12.12
828 - SWING-PLATE BSD-2609199067.A0 2609199067 £37.27 £44.72
