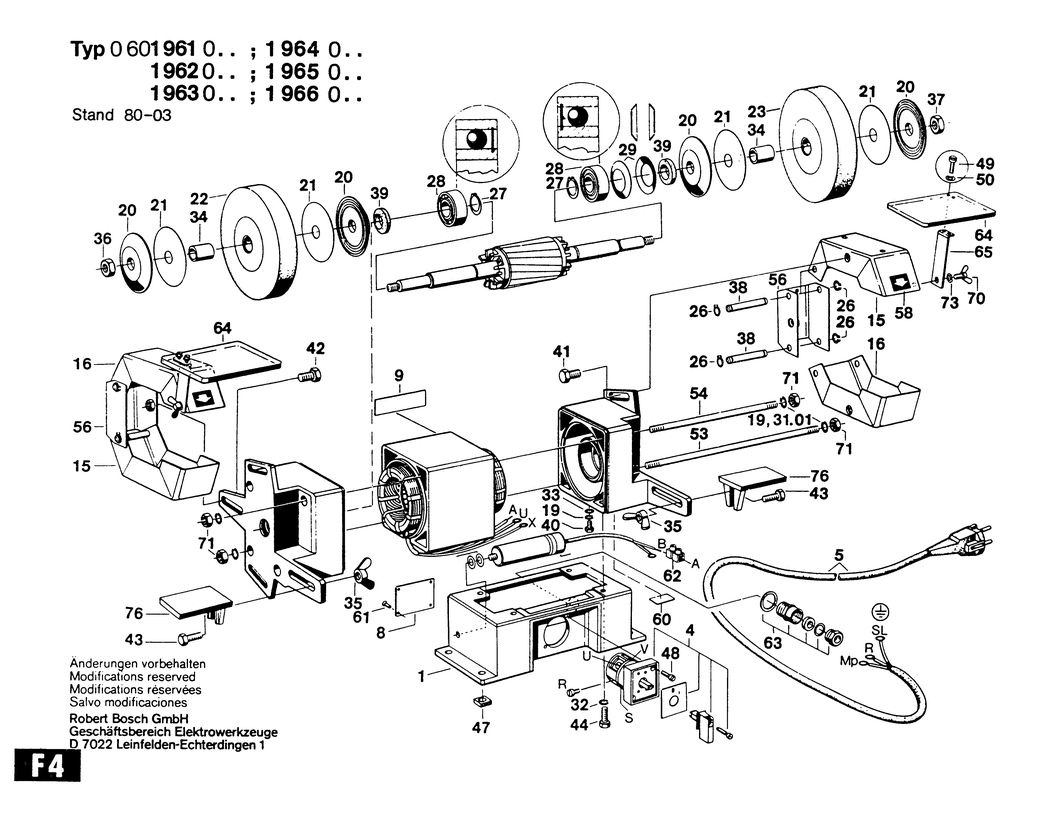

1 - CLAMPING SUPPORT
BSD-1609320101.A2
1609320101
|
-
|
|
|
|
4 - ON-OFF SWITCH
BSD-1609320140.A1
1609320140
|
-
|
|
|
|
5 - POWER SUPPLY CORD
BSD-1604461042.A5
1604461042
|
-
|
|
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-1601110054.A7
1601110054
|
-
|
|
|
|
15 - PROTECTIVE COVER
BSD-1609320105.A2
1609320105
|
-
|
|
|
|
16 - PROTECTIVE COVER
BSD-1609320106.A0
1609320106
|
-
|
|
|
|
19 - SPRING LOCK WASHER DIN 127-B 5
BSD-2916680006.A359
2916680006
|
-
|
|
|
|
20 - CLAMPING FLANGE
BSD-1609320114.A0
1609320114
|
-
|
|
|
|
21 - PLAIN WASHER dia20.5xdia65xO.5 MM
BSD-1609320127.A2
1609320127
|
-
|
|
|
|
22 - GRINDING WHEEL dia 20x dia 175x25 MM
BSD-1608600040.A2
1608600040
|
-
|
|
|
|
23 - GRINDING WHEEL dia 20x dia 175x25 MM
BSD-1608600041.A0
1608600041
|
-
|
|
|
|
26 - SPRING RETAINING RING DIN 471-8x0.8 FSt
BSD-2916640005.A21
2916640005
|
£1.75
|
£2.10
|
|
|
27 - SPRING RETAINING RING DIN 471 25x1.2
BSD-2916650014.A134
2916650014
|
£1.75
|
£2.10
|
|
|
28 - GROOVE BALL BEARING 6205-2 Z DIN 625
BSD-1900905229.A0
1900905229
|
-
|
|
|
|
29 - DISC SPRING
BSD-1610550021.A0
1610550021
|
-
|
|
|
|
31 - SPRING LOCK WASHER M6
BSD-2916690005.A31
2916690005
|
-
|
|
|
|
33 - PLAIN WASHER DIN 433-5.3-CuZn
BSD-2916010411.A8
2916010411
|
£1.75
|
£2.10
|
|
|
34 - RECEPTACLE
BSD-1609320110.A0
1609320110
|
-
|
|
|
|
35 - WING NUT DIN 315-M-GT-C
BSD-2915191008.A12
2915191008
|
-
|
|
|
|
36 - HEX NUT M16x1.5 MM
BSD-1603300011.A0
1603300011
|
-
|
|
|
|
37 - HEX NUT M 16x1.5 DIN 934-M-8
BSD-2915022005.A0
2915022005
|
-
|
|
|
|
38 - BEARING BOLT
BSD-1609320131.A0
1609320131
|
-
|
|
|
|
39 - SEAL RING
BSD-1609320143.A2
1609320143
|
-
|
|
|
|
40 - HEX SCREW DIN 933-M5x8-CU3
BSD-2911081150.A8
2911081150
|
-
|
|
|
|
41 - HEX SCREW M 8x20 DIN 933-5.8
BSD-2911051242.A4
2911051242
|
-
|
|
|
|
42 - HEX SCREW M10x15 DIN 933-5.8
BSD-2911051284.A0
2911051284
|
-
|
|
|
|
43 - HEX SCREW DIN 933-M 10x25-8.8
BSD-2911061291.A1
2911061291
|
-
|
|
|
|
43 - HEX SCREW DIN 933-M12x30-8.8
BSD-2911061342.A1
2911061342
|
-
|
|
|
|
44 - HEX SCREW M 6x15 DIN 933-8.8
BSD-2911061196.A4
2911061196
|
-
|
|
|
|
47 - PERFORATED PANEL
BSD-1609320115.A4
1609320115
|
-
|
|
|
|
48 - SOCKET HEAD CAP SCREW DIN 84-AM4x12-8.8
BSD-2910021122.A697
2910021122
|
£2.16
|
£2.59
|
|
|
49 - SOCKET HEAD CAP SCREW DIN 84-AM3x8-8.8
BSD-2910021050.A301
2910021050
|
£1.75
|
£2.10
|
|
|
50 - PLAIN WASHER DIN 433-3.2-ST 50
BSD-2916011005.A363
2916011005
|
£1.75
|
£2.10
|
|
|
53 - STUD M 5x276 MM
BSD-1609320122.A1
1609320122
|
-
|
|
|
|
54 - STUD M 5x198 MM
BSD-1609320123.A1
1609320123
|
-
|
|
|
|
56 - MOUNTING BRACKET
BSD-1609320135.A0
1609320135
|
-
|
|
|
|
58 - REFERENCE PLATE
BSD-1609320112.A3
1609320112
|
-
|
|
|
|
60 - REFERENCE PLATE
BSD-1609320138.A0
1609320138
|
-
|
|
|
|
61 - ROUND-HEAD GROOVED PIN 2x6 DIN 1476-ST
BSD-2917721034.A3
2917721034
|
£1.75
|
£2.10
|
|
|
62 - SOCKET-TERMINAL STRIP 1x1.5 MM/2
BSD-1901091012.A207
1901091012
|
£5.30
|
£6.36
|
|
|
63 - SCREWED CABLE GLAND
BSD-1603392000.A0
1603392000
|
-
|
|
|
|
64 - PROTECTIVE WASHER
BSD-1609320116.A1
1609320116
|
-
|
|
|
|
65 - MOUNTING BRACKET
BSD-1609320118.A0
1609320118
|
-
|
|
|
|
70 - WING SCREW M 6x8 DIN 316-MG-4.6
BSD-2912540189.A5
2912540189
|
-
|
|
|
|
71 - HEX NUT DIN 934-M 5-m-8
BSD-2915011006.A2
2915011006
|
-
|
|
|
|
73 - SPRING WASHER DIN 137-A 6-ST
BSD-2916060007.A60
2916060007
|
£1.75
|
£2.10
|
|
|
76 - TOOL REST
BSD-1609320130.A4
1609320130
|
-
|
|
|
|
700 - GRINDING WHEEL dia 20x dia 175x25 MM
BSD-1608600042.A2
1608600042
|
-
|
|
|
|
888 - NAMEPLATE
BSD-160111A3H3.A1271
160111A3H3
|
£2.61
|
£3.13
|
|
