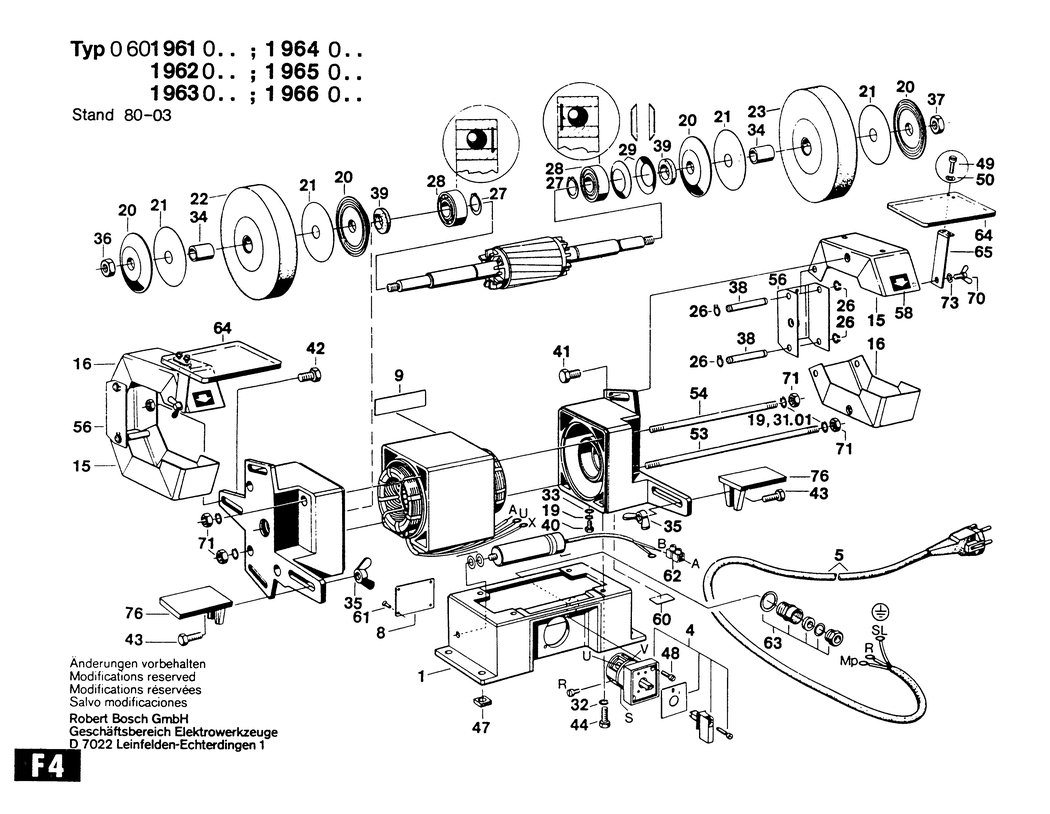

1 - CLAMPING SUPPORT
BSD-1609320102.A0
1609320102
|
-
|
|
|
|
4 - ON-OFF SWITCH
BSD-1609320142.A0
1609320142
|
-
|
|
|
|
5 - POWER SUPPLY CORD
BSD-1604461042.A3
1604461042
|
-
|
|
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-1601110054.A5
1601110054
|
-
|
|
|
|
15 - PROTECTIVE COVER
BSD-1609320107.A2
1609320107
|
-
|
|
|
|
16 - PROTECTIVE COVER
BSD-1609320108.A0
1609320108
|
-
|
|
|
|
19 - SPRING LOCK WASHER DIN 127-B 5
BSD-2916680006.A357
2916680006
|
-
|
|
|
|
20 - CLAMPING FLANGE
BSD-1609320113.A2
1609320113
|
-
|
|
|
|
21 - PLAIN WASHER dia25.5xdia70x0.5 MM
BSD-1609320128.A2
1609320128
|
-
|
|
|
|
22 - GRINDING WHEEL dia 32x dia 200x32 MM
BSD-1608600043.A2
1608600043
|
-
|
|
|
|
23 - GRINDING WHEEL dia 32x dia 200x32 MM
BSD-1608600044.A0
1608600044
|
-
|
|
|
|
26 - SPRING RETAINING RING DIN 471-8x0.8 FSt
BSD-2916640005.A22
2916640005
|
£1.75
|
£2.10
|
|
|
27 - SPRING RETAINING RING DIN 471 30x1.5 MM
BSD-2916650017.A44
2916650017
|
£1.75
|
£2.10
|
|
|
28 - GROOVE BALL BEARING
BSD-1900905206.A0
1900905206
|
-
|
|
|
|
29 - DISC SPRING
BSD-1610550020.A0
1610550020
|
-
|
|
|
|
31 - SPRING LOCK WASHER M6
BSD-2916690005.A33
2916690005
|
-
|
|
|
|
33 - PLAIN WASHER DIN 433-5.3-CuZn
BSD-2916010411.A5
2916010411
|
£1.75
|
£2.10
|
|
|
34 - REDUCTION SLEEVE
BSD-1609320111.A2
1609320111
|
-
|
|
|
|
35 - WING NUT DIN 315-M12-GT-C
BSD-2915191009.A2
2915191009
|
-
|
|
|
|
36 - HEX NUT
BSD-1609320137.A0
1609320137
|
-
|
|
|
|
37 - HEX NUT
BSD-1609320136.A2
1609320136
|
-
|
|
|
|
38 - BEARING BOLT
BSD-1609320132.A2
1609320132
|
-
|
|
|
|
39 - SEAL RING
BSD-1609320143.A3
1609320143
|
-
|
|
|
|
40 - HEX SCREW DIN 933-M5x8-CU3
BSD-2911081150.A5
2911081150
|
-
|
|
|
|
41 - HEX SCREW M10x20 DIN 933-5.8
BSD-2911051289.A4
2911051289
|
-
|
|
|
|
42 - HEX SCREW M10x20 DIN 933-5.8
BSD-2911051289.A5
2911051289
|
-
|
|
|
|
43 - HEX SCREW DIN 933-M12x30-8.8
BSD-2911061342.A5
2911061342
|
-
|
|
|
|
44 - HEX SCREW M 8x20 DIN 933-5.8
BSD-2911051242.A0
2911051242
|
-
|
|
|
|
47 - PERFORATED PANEL
BSD-1609320115.A8
1609320115
|
-
|
|
|
|
48 - SOCKET HEAD CAP SCREW DIN 84-AM4x12-8.8
BSD-2910021122.A696
2910021122
|
£2.16
|
£2.59
|
|
|
49 - SOCKET HEAD CAP SCREW DIN 84-AM3x8-8.8
BSD-2910021050.A302
2910021050
|
£1.75
|
£2.10
|
|
|
50 - PLAIN WASHER DIN 433-3.2-ST 50
BSD-2916011005.A367
2916011005
|
£1.75
|
£2.10
|
|
|
53 - STUD M 6x314 MM
BSD-1609320124.A2
1609320124
|
-
|
|
|
|
54 - STUD
BSD-1609320125.A0
1609320125
|
-
|
|
|
|
56 - MOUNTING BRACKET
BSD-1609320134.A0
1609320134
|
-
|
|
|
|
58 - REFERENCE PLATE
BSD-1609320112.A0
1609320112
|
-
|
|
|
|
60 - REFERENCE PLATE
BSD-1609320138.A4
1609320138
|
-
|
|
|
|
61 - ROUND-HEAD GROOVED PIN 2x6 DIN 1476-ST
BSD-2917721034.A0
2917721034
|
£1.75
|
£2.10
|
|
|
62 - SOCKET-TERMINAL STRIP 1x1.5 MM/2
BSD-1901091012.A211
1901091012
|
£5.30
|
£6.36
|
|
|
63 - SCREWED CABLE GLAND
BSD-1603392000.A4
1603392000
|
-
|
|
|
|
64 - PROTECTIVE WASHER
BSD-1609320117.A2
1609320117
|
-
|
|
|
|
65 - RETAINING BRACKET
BSD-1609320119.A2
1609320119
|
-
|
|
|
|
70 - WING SCREW M 6x8 DIN 316-MG-4.6
BSD-2912540189.A8
2912540189
|
-
|
|
|
|
71 - HEX NUT DIN 934-M6-8-A
BSD-2915011007.A1384
2915011007
|
-
|
|
|
|
73 - SPRING WASHER DIN 137-A 6-ST
BSD-2916060007.A59
2916060007
|
£1.75
|
£2.10
|
|
|
76 - TOOL REST
BSD-1609320109.A2
1609320109
|
-
|
|
|
|
700 - GRINDING WHEEL dia 32x dia 200x32 MM
BSD-1608600045.A2
1608600045
|
-
|
|
|
|
888 - NAMEPLATE
BSD-160111A3H3.A1267
160111A3H3
|
£2.61
|
£3.13
|
|
