Bosch ---- / 0601590033 / S 220 Volt Spare Parts

Home Details Reviews Delivery

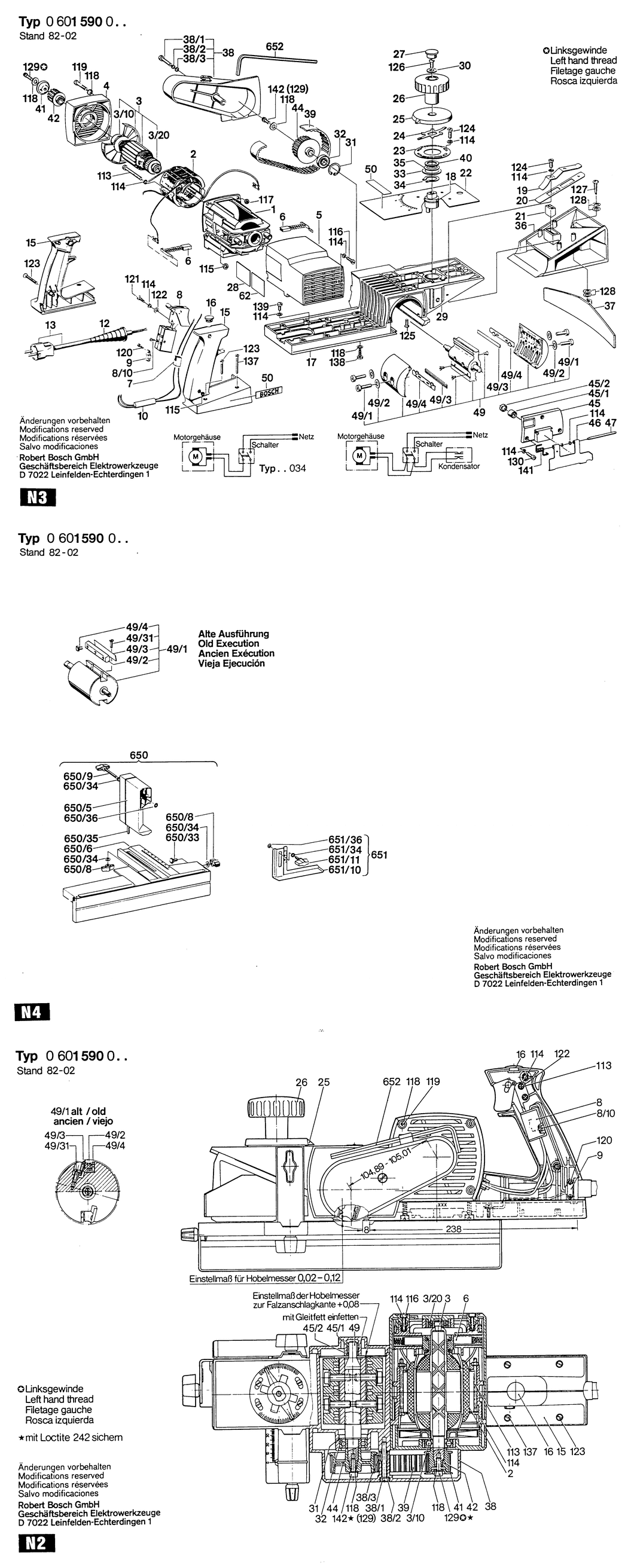

An exploded drawing and listing for the Bosch ---- / 0601590033 / S 220 Volt

	Ex VAT	Inc VAT
1 - MOTOR HOUSING BSD-1609251023.A7 1609251023	-
2 - FIELD 220V BSD-1609242028.A1 1609242028	-
3 - ARMATURE 220V BSD-1609240028.A8 1609240028	-
3/10 - GROOVE BALL BEARING 12x32x10 BSD-1900905231.A15 1900905231	-
3/20 - GROOVE BALL BEARING 7x22x7 BSD-1610900025.A255 1610900025	£16.41	£19.69
4 - FLANGED BEARING BSD-1609258007.A6 1609258007	-
5 - PROTECTIVE COVER BSD-1609255024.A8 1609255024	-
6 - CARBON-BRUSH SET BSD-1609243000.A28 1609243000	-
7 - GROMMET dia9x90 MM BSD-1609207001.A114 1609207001	-
8 - ON-OFF SWITCH BSD-1609200769.A4 1609200769	-
9 - FASTENING CLAMP BSD-1609213000.A43 1609213000	-
10 - SUPPRESSION CAPACITOR BSD-1609200750.A126 1609200750	-
12 - GROMMET dia9x90 MM BSD-1609207001.A119 1609207001	-
13 - POWER SUPPLY CORD BSD-1607000391.A61 1607000391	£18.96	£22.75
15 - HANDLE COVER BSD-1609251024.A2 1609251024	-
16 - PROTECTIVE COVER BSD-1609255025.A2 1609255025	-
17 - BASE PLATE BSD-1609280034.A12 1609280034	-
18 - PARTS SET BSD-1609202401.A3 1609202401	-
19 - LEAF SPRING BSD-1609213008.A4 1609213008	-
20 - SLIDE PLATE BSD-1609210010.A3 1609210010	-
21 - SLIDER BSD-1609223009.A10 1609223009	-
22 - SCALE PLATE BSD-1609255019.A12 1609255019	-
23 - LOCATING WASHER BSD-1609264000.A13 1609264000	-
24 - RATCHET SPRING BSD-1609201013.A3 1609201013	-
25 - INDEX PLATE BSD-1609255022.A2 1609255022	-
26 - HANDLE BSD-1609232003.A0 1609232003	-
27 - SEALING CAP BSD-1609255021.A12 1609255021	-
29 - GUIDE BSD-1609223011.A4 1609223011	-
30 - PLAIN WASHER dia6.4xdia16x2 MM BSD-1609201082.A11 1609201082	-
31 - RETAINING CLIP DIN 472-32x1.2 MM BSD-2916660013.A510 2916660013	£2.16	£2.59
32 - GROOVE BALL BEARING 12x32x10 BSD-1900905231.A26 1900905231	-
33 - SHIM WASHER DIN 988-25x35x1 BSD-2916190173.A2 2916190173	-
34 - SPRING RETAINING RING DIN 471 25x1.2 BSD-2916650014.A51 2916650014	£1.75	£2.10
35 - SHIM RING DIN 988-17x24x1.5 BSD-2916190116.A12 2916190116	-
36 - ADJUSTING SLIDE BSD-1609280035.A2 1609280035	-
37 - CHIP DEFLECTOR BSD-1609223008.A4 1609223008	-
38 - GEAR COVER BSD-1609255020.A2 1609255020	-
38/1 - SOCKET HEAD CAP SCREW DIN 84-BM6x40-8.8 BSD-2910021209.A6 2910021209	-
38/2 - SPRING WASHER DIN 137-A 6-ST BSD-2916060007.A17 2916060007	£1.75	£2.10
38/3 - RUBBER RING G 9x13x3 MM BSD-1609200056.A38 1609200056	-
39 - TOOTHED BELT Z=65 BSD-1609247005.A1 1609247005	-
40 - SHIM RING DIN 988-17x24x0.5 BSD-2916190114.A2 2916190114	-
41 - GUIDE PULLEY BSD-1609205007.A11 1609205007	-
42 - PULLEY Z=16 BSD-1609266005.A1 1609266005	-
44 - PULLEY Z=31 BSD-1609266006.A13 1609266006	-
45 - BEARING COVER BSD-1609258006.A12 1609258006	-
45/1 - NEEDLE BEARING BSD-1609209006.A18 1609209006	-
45/2 - SEAL RING BSD-1609202009.A18 1609202009	-
46 - PROTECTIVE CAP BSD-1609213009.A10 1609213009	-
47 - STRAIGHT PIN BSD-1609231011.A0 1609231011	-
49 - CUTTER HEAD BSD-1609201120.A11 1609201120	-
49/1 - HEX SOCKET HEAD CAP SCREW BSD-1609201086.A18 1609201086	-
49/2 - PLAIN WASHER DIN 126-9-A2 BSD-2918660004.A21 2918660004	£1.75	£2.10
49/3 - PLANING KNIFE BSD-1609200978.A27 1609200978	-
49/4 - RECEIVER RAIL BSD-1609201129.A3 1609201129	-
50 - MANUFACTURER'S NAMEPLATE BSD-1601110481.A294 1601110481	£2.16	£2.59
62 - REFERENCE PLATE BSD-1601110058.A41 1601110058	£1.75	£2.10
113 - SOCKET HEAD CAP SCREW DIN 84-B 4x60-5.8 BSD-2910011146.A17 2910011146	-
114 - SPRING WASHER BSD-2916006000.A8 2916006000	-
115 - HEX NUT DIN 934 -M4-m-8 BSD-2915011005.A258 2915011005	£1.75	£2.10
116 - SOCKET HEAD CAP SCREW BSD-1609234001.A52 1609234001	-
117 - HEX NUT DIN 934-M 5-m-8 BSD-2915011006.A109 2915011006	-
118 - SPRING WASHER DIN 137-A5-FST BSD-2916060006.A265 2916060006	£1.32	£1.58
119 - HEX SOCKET HEAD CAP SCREW DIN 912-M 5x35-8.8 BSD-2910141168.A177 2910141168	£3.80	£4.56
120 - TAPPING SCREW DIN 7971-B 3.9x19 BSD-2910211220.A258 2910211220	-
121 - TAPPING SCREW DIN 7971-ST3.9x13-F BSD-2910211018.A359 2910211018	£1.75	£2.10
122 - PLAIN WASHER DIN 125-A4.3-ST BSD-2916011010.A347 2916011010	£1.75	£2.10
123 - COUNTERSUNK-HEAD SCREW DIN 63-BM4x30-5.8 BSD-2910501134.A133 2910501134	-
124 - SOCKET HEAD CAP SCREW DIN 84-AM4x10-8.8 BSD-2910021120.A85 2910021120	£1.75	£2.10
125 - COUNTERSUNK-HEAD SCREW DIN 63-AM 4x15-5.8 BSD-2910501125.A34 2910501125	-
126 - SOCKET HEAD CAP SCREW DIN 84-AM6x15-8.8 BSD-2910021196.A48 2910021196	-
127 - TAPPING SCREW B 4.8x45 DIN 7981 BSD-2910611039.A14 2910611039	-
128 - SPRING WASHER DIN 137-A5-FST BSD-2916060006.A264 2916060006	£1.32	£1.58
129 - HEX SOCKET HEAD CAP SCREW M 5x16 MM BSD-1609234023.A9 1609234023	-
130 - HEX SOCKET HEAD CAP SCREW DIN 912-M 4x12-8.8 BSD-2910141122.A261 2910141122	£2.16	£2.59
137 - COUNTERSUNK-HEAD SCREW BM 4x40 DIN 63-5.8 BSD-2910501138.A17 2910501138	-
138 - SCREW DIN 7982-ST4.8x19 BSD-2910611034.A0 2910611034	-
141 - COILED SPRING BSD-1609246015.A13 1609246015	-
142 - HEX SOCKET HEAD CAP SCREW DIN 912-M5X16-8.8 BSD-2910141158.A210 2910141158	£1.75	£2.10
650 - WIDTH STOP BSD-1609280038.A1 1609280038	-
650/5 - INTERMEDIATE PIECE BSD-1609280032.A1 1609280032	-
650/6 - STOP BRACKET BSD-1609280036.A13 1609280036	-
650/8 - WING NUT M6 BSD-1609233000.A14 1609233000	-
650/9 - STUD BM 6x25 DIN 835-5.8 BSD-2912111203.A16 2912111203	-
650/34 - PLAIN WASHER DIN 125-A 6.4-ST BSD-2916011014.A493 2916011014	£1.75	£2.10
650/35 - STUD BM 6x25 DIN 835-5.8 BSD-2912111203.A17 2912111203	-
650/36 - RUBBER RING G 9x13x3 MM BSD-1609200056.A40 1609200056	-
651 - END STOP BSD-1609280039.A13 1609280039	-
651/10 - DEPTH-GAUGE BSD-1609280030.A13 1609280030	-
651/11 - WING SCREW BSD-1609234017.A26 1609234017	-
651/34 - PLAIN WASHER DIN 125-A 6.4-ST BSD-2916011014.A492 2916011014	£1.75	£2.10
651/36 - RUBBER RING G 9x13x3 MM BSD-1609200056.A39 1609200056	-
652 - SCREWDRIVER SW5 BSD-1609201069.A20 1609201069	-
888 - NAMEPLATE BSD-160111A3H3.A5378 160111A3H3	£2.61	£3.13
