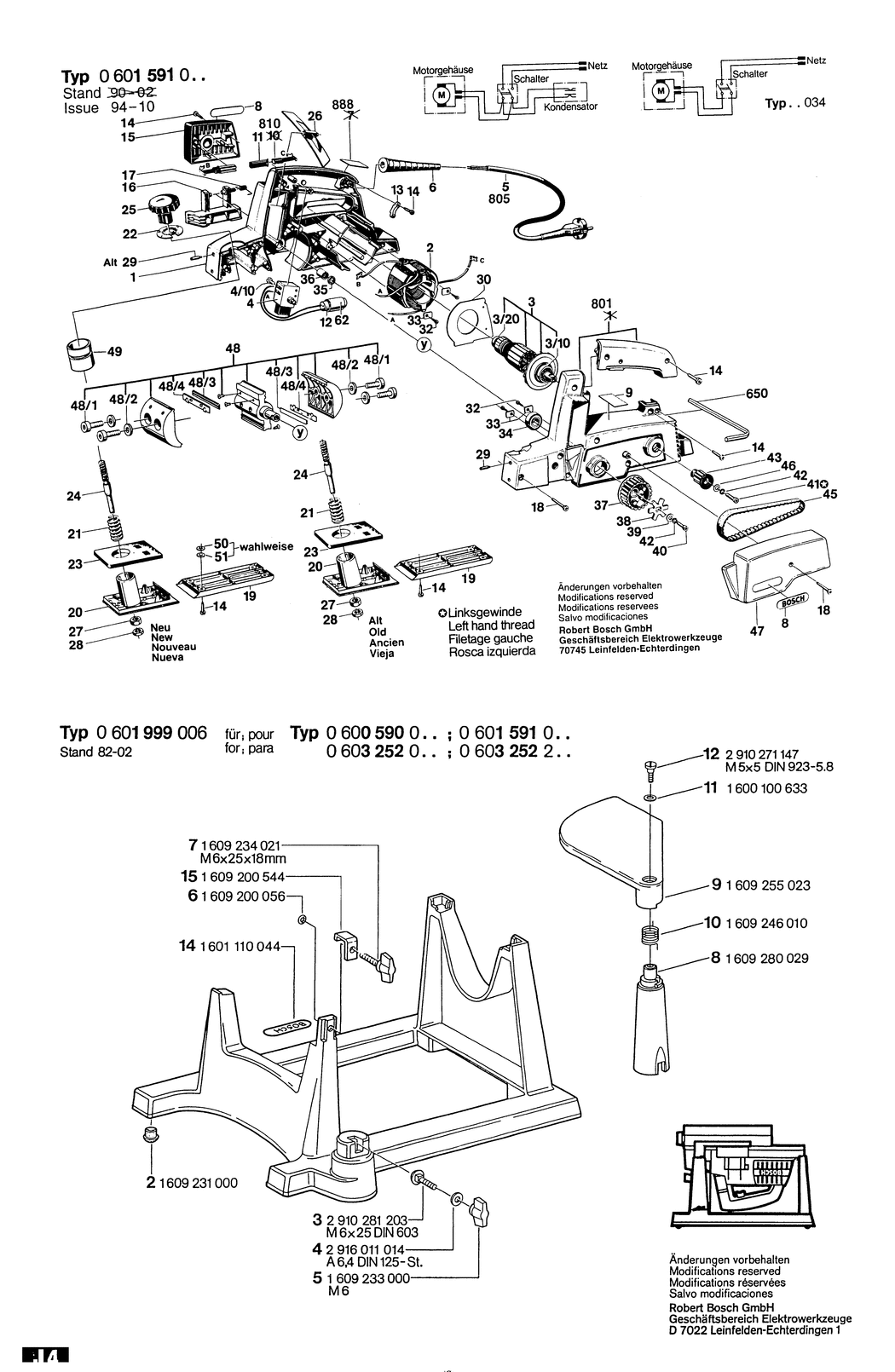

2 - FIELD 220V
BSD-1609201074.A5
1609201074
|
-
|
|
|
|
3 - ARMATURE 220-240V
BSD-1609201075.A4
1609201075
|
-
|
|
|
|
3/10 - GROOVE BALL BEARING 607 LLB C3/3K DIN 625
BSD-1609200716.A5
1609200716
|
-
|
|
|
|
3/20 - GROOVE BALL BEARING 6 001 LLU C 3/3K DIN 625
BSD-1609200715.A64
1609200715
|
-
|
|
|
|
4 - ON-OFF SWITCH
BSD-1609200748.A7
1609200748
|
-
|
|
|
|
6 - GROMMET dia9x90 MM
BSD-1609207001.A145
1609207001
|
-
|
|
|
|
8 - REFERENCE PLATE
BSD-1601110044.A7
1601110044
|
-
|
|
|
|
11 - BRUSH HOLDER
BSD-1609200032.A0
1609200032
|
-
|
|
|
|
12 - SUPPRESSION CAPACITOR
BSD-1609200887.A7
1609200887
|
-
|
|
|
|
13 - FASTENING CLAMP
BSD-1609213000.A24
1609213000
|
-
|
|
|
|
14 - TAPPING SCREW DIN 7981-3.9x19-C-Z-ST
BSD-2912401020.A438
2912401020
|
£2.16
|
£2.59
|
|
|
15 - SEALING CAP
BSD-1609200026.A6
1609200026
|
-
|
|
|
|
16 - FLAP
BSD-1609200021.A7
1609200021
|
-
|
|
|
|
17 - COILED SPRING
BSD-1609200044.A22
1609200044
|
-
|
|
|
|
18 - TAPPING SCREW B 3.9x32 DIN 7981
BSD-2910611082.A0
2910611082
|
£1.75
|
£2.10
|
|
|
19 - BASE PLATE
BSD-1609200019.A6
1609200019
|
-
|
|
|
|
20 - ADJUSTING SLIDE
BSD-1609202411.A6
1609202411
|
-
|
|
|
|
21 - COMPRESSION SPRING
BSD-1604619017.A30
1604619017
|
£2.16
|
£2.59
|
|
|
22 - GRADUATED DIAL
BSD-1609200042.A13
1609200042
|
-
|
|
|
|
23 - SEALING PLATE
BSD-1609200043.A0
1609200043
|
-
|
|
|
|
24 - THREADED SPINDLE
BSD-1609200045.A0
1609200045
|
-
|
|
|
|
25 - ROTARY HANDLE
BSD-1609200038.A13
1609200038
|
-
|
|
|
|
26 - FLAP
BSD-1609200031.A22
1609200031
|
-
|
|
|
|
27 - HEX NUT DIN 934-M 10-m-8
BSD-2915011010.A10
2915011010
|
-
|
|
|
|
28 - HEX NUT DIN 439-BM10-04
BSD-2915051108.A23
2915051108
|
£1.32
|
£1.58
|
|
|
29 - SET SCREW M 4x16 DIN 915-45H
BSD-2912081126.A6
2912081126
|
-
|
|
|
|
30 - INTERMEDIATE PLATE
BSD-1609201077.A7
1609201077
|
-
|
|
|
|
32 - TORX OVAL-HEAD SCREW 3x10
BSD-2603490017.A586
2603490017
|
£2.16
|
£2.59
|
|
|
33 - CLAMPING PLATE
BSD-1609200039.A0
1609200039
|
-
|
|
|
|
34 - GROOVE BALL BEARING 6 001 LLU C 3/3K DIN 625
BSD-1609200715.A62
1609200715
|
-
|
|
|
|
35 - SEAL RING
BSD-1609202009.A1
1609202009
|
-
|
|
|
|
36 - NEEDLE BEARING
BSD-1609202006.A12
1609202006
|
-
|
|
|
|
37 - PULLEY
BSD-1609200015.A5
1609200015
|
-
|
|
|
|
38 - DRIVER DISC
BSD-1609200052.A13
1609200052
|
-
|
|
|
|
39 - PLAIN WASHER 5.3 DIN 7349
BSD-2916201003.A15
2916201003
|
-
|
|
|
|
40 - HEX SOCKET HEAD CAP SCREW DIN 912-M5X16-8.8
BSD-2910141158.A221
2910141158
|
£1.75
|
£2.10
|
|
|
41 - HEX SOCKET HEAD CAP SCREW M 5x16 MM
BSD-1609234023.A24
1609234023
|
-
|
|
|
|
42 - SPRING WASHER DIN 137-A5-FST
BSD-2916060006.A243
2916060006
|
£1.32
|
£1.58
|
|
|
43 - PULLEY Z=13
BSD-1609200016.A8
1609200016
|
-
|
|
|
|
45 - TOOTHED BELT
BSD-1609201117.A0
1609201117
|
-
|
|
|
|
46 - PLAIN WASHER DIN 433-5.3-ST
BSD-2916011011.A22
2916011011
|
£1.75
|
£2.10
|
|
|
47 - GEAR COVER
BSD-1609202414.A5
1609202414
|
-
|
|
|
|
47 - GEAR COVER
BSD-1609200027.A0
1609200027
|
-
|
|
|
|
48 - CUTTER HEAD
BSD-1609201085.A7
1609201085
|
-
|
|
|
|
48/1 - HEX SOCKET HEAD CAP SCREW
BSD-1609201086.A6
1609201086
|
-
|
|
|
|
48/2 - PLAIN WASHER DIN 126-9-A2
BSD-2918660004.A24
2918660004
|
£1.75
|
£2.10
|
|
|
48/4 - RECEIVER RAIL
BSD-1609201129.A15
1609201129
|
-
|
|
|
|
49 - GUIDE SLEEVE
BSD-1609202412.A0
1609202412
|
-
|
|
|
|
50 - SHIM RING
BSD-1609202415.A0
1609202415
|
-
|
|
|
|
51 - SHIM RING
BSD-1609202416.A6
1609202416
|
-
|
|
|
|
62 - ADHESIVE TAPE
BSD-1609200550.A7
1609200550
|
-
|
|
|
|
801 - PARTS SET
BSD-1609202410.A0
1609202410
|
-
|
|
|
|
805 - POWER SUPPLY CORD EU 4.15m 2 x 1.0mm H07 RN-F
BSD-1607000227.A725
1607000227
|
£23.86
|
£28.63
|
|
|
810 - CARBON-BRUSH SET
BSD-1609202417.A0
1609202417
|
-
|
|
|
|
888 - NAMEPLATE
BSD-160111A3H3.A5361
160111A3H3
|
£2.61
|
£3.13
|
|
