Bosch BH 82 / 060159A791 / EU 230 Volt Spare Parts

Bosch BH 82 / 060159A791 / EU 230 Volt Spare Parts
Home Details Reviews Delivery

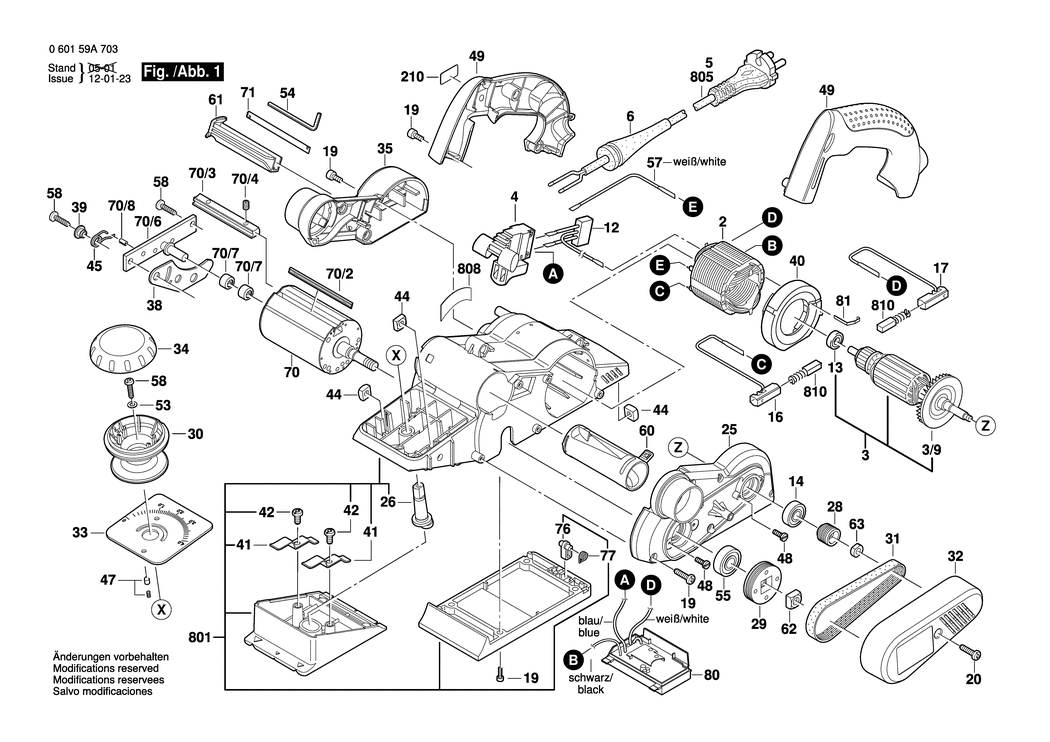

An exploded drawing and listing for the Bosch BH 82 / 060159A791 / EU 230 Volt
Ex VAT Inc VAT
2 - FIELD 220-240V BSD-2604220663.A7 2604220663 £23.86 £28.63
3 - ARMATURE 230-240V BSD-2604011322.A2 2604011322 £54.42 £65.30
3/9 - FAN BSD-2606610116.A4 2606610116 £2.61 £3.13
4 - SWITCH BSD-2607200616.A0 2607200616 £9.49 £11.39
5 - POWER SUPPLY CORD EU 230V 4.15m 2 x 1.0mm H05 RN-F BSD-1607000386.A22 1607000386 £21.52 £25.83
6 - GROMMET dia6.4-dia7.2x76 MM BSD-2600703017.A885 2600703017 £2.61 £3.13
9 - MANUFACTURER'S NAMEPLATE BSD-2601116747.A0 2601116747 -
12 - SUPPRESSION FILTER BSD-2607329148.A4 2607329148 £7.36 £8.83
13 - GROOVE BALL BEARING 7x19x6 BSD-1610905025.A493 1610905025 £6.52 £7.83
14 - GROOVE BALL BEARING 8x22x7 BSD-2600905052.A206 2600905052 £7.36 £8.83
16 - BRUSH HOLDER BSD-2604449026.A84 2604449026 £1.75 £2.10
17 - BRUSH HOLDER BSD-2604449027.A7 2604449027 £1.75 £2.10
19 - SCREW 4x16 BSD-2603490022.A197 2603490022 £1.75 £2.10
20 - THREAD-FORMING TAP. SCREW M4x12 MM BSD-2603410049.A59 2603410049 £1.75 £2.10
25 - BEARING FLANGE BSD-2605719033.A7 2605719033 £27.23 £32.68
26 - ADJUSTING ECCENTRIC BSD-2606110001.A44 2606110001 £3.72 £4.47
28 - PULLEY WHEEL BSD-2600324010.A8 2600324010 £4.26 £5.11
29 - PULLEY WHEEL BSD-2600324012.A3 2600324012 £7.36 £8.83
30 - ROTARY HANDLE BSD-2602026120.A1 2602026120 £3.72 £4.47
31 - V-BELT BSD-2604736013.A11 2604736013 £10.10 £12.12
32 - GEAR COVER BSD-2605510220.A0 2605510220 £7.36 £8.83
33 - SCALE PLATE BSD-2601120009.A3 2601120009 £11.30 £13.56
34 - CAP-HANDLE BSD-2605500105.A5 2605500105 £2.16 £2.59
35 - BRUSH-COVER BSD-2605510208.A10 2605510208 £7.36 £8.83
38 - SHEET METAL COVER BSD-2601098036.A26 2601098036 £2.16 £2.59
39 - GUIDE BUSHING BSD-2600324008.A39 2600324008 £1.75 £2.10
40 - AIR-DEFLECTOR RING BSD-2600290009.A30 2600290009 £3.72 £4.47
41 - SPRING PLATE BSD-2601290016.A61 2601290016 £2.16 £2.59
42 - THREAD-FORMING TAP. SCREW M 5x12 MM BSD-2603435027.A13 2603435027 £1.75 £2.10
44 - SQUARE NUT M6 BSD-2603320004.A83 2603320004 £1.75 £2.10
45 - TORSION SPRING BSD-2604651007.A40 2604651007 £1.75 £2.10
47 - RATCHET CAP BSD-2600590006.A1255 2600590006 £1.75 £2.10
48 - SCREW AND WASHER ASSEMBLY BSD-2603433000.A62 2603433000 £1.75 £2.10
49 - HANDLE PLATE BSD-2605409031.A0 2605409031 -
53 - PLAIN WASHER DIN 125-A4.3-ST BSD-2916011010.A66 2916011010 £1.75 £2.10
54 - OFFSET SCREWDRIVER BSD-2607950045.A11 2607950045 £2.16 £2.59
55 - GROOVE BALL BEARING 10x26x8 BSD-2600905064.A71 2600905064 £11.30 £13.56
57 - CONNECTING CABLE BSD-2604448059.A18 2604448059 -
58 - TORX OVAL-HEAD SCREW 4x20 BSD-2603490023.A1593 2603490023 £1.75 £2.10
60 - DEFLECTOR PIPE BSD-2600409028.A3 2600409028 £10.10 £12.12
61 - PLUG-IN MODULE BSD-2605500186.A0 2605500186 -
62 - SQUARE NUT M8 BSD-2603320003.A37 2603320003 £1.75 £2.10
63 - ROUND NUT M6 BSD-2603342006.A87 2603342006 £1.75 £2.10
70 - PLANER HEAD BSD-2608584683.A10 2608584683 £68.42 £82.10
70/2 - PLANING KNIFE BSD-2608635341.A31 2608635341 £16.41 £19.69
70/3 - GRIPPING WEDGE BSD-2603111001.A17 2603111001 £13.12 £15.75
70/4 - SET SCREW BSD-2603400016.A8 2603400016 £1.75 £2.10
70/6 - BEARING BRACKET BSD-2605819012.A8 2605819012 £21.52 £25.83
70/7 - NEEDLE BEARING BSD-2600914025.A8 2600914025 -
70/8 - COILED SPRING PIN DIN 7343-3.5x8 MM BSD-2917800303.A48 2917800303 £1.75 £2.10
71 - PLANING KNIFE BSD-2608635341.A46 2608635341 £16.41 £19.69
76 - KNIFE GUARD BSD-2601329112.A1 2601329112 £2.61 £3.13
77 - TORSION SPRING BSD-2604651016.A9 2604651016 £1.75 £2.10
80 - SPEED GOVERNOR 230-240V BSD-2607233064.A4 2607233064 £59.53 £71.44
81 - CONTACT STRAP BSD-2601329110.A9 2601329110 £1.75 £2.10
210 - NAMEPLATE BSD-2601116497.A2 2601116497 -
801 - HOUSING BSD-2605190919.A0 2605190919 £81.81 £98.17
808 - NAMEPLATE BSD-2601116749.A0 2601116749 -
810 - CARBON-BRUSH SET BSD-2607014016.A6 2607014016 £11.30 £13.56
