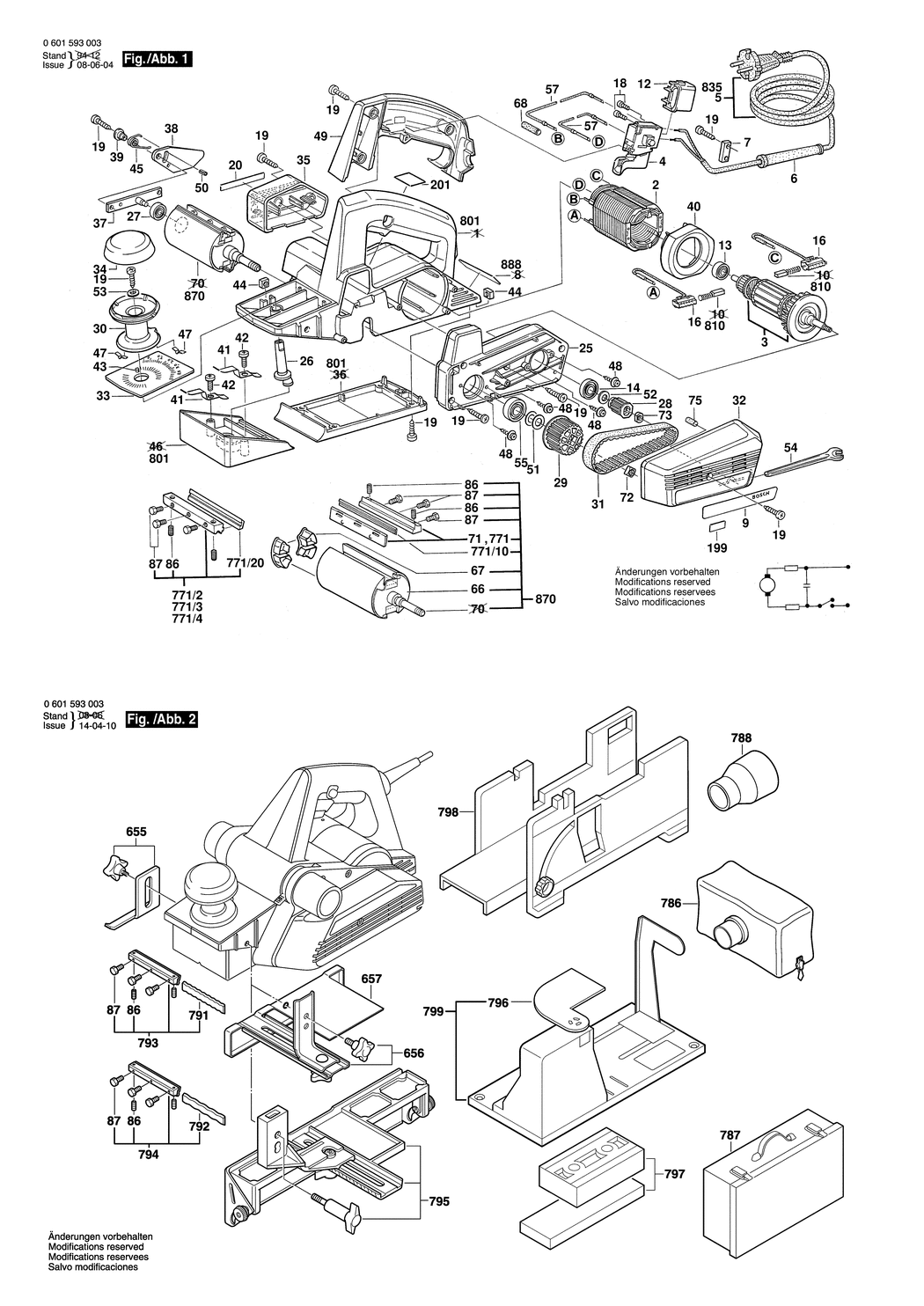

An exploded drawing and listing for the Bosch GHO 31-82 / 0601593042 / GB 240 Volt
Ex VAT Inc VAT
2 - FIELD 240V BSD-2604220481.A0 2604220481 -
3 - ARMATURE 240V BSD-2604010764.A1 2604010764 -
4 - ON-OFF SWITCH BSD-1607000231.A107 1607000231 £18.96 £22.75
5 - POWER SUPPLY CORD GB 230V 4.15m 2 x 1.0mm H05 RN-F BSD-2604460222.A26 2604460222 £18.96 £22.75
6 - GROMMET dia7 MM BSD-2600703007.A293 2600703007 -
6 - GROMMET dia9.5 MM BSD-2600703006.A91 2600703006 -
6 - GROMMET dia8.2 MM BSD-2600703008.A38 2600703008 £1.75 £2.10
7 - CABLE CLIP BSD-2601035001.A1928 2601035001 £1.75 £2.10
9 - MANUFACTURER'S NAMEPLATE BSD-2601118603.A8 2601118603 -
12 - SUPPRESSION CAPACITOR BSD-2607329138.A13 2607329138 -
13 - GROOVE BALL BEARING 7x19x6 BSD-1610905025.A605 1610905025 £6.52 £7.83
14 - GROOVE BALL BEARING 8x22x7 BSD-2600905052.A898 2600905052 £7.36 £8.83
16 - BRUSH HOLDER BSD-2604449027.A97 2604449027 £1.75 £2.10
18 - SOCKET HEAD CAP SCREW M3x6.5-4.8 BSD-2603410001.A1417 2603410001 £1.75 £2.10
19 - SCREW 4x16 BSD-2603490022.A1654 2603490022 £1.75 £2.10
20 - MANUFACTURER'S NAMEPLATE BSD-1601110481.A351 1601110481 £2.16 £2.59
25 - BEARING FLANGE BSD-2605719001.A2 2605719001 -
26 - ADJUSTING ECCENTRIC BSD-2606110001.A51 2606110001 £3.72 £4.47
27 - NEEDLE-ROLLER BEARING dia8x8 MM BSD-2600917003.A206 2600917003 £2.80 £3.36
28 - TOOTHED BELT WHEEL Z=19 BSD-2600324009.A10 2600324009 £2.52 £3.02
29 - TOOTHED BELT WHEEL Z=43 BSD-2606625009.A50 2606625009 £3.34 £4.01
30 - ROTARY HANDLE BSD-2602026004.A41 2602026004 -
31 - TOOTHED BELT 17 MM. Z=89 BSD-2609995917.A2 2609995917 £8.67 £10.41
32 - GEAR COVER BSD-2605510041.A18 2605510041 £5.01 £6.01
33 - SCALE PLATE BSD-2601120000.A0 2601120000 £5.87 £7.04
34 - CAP-HANDLE BSD-2605500105.A43 2605500105 £2.16 £2.59
35 - COVERING HOOD BSD-2605510039.A2 2605510039 £2.52 £3.02
37 - BEARING BRACKET BSD-2605819004.A39 2605819004 -
38 - SHEET METAL COVER BSD-2601098036.A2 2601098036 £2.16 £2.59
39 - GUIDE BUSHING BSD-2600324008.A53 2600324008 £1.75 £2.10
40 - AIR-DEFLECTOR RING BSD-2600290006.A11 2600290006 -
41 - SPRING PLATE BSD-2601290016.A3 2601290016 £2.16 £2.59
42 - THREAD-FORMING TAP. SCREW M 5x12 MM BSD-2603435027.A53 2603435027 £1.75 £2.10
43 - COILED SPRING PIN DIN 7343-5x2.5 BSD-2917800053.A58 2917800053 £2.16 £2.59
44 - SQUARE NUT M6 BSD-2603320004.A119 2603320004 £1.75 £2.10
45 - TORSION SPRING BSD-2604651007.A49 2604651007 £1.75 £2.10
47 - RATCHET SPRING BSD-2601254000.A4 2601254000 £1.75 £2.10
48 - SCREW AND WASHER ASSEMBLY BSD-2603433000.A3 2603433000 £1.75 £2.10
49 - HANDLE COVER BSD-2605133006.A9 2605133006 £7.36 £8.83
50 - COILED SPRING PIN DIN 7343-3.5x8 MM BSD-2917800303.A50 2917800303 £1.75 £2.10
51 - PLAIN WASHER DIN 315-M8-GT-C BSD-2600100041.A180 2600100041 £1.75 £2.10
52 - SHIM 0.2 MM BSD-1600100632.A264 1600100632 £1.75 £2.10
53 - PLAIN WASHER DIN 125-A4.3-ST BSD-2916011010.A364 2916011010 £1.75 £2.10
54 - SINGLE-HEAD ENG. WRENCH BSD-2607950504.A91 2607950504 £2.52 £3.02
55 - GROOVE BALL BEARING 10x26x8 BSD-2600905064.A3 2600905064 £11.30 £13.56
57 - CONNECTING CABLE L = 288 MM BSD-2604448062.A25 2604448062 £1.32 £1.58
67 - COVER BSD-2605510036.A19 2605510036 -
68 - SHRINKABLE TUBE BSD-2600409020.A8 2600409020 £1.75 £2.10
72 - SQUARE NUT M8 BSD-2603320003.A0 2603320003 £1.75 £2.10
73 - ROUND NUT M6 BSD-2603342006.A30 2603342006 £1.75 £2.10
75 - RUBBER BUFFER BSD-1603100036.A61 1603100036 £1.75 £2.10
86 - SET SCREW BSD-2603400014.A4 2603400014 -
87 - HEX SCREW BSD-2603450005.A14 2603450005 -
199 - STICKER BSD-1601110265.A214 1601110265 -
655 - DEPTH-GAUGE BSD-2607001045.A2 2607001045 £6.61 £7.93
656 - PARTS SET BSD-2607001047.A12 2607001047 -
657 - STOP BRACKET BSD-2608005015.A4 2608005015 £11.30 £13.56
771 - GRIP-SPRING TENSIONING E BSD-2608040039.A51 2608040039 £21.68 £26.01
771/2 - CHANGEOVER SET BSD-2607000136.A1 2607000136 -
771/10 - PLANING KNIFE BSD-2608635341.A10 2608635341 £16.41 £19.69
786 - CHIPS BAG BSD-2605411016.A12 2605411016 -
787 - CARRYING CASE BSD-2605438119.A0 2605438119 -
788 - SUCTION CONNECTOR BSD-2605702017.A3 2605702017 £5.24 £6.29
794 - CHANGEOVER SET BSD-2607000136.A0 2607000136 -
795 - WIDTH STOP BSD-2607001077.A40 2607001077 £34.12 £40.94
796 - KNIFE GUARD BSD-2607001106.A2 2607001106 -
797 - BLADE SHARPENING DEVICE BSD-2608133001.A0 2608133001 -
798 - STRAIGHTENING DEVICE BSD-0603095000.A41 0603095000 -
799 - BASE BSD-2608005034.A9 2608005034 -
801 - HOUSING BSD-2605190901.A0 2605190901 -
810 - CARBON-BRUSH SET BSD-2604321905.A39 2604321905 £11.30 £13.56
870 - PLANER HEAD BSD-2603204908.A3 2603204908 -
888 - NAMEPLATE BSD-160111A3H3.A4801 160111A3H3 £2.61 £3.13
