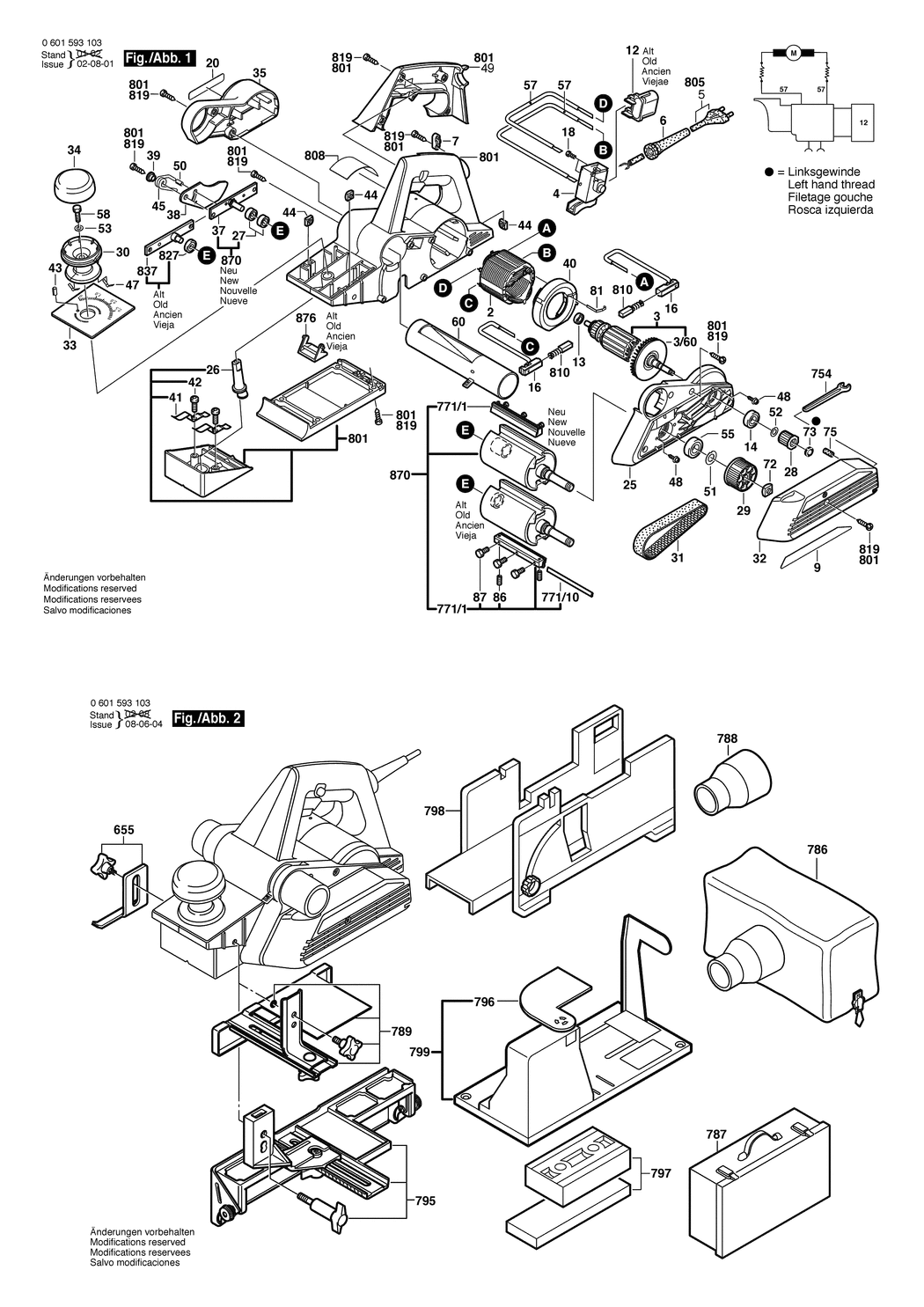

An exploded drawing and listing for the Bosch GHO 31-82 / 0601593161 / GB 110 Volt
Ex VAT Inc VAT
2 - FIELD 120V BSD-2609120464.A11 2609120464 £21.52 £25.83
3 - ARMATURE 110-115V BSD-2604010762.A4 2604010762 -
3/60 - FAN BSD-2606610049.A501 2606610049 £2.16 £2.59
4 - ON-OFF SWITCH BSD-1607000231.A66 1607000231 £18.96 £22.75
5 - POWER SUPPLY CORD GB 110V 4.15m 2 x 1.0mm H05 RN-F BSD-2604460210.A11 2604460210 £21.52 £25.83
6 - GROMMET dia8.3-dia10.5x81 MM BSD-1600703033.A2 1600703033 £2.16 £2.59
7 - CABLE CLIP BSD-2601035001.A247 2601035001 £1.75 £2.10
9 - MANUFACTURER'S NAMEPLATE BSD-2601117953.A5 2601117953 -
12 - SUPPRESSION FILTER BSD-1607328028.A597 1607328028 £5.30 £6.36
13 - GROOVE BALL BEARING 7x19x6 BSD-1610905025.A553 1610905025 £6.52 £7.83
14 - GROOVE BALL BEARING 8x22x7 BSD-2600905052.A24 2600905052 £7.36 £8.83
16 - BRUSH HOLDER BSD-2604449027.A49 2604449027 £1.75 £2.10
18 - SOCKET HEAD CAP SCREW M3x6.5-4.8 BSD-2603410001.A113 2603410001 £1.75 £2.10
20 - MANUFACTURER'S NAMEPLATE BSD-1601110481.A157 1601110481 £2.16 £2.59
25 - BEARING FLANGE BSD-2605719003.A6 2605719003 -
26 - ADJUSTING ECCENTRIC BSD-2606110001.A15 2606110001 £3.72 £4.47
27 - NEEDLE-ROLLER BEARING dia8x8 MM BSD-2600917003.A725 2600917003 £2.80 £3.36
28 - TOOTHED BELT WHEEL Z=19 BSD-2600324009.A52 2600324009 £2.52 £3.02
29 - TOOTHED BELT WHEEL Z=43 BSD-2606625009.A14 2606625009 £3.34 £4.01
30 - ROTARY HANDLE BSD-2602026004.A28 2602026004 -
31 - TOOTHED BELT 17 MM. Z=89 BSD-2609995917.A32 2609995917 £8.67 £10.41
32 - GEAR COVER BSD-2605510064.A10 2605510064 -
33 - SCALE PLATE BSD-2601120000.A15 2601120000 £5.87 £7.04
34 - CAP-HANDLE BSD-2605500105.A19 2605500105 £2.16 £2.59
35 - BRUSH-COVER BSD-2605510063.A18 2605510063 -
37 - BEARING BRACKET BSD-2605819011.A24 2605819011 £5.01 £6.01
38 - SHEET METAL COVER BSD-2601098036.A62 2601098036 £2.16 £2.59
39 - GUIDE BUSHING BSD-2600324008.A7 2600324008 £1.75 £2.10
40 - AIR-DEFLECTOR RING BSD-2600290009.A15 2600290009 £3.72 £4.47
41 - SPRING PLATE BSD-2601290016.A31 2601290016 £2.16 £2.59
42 - THREAD-FORMING TAP. SCREW M 5x12 MM BSD-2603435027.A40 2603435027 £1.75 £2.10
43 - COILED SPRING PIN DIN 7343-5x2.5 BSD-2917800053.A26 2917800053 £2.16 £2.59
44 - SQUARE NUT M6 BSD-2603320004.A49 2603320004 £1.75 £2.10
45 - TORSION SPRING BSD-2604651007.A10 2604651007 £1.75 £2.10
47 - RATCHET SPRING BSD-2601254000.A43 2601254000 £1.75 £2.10
48 - SCREW AND WASHER ASSEMBLY BSD-2603433000.A35 2603433000 £1.75 £2.10
49 - HANDLE PLATE BSD-2605133026.A17 2605133026 £7.78 £9.33
50 - COILED SPRING PIN DIN 7343-3.5x8 MM BSD-2917800303.A10 2917800303 £1.75 £2.10
51 - PLAIN WASHER DIN 315-M8-GT-C BSD-2600100041.A89 2600100041 £1.75 £2.10
52 - SHIM 0.2 MM BSD-1600100632.A8 1600100632 £1.75 £2.10
53 - PLAIN WASHER DIN 125-A4.3-ST BSD-2916011010.A134 2916011010 £1.75 £2.10
55 - GROOVE BALL BEARING 10x26x8 BSD-2600905064.A18 2600905064 £11.30 £13.56
57 - CONNECTING CABLE BSD-2604448196.A4 2604448196 -
58 - TORX OVAL-HEAD SCREW 4x20 BSD-2603490023.A746 2603490023 £1.75 £2.10
60 - DEFLECTOR PIPE BSD-2600409022.A18 2600409022 -
68 - SHRINKABLE TUBE BSD-2600409020.A17 2600409020 £1.75 £2.10
72 - SQUARE NUT M8 BSD-2603320003.A55 2603320003 £1.75 £2.10
73 - ROUND NUT M6 BSD-2603342006.A62 2603342006 £1.75 £2.10
75 - RUBBER BUFFER BSD-2603100053.A19 2603100053 £1.75 £2.10
81 - CONTACT STRAP BSD-2601329053.A41 2601329053 £1.75 £2.10
86 - SET SCREW BSD-2603400014.A38 2603400014 -
87 - HEX SCREW BSD-2603450005.A32 2603450005 -
655 - DEPTH-GAUGE BSD-2607001045.A37 2607001045 £6.61 £7.93
754 - SINGLE-HEAD ENG. WRENCH BSD-2607950504.A39 2607950504 £2.52 £3.02
771/1 - GRIP-SPRING TENSIONING E BSD-2608040039.A34 2608040039 £21.68 £26.01
771/10 - PLANING KNIFE BSD-2608635341.A99 2608635341 £16.41 £19.69
786 - DUST BAG BSD-2609170013.A31 2609170013 £27.23 £32.68
787 - CARRYING CASE BSD-2605438474.A4 2605438474 -
788 - SUCTION CONNECTOR BSD-2605702022.A22 2605702022 -
789 - PARALLEL-GUIDE BSD-2607000102.A47 2607000102 £20.99 £25.19
795 - WIDTH STOP BSD-2607001077.A31 2607001077 £34.12 £40.94
796 - KNIFE GUARD BSD-2607001106.A14 2607001106 -
797 - BLADE SHARPENING DEVICE BSD-2608133001.A7 2608133001 -
798 - STRAIGHTENING DEVICE BSD-0603095000.A11 0603095000 -
799 - BASE BSD-0603095002.A40 0603095002 -
801 - HOUSING BSD-2605190914.A11 2605190914 -
808 - NAMEPLATE BSD-160111A3H3.A1005 160111A3H3 £2.61 £3.13
810 - CARBON-BRUSH SET BSD-2604321905.A571 2604321905 £11.30 £13.56
819 - SCREW 4x16 BSD-2603490022.A1575 2603490022 £1.75 £2.10
827 - GROOVE BALL BEARING 6x19x6 BSD-2600905037.A29 2600905037 -
837 - BEARING BRACKET BSD-2605819004.A18 2605819004 -
870 - PLANER HEAD BSD-2603204908.A27 2603204908 -
876 - KNIFE GUARD BSD-2601329055.A12 2601329055 -
