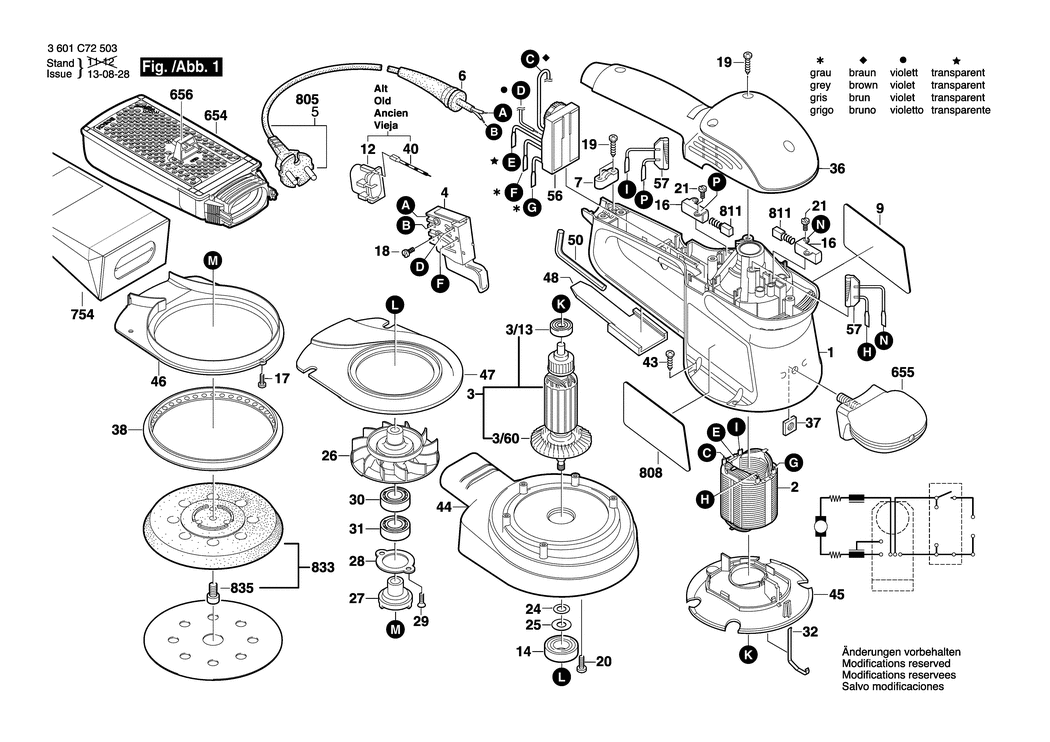

1 - HOUSING SECTION
BSD-2605104410.A27
2605104410
|
£18.96
|
£22.75
|
|
|
2 - FIELD 230-240V
BSD-2604220529.A13
2604220529
|
£23.86
|
£28.63
|
|
|
3 - ARMATURE 220-240V
BSD-2604011028.A20
2604011028
|
£59.53
|
£71.44
|
|
|
3/13 - GROOVE BALL BEARING 7x19x6
BSD-1610905025.A657
1610905025
|
£6.52
|
£7.83
|
|
|
3/60 - FAN
BSD-2606610076.A5
2606610076
|
£3.72
|
£4.47
|
|
|
4 - SWITCH
BSD-2607200260.A287
2607200260
|
£11.30
|
£13.56
|
|
|
6 - GROMMET dia6.4-dia7.2x76 MM
BSD-2600703017.A238
2600703017
|
£2.61
|
£3.13
|
|
|
7 - CABLE CLIP
BSD-2601035001.A3175
2601035001
|
£1.75
|
£2.10
|
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-2601116495.A2
2601116495
|
£3.72
|
£4.47
|
|
|
9 - MANUFACTURER'S NAMEPLATE GEX 125 AC
BSD-2601111956.A0
2601111956
|
-
|
|
|
|
14 - GROOVE BALL BEARING
BSD-2600905034.A84
2600905034
|
£13.12
|
£15.75
|
|
|
16 - BRUSH HOLDER
BSD-2604337016.A61
2604337016
|
£1.75
|
£2.10
|
|
|
17 - TORX OVAL-HEAD SCREW M3x8
BSD-2603435089.A16
2603435089
|
£1.75
|
£2.10
|
|
|
18 - SOCKET HEAD CAP SCREW M3x6.5-4.8
BSD-2603410001.A2978
2603410001
|
£1.75
|
£2.10
|
|
|
19 - SCREW 4x16
BSD-2603490022.A3243
2603490022
|
£1.75
|
£2.10
|
|
|
20 - SPECIAL SCREW
BSD-1600A00RD6.A20
1600A00RD6
|
£1.75
|
£2.10
|
|
|
21 - TORX OVAL-HEAD SCREW 3x10
BSD-2603490017.A39
2603490017
|
£2.16
|
£2.59
|
|
|
24 - SHIM 0.3 MM
BSD-2600101047.A107
2600101047
|
£1.75
|
£2.10
|
|
|
25 - PLAIN WASHER DIN 315-M8-GT-C
BSD-2600100041.A294
2600100041
|
£1.75
|
£2.10
|
|
|
26 - FAN
BSD-2606610069.A10
2606610069
|
£16.41
|
£19.69
|
|
|
27 - CARRIER
BSD-2600328025.A10
2600328025
|
£10.10
|
£12.12
|
|
|
28 - TAB WASHER
BSD-2600190060.A24
2600190060
|
£2.16
|
£2.59
|
|
|
29 - THREAD-FORMING TAP. SCREW M3x8
BSD-3603391003.A17
3603391003
|
£2.16
|
£2.59
|
|
|
30 - GROOVE BALL BEARING
BSD-2600905047.A13
2600905047
|
£11.30
|
£13.56
|
|
|
31 - GROOVE BALL BEARING 12x28x8
BSD-2600905048.A1
2600905048
|
£13.12
|
£15.75
|
|
|
32 - CONTACT STRAP
BSD-2601329053.A113
2601329053
|
£1.75
|
£2.10
|
|
|
36 - HOUSING COVER
BSD-2605500124.A41
2605500124
|
£12.04
|
£14.45
|
|
|
37 - SQUARE NUT DIN 562-M6-04
BSD-2915121006.A47
2915121006
|
£2.61
|
£3.13
|
|
|
38 - FRICTION RING
BSD-1600A00JE7.A21
1600A00JE7
|
£2.61
|
£3.13
|
|
|
43 - THREAD-FORMING TAP. SCREW
BSD-2603435042.A38
2603435042
|
£1.75
|
£2.10
|
|
|
44 - SUCTION HOOD
BSD-2600282015.A24
2600282015
|
£21.68
|
£26.01
|
|
|
45 - AIR-DEFLECTOR RING
BSD-2601328047.A29
2601328047
|
£2.80
|
£3.36
|
|
|
46 - SUCTION PIECE
BSD-2601328048.A0
2601328048
|
£2.80
|
£3.36
|
|
|
47 - SUCTION PIECE
BSD-2601328049.A29
2601328049
|
£2.80
|
£3.36
|
|
|
48 - PUSHER
BSD-2601035002.A12
2601035002
|
£2.16
|
£2.59
|
|
|
50 - OFFSET SCREWDRIVER DIN 911-SW5
BSD-1907950006.A918
1907950006
|
£4.26
|
£5.11
|
|
|
56 - SPEED GOVERNOR 230-240V
BSD-2607230119.A7
2607230119
|
£31.64
|
£37.97
|
|
|
57 - SUPPRESSION FILTER
BSD-2604465090.A66
2604465090
|
£7.36
|
£8.83
|
|
|
654 - DUST CHAMBER
BSD-2605411193.A12
2605411193
|
£18.96
|
£22.75
|
|
|
655 - AUXILIARY HANDLE
BSD-2602026069.A62
2602026069
|
£5.30
|
£6.36
|
|
|
656 - ADAPTER
BSD-2605702039.A51
2605702039
|
£5.30
|
£6.36
|
|
|
754 - DUST BAG
BSD-2605411069.A24
2605411069
|
£3.72
|
£4.47
|
|
|
805 - POWER SUPPLY CORD EU 230V 4.15m 2 x 1.0mm H05 RN-F
BSD-1607000386.A650
1607000386
|
£21.52
|
£25.83
|
|
|
808 - MARKING PLATE
BSD-2601119188.A1
2601119188
|
£3.72
|
£4.47
|
|
|
811 - CARBON BRUSH
BSD-1607014117.A220
1607014117
|
£10.10
|
£12.12
|
|
|
833 - BACKING PAD
BSD-2608601901.A12
2608601901
|
£23.86
|
£28.63
|
|
|
835 - HEX SOCKET HEAD CAP SCREW
BSD-2603414062.A16
2603414062
|
£2.16
|
£2.59
|
|
