Bosch ---- / 0611201848 / F 220 Volt Spare Parts

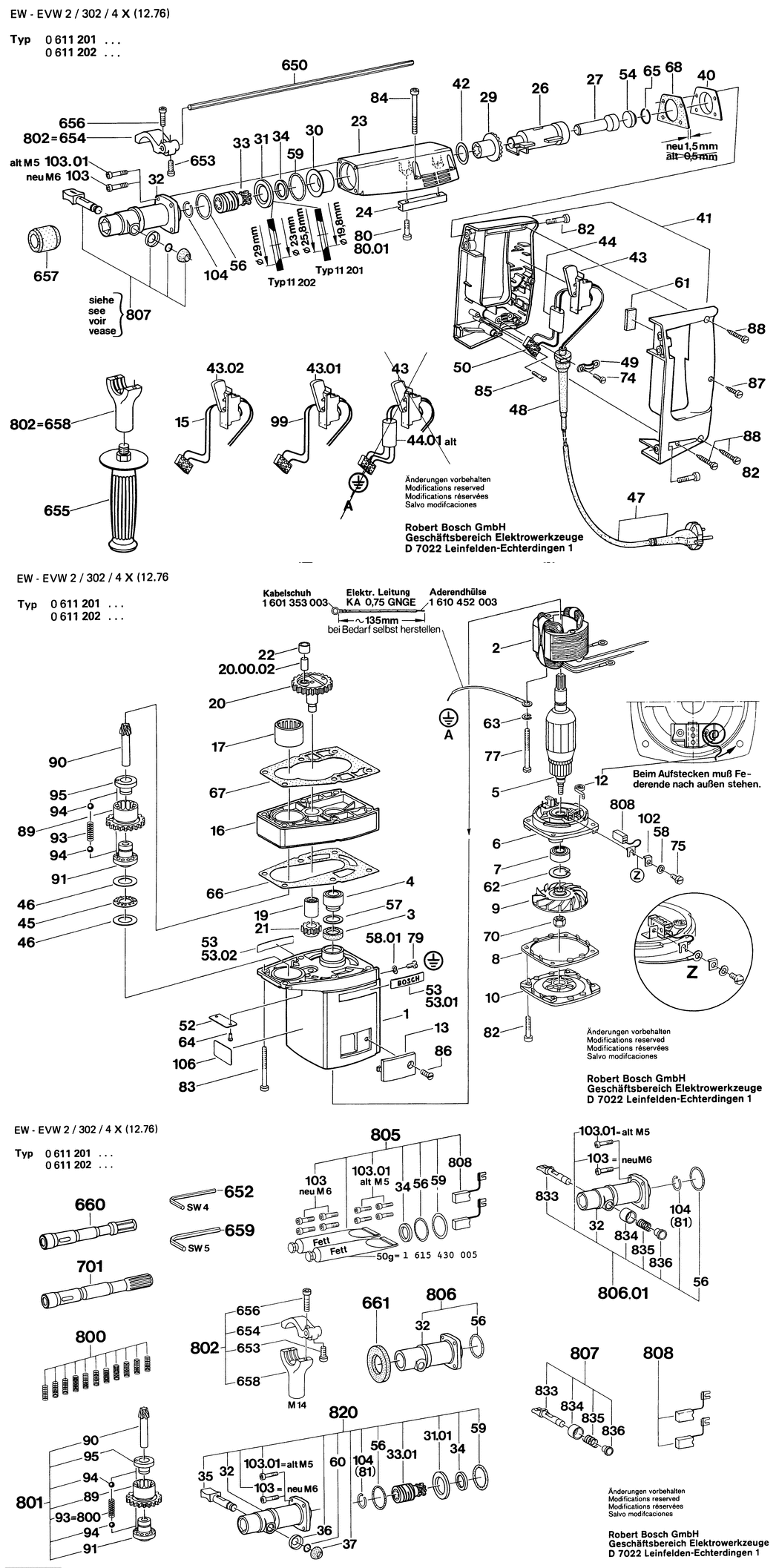

An exploded drawing and listing for the Bosch ---- / 0611201848 / F 220 Volt

	Ex VAT	Inc VAT
1 - MOTOR HOUSING BSD-1615102052.A1 1615102052	-
3 - SEAL RING BSD-1610205000.A8 1610205000	-
4 - NEEDLE-ROLLER BEARING BSD-1610910052.A33 1610910052	£21.68	£26.01
6 - FLANGED BEARING BSD-1615805045.A35 1615805045	-
7 - GROOVE BALL BEARING BSD-1610905000.A21 1610905000	-
8 - INTERMEDIATE PLATE BSD-1611038015.A21 1611038015	-
9 - FAN BSD-1616610044.A33 1616610044	-
10 - HOUSING COVER BSD-1615500123.A35 1615500123	-
12 - SPIRAL SPRING BSD-1614652000.A32 1614652000	-
13 - SEALING CAP BSD-3615500502.A35 3615500502	-
16 - BEARING HOUSING BSD-1615820045.A13 1615820045	-
17 - NEEDLE BEARING BSD-1610910044.A32 1610910044	-
19 - NEEDLE BEARING BSD-1610910048.A0 1610910048	-
20 - ECCENTRIC SHAFT Z=46 BSD-1616110013.A31 1616110013	-
20/20 - BEARING BOLT BSD-1613100007.A16 1613100007	£5.87	£7.04
21 - CYLINDRICAL GEAR Z=18 BSD-1616317013.A27 1616317013	-
22 - BUSHING BSD-1610300043.A32 1610300043	£12.04	£14.45
23 - GEAR HOUSING BSD-1615806017.A26 1615806017	-
24 - GUIDE RAIL BSD-1612317003.A20 1612317003	-
26 - HAMMER PISTON BSD-1618700033.A24 1618700033	-
27 - STRIKER BSD-1618710030.A30 1618710030	-
29 - BEVEL GEAR Z=29 BSD-1616333001.A14 1616333001	-
30 - SPACER BUSHING BSD-1610322004.A14 1610322004	-
31 - SUPPORTING DISC BSD-1610120018.A2 1610120018	-
33 - BIT HOLDER BSD-1618598037.A0 1618598037	-
34 - RETAINING SNAP RING BSD-1610224001.A40 1610224001	£1.75	£2.10
40 - SEALING CAP BSD-1615500194.A12 1615500194	-
41 - HANDLE BSD-1615133019.A25 1615133019	-
42 - SHIM dia32xdia25x0.3 MM BSD-2100102016.A18 2100102016	-
45 - THRUST NEEDLE RIM BSD-1610913000.A61 1610913000	£2.80	£3.36
46 - THRUST BEARING DISC 1.0 MM BSD-1610101008.A100 1610101008	-
47 - POWER SUPPLY CORD EU 4.15m 2 x 1.0mm H07 RN-F BSD-1607000227.A155 1607000227	£23.86	£28.63
49 - FASTENING CLAMP BSD-1601302013.A196 1601302013	£1.75	£2.10
50 - SOCKET-TERMINAL STRIP 3x6 MM BSD-1901091013.A4 1901091013	-
52 - NAMEPLATE BSD-160111A3H3.A353 160111A3H3	£2.61	£3.13
54 - SEALING CAP BSD-1610501031.A26 1610501031	-
56 - O-RING 35.0x1.5 MM BSD-1600210010.A149 1600210010	£2.80	£3.36
57 - PLAIN WASHER 1.0 MM BSD-1600102623.A27 1600102623	£1.32	£1.58
59 - O-RING 28.0x6.0 MM BSD-1610210015.A31 1610210015	-
61 - INSULATING STRIP 33x10x6 MM BSD-1602381001.A430 1602381001	-
62 - SPRING RETAINING RING DIN 472-28x1.2 MM BSD-2916660011.A97 2916660011	£1.75	£2.10
64 - ROUND-HEAD GROOVED PIN 2x6 DIN 1476-ST BSD-2917721034.A9 2917721034	£1.75	£2.10
65 - RETAINING RING 26 DIN 9045 BSD-2916601014.A18 2916601014	-
66 - SEALING PLATE BSD-1611015006.A32 1611015006	-
67 - SEALING PLATE BSD-1611015007.A8 1611015007	£3.34	£4.01
68 - SEALING PLATE 1.5 MM BSD-1611015015.A39 1611015015	£1.95	£2.34
70 - HEX NUT DIN 985-M8-8 BSD-2915061005.A121 2915061005	£2.61	£3.13
75 - SOCKET HEAD CAP SCREW DIN 84-AM4x10-8.8 BSD-2910021120.A78 2910021120	£1.75	£2.10
77 - SOCKET HEAD CAP SCREW DIN 84-BM5x55-8.8 BSD-2910021176.A100 2910021176	-
80 - HEX SOCKET HEAD CAP SCREW BSD-3603414028.A17 3603414028	£1.75	£2.10
80 - HEX SOCKET HEAD CAP SCREW M5x20 MM BSD-1613414005.A44 1613414005	-
82 - HEX SOCKET HEAD CAP SCREW M5x25 DIN 912-10.9 BSD-2910151164.A60 2910151164	£1.75	£2.10
83 - PARTS SET BSD-1617000120.A55 1617000120	-
83 - PARTS SET BSD-1617000120.A56 1617000120	-
84 - HEX SOCKET HEAD CAP SCREW BSD-1617000121.A1 1617000121	-
85 - TAPPING SCREW DIN 7971-BZ2.9x16 BSD-2910211007.A91 2910211007	£1.75	£2.10
86 - TAPPING SCREW DIN 7972-B3.9x13 BSD-2910601118.A74 2910601118	£1.75	£2.10
87 - TAPPING SCREW DIN 7971-BZ3.5x13 BSD-2910211011.A136 2910211011	£1.75	£2.10
88 - TAPPING SCREW DIN 7971-ST3.9x22-F BSD-2910211021.A828 2910211021	£1.75	£2.10
89 - CYLINDRICAL GEAR Z=43 BSD-1616309007.A13 1616309007	-
90 - TOOTHED SHAFT Z=8 BSD-1616333003.A26 1616333003	-
91 - CLUTCH ELEMENT BSD-1610320008.A14 1610320008	-
94 - BALL DIN 5401-5 G28 BSD-1903230009.A304 1903230009	£1.75	£2.10
95 - CLUTCH ELEMENT BSD-1610320009.A18 1610320009	-
103 - HEX SOCKET HEAD CAP SCREW DIN 912-M6x18-8.8 BSD-2910141199.A82 2910141199	£3.72	£4.47
103/10 - HEX SOCKET HEAD CAP SCREW M5x20 MM BSD-1613414005.A43 1613414005	-
104 - RETAINING RING 22 DIN 9045 BSD-2916603012.A25 2916603012	-
650 - DEPTH-GAUGE SW 6x330 MM BSD-1613001003.A87 1613001003	£4.25	£5.10
652 - OFFSET SCREWDRIVER DIN 911-4 BSD-2607950004.A17 2607950004	£1.75	£2.10
653 - HEX SOCKET HEAD CAP SCREW DIN 912-M5x12-8.8 BSD-2910141154.A88 2910141154	£1.75	£2.10
656 - HEX SOCKET HEAD CAP SCREW BSD-3603414028.A14 3603414028	£1.75	£2.10
657 - SEALING CAP BSD-2600508018.A5 2600508018	£2.61	£3.13
660 - BIT HOLDER BSD-1618598038.A14 1618598038	-
800 - PARTS SET BSD-1617000022.A22 1617000022	-
801 - CYLINDRICAL GEAR Z=43/8 BSD-1616309009.A17 1616309009	-
802 - WEAR AND TEAR PART SET BSD-1617000018.A31 1617000018	-
806 - TOOLHOLDER BSD-1618597902.A2 1618597902	-
807 - LOCKING BOLT SET BSD-1617000014.A146 1617000014	£24.45	£29.34
808 - CARBON-BRUSH SET BSD-1617014110.A9 1617014110	£18.96	£22.75
820 - MODIFICATION SET BSD-1617031000.A15 1617031000	-
