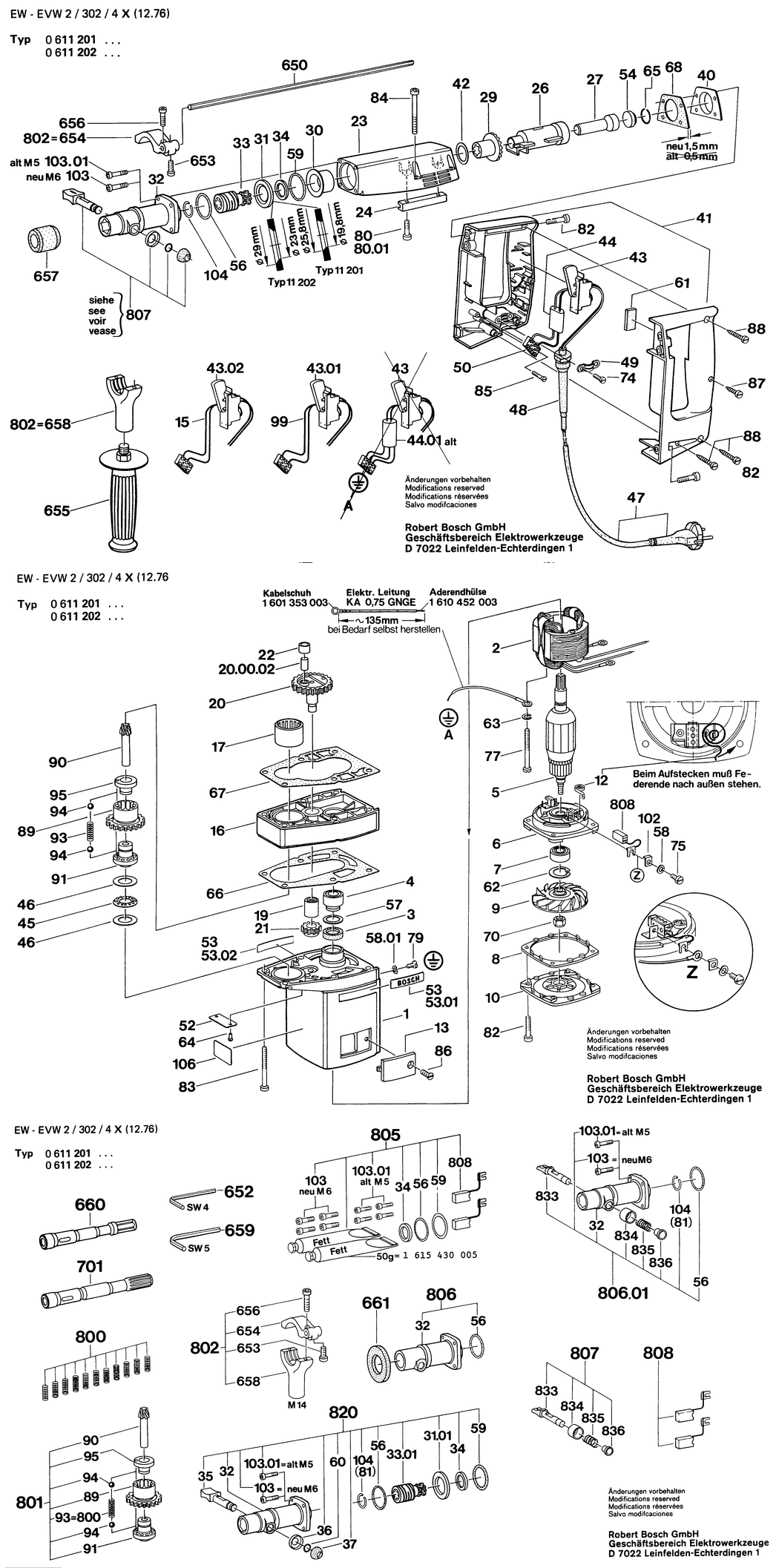

An exploded drawing and listing for the Bosch ---- / 0611202042 / GB 240 Volt
Ex VAT Inc VAT
1 - MOTOR HOUSING BSD-1615102052.A10 1615102052 -
2 - POLE SHOE 240V BSD-1614220043.A0 1614220043 -
3 - SEAL RING BSD-1610205000.A16 1610205000 -
4 - NEEDLE-ROLLER BEARING BSD-1610910052.A23 1610910052 £21.68 £26.01
5 - ARMATURE 240V BSD-1614011026.A0 1614011026 -
6 - FLANGED BEARING BSD-1615805045.A30 1615805045 -
7 - GROOVE BALL BEARING BSD-1610905000.A31 1610905000 -
8 - INTERMEDIATE PLATE BSD-1611038015.A31 1611038015 -
9 - FAN BSD-1616610044.A23 1616610044 -
10 - HOUSING COVER BSD-1615500123.A30 1615500123 -
12 - SPIRAL SPRING BSD-1614652000.A23 1614652000 -
13 - SEALING CAP BSD-3615500502.A33 3615500502 -
16 - BEARING HOUSING BSD-1615820045.A8 1615820045 -
17 - NEEDLE BEARING BSD-1610910044.A22 1610910044 -
19 - NEEDLE BEARING BSD-1610910048.A10 1610910048 -
20 - ECCENTRIC SHAFT Z=46 BSD-1616110013.A22 1616110013 -
21 - CYLINDRICAL GEAR Z=18 BSD-1616317013.A23 1616317013 -
22 - BUSHING BSD-1610300043.A24 1610300043 £12.04 £14.45
23 - GEAR HOUSING BSD-1615806017.A31 1615806017 -
24 - GUIDE RAIL BSD-1612317003.A22 1612317003 -
26 - HAMMER PISTON BSD-1618700033.A37 1618700033 -
27 - STRIKER BSD-1618710030.A17 1618710030 -
29 - BEVEL GEAR Z=29 BSD-1616333001.A18 1616333001 -
30 - SPACER BUSHING BSD-1610322004.A23 1610322004 -
31 - SUPPORTING DISC BSD-1610114012.A24 1610114012 £11.30 £13.56
33 - BIT HOLDER BSD-1618598062.A18 1618598062 -
34 - RETAINING SNAP RING BSD-1610224001.A48 1610224001 £1.75 £2.10
40 - SEALING CAP BSD-1615500194.A17 1615500194 -
41 - HANDLE BSD-1615133019.A17 1615133019 -
42 - SHIM dia32xdia25x0.3 MM BSD-2100102016.A22 2100102016 -
43 - ON-OFF SWITCH BSD-1617200017.A62 1617200017 -
45 - THRUST NEEDLE RIM BSD-1610913000.A70 1610913000 £2.80 £3.36
46 - THRUST BEARING DISC 1.0 MM BSD-1610101008.A102 1610101008 -
47 - POWER SUPPLY CORD EU 4.15m 2 x 1.5mm H07 RN-F BSD-1607000228.A560 1607000228 £23.86 £28.63
48 - GROMMET dia9.2-dia12x120 MM BSD-3600703011.A1122 3600703011 £2.80 £3.36
49 - FASTENING CLAMP BSD-1601302014.A936 1601302014 £2.61 £3.13
50 - SOCKET-TERMINAL STRIP 3x6 MM BSD-1901091013.A16 1901091013 -
52 - NAMEPLATE BSD-160111A3H3.A343 160111A3H3 £2.61 £3.13
53 - MANUFACTURER'S NAMEPLATE BSD-1611110194.A19 1611110194 -
54 - SEALING CAP BSD-1610501031.A17 1610501031 -
56 - O-RING 35.0x1.5 MM BSD-1600210010.A134 1600210010 £2.80 £3.36
57 - PLAIN WASHER 1.0 MM BSD-1600102623.A36 1600102623 £1.32 £1.58
58 - SPRING WASHER DIN 137-A4 BSD-1600150006.A398 1600150006 -
59 - O-RING 28.0x6.0 MM BSD-1610210015.A24 1610210015 -
61 - INSULATING STRIP 33x10x6 MM BSD-1602381001.A443 1602381001 -
62 - SPRING RETAINING RING DIN 472-28x1.2 MM BSD-2916660011.A111 2916660011 £1.75 £2.10
64 - ROUND-HEAD GROOVED PIN 2x6 DIN 1476-ST BSD-2917721034.A21 2917721034 £1.75 £2.10
65 - RETAINING RING 26 DIN 9045 BSD-2916601014.A12 2916601014 -
66 - SEALING PLATE BSD-1611015006.A23 1611015006 -
67 - SEALING PLATE BSD-1611015007.A17 1611015007 £3.34 £4.01
68 - SEALING PLATE 1.5 MM BSD-1611015015.A30 1611015015 £1.95 £2.34
70 - HEX NUT DIN 985-M8-8 BSD-2915061005.A135 2915061005 £2.61 £3.13
74 - SOCKET HEAD CAP SCREW DIN 84-AM4x6-8.8 BSD-2910021116.A455 2910021116 £2.16 £2.59
75 - SOCKET HEAD CAP SCREW DIN 84-AM4x10-8.8 BSD-2910021120.A71 2910021120 £1.75 £2.10
77 - SOCKET HEAD CAP SCREW DIN 84-BM5x55-8.8 BSD-2910021176.A93 2910021176 -
80 - HEX SOCKET HEAD CAP SCREW BSD-3603414028.A21 3603414028 £1.75 £2.10
80 - HEX SOCKET HEAD CAP SCREW M5x20 MM BSD-1613414005.A29 1613414005 -
82 - HEX SOCKET HEAD CAP SCREW M5x25 DIN 912-10.9 BSD-2910151164.A54 2910151164 £1.75 £2.10
83 - PARTS SET BSD-1617000120.A36 1617000120 -
84 - HEX SOCKET HEAD CAP SCREW BSD-1617000121.A17 1617000121 -
85 - TAPPING SCREW DIN 7971-BZ2.9x16 BSD-2910211007.A97 2910211007 £1.75 £2.10
86 - TAPPING SCREW DIN 7972-B3.9x13 BSD-2910601118.A81 2910601118 £1.75 £2.10
87 - TAPPING SCREW DIN 7971-BZ3.5x13 BSD-2910211011.A130 2910211011 £1.75 £2.10
88 - TAPPING SCREW DIN 7971-ST3.9x22-F BSD-2910211021.A820 2910211021 £1.75 £2.10
89 - CYLINDRICAL GEAR Z=43 BSD-1616309007.A8 1616309007 -
90 - TOOTHED SHAFT Z=8 BSD-1616333003.A21 1616333003 -
91 - CLUTCH ELEMENT BSD-1610320008.A22 1610320008 -
94 - BALL DIN 5401-5 G28 BSD-1903230009.A320 1903230009 £1.75 £2.10
95 - CLUTCH ELEMENT BSD-1610320009.A10 1610320009 -
103 - HEX SOCKET HEAD CAP SCREW DIN 912-M6x18-8.8 BSD-2910141199.A87 2910141199 £3.72 £4.47
103 - HEX SOCKET HEAD CAP SCREW M5x20 MM BSD-1613414005.A28 1613414005 -
104 - RETAINING RING 22 DIN 9045 BSD-2916603012.A30 2916603012 -
650 - DEPTH-GAUGE SW 6x330 MM BSD-1613001003.A85 1613001003 £4.25 £5.10
652 - OFFSET SCREWDRIVER DIN 911-4 BSD-2607950004.A25 2607950004 £1.75 £2.10
653 - HEX SOCKET HEAD CAP SCREW DIN 912-M5x12-8.8 BSD-2910141154.A91 2910141154 £1.75 £2.10
655 - AUXILIARY HANDLE M14 BSD-1602025022.A666 1602025022 £13.41 £16.09
656 - HEX SOCKET HEAD CAP SCREW BSD-3603414028.A22 3603414028 £1.75 £2.10
657 - SEALING CAP BSD-2600508018.A22 2600508018 £2.61 £3.13
701 - BIT HOLDER BSD-1618598066.A4 1618598066 -
800 - PARTS SET BSD-1617000022.A36 1617000022 -
801 - CYLINDRICAL GEAR Z=43/8 BSD-1616309009.A24 1616309009 -
802 - WEAR AND TEAR PART SET BSD-1617000018.A17 1617000018 -
802 - PARTS SET BSD-1617000010.A3 1617000010 -
806 - TOOL HOLDER SET BSD-1617000016.A18 1617000016 -
807 - LOCKING BOLT SET BSD-1617000014.A132 1617000014 £24.45 £29.34
808 - CARBON-BRUSH SET BSD-1617014110.A3 1617014110 £18.96 £22.75
