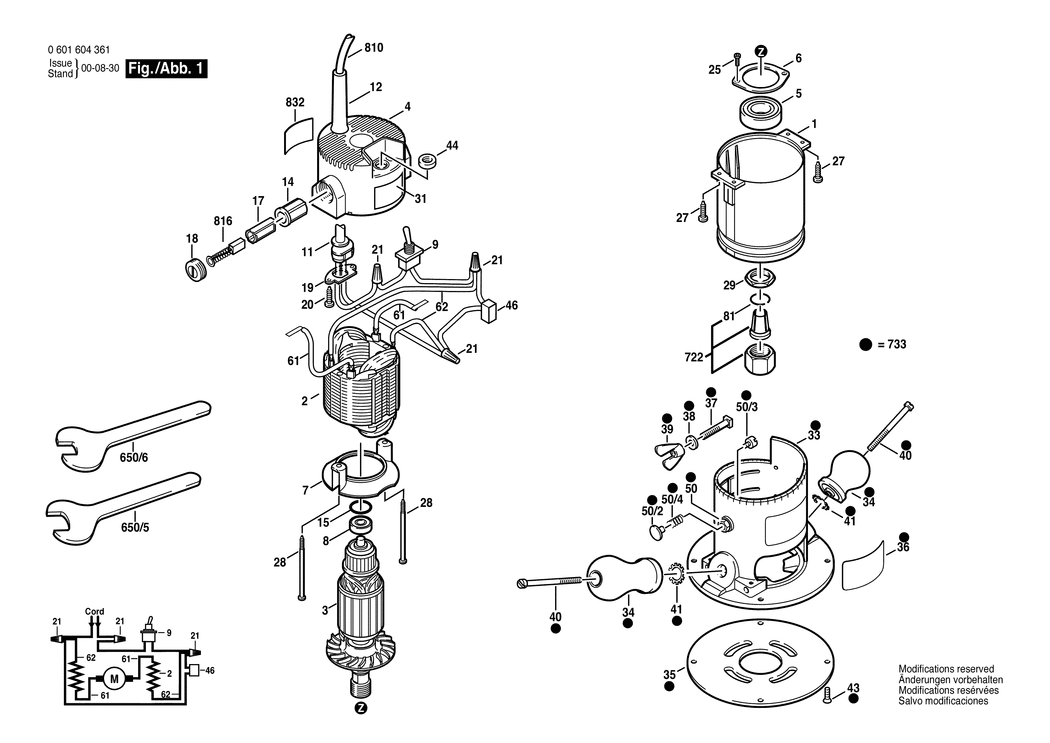

1 - HOUSING
BSD-3605108585.A1
3605108585
|
-
|
|
|
|
2 - FIELD 120V
BSD-2610934199.A1
2610934199
|
£93.88
|
£112.65
|
|
|
3 - ARMATURE 120V
BSD-2610934197.A0
2610934197
|
-
|
|
|
|
4 - HOUSING
BSD-3605500599.A1
3605500599
|
-
|
|
|
|
5 - BALL BEARING
BSD-1600900088.A8
1600900088
|
-
|
|
|
|
6 - RETAINING PLATE
BSD-3600034506.A15
3600034506
|
£5.87
|
£7.04
|
|
|
7 - GUARD PLATE
BSD-3600133501.A2
3600133501
|
-
|
|
|
|
8 - BALL GUIDE
BSD-3600905513.A20
3600905513
|
£12.04
|
£14.45
|
|
|
9 - ON-OFF SWITCH
BSD-3607200531.A1
3607200531
|
-
|
|
|
|
11 - COMPRESSION-GLAND FITTING
BSD-3600390501.A0
3600390501
|
-
|
|
|
|
12 - GROMMET
BSD-3600703500.A1
3600703500
|
£4.26
|
£5.11
|
|
|
14 - BUSHING
BSD-3600329504.A0
3600329504
|
-
|
|
|
|
15 - O-RING
BSD-1900210115.A10
1900210115
|
£2.61
|
£3.13
|
|
|
17 - BRUSH HOLDER
BSD-3600492500.A5
3600492500
|
-
|
|
|
|
18 - SCREW CAP
BSD-2610994437.A23
2610994437
|
-
|
|
|
|
19 - FIXING PLATE
BSD-3601023519.A3
3601023519
|
-
|
|
|
|
20 - TORX OVAL-HEAD SCREW 3x10
BSD-2603490017.A1461
2603490017
|
£2.16
|
£2.59
|
|
|
21 - WIRE PIN
BSD-3608098501.A1
3608098501
|
-
|
|
|
|
25 - OVAL-HEAD SCREW
BSD-2910641120.A4
2910641120
|
£1.75
|
£2.10
|
|
|
27 - TAPPING SCREW DIN 7981-ST4.2x22-C-H
BSD-2910611028.A23
2910611028
|
-
|
|
|
|
28 - THREAD-FORMING SCREW
BSD-3603435509.A0
3603435509
|
-
|
|
|
|
29 - HEX NUT
BSD-3603300502.A21
3603300502
|
£4.75
|
£5.70
|
|
|
31 - NAMEPLATE
BSD-1601110449.A0
1601110449
|
-
|
|
|
|
33 - BASE
BSD-3605702568.A0
3605702568
|
-
|
|
|
|
34 - HANDLE
BSD-3603231500.A1
3603231500
|
-
|
|
|
|
35 - BASE PLATE
BSD-3600190500.A1
3600190500
|
-
|
|
|
|
36 - LABEL
BSD-2610906887.A1
2610906887
|
-
|
|
|
|
37 - HEADLESS SCREW
BSD-3603440500.A1
3603440500
|
-
|
|
|
|
38 - PLAIN WASHER
BSD-3600100500.A3
3600100500
|
-
|
|
|
|
39 - WING NUT
BSD-3603339500.A0
3603339500
|
-
|
|
|
|
40 - SOCKET HEAD CAP SCREW DIN 84-BM6x70-5.8
BSD-2910011219.A6
2910011219
|
£1.75
|
£2.10
|
|
|
41 - TOOTHED LOCK WASHER DIN 6797-A16.5-FST
BSD-2916030013.A1
2916030013
|
-
|
|
|
|
43 - SCREW
BSD-2610915162.A0
2610915162
|
£1.75
|
£2.10
|
|
|
44 - THREADED RING
BSD-3603340500.A3
3603340500
|
-
|
|
|
|
46 - CONDENSER
BSD-3607328518.A0
3607328518
|
-
|
|
|
|
50 - HANDLE
BSD-3603344504.A3
3603344504
|
-
|
|
|
|
50/2 - LATCH
BSD-3603231509.A3
3603231509
|
-
|
|
|
|
50/3 - SOCKET HEAD CAP SCREW
BSD-3603410500.A1
3603410500
|
-
|
|
|
|
50/4 - COMPRESSION SPRING
BSD-3604612500.A1
3604612500
|
-
|
|
|
|
61 - TERMINAL LUG
BSD-3604441511.A1
3604441511
|
-
|
|
|
|
62 - SWITCH
BSD-3604441513.A2
3604441513
|
-
|
|
|
|
81 - RETAINING SNAP RING
BSD-2916540010.A0
2916540010
|
-
|
|
|
|
650/5 - SINGLE-HEAD ENG. WRENCH
BSD-2610992417.A28
2610992417
|
£16.41
|
£19.69
|
|
|
650/6 - SINGLE-HEAD ENG. WRENCH SW 6
BSD-9601497905.A1
9601497905
|
-
|
|
|
|
722 - COLLET 1/4
BSD-2608570104.A37
2608570104
|
£24.49
|
£29.39
|
|
|
722 - COLLET 1/2
BSD-2608507108.A8
2608507108
|
-
|
|
|
|
733 - BASE PLATE
BSD-3605702600.A1
3605702600
|
-
|
|
|
|
810 - POWER SUPPLY CORD
BSD-3604460632.A0
3604460632
|
-
|
|
|
|
816 - CARBON-BRUSH SET
BSD-3607014501.A2
3607014501
|
-
|
|
|
|
832 - NAMEPLATE
BSD-3601119600.A1
3601119600
|
-
|
|
|
