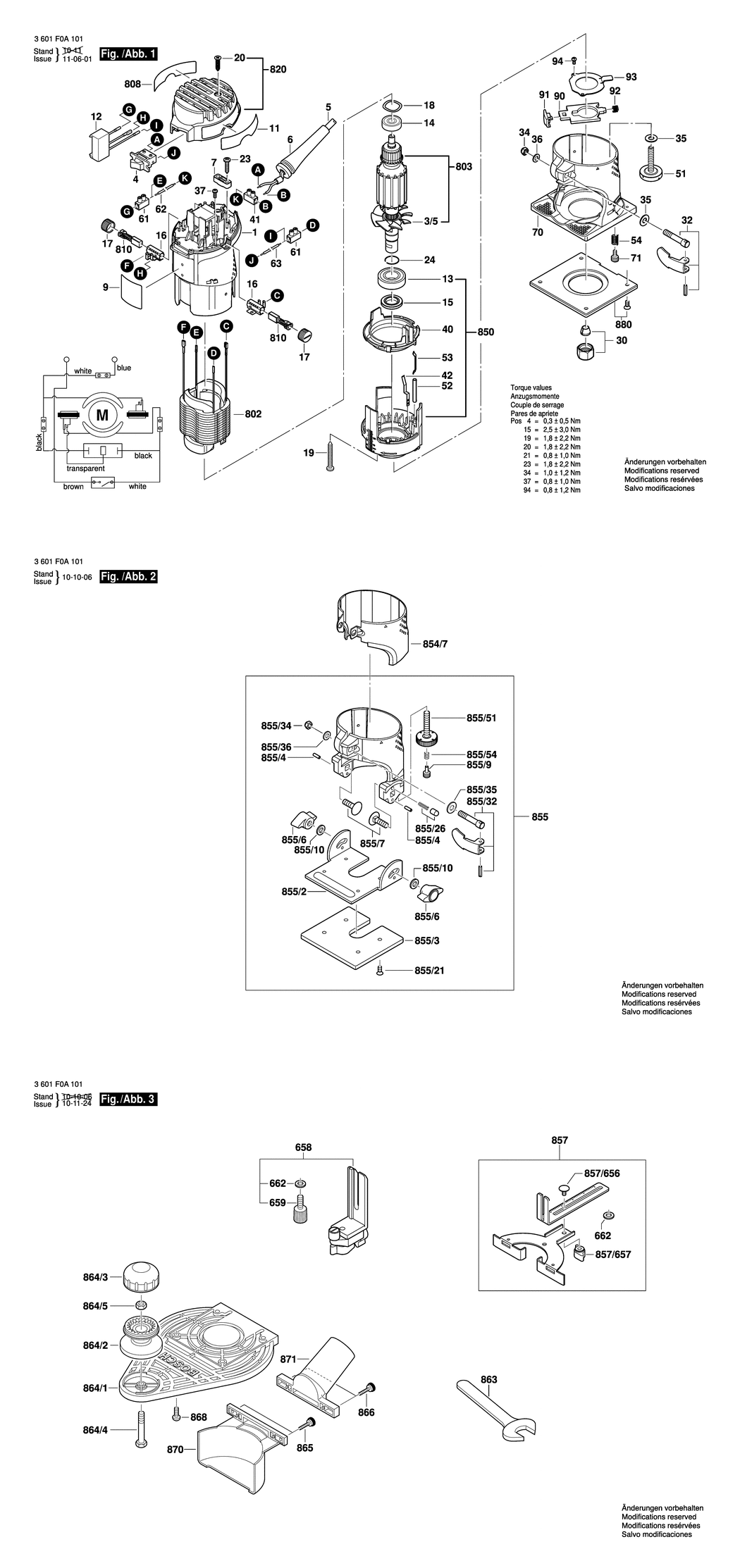

1 - HOUSING
BSD-2610035222.A7
2610035222
|
£13.12
|
£15.75
|
|
|
3/5 - FAN
BSD-2609100246.A7
2609100246
|
£2.16
|
£2.59
|
|
|
4 - SWITCH
BSD-2609120274.A4
2609120274
|
£13.12
|
£15.75
|
|
|
5 - POWER SUPPLY CORD CH 4.15m 2 x 1.00mm H05 RN-F
BSD-2609120277.A0
2609120277
|
£11.78
|
£14.13
|
|
|
6 - GROMMET dia7.3-dia8.6x76 MM
BSD-2600703018.A122
2600703018
|
£2.61
|
£3.13
|
|
|
7 - CABLE CLIP
BSD-2601035001.A768
2601035001
|
£1.75
|
£2.10
|
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-2609131379.A3
2609131379
|
£2.16
|
£2.59
|
|
|
11 - NAMEPLATE
BSD-2609131380.A4
2609131380
|
£2.61
|
£3.13
|
|
|
12 - SUPPRESSION FILTER
BSD-2609120164.A1
2609120164
|
£10.10
|
£12.12
|
|
|
13 - GROOVE BALL BEARING
BSD-2609110435.A7
2609110435
|
£7.36
|
£8.83
|
|
|
14 - GROOVE BALL BEARING
BSD-2609110436.A0
2609110436
|
£6.52
|
£7.83
|
|
|
15 - SELF-LOCKING NUT
BSD-2609110253.A6
2609110253
|
£2.80
|
£3.36
|
|
|
16 - BRUSH HOLDER
BSD-2609110217.A6
2609110217
|
£1.75
|
£2.10
|
|
|
17 - BRUSH-COVER
BSD-2609100203.A0
2609100203
|
£1.75
|
£2.10
|
|
|
18 - SPRING WASHER
BSD-2609110294.A7
2609110294
|
£1.75
|
£2.10
|
|
|
19 - TAPPING SCREW
BSD-2910611093.A5
2910611093
|
£1.75
|
£2.10
|
|
|
20 - TAPPING SCREW
BSD-2609110490.A6
2609110490
|
£1.75
|
£2.10
|
|
|
23 - TAPPING SCREW DIN 7981-ST3.9x19-C-H
BSD-2910611020.A245
2910611020
|
£1.75
|
£2.10
|
|
|
24 - RETAINING CLIP DIN 471-15x1-FSt
BSD-2916650006.A448
2916650006
|
£1.75
|
£2.10
|
|
|
30 - CONTOUR SLEEVE
BSD-2609199145.A4
2609199145
|
£21.52
|
£25.83
|
|
|
32 - CLAMPING LEVER
BSD-2609199041.A8
2609199041
|
£5.30
|
£6.36
|
|
|
34 - HEX NUT
BSD-2609110289.A15
2609110289
|
£1.75
|
£2.10
|
|
|
35 - CONICAL SPRING WASHER
BSD-2609110282.A14
2609110282
|
£1.75
|
£2.10
|
|
|
36 - WASHER
BSD-2609110290.A0
2609110290
|
£1.75
|
£2.10
|
|
|
37 - TORX OVAL-HEAD SCREW 3x10
BSD-2603490017.A986
2603490017
|
£2.16
|
£2.59
|
|
|
40 - AIR-DEFLECTOR RING
BSD-2609100247.A6
2609100247
|
£2.61
|
£3.13
|
|
|
41 - CONNECTING TERMINAL
BSD-2609120153.A1
2609120153
|
£1.75
|
£2.10
|
|
|
42 - CONTACT STRAP
BSD-2609110297.A5
2609110297
|
£1.75
|
£2.10
|
|
|
51 - SCREW
BSD-2609110241.A2
2609110241
|
£3.72
|
£4.47
|
|
|
52 - PRESSURE SPINDLE
BSD-2609110245.A6
2609110245
|
£1.75
|
£2.10
|
|
|
53 - SPRING PLATE
BSD-2609110246.A1
2609110246
|
£1.75
|
£2.10
|
|
|
54 - COMPRESSION SPRING DIN 17223. 2076 GRADE B
BSD-2609110306.A14
2609110306
|
£1.75
|
£2.10
|
|
|
61 - TERMINAL BLOCK
BSD-2609120177.A1
2609120177
|
£1.75
|
£2.10
|
|
|
62 - CONNECTING CABLE
BSD-2609120180.A6
2609120180
|
£2.61
|
£3.13
|
|
|
63 - CONNECTING CABLE
BSD-2609120256.A3
2609120256
|
£2.61
|
£3.13
|
|
|
70 - BASE PLATE
BSD-2609110307.A5
2609110307
|
£27.23
|
£32.68
|
|
|
71 - BOLT
BSD-2609110283.A5
2609110283
|
£2.16
|
£2.59
|
|
|
90 - PLATE
BSD-2609110741.A2
2609110741
|
£2.80
|
£3.36
|
|
|
91 - BUTTON
BSD-2609100248.A1
2609100248
|
£1.75
|
£2.10
|
|
|
92 - COMPRESSION SPRING
BSD-2609110255.A5
2609110255
|
£1.75
|
£2.10
|
|
|
93 - COVER PLATE
BSD-2609110480.A1
2609110480
|
£1.75
|
£2.10
|
|
|
94 - SCREW M 3x6
BSD-2609110367.A2
2609110367
|
£1.75
|
£2.10
|
|
|
658 - EDGE GUIDE
BSD-2610008117.A6
2610008117
|
£40.80
|
£48.96
|
|
|
659 - KNURLED THUMBSCREW
BSD-2609100568.A6
2609100568
|
£2.80
|
£3.36
|
|
|
662 - PLAIN WASHER DIN 125-A 6.4-ST
BSD-2916011014.A190
2916011014
|
£1.75
|
£2.10
|
|
|
802 - STATOR 230V
BSD-2609120169.A1
2609120169
|
£37.27
|
£44.72
|
|
|
803 - ARMATURE 230V
BSD-2609120316.A3
2609120316
|
£59.53
|
£71.44
|
|
|
808 - NAMEPLATE
BSD-2610008157.A0
2610008157
|
-
|
|
|
|
810 - CARBON-BRUSH SET
BSD-2609120149.A4
2609120149
|
£10.10
|
£12.12
|
|
|
820 - HOUSING COVER
BSD-2609199109.A6
2609199109
|
£8.67
|
£10.41
|
|
|
850 - BEARING FLANGE
BSD-2610008123.A2
2610008123
|
£31.64
|
£37.97
|
|
|
854/7 - COVER
BSD-2609100386.A6
2609100386
|
£8.67
|
£10.41
|
|
|
855 - BASE
BSD-2610008115.A1
2610008115
|
£72.18
|
£86.62
|
|
|
855/2 - BASE PLATE
BSD-2609110372.A5
2609110372
|
£5.58
|
£6.70
|
|
|
855/3 - BASE
BSD-2609100381.A6
2609100381
|
£6.52
|
£7.83
|
|
|
855/4 - PIN
BSD-2609110455.A6
2609110455
|
£1.75
|
£2.10
|
|
|
855/6 - WING NUT
BSD-2609199008.A16
2609199008
|
£1.75
|
£2.10
|
|
|
855/7 - ROUND-HEAD BOLT DIN 603-M6x20
BSD-2910281201.A83
2910281201
|
£1.75
|
£2.10
|
|
|
855/9 - PIN
BSD-2609110483.A6
2609110483
|
£1.75
|
£2.10
|
|
|
855/10 - PLAIN WASHER DIN 125-A 6.4-ST
BSD-2916011014.A189
2916011014
|
£1.75
|
£2.10
|
|
|
855/21 - SCREW
BSD-2609110347.A2
2609110347
|
£1.75
|
£2.10
|
|
|
855/26 - RATCHET CAP
BSD-2600590006.A1073
2600590006
|
£1.75
|
£2.10
|
|
|
855/32 - CLAMPING LEVER
BSD-2609199041.A13
2609199041
|
£5.30
|
£6.36
|
|
|
855/34 - HEX NUT
BSD-2609110289.A4
2609110289
|
£1.75
|
£2.10
|
|
|
855/35 - CONICAL SPRING WASHER
BSD-2609110282.A4
2609110282
|
£1.75
|
£2.10
|
|
|
855/36 - WASHER
BSD-2609110290.A11
2609110290
|
£1.75
|
£2.10
|
|
|
855/51 - SCREW
BSD-2609110241.A11
2609110241
|
£3.72
|
£4.47
|
|
|
855/54 - COMPRESSION SPRING DIN 17223. 2076 GRADE B
BSD-2609110306.A4
2609110306
|
£1.75
|
£2.10
|
|
|
857 - EDGE GUIDE
BSD-2610008113.A6
2610008113
|
£21.52
|
£25.83
|
|
|
857/656 - SCREW
BSD-2609110364.A5
2609110364
|
£1.75
|
£2.10
|
|
|
857/657 - WING NUT
BSD-2609199008.A15
2609199008
|
£1.75
|
£2.10
|
|
|
863 - SINGLE-HEAD ENG. WRENCH SW 17
BSD-2609110438.A1
2609110438
|
£5.58
|
£6.70
|
|
|
864/1 - BASE PLATE
BSD-2609100383.A2
2609100383
|
£21.52
|
£25.83
|
|
|
864/2 - HANDLE
BSD-2609100423.A2
2609100423
|
£3.72
|
£4.47
|
|
|
864/3 - CAP-HANDLE
BSD-2609100140.A13
2609100140
|
£5.30
|
£6.36
|
|
|
864/4 - SCREW
BSD-2609110607.A4
2609110607
|
£2.16
|
£2.59
|
|
|
864/5 - NUT
BSD-2609110548.A4
2609110548
|
£1.95
|
£2.34
|
|
|
865 - KNURLED THUMBSCREW
BSD-2609199114.A1
2609199114
|
£8.67
|
£10.41
|
|
|
866 - SCREW
BSD-2609199100.A1
2609199100
|
£1.75
|
£2.10
|
|
|
868 - SCREW
BSD-2609110553.A3
2609110553
|
£1.75
|
£2.10
|
|
|
870 - DUST CHAMBER
BSD-2609100384.A5
2609100384
|
£7.36
|
£8.83
|
|
|
871 - CHUTE
BSD-2609100385.A2
2609100385
|
£8.67
|
£10.41
|
|
|
880 - BASE PLATE
BSD-2610008124.A4
2610008124
|
£11.30
|
£13.56
|
|
