Bosch GMF 1400 CE / 3601F17830 / CH 230 Volt Spare Parts

Home Details Reviews Delivery

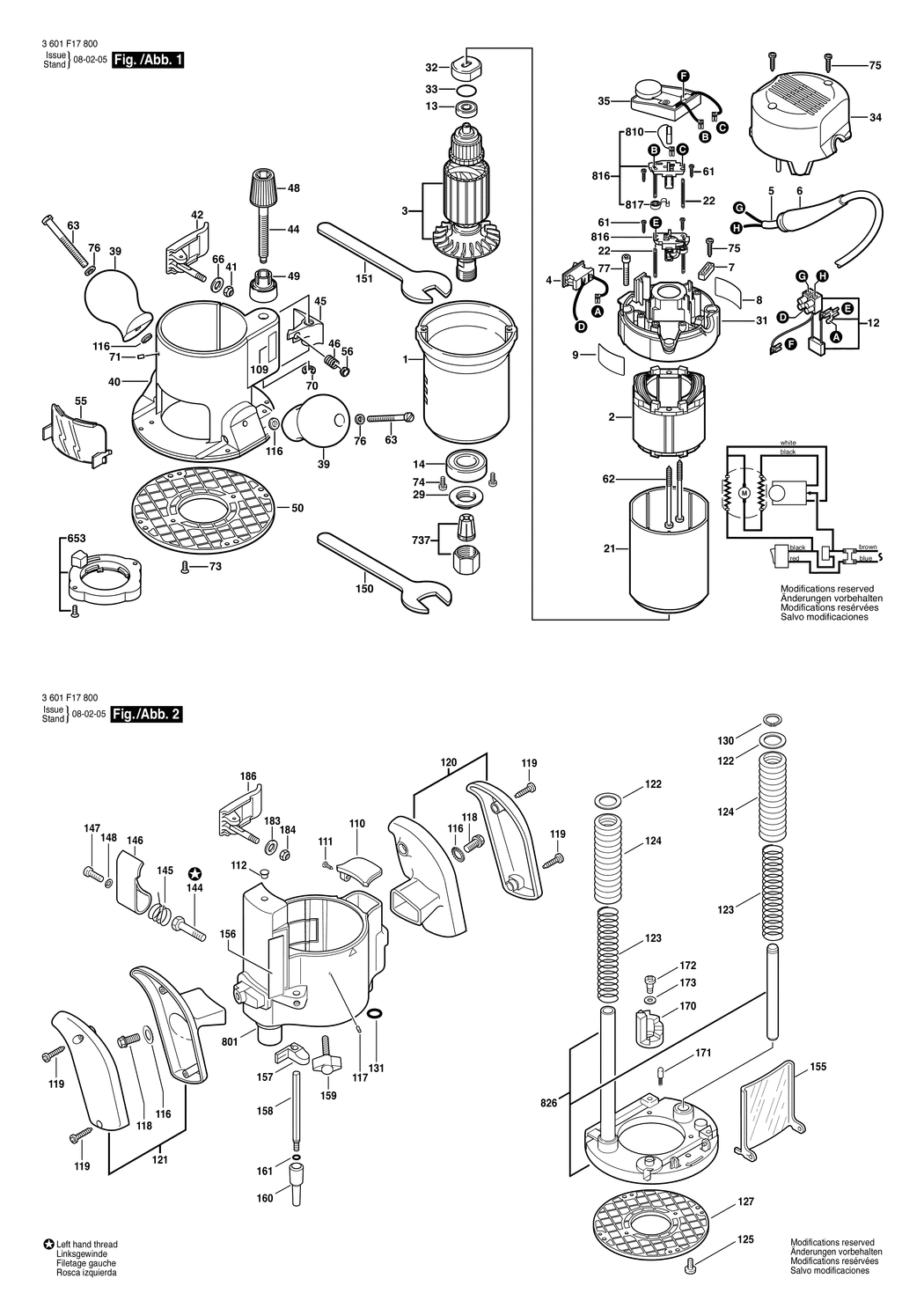

An exploded drawing and listing for the Bosch GMF 1400 CE / 3601F17830 / CH 230 Volt

	Ex VAT	Inc VAT
1 - MOTOR HOUSING BSD-2610922584.A0 2610922584	£33.74	£40.49
2 - FIELD 230V BSD-2610941203.A12 2610941203	£59.53	£71.44
3 - ARMATURE 230V BSD-2610941202.A1 2610941202	-
4 - ON-OFF SWITCH BSD-2610016526.A2 2610016526	-
5 - POWER SUPPLY CORD CH 4.15m 2x1.50 H07RN-F BSD-2610935840.A0 2610935840	-
6 - GROMMET dia 9.4 MM BSD-3600703508.A7 3600703508	£3.34	£4.01
7 - CABLE CLIP BSD-2601035001.A763 2601035001	£1.75	£2.10
8 - NAMEPLATE BSD-2610935837.A0 2610935837	-
9 - LABEL BSD-2610935603.A1 2610935603	-
12 - SUPPRESSION CAPACITOR BSD-2610938252.A2 2610938252	-
13 - BALL GUIDE BSD-3600905513.A31 3600905513	£12.04	£14.45
14 - BALL BEARING BSD-1600900088.A1 1600900088	-
21 - INSULATING SLEEVE BSD-2610009656.A2 2610009656	£10.10	£12.12
22 - BLADE TERMINAL BSD-1604477005.A116 1604477005	£2.61	£3.13
29 - NUT BSD-2610993582.A1 2610993582	£4.26	£5.11
31 - REAR HOUSING SECTION BSD-2610941007.A1 2610941007	£11.30	£13.56
32 - BEARING HOLDER BSD-2610991375.A5 2610991375	£5.58	£6.70
33 - O-RING BSD-1900210115.A2 1900210115	£2.61	£3.13
34 - SET OF HANDLES BSD-2610941008.A2 2610941008	£8.67	£10.41
35 - SPEED GOVERNOR 230V BSD-1607233135.A1 1607233135	£37.27	£44.72
39 - HANDLE BSD-2610991387.A1 2610991387	£12.04	£14.45
40 - BASE BSD-2610925365.A0 2610925365	£63.50	£76.20
41 - HEX NUT M6 BSD-1613300006.A115 1613300006	£1.32	£1.58
42 - CLAMPING LEVER BSD-2610915060.A7 2610915060	-
44 - ROD BSD-2610922527.A3 2610922527	£3.72	£4.47
45 - LEVER BSD-2610991385.A8 2610991385	£5.87	£7.04
46 - SPRING BSD-2610991371.A2 2610991371	£2.16	£2.59
48 - ADJUSTING DEVICE BSD-2610993576.A11 2610993576	-
49 - RING BSD-2610993577.A1 2610993577	£2.52	£3.02
50 - COVER PLATE BSD-2610928164.A7 2610928164	-
55 - CHIP DEFLECTOR BSD-2610991389.A2 2610991389	-
56 - COVER BSD-2610991372.A7 2610991372	£1.75	£2.10
61 - TAPPING SCREW DIN 7981-ST2.9x13-C-H BSD-2910611006.A19 2910611006	£1.75	£2.10
62 - TAPPING SCREW BSD-2610991306.A11 2610991306	£1.75	£2.10
63 - SOCKET HEAD CAP SCREW DIN 84-BM6x70-5.8 BSD-2910011219.A5 2910011219	£1.75	£2.10
66 - PLAIN WASHER DIN 126-9-A2 BSD-2918660004.A47 2918660004	£1.75	£2.10
70 - RETAINING SNAP RING BSD-2610996054.A12 2610996054	£1.75	£2.10
71 - PIN BSD-2610994492.A11 2610994492	£1.75	£2.10
73 - SCREW BSD-2610915161.A46 2610915161	£3.34	£4.01
74 - OVAL-HEAD SCREW BSD-2910641120.A1 2910641120	£1.75	£2.10
75 - TAPPING SCREW BSD-2610910566.A7 2610910566	£1.32	£1.58
76 - PLAIN WASHER DIN 433-6.4-ST 50 BSD-2916011013.A63 2916011013	£1.75	£2.10
77 - HEX SOCKET HEAD CAP SCREW DIN 912-M 5x30-8.8 BSD-2910141166.A135 2910141166	£1.75	£2.10
109 - LABEL BSD-2610935604.A2 2610935604	-
110 - PROTECTION COVER BSD-2610912594.A0 2610912594	£3.80	£4.56
111 - SCREW BSD-2610990022.A4 2610990022	£1.75	£2.10
112 - PLUG BSD-2610914852.A0 2610914852	-
116 - SERRATED LOCK-WASHER BSD-2916079032.A3 2916079032	£1.75	£2.10
117 - PIN BSD-2610994492.A10 2610994492	£1.75	£2.10
118 - SCREW BSD-2610996143.A14 2610996143	£1.75	£2.10
119 - SCREW BSD-2610913441.A12 2610913441	£1.75	£2.10
120 - HANDLE BSD-2610912597.A5 2610912597	£16.41	£19.69
121 - HANDLE BSD-2610996107.A5 2610996107	£18.96	£22.75
122 - DISC BSD-2610914639.A4 2610914639	-
123 - COMPRESSION SPRING BSD-2610912598.A0 2610912598	£1.75	£2.10
124 - BELLOWS BSD-3605510548.A24 3605510548	£5.58	£6.70
125 - SCREW BSD-2610915161.A47 2610915161	£3.34	£4.01
127 - COVER PLATE BSD-2610997099.A12 2610997099	£21.52	£25.83
130 - SPRING RETAINING RING DIN 471-12x1-FSt BSD-2916650003.A254 2916650003	£1.75	£2.10
131 - O-RING 12x3 MM BSD-1900210111.A4 1900210111	£2.33	£2.80
144 - LOCK BOLT BSD-3603450504.A22 3603450504	£5.30	£6.36
145 - LOCK SPRING BSD-3604651503.A20 3604651503	£2.33	£2.80
146 - LOCKING LEVER BSD-3602000510.A23 3602000510	£2.61	£3.13
147 - OVAL-HEAD SCREW DIN 7985-M4X12-4.8-H BSD-2910641122.A25 2910641122	£2.16	£2.59
148 - SPRING LOCK WASHER B 4 DIN 127 BSD-2916680005.A19 2916680005	-
150 - SINGLE-HEAD ENG. WRENCH BSD-2610992417.A7 2610992417	£16.41	£19.69
151 - CHUCK WRENCH BSD-2610991388.A0 2610991388	-
155 - CHIP DEFLECTOR BSD-2610912599.A17 2610912599	-
156 - LABEL BSD-2610935605.A0 2610935605	-
157 - POINTER BSD-2610997094.A10 2610997094	£5.87	£7.04
158 - ROD BSD-2610912600.A1 2610912600	£9.49	£11.39
159 - WING SCREW M6x20 MM BSD-1613480008.A244 1613480008	£1.75	£2.10
160 - KNOB BSD-2610912601.A4 2610912601	£5.87	£7.04
161 - O-RING BSD-2610068154.A2 2610068154	£1.75	£2.10
170 - DEPTH-GAUGE BSD-3600232503.A16 3600232503	£10.82	£12.99
171 - RATCHET CAP BSD-2600590006.A1068 2600590006	£1.75	£2.10
172 - SHOULDER SCREW M4 BSD-3603415556.A67 3603415556	£2.33	£2.80
173 - SPRING WASHER BSD-3916060500.A30 3916060500	£1.75	£2.10
183 - PLAIN WASHER DIN 126-9-A2 BSD-2918660004.A48 2918660004	£1.75	£2.10
184 - HEX NUT M6 BSD-1613300006.A114 1613300006	£1.32	£1.58
186 - CLAMPING LEVER BSD-2610915060.A4 2610915060	-
653 - GUIDE SLEEVE BSD-2610991370.A10 2610991370	£31.64	£37.97
737 - COLLET 6 MM BSD-2608570103.A22 2608570103	£25.82	£30.99
737 - COLLET 1/4 BSD-2608570104.A14 2608570104	£24.49	£29.39
737 - COLLET 8 MM BSD-2608570105.A18 2608570105	£27.12	£32.54
737 - COLLET 3/8 BSD-2608570106.A14 2608570106	£27.99	£33.59
737 - COLLET 12 MM BSD-2608570107.A22 2608570107	£27.12	£32.54
737 - COLLET 1/2 BSD-2608570108.A1 2608570108	£28.32	£33.99
801 - BASE BSD-2610924454.A2 2610924454	£72.18	£86.62
810 - CARBON-BRUSH SET BSD-2610007957.A2 2610007957	£11.30	£13.56
816 - BRUSH HOLDER BSD-3604336506.A1 3604336506	-
817 - SPRING BSD-3604652501.A24 3604652501	£3.72	£4.47
826 - BASE BSD-2610997115.A12 2610997115	£61.98	£74.38
