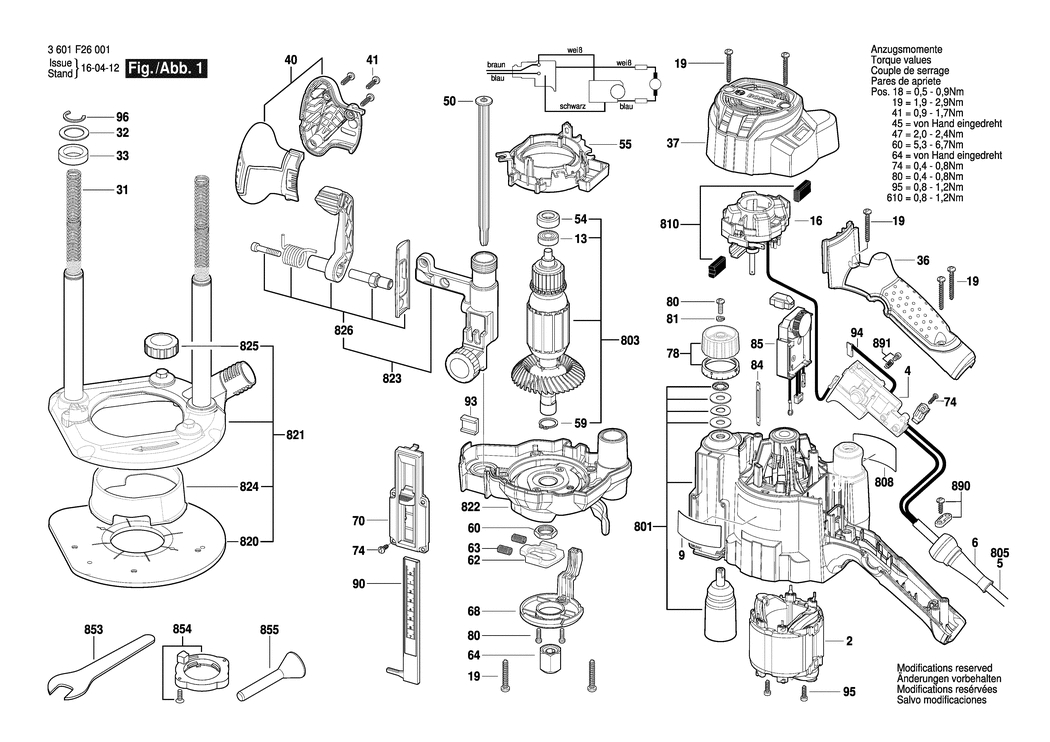

An exploded drawing and listing for the Bosch GOF 1250 CE / 3601F26031 / CH 110 Volt
Ex VAT Inc VAT
2 - POLE SHOE 230V BSD-2604220763.A1 2604220763 £54.42 £65.30
4 - SWITCH BSD-2607200688.A10 2607200688 £16.41 £19.69
5 - POWER SUPPLY CORD CH 230V 4.15m 2 x 1.0mm H05 RN-F BSD-1604460401.A107 1604460401 £19.45 £23.34
6 - CABLE SLEEVE dia6.4-dia7.0x66 MM BSD-2600707075.A24 2600707075 £2.61 £3.13
9 - MANUFACTURER'S NAMEPLATE GOF 1250 CE BSD-160111C15U.A5 160111C15U £2.61 £3.13
13 - GROOVE BALL BEARING 7x19x6 BSD-2600905086.A11 2600905086 £5.58 £6.70
16 - BRUSH PLATE BSD-2604337124.A11 2604337124 £33.74 £40.49
19 - TORX OVAL-HEAD SCREW 4x30 BSD-2603490025.A179 2603490025 £1.75 £2.10
31 - COMPRESSION SPRING BSD-2604618008.A1 2604618008 £8.67 £10.41
32 - PLAIN WASHER BSD-2600101127.A11 2600101127 £3.72 £4.47
33 - DAMPING ELEMENT BSD-2600102078.A4 2600102078 £5.58 £6.70
36 - HANDLE BSD-2605132076.A12 2605132076 £12.04 £14.45
37 - HOUSING COVER BSD-2605132077.A3 2605132077 £16.41 £19.69
40 - HANDLE BSD-2605133040.A12 2605133040 £21.52 £25.83
41 - SCREW 4x16 BSD-2603490022.A627 2603490022 £1.75 £2.10
50 - GUIDE PIECE BSD-2603101067.A1 2603101067 £5.58 £6.70
54 - RUBBER RING BSD-1600206036.A57 1600206036 £1.75 £2.10
55 - AIR-DEFLECTOR RING BSD-2600148017.A3 2600148017 £7.36 £8.83
59 - RETAINING CLIP DIN 471-15x1-FSt BSD-2916650006.A461 2916650006 £1.75 £2.10
60 - HEX NUT BSD-2603300021.A2 2603300021 £10.10 £12.12
62 - CLAMPING PIECE BSD-2602305066.A1 2602305066 £13.12 £15.75
63 - COMPRESSION SPRING BSD-2604618009.A14 2604618009 £8.67 £10.41
64 - CHUCK BSD-2600400077.A12 2600400077 £46.37 £55.64
68 - COVER BSD-2605500213.A2 2605500213 £7.36 £8.83
70 - POINTER BSD-2601030134.A6 2601030134 £8.67 £10.41
74 - TORX OVAL-HEAD SCREW 3x10 BSD-2603490017.A970 2603490017 £2.16 £2.59
78 - CONTROL KNOB BSD-2600451006.A3 2600451006 £11.30 £13.56
80 - TORX OVAL-HEAD SCREW BSD-2912761122.A13 2912761122 £2.61 £3.13
81 - LOCKING WASHER BSD-2600118025.A12 2600118025 £2.61 £3.13
84 - BLADE TERMINAL BSD-1604477005.A98 1604477005 £2.61 £3.13
85 - SPEED GOVERNOR BSD-1607233549.A11 1607233549 £68.42 £82.10
90 - STRAIGHT EDGE BSD-2601030151.A0 2601030151 £12.04 £14.45
93 - U SECTION BSD-2602317075.A13 2602317075 £4.26 £5.11
94 - CONNECTING CABLE BSD-2604448373.A0 2604448373 £6.52 £7.83
95 - TAPPING SCREW BSD-2603435086.A196 2603435086 £1.75 £2.10
96 - LOCKING WASHER BSD-2600224011.A12 2600224011 £3.72 £4.47
801 - MOTOR HOUSING BSD-2605105971.A2 2605105971 £54.42 £65.30
803 - ARMATURE 230V BSD-2604011957.A3 2604011957 £135.25 £162.30
808 - NAMEPLATE BSD-160111A370.A0 160111A370 -
810 - CARBON-BRUSH SET BSD-2604321958.A0 2604321958 £12.04 £14.45
820 - SLIDING PLATE BSD-2600009022.A3 2600009022 £31.64 £37.97
821 - BASE PLATE BSD-2601016110.A0 2601016110 £102.57 £123.08
822 - FAN HOUSING BSD-2605500215.A13 2605500215 £93.88 £112.65
823 - ADJUSTING PIECE BSD-2601099903.A4 2601099903 £45.67 £54.80
824 - SUCTION HOOD BSD-2600290065.A3 2600290065 £10.10 £12.12
825 - KNURLED THUMBSCREW BSD-2603481024.A13 2603481024 £5.58 £6.70
826 - ADJUSTING LEVER BSD-2601902007.A13 2601902007 £21.68 £26.01
853 - SINGLE-HEAD ENG. WRENCH SW19 BSD-1907950511.A56 1907950511 £11.78 £14.13
854 - GUIDE SLEEVE BSD-2610991370.A13 2610991370 £31.64 £37.97
855 - CENTERING PIN BSD-2603105140.A14 2603105140 £23.86 £28.63
890 - FASTENING PARTS KIT BSD-2607001305.A9 2607001305 £4.26 £5.11
891 - CROSS RECESSED-HEAD SCREW BSD-2603429010.A35 2603429010 £2.61 £3.13
