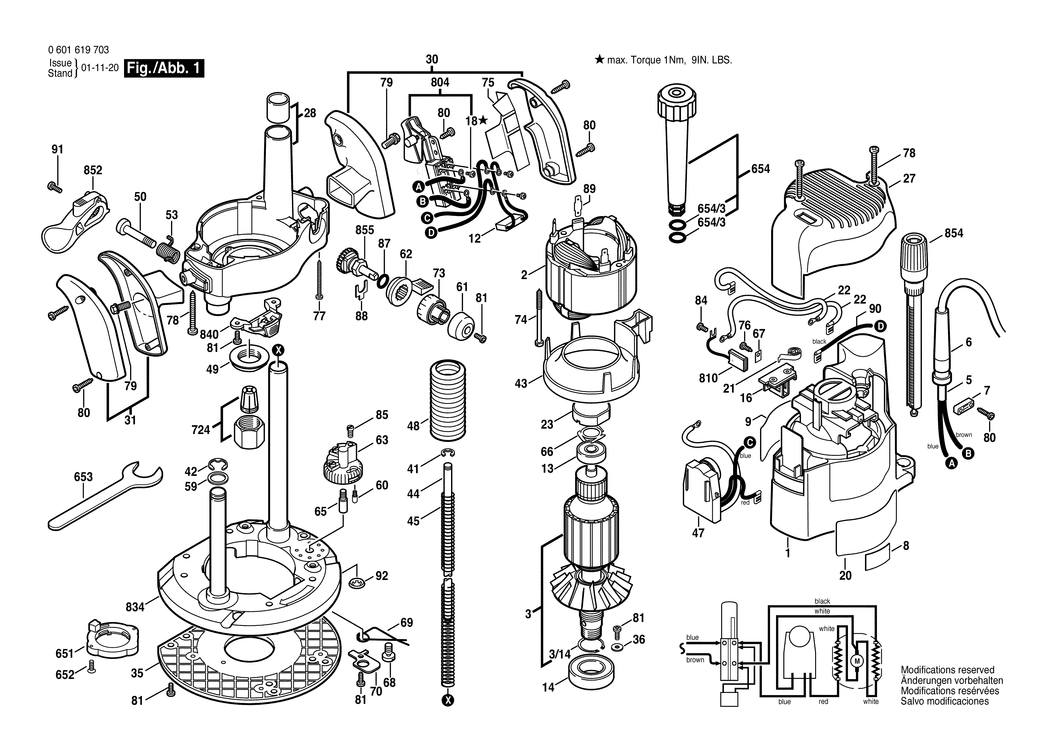

An exploded drawing and listing for the Bosch GOF 2000 CE / 0601619732 / CH 230 Volt
Ex VAT Inc VAT
1 - MOTOR HOUSING BSD-2610996079.A7 2610996079 £31.64 £37.97
2 - FIELD 230V BSD-2610997006.A2 2610997006 -
3 - ARMATURE 230V BSD-2610997007.A1 2610997007 -
3/14 - SPRING RETAINING RING DIN 471 25x1.2 BSD-2916650014.A94 2916650014 £1.75 £2.10
5 - POWER SUPPLY CORD CH 4.15m 2 x 1.0mm H07RN-F BSD-2610997014.A0 2610997014 -
6 - GROMMET dia 9.4 MM BSD-3600707503.A11 3600707503 £3.72 £4.47
7 - CABLE CLIP BSD-2601035001.A2952 2601035001 £1.75 £2.10
8 - NAMEPLATE BSD-2610907979.A0 2610907979 -
9 - WARNING PLATE BSD-2610998878.A6 2610998878 £3.72 £4.47
12 - CONDENSER BSD-2610997184.A3 2610997184 £8.67 £10.41
13 - GROOVE BALL BEARING 6200-2 RS/C 3 BSD-1900905276.A12 1900905276 -
14 - GROOVE BALL BEARING BSD-3600900526.A16 3600900526 £31.64 £37.97
16 - BRUSH HOLDER BSD-1604336008.A267 1604336008 £21.52 £25.83
18 - SCREW BSD-2610904114.A6 2610904114 -
20 - NAMEPLATE BSD-2610998879.A2 2610998879 £3.72 £4.47
21 - SPIRAL SPRING BSD-1614652001.A27 1614652001 £3.72 £4.47
22 - CONNECTING CABLE BSD-2610996101.A1 2610996101 £2.61 £3.13
23 - BEARING SLEEVE BSD-2610996102.A3 2610996102 -
27 - HOUSING COVER BSD-2610996083.A1 2610996083 £13.12 £15.75
28 - HOUSING BSD-2610996148.A4 2610996148 £72.18 £86.62
30 - HANDLE BSD-2610996106.A0 2610996106 £18.96 £22.75
31 - HANDLE BSD-2610996107.A12 2610996107 £18.96 £22.75
35 - BASE PLATE BSD-2610023231.A6 2610023231 £10.82 £12.99
36 - PLAIN WASHER DIN 9021-B 4.3-ST BSD-2916011892.A22 2916011892 £1.75 £2.10
41 - LOCKING WASHER BSD-3600149500.A5 3600149500 £2.61 £3.13
42 - RETAINING SNAP RING BSD-2610931544.A8 2610931544 £1.75 £2.10
43 - BAFFLE BSD-2610996118.A0 2610996118 £7.36 £8.83
44 - LOCK BOLT BSD-2610996119.A8 2610996119 £4.26 £5.11
45 - COMPRESSION SPRING BSD-2610996120.A0 2610996120 £3.72 £4.47
47 - SPEED GOVERNOR 230V BSD-1607233146.A2 1607233146 -
48 - BELLOWS BSD-2610923615.A0 2610923615 £7.36 £8.83
49 - NUT BSD-2610997139.A2 2610997139 £11.30 £13.56
50 - LOCKING BOLT BSD-2610996125.A7 2610996125 £7.36 £8.83
53 - CLAMPING SPRING BSD-2610996128.A1 2610996128 £2.16 £2.59
59 - WASHER BSD-2610913476.A1 2610913476 £1.75 £2.10
60 - RATCHET CAP BSD-2600590006.A577 2600590006 £1.75 £2.10
61 - KNOB BSD-3603231539.A47 3603231539 £2.33 £2.80
62 - LOCKING LEVER BSD-2610996135.A7 2610996135 £6.52 £7.83
63 - DEPTH-GAUGE BSD-2610997010.A0 2610997010 £10.10 £12.12
65 - DEPTH-GAUGE BSD-2610909058.A6 2610909058 £7.36 £8.83
66 - SPRING WASHER BSD-2610996137.A1 2610996137 -
67 - TAB WASHER BSD-1601030022.A484 1601030022 £1.75 £2.10
68 - BUTTON BSD-2610997003.A1 2610997003 £4.26 £5.11
69 - SPRING CLIP BSD-2610996138.A3 2610996138 £1.75 £2.10
70 - COVER PLATE BSD-2610996139.A5 2610996139 £2.61 £3.13
73 - INDICATOR RING BSD-2610997012.A8 2610997012 £4.26 £5.11
74 - TAPPING SCREW BSD-2610991306.A42 2610991306 £1.75 £2.10
75 - STICKER BSD-2610907721.A1 2610907721 -
76 - TORX OVAL-HEAD SCREW 4x12 BSD-2603490021.A108 2603490021 £1.75 £2.10
77 - SCREW BSD-2610996142.A3 2610996142 £1.75 £2.10
78 - SCREW B 4.8x45 MM BSD-3603415560.A153 3603415560 £1.75 £2.10
79 - SCREW BSD-2610996143.A17 2610996143 £1.75 £2.10
80 - SCREW BSD-2610913441.A21 2610913441 £1.75 £2.10
81 - SCREW BSD-2610915161.A9 2610915161 -
84 - OVAL-HEAD SCREW DIN 7985-M4x8-8.8-H BSD-2910951118.A4 2910951118 £1.75 £2.10
85 - SOCKET HEAD CAP SCREW BSD-3603410504.A10 3603410504 £2.52 £3.02
87 - O-RING BSD-2610913573.A3 2610913573 £1.75 £2.10
88 - WASHER BSD-2610997008.A3 2610997008 £1.75 £2.10
89 - CONNECTING TERMINAL BSD-2610997030.A2 2610997030 -
90 - CONNECTING CABLE BSD-2610997031.A2 2610997031 -
91 - SCREW BSD-2610913825.A1 2610913825 £1.75 £2.10
92 - NUT BSD-2610909072.A6 2610909072 £1.75 £2.10
651 - GUIDE SLEEVE BSD-2610991370.A3 2610991370 £31.64 £37.97
652 - COUNTERSUNK-HEAD SCREW DIN 965-M4x12-8.8 BSD-2910871122.A87 2910871122 -
653 - SINGLE-HEAD ENG. WRENCH BSD-2610992417.A1 2610992417 £16.41 £19.69
654 - ADJUSTMENT KNOB BSD-2610907529.A3 2610907529 £4.26 £5.11
654/3 - LOCATING RING BSD-2610015629.A16 2610015629 £1.75 £2.10
724 - COLLET 6 MM BSD-2608570103.A34 2608570103 £25.82 £30.99
724 - COLLET 1/4 BSD-2608570104.A2 2608570104 £24.49 £29.39
724 - COLLET 8 MM BSD-2608570105.A30 2608570105 £27.12 £32.54
724 - COLLET 3/8 BSD-2608570106.A2 2608570106 £27.99 £33.59
724 - COLLET 12 MM BSD-2608570107.A34 2608570107 £27.12 £32.54
724 - COLLET 10 MM BSD-2608570125.A30 2608570125 -
804 - ON-OFF SWITCH BSD-2610997157.A4 2610997157 £33.74 £40.49
810 - CARBON-BRUSH SET BSD-2610997152.A4 2610997152 £18.96 £22.75
834 - BASE PLATE BSD-2610996147.A3 2610996147 £134.16 £160.99
840 - LOCKING DEVICE BSD-2610910606.A3 2610910606 -
852 - LOCKING LEVER BSD-2610997148.A0 2610997148 £21.42 £25.71
854 - FINE-ADJUSTING DEVICE BSD-2610910608.A5 2610910608 £31.64 £37.97
855 - CONVERSION GEAR BSD-2610996149.A3 2610996149 £21.52 £25.83
