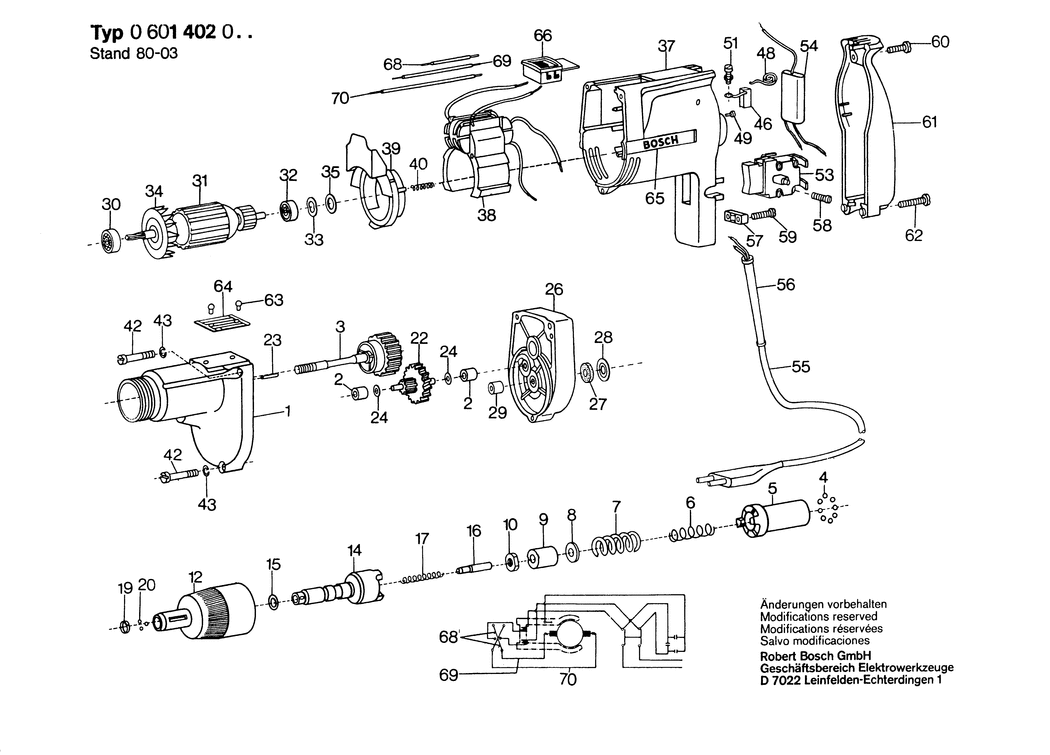

An exploded drawing and listing for the Bosch ---- / 0601402046 / GB 220 Volt
Ex VAT Inc VAT
1 - GEAR HOUSING BSD-2605806259.A5 2605806259 -
2 - NEEDLE-ROLLER BEARING dia6 MM BSD-2600914010.A276 2600914010 £2.80 £3.36
3 - SPINDLE WITH GEAR Z= 41 BSD-2606100055.A4 2606100055 -
4 - BALL DIN 5401-3 MM-III-ST BSD-1903230004.A257 1903230004 £2.16 £2.59
5 - COUPLING HALF BSD-2606445000.A28 2606445000 -
6 - COMPRESSION SPRING BSD-1604616010.A7 1604616010 -
7 - COMPRESSION SPRING BSD-1604619005.A31 1604619005 -
8 - SHIM BSD-2600100608.A2 2600100608 -
9 - BUSHING BSD-1600309004.A70 1600309004 -
10 - ROUND NUT BSD-1603341000.A31 1603341000 -
12 - GUIDE SLEEVE BSD-2600460001.A5 2600460001 -
14 - CARRIER 6 KT.. 6.3 MM BSD-2606455002.A2 2606455002 -
15 - O-RING 8.0x1.5 MM BSD-1900210103.A104 1900210103 £2.80 £3.36
16 - PRESSURE SPINDLE BSD-1603120022.A20 1603120022 -
17 - COMPRESSION SPRING BSD-1604626002.A20 1604626002 -
19 - SPRING LOCK WASHER BSD-1600224011.A39 1600224011 -
20 - BALL DIN 5401-2.5MM-III-ST BSD-1903230003.A265 1903230003 £2.61 £3.13
22 - SPINDLE WITH GEAR Z= 11/41 BSD-2606100056.A2 2606100056 -
23 - NEEDLE ROLLER DIN 5402-A3x11.8-G2 BSD-1903201042.A223 1903201042 £2.16 £2.59
24 - SHIM 0.3 MM BSD-2600100607.A404 2600100607 £1.75 £2.10
26 - INTERMEDIATE FLANGE BSD-2605700159.A1 2605700159 -
27 - FELT DISC BSD-2600108000.A38 2600108000 -
28 - CUPPED WASHER BSD-2600500030.A113 2600500030 -
29 - SEAL BUSHING BSD-2600300049.A97 2600300049 -
30 - BALL BEARING 8x22x7 BSD-1900905029.A76 1900905029 £21.52 £25.83
31 - ARMATURE 220V BSD-2604010367.A3 2604010367 -
32 - GROOVE BALL BEARING 6x19x6 BSD-1900905019.A157 1900905019 £14.91 £17.89
33 - SHIM BSD-2600150003.A124 2600150003 £2.16 £2.59
34 - FAN BSD-2606610013.A142 2606610013 -
35 - SHIM 0.2 MM BSD-2600101655.A148 2600101655 -
35 - SHIM 0.3 MM BSD-2600101656.A26 2600101656 -
35 - SHIM 0.5 MM BSD-2600101657.A148 2600101657 -
37 - MOTOR HOUSING BSD-2605104911.A15 2605104911 -
38 - POLE SHOE 220V BSD-2604222254.A8 2604222254 -
39 - COVER DISC BSD-2601328015.A20 2601328015 -
40 - COMPRESSION SPRING BSD-2604611026.A158 2604611026 -
42 - SOCKET HEAD CAP SCREW DIN 84-AM4x25-8.8 BSD-2910021132.A65 2910021132 £1.75 £2.10
43 - SPRING LOCK WASHER DIN 128-A4-FST BSD-2916690003.A682 2916690003 £1.75 £2.10
46 - CARBON-BRUSH SET BSD-2604320902.A51 2604320902 -
48 - SPIRAL SPRING BSD-2604652002.A97 2604652002 -
49 - TAPPING SCREW DIN 7971-BZ2.9x6.5 BSD-2910211004.A43 2910211004 -
51 - SOCKET HEAD CAP SCREW BSD-2603410010.A256 2603410010 -
53 - ON-OFF SWITCH BSD-2607200043.A33 2607200043 -
55 - POWER SUPPLY CORD GB 230V 4.15m 2 x 1.0mm H07 RN-F BSD-3604460138.A4 3604460138 -
56 - GROMMET dia8.3-dia9.4x95 MM BSD-2600703011.A544 2600703011 £2.80 £3.36
56 - GROMMET dia6.5-dia6.9x95 MM BSD-2600703012.A677 2600703012 £2.80 £3.36
56 - GROMMET dia7.6-dia8.2x95 MM BSD-2600703013.A549 2600703013 £2.61 £3.13
57 - CABLE CLIP BSD-2601035001.A2375 2601035001 £1.75 £2.10
58 - SOCKET HEAD CAP SCREW M3x10 MM BSD-2603410023.A53 2603410023 -
59 - TAPPING SCREW DIN 7971-ST3.9x16-F BSD-2910211019.A230 2910211019 £1.75 £2.10
60 - TAPPING SCREW DIN 7971-BZ3.9x19 BSD-2910211020.A519 2910211020 £2.16 £2.59
61 - HOUSING COVER BSD-2605132005.A22 2605132005 -
62 - TAPPING SCREW DIN 7971-ST3.9x22-F BSD-2910211021.A83 2910211021 £1.75 £2.10
63 - ROUND-HEAD GROOVED PIN 2x3 DIN 1476 ST BSD-2917724031.A24 2917724031 -
64 - NAMEPLATE BSD-160111A3H3.A3737 160111A3H3 £2.61 £3.13
65 - MANUFACTURER'S NAMEPLATE BSD-2601007003.A221 2601007003 -
66 - ON-OFF SWITCH BSD-2607200049.A5 2607200049 -
68 - CABLE BSD-2604411524.A1 2604411524 -
69 - SUPPRESSOR BOX BSD-2604465026.A64 2604465026 -
70 - SUPPRESSOR BOX BSD-2604465027.A1 2604465027 -
651 - STRAIGHT PIN 4x60 MM BSD-2603101035.A43 2603101035 £2.80 £3.36
654 - SUSPENSION LOOP BSD-3604720004.A75 3604720004 £2.80 £3.36
