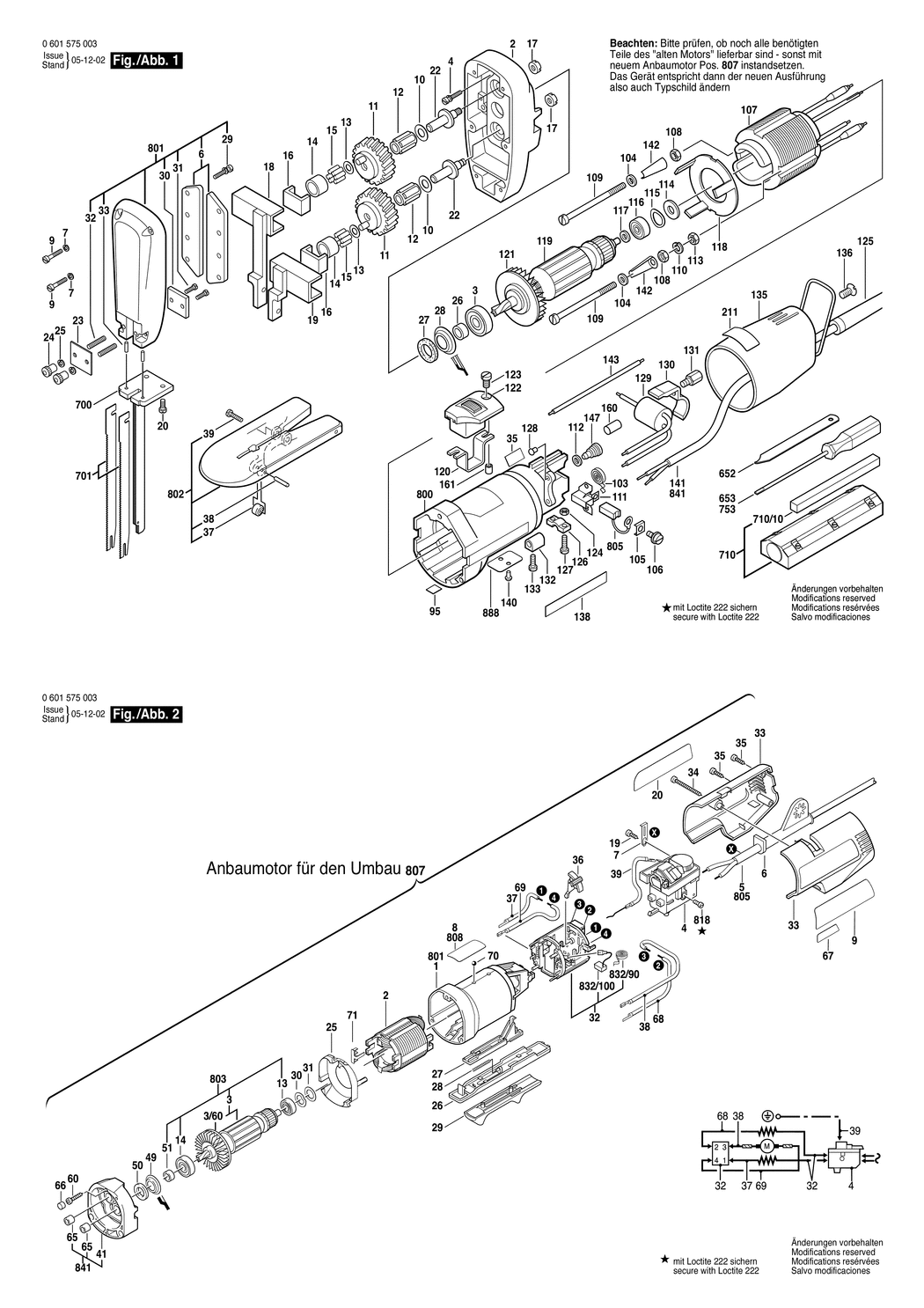

An exploded drawing and listing for the Bosch 1575 / 0601575050 / I 220 Volt
Ex VAT Inc VAT
2 - GEAR HOUSING BSD-2605806082.A5 2605806082 £72.18 £86.62
3 - GROOVE BALL BEARING 9x24x7 MM BSD-3600905039.A117 3600905039 £12.04 £14.45
4 - SOCKET HEAD CAP SCREW DIN 84-AM4x12-8.8 BSD-2910021122.A218 2910021122 £2.16 £2.59
6 - GUIDE RAIL BSD-2601038001.A0 2601038001 £3.72 £4.47
7 - SPRING LOCK WASHER DIN 128-A4-FST BSD-2916690003.A611 2916690003 £1.75 £2.10
9 - SOCKET HEAD CAP SCREW DIN 84-AM4x18-5.8 BSD-2910011128.A43 2910011128 £1.75 £2.10
10 - SHIM 0.10 MM BSD-2600100611.A0 2600100611 £1.75 £2.10
10 - SHIM 0.50 MM BSD-2600100613.A77 2600100613 £1.75 £2.10
11 - ECCENTRIC COG WHEEL Z=49 BSD-2606319007.A7 2606319007 £59.53 £71.44
12 - NEEDLE-ROLLER ASSEMBLY BSD-3600910000.A74 3600910000 £4.26 £5.11
13 - SHIM 0.20 MM BSD-2600100586.A43 2600100586 £1.75 £2.10
13 - SHIM 0.30 MM BSD-2600100587.A0 2600100587 £1.75 £2.10
13 - SHIM 0.5 MM BSD-2600100588.A99 2600100588 £1.75 £2.10
14 - ROLLER BSD-2600300005.A7 2600300005 £8.67 £10.41
15 - NEEDLE ROLLER 1.5x5.8 MM BSD-2603201037.A27 2603201037 £2.61 £3.13
16 - RETAINING BRACKET BSD-2601320018.A9 2601320018 £2.80 £3.36
17 - SLOTTED ROUND NUT BSD-2603341007.A14 2603341007 £1.75 £2.10
18 - LIFTING ROD BSD-2602305016.A1 2602305016 £54.42 £65.30
19 - LIFTING ROD BSD-2602305014.A16 2602305014 £54.42 £65.30
20 - SOCKET HEAD CAP SCREW DIN 84-AM4x8-8.8 BSD-2910021118.A185 2910021118 £1.75 £2.10
22 - BEARING BOLT BSD-2603520010.A4 2603520010 £16.41 £19.69
23 - PRESSURE PLATE BSD-2601034010.A10 2601034010 £6.52 £7.83
24 - ROUND NUT BSD-3603345016.A3 3603345016 £13.12 £15.75
25 - SPRING LOCK WASHER DIN128-A5-FST BSD-2916690002.A5 2916690002 £1.75 £2.10
26 - SEAL BUSHING BSD-2600300047.A21 2600300047 £2.61 £3.13
27 - FELT WASHER BSD-2600108026.A62 2600108026 £1.75 £2.10
28 - CUPPED WASHER BSD-2600500017.A69 2600500017 £1.75 £2.10
29 - SOCKET HEAD CAP SCREW DIN 84-AM3.5x6-5.8 BSD-2910011082.A25 2910011082 £1.75 £2.10
30 - SUPPORT PLATE BSD-3602307009.A15 3602307009 £81.81 £98.17
31 - SOCKET HEAD CAP SCREW DIN 84-AM3.5x8-5.8 BSD-2910011084.A14 2910011084 £1.75 £2.10
32 - STUD BSD-2603502015.A8 2603502015 £3.72 £4.47
33 - STRAIGHT PIN 4H8x8 DIN 7 BSD-2917500093.A8 2917500093 £1.75 £2.10
35 - REFERENCE PLATE BSD-3601110100.A6 3601110100 -
37 - ROLLER BSD-2600300011.A9 2600300011 £1.75 £2.10
38 - NEEDLE ROLLER BSD-1903201521.A16 1903201521 £1.75 £2.10
39 - SOCKET HEAD CAP SCREW DIN 84-AM4x25-8.8 BSD-2910021132.A79 2910021132 £1.75 £2.10
103 - SPIRAL SPRING BSD-2604652000.A119 2604652000 -
104 - PLAIN WASHER DIN 433-3.2-ST 50 BSD-2916011005.A61 2916011005 £1.75 £2.10
105 - CLAMPING SADDLE BSD-2601321005.A68 2601321005 -
106 - SCREW AND WASHER ASSEMBLY DIN7985-M3x6-Z1-4.8 BSD-2914501011.A52 2914501011 £1.75 £2.10
107 - FIELD 220-230V BSD-2604220269.A27 2604220269 -
108 - HEX NUT DIN 934-M 3-m-8 BSD-2915011003.A118 2915011003 £1.75 £2.10
109 - SOCKET HEAD CAP SCREW DIN 84-BM3x50-5.8 BSD-2910011074.A57 2910011074 £1.75 £2.10
110 - SPRING LOCK WASHER A3-FSt BSD-2916690001.A129 2916690001 -
111 - BRUSH HOLDER BSD-2601323016.A3 2601323016 £2.80 £3.36
112 - PLAIN WASHER dia 2.6 MM-ST BSD-2916021007.A0 2916021007 -
113 - HEX NUT DIN 439-BM 3 BSD-2915051103.A7 2915051103 £1.75 £2.10
114 - SHIM BSD-2600100699.A87 2600100699 £1.75 £2.10
115 - SHIM BSD-2600150002.A78 2600150002 -
116 - GROOVE BALL BEARING 625-2Z DIN 625 BSD-1900905015.A65 1900905015 £30.42 £36.51
117 - SHIM 0.3 MM BSD-2600100612.A55 2600100612 £2.61 £3.13
118 - SEAL RING BSD-2600113019.A3 2600113019 £2.80 £3.36
119 - ARMATURE 220V BSD-2604010281.A5 2604010281 -
120 - INSULATING PART BSD-2601322002.A87 2601322002 £1.75 £2.10
121 - FAN BSD-2606610038.A53 2606610038 -
122 - SWITCH BSD-2607200045.A17 2607200045 -
123 - COUNTERSUNK-HEAD SCREW M 3x6 DIN 63-5.8 BSD-2910501048.A17 2910501048 -
125 - GROMMET dia6.5-dia6.9x95 MM BSD-2600703012.A584 2600703012 £2.80 £3.36
125 - GROMMET dia8.3-dia9.4x95 MM BSD-2600703011.A620 2600703011 £2.80 £3.36
126 - CABLE CLIP BSD-2601035005.A40 2601035005 £1.75 £2.10
127 - TAPPING SCREW DIN 7971-BZ3.5x13 BSD-2910211011.A525 2910211011 £1.75 £2.10
128 - TUBULAR RIVET A2.5x0.3x4DIN7340-MS BSD-2917170554.A0 2917170554 £1.75 £2.10
129 - SUPPRESSION FILTER BSD-2607329048.A80 2607329048 -
130 - FASTENING CLAMP BSD-2601301002.A80 2601301002 £2.16 £2.59
131 - HEX SCREW BSD-2603527004.A70 2603527004 £1.75 £2.10
132 - CONNECTING TERMINAL BSD-2604490005.A19 2604490005 £1.75 £2.10
133 - SOCKET HEAD CAP SCREW BSD-2603410009.A25 2603410009 £1.32 £1.58
135 - HOUSING COVER BSD-3600508023.A69 3600508023 £13.41 £16.09
136 - COUNTERSUNK-HEAD SCREW DIN 63-AM3.5x8-5.8 BSD-2910501084.A80 2910501084 -
138 - STICKER BSD-3601007011.A9 3601007011 -
140 - GROOVED NAIL BSD-3603133000.A651 3603133000 £2.61 £3.13
141 - POWER SUPPLY CORD CH 2.65m 2 x 1.0mm H05 VV-F BSD-1604460427.A127 1604460427 £12.04 £14.45
142 - CABLE CLIP BSD-2601099015.A16 2601099015 £1.75 £2.10
143 - CABLE BSD-2604411061.A36 2604411061 -
147 - RETAINING PIN BSD-2603123013.A0 2603123013 -
160 - PRESS-IN NUT BSD-2603349039.A0 2603349039 £1.75 £2.10
161 - PRESS-IN NUT BSD-2603349038.A26 2603349038 -
652 - SCRAPER BSD-2601030010.A12 2601030010 £2.61 £3.13
700 - GUIDE 70 MM. T42D BSD-2608135023.A6 2608135023 £62.99 £75.59
700 - GUIDE 130 MM. T42A BSD-2608135020.A11 2608135020 £63.87 £76.64
700 - GUIDE 220 MM. T42B BSD-2608135021.A6 2608135021 £69.99 £83.99
700 - GUIDE 300 MM. T42C BSD-2608135022.A11 2608135022 £76.12 £91.34
701 - SAW BLADE SET 70 MM. T 43D BSD-2607018013.A8 2607018013 £20.99 £25.19
701 - SAW BLADE SET 130 MM. T43A BSD-2607018010.A9 2607018010 £27.12 £32.54
701 - SAW BLADE SET 220 MM. T43B BSD-2607018011.A8 2607018011 £27.12 £32.54
701 - SAW BLADE SET 300 MM. T43C BSD-2607018012.A9 2607018012 £29.74 £35.69
710 - SHARPENING SET BSD-2608133000.A4 2608133000 -
710/10 - WHETSTONE BSD-3607950012.A0 3607950012 -
800 - MOTOR HOUSING BSD-2605108032.A69 2605108032 -
801 - GEAR COVER BSD-2605500905.A0 2605500905 £120.11 £144.13
802 - BASE PLATE BSD-2608000908.A6 2608000908 £72.38 £86.86
805 - CARBON-BRUSH SET BSD-2604320905.A76 2604320905 -
807 - UN. FLANGE-MTD. MOTOR 230V BSD-3607220031.A0 3607220031 -
888 - NAMEPLATE BSD-160111A3H3.A3908 160111A3H3 £2.61 £3.13
