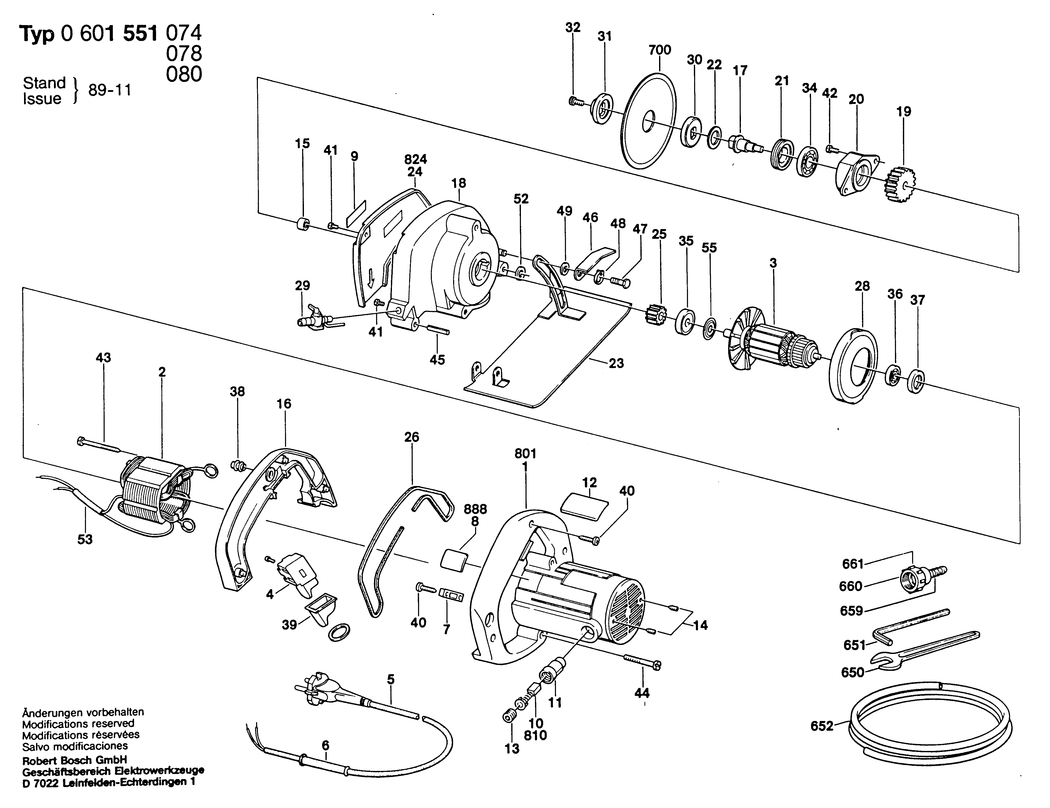

An exploded drawing and listing for the Bosch GMS 34 / 0601551077 / --- 115 Volt
Ex VAT Inc VAT
2 - FIELD 115V BSD-9618082276.A0 9618082276 -
3 - ARMATURE 110-115V BSD-9618082266.A0 9618082266 -
4 - ON-OFF SWITCH BSD-F000608006.A1 F000608006 -
5 - POWER SUPPLY CORD BSD-9618089009.A0 9618089009 -
6 - GROMMET dia7.6-dia8.2x95 MM BSD-2600703013.A46 2600703013 £2.61 £3.13
7 - CABLE CLIP BSD-2601035001.A944 2601035001 £1.75 £2.10
11 - BRUSH HOLDER BSD-9618082260.A1 9618082260 -
12 - REFERENCE PLATE BSD-9618086646.A0 9618086646 -
13 - PROTECTION COVER BSD-9618082261.A0 9618082261 £1.95 £2.34
14 - SET SCREW DIN 916-M5x8-45H BSD-2912060150.A0 2912060150 -
15 - NEEDLE BEARING dia8xdia12x10 MM BSD-1610910057.A175 1610910057 £2.80 £3.36
16 - PROTECTION COVER BSD-9618082256.A1 9618082256 -
17 - DRILLING SPINDLE BSD-9618082285.A0 9618082285 £37.27 £44.72
18 - GEAR HOUSING BSD-9618082253.A1 9618082253 -
19 - CYLINDRICAL GEAR BSD-9618082287.A1 9618082287 £12.04 £14.45
20 - BEARING FLANGE BSD-9618082272.A0 9618082272 -
21 - THREADED RING BSD-9618082274.A1 9618082274 -
22 - SEALING DISK BSD-9618082291.A1 9618082291 -
23 - BASE PLATE BSD-9618082257.A0 9618082257 -
25 - CYLINDRICAL GEAR BSD-9618082289.A1 9618082289 £16.41 £19.69
26 - INSULATION TUBING 0.42 MM BSD-9919081716.A1 9919081716 -
28 - AIR-DEFLECTOR RING BSD-9618085850.A1 9618085850 -
29 - SHUT-OFF TAP BSD-9618082290.A0 9618082290 £14.91 £17.89
30 - CLAMPING-FLANGE BSD-9618082292.A0 9618082292 -
31 - BRAKE DISC BSD-9618082293.A1 9618082293 £2.61 £3.13
32 - HEX SOCKET HEAD CAP SCREW BSD-F000616134.A2 F000616134 £1.75 £2.10
34 - GROOVE BALL BEARING 12x32x10 BSD-1600905006.A50 1600905006 £12.04 £14.45
35 - GROOVE BALL BEARING BSD-9618082254.A0 9618082254 -
36 - BALL BEARING 7x19x6 BSD-2600905032.A1035 2600905032 £5.30 £6.36
37 - INTERMEDIATE RING BSD-1600502011.A206 1600502011 £2.61 £3.13
38 - PROTECTIVE COVER BSD-9618082270.A1 9618082270 £1.75 £2.10
39 - PROTECTIVE COVER BSD-9618082269.A0 9618082269 -
40 - TAPPING SCREW DIN 7971-BZ3.9x19 BSD-2910211020.A1 2910211020 £2.16 £2.59
41 - SOCKET HEAD CAP SCREW DIN 84-AM4x12-8.8 BSD-2910021122.A942 2910021122 £2.16 £2.59
42 - SOCKET HEAD CAP SCREW DIN 84-AM5x12-8.8 BSD-2910021154.A109 2910021154 £1.75 £2.10
43 - TAPPING SCREW BZ4.8x63 MM BSD-1603435008.A231 1603435008 £1.32 £1.58
44 - SOCKET HEAD CAP SCREW DIN 84-BM5x50-8.8 BSD-2910021174.A13 2910021174 £1.32 £1.58
45 - SLOTTED SPRING PIN 6x32 DIN 1481 BSD-2917760156.A0 2917760156 £1.75 £2.10
46 - CLAMPING LEVER BSD-9618082248.A1 9618082248 -
47 - SPECIAL SCREW M 8x1.75 MM BSD-9618085949.A1 9618085949 -
48 - LOCKING WASHER DIN 6799-10-FSt BSD-2916080013.A5 2916080013 £4.75 £5.70
49 - PLAIN WASHER 8.4 DIN 433-ST BSD-2916011015.A49 2916011015 £1.75 £2.10
52 - RUBBER PLUG BSD-9618082288.A1 9618082288 -
53 - INSULATING TUBE BSD-9919080509.A0 9919080509 -
55 - PLAIN WASHER BSD-9618085560.A0 9618085560 -
650 - SINGLE-HEAD ENG. WRENCH SW 17 MM BSD-9618086527.A0 9618086527 -
651 - OFFSET SCREWDRIVER DIN 911-SW5 BSD-1907950006.A142 1907950006 £4.26 £5.11
652 - PARTS SET BSD-9618089316.A1 9618089316 £8.49 £10.19
659 - HOSE COUPLING R 3/4 BSD-9618085212.A0 9618085212 -
660 - INTERMEDIATE PIECE R 3/4 x R 1/2 BSD-9618085211.A0 9618085211 -
661 - NIPPLE BSD-9618085213.A0 9618085213 -
801 - MOTOR HOUSING BSD-9618089637.A0 9618089637 -
810 - CARBON-BRUSH SET BSD-9618085731.A0 9618085731 -
824 - PROTECTION COVER BSD-9618082275.A0 9618082275 -
888 - NAMEPLATE BSD-160111A3H3.A1737 160111A3H3 £2.61 £3.13
