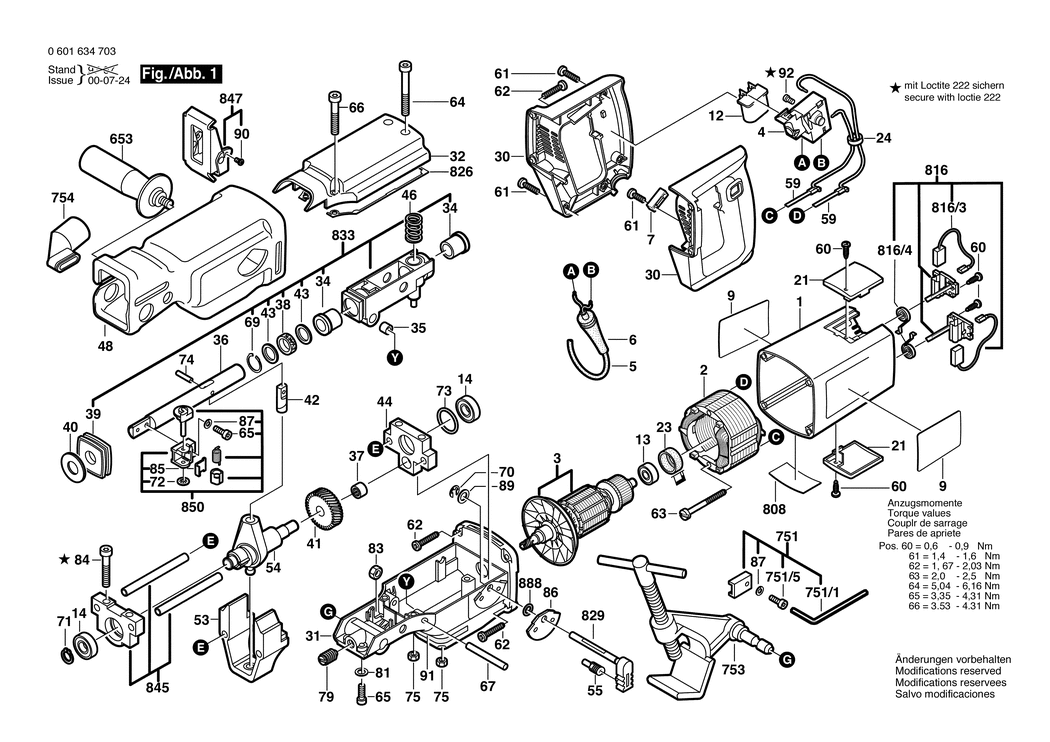

An exploded drawing and listing for the Bosch GSA 1100 PE / 0601634732 / CH 230 Volt
Ex VAT Inc VAT
1 - MOTOR HOUSING BSD-3605108590.A2 3605108590 -
2 - FIELD 230V BSD-2610908848.A4 2610908848 £36.63 £43.96
3 - ARMATURE 230V BSD-2610908849.A0 2610908849 -
4 - SWITCH BSD-2607200209.A24 2607200209 £40.80 £48.96
5 - POWER SUPPLY CORD CH 4.25m 2 x 1.0mm H07RN-F BSD-3604460587.A0 3604460587 -
6 - GROMMET dia 9.4 MM BSD-3600703508.A4 3600703508 £3.34 £4.01
7 - CABLE CLIP BSD-2601035001.A1917 2601035001 £1.75 £2.10
9 - MANUFACTURER'S NAMEPLATE BSD-2610908850.A2 2610908850 £3.34 £4.01
12 - SUPPRESSION FILTER BSD-1617328025.A57 1617328025 £5.58 £6.70
13 - BALL BEARING BSD-1619P01511.A113 1619P01511 £6.52 £7.83
14 - GROOVE BALL BEARING 12x28x8 BSD-1900905161.A17 1900905161 £21.68 £26.01
21 - BRUSH-COVER BSD-3605500601.A2 3605500601 -
23 - RUBBER BUSHING BSD-3600206501.A13 3600206501 £2.52 £3.02
24 - SUPPRESSION CAPACITOR BSD-2610993583.A1 2610993583 £13.12 £15.75
30 - HANDLE BSD-3605133532.A0 3605133532 £10.82 £12.99
31 - GEAR HOUSING BSD-2610908886.A2 2610908886 £51.22 £61.47
32 - HOUSING COVER BSD-2610994423.A3 2610994423 £16.74 £20.09
34 - BUSHING BSD-2610908695.A0 2610908695 £3.80 £4.56
35 - BUSHING BSD-2610908696.A4 2610908696 £5.58 £6.70
36 - CONNECTING ROD BSD-2610994483.A1 2610994483 £37.27 £44.72
37 - BEARING SHELL BSD-2610908698.A0 2610908698 £7.36 £8.83
38 - FELT WASHER BSD-2610908699.A4 2610908699 -
39 - SEAL BSD-2610908800.A0 2610908800 £5.58 £6.70
40 - PROTECTIVE WASHER BSD-2610908801.A4 2610908801 £2.80 £3.36
41 - TOOTHED GEAR BSD-2610908802.A0 2610908802 £13.12 £15.75
42 - OPTICS CARRIER BSD-2610908803.A4 2610908803 -
43 - PROTECTIVE WASHER BSD-2610908804.A0 2610908804 £2.61 £3.13
44 - BEARING BRACKET BSD-2610908805.A4 2610908805 £13.12 £15.75
46 - COMPRESSION SPRING BSD-2610908807.A0 2610908807 £2.61 £3.13
48 - INSULATING HOUSING BSD-2610908871.A2 2610908871 -
53 - COUNTERWEIGHT BSD-2610908814.A4 2610908814 £13.41 £16.09
54 - WOBBLE PLATE BSD-2610991390.A3 2610991390 -
55 - RATCHET CAP BSD-2600590006.A281 2600590006 £1.75 £2.10
59 - BLADE TERMINAL BSD-1604477005.A43 1604477005 £2.61 £3.13
60 - TORX OVAL-HEAD SCREW 3x10 BSD-2603490017.A774 2603490017 £2.16 £2.59
61 - TAPPING SCREW DIN 7981-3.9x19-C-Z-ST BSD-2912401020.A281 2912401020 £2.16 £2.59
62 - TAPPING SCREW DIN 7971-BZ4.2x25 BSD-2910611029.A15 2910611029 £2.61 £3.13
63 - TAPPING SCREW ST-4.8x57.5-TORX.T20 BSD-1613435009.A227 1613435009 £1.75 £2.10
64 - HEX SOCKET HEAD CAP SCREW DIN 912-M5x55-12.9 BSD-2910401176.A2 2910401176 -
65 - THREAD-FORMING TAP. SCREW BSD-3603410505.A6 3603410505 £1.75 £2.10
66 - HEX SOCKET HEAD CAP SCREW DIN 912-M5x40-8.8 BSD-2910141170.A22 2910141170 £2.61 £3.13
67 - STRAIGHT PIN DIN 6325-6m6x60 BSD-2917530163.A2 2917530163 -
69 - SPRING RETAINING RING BSD-2610908818.A0 2610908818 £2.33 £2.80
70 - LOCKING WASHER BSD-3600149500.A14 3600149500 £2.61 £3.13
71 - SPRING RETAINING RING BSD-2610908867.A2 2610908867 £2.61 £3.13
72 - SPRING RETAINING RING BSD-2610908819.A4 2610908819 £2.61 £3.13
73 - O-RING BSD-2610908820.A0 2610908820 £1.75 £2.10
74 - STRAIGHT PIN DIN 6325-3M6x16 BSD-2917530079.A2 2917530079 £1.75 £2.10
75 - HEX NUT DIN 934-M5-10 BSD-2915011062.A2 2915011062 £1.75 £2.10
79 - HEADLESS SCREW BSD-2610908870.A2 2610908870 £13.12 £15.75
81 - PLAIN WASHER DIN 433-5.3-ST BSD-2916011011.A18 2916011011 £1.75 £2.10
83 - HEX NUT DIN 934-M8-8-A BSD-2915011009.A200 2915011009 £2.61 £3.13
84 - HEX SOCKET HEAD CAP SCREW BSD-2610990042.A3 2610990042 £2.61 £3.13
85 - CUPPED WASHER BSD-2610909343.A2 2610909343 £6.52 £7.83
86 - INSULATOR BSD-2610911031.A2 2610911031 £2.61 £3.13
87 - SPRING LOCK WASHER DIN 127-B 5 BSD-2916683006.A18 2916683006 £1.75 £2.10
89 - WASHER BSD-2610990026.A2 2610990026 £2.61 £3.13
90 - SCREW BSD-2610991396.A2 2610991396 £1.75 £2.10
91 - SEAL STRIP BSD-2610993597.A2 2610993597 £2.61 £3.13
92 - SOCKET HEAD CAP SCREW M3x6.5-4.8 BSD-2603410001.A1441 2603410001 £1.75 £2.10
653 - AUXILIARY HANDLE M8x20 MM BSD-3602025500.A9 3602025500 -
751 - BLADE HOLDER BSD-2610908852.A0 2610908852 £23.86 £28.63
751/1 - OFFSET SCREWDRIVER DIN 911-4 BSD-2607950004.A293 2607950004 £1.75 £2.10
751/5 - HEX SOCKET HEAD CAP SCREW DIN 912-M5x12-12.9 BSD-2910405154.A28 2910405154 £1.95 £2.34
753 - TENSIONING BRACKET BSD-1609203175.A7 1609203175 £116.15 £139.38
754 - VACUUM ADAPTER BSD-2610990442.A0 2610990442 -
808 - NAMEPLATE BSD-3601119595.A3 3601119595 £3.72 £4.47
816 - BRUSH HOLDER BSD-3604336506.A11 3604336506 -
816/3 - CARBON-BRUSH SET BSD-2610007957.A31 2610007957 £11.30 £13.56
816/4 - SPRING BSD-3604652501.A31 3604652501 £3.72 £4.47
826 - SEALING PLATE BSD-2610908688.A2 2610908688 £21.52 £25.83
829 - SERVICE KIT BSD-2610992459.A0 2610992459 £13.12 £15.75
833 - BEARING HOUSING BSD-2610991391.A0 2610991391 £51.22 £61.47
845 - BEARING BRACKET BSD-2610908863.A4 2610908863 £45.67 £54.80
847 - BASE PLATE BSD-2610919523.A3 2610919523 -
850 - BLADE HOLDER BSD-2610908866.A0 2610908866 £33.74 £40.49
888 - SERVICE KIT BSD-2610992462.A4 2610992462 £2.61 £3.13
