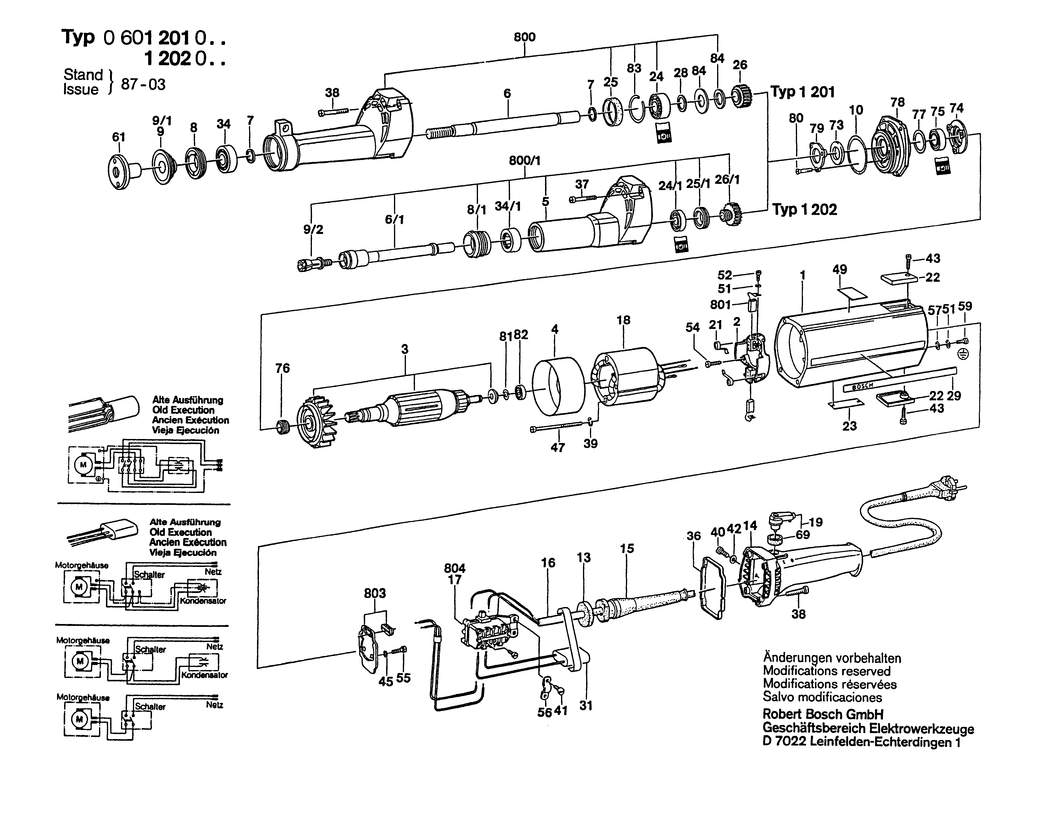

1 - MOTOR HOUSING
BSD-1605108042.A30
1605108042
|
-
|
|
|
|
2 - BRUSH HOLDER
BSD-1604336006.A23
1604336006
|
-
|
|
|
|
3 - ARMATURE 220V
BSD-1604010086.A23
1604010086
|
-
|
|
|
|
4 - AIR-DEFLECTOR RING
BSD-1600209002.A418
1600209002
|
£5.30
|
£6.36
|
|
|
6 - ARMATURE SHAFT
BSD-1603050012.A0
1603050012
|
-
|
|
|
|
7 - INTERMEDIATE RING
BSD-1600200009.A7
1600200009
|
£6.52
|
£7.83
|
|
|
8 - THREADED RING
BSD-1603344002.A3
1603344002
|
-
|
|
|
|
10 - O-RING 54.0x3.0 MM
BSD-1600210004.A206
1600210004
|
£2.80
|
£3.36
|
|
|
13 - SEAL
BSD-1600113002.A64
1600113002
|
£1.75
|
£2.10
|
|
|
14 - HANDLE
BSD-3605132048.A285
3605132048
|
£63.50
|
£76.20
|
|
|
15 - GROMMET dia9.2-dia12x120 MM
BSD-3600703011.A563
3600703011
|
£2.80
|
£3.36
|
|
|
16 - POWER SUPPLY CORD EU 4.15m 2 x 1.0mm H07 RN-F
BSD-1607000227.A521
1607000227
|
£23.86
|
£28.63
|
|
|
17 - ON-OFF SWITCH
BSD-1607200059.A10
1607200059
|
-
|
|
|
|
18 - POLE SHOE 220V
BSD-1604220031.A11
1604220031
|
-
|
|
|
|
21 - SPIRAL SPRING
BSD-1604652015.A488
1604652015
|
£2.80
|
£3.36
|
|
|
22 - SEALING CAP
BSD-3605500057.A115
3605500057
|
-
|
|
|
|
24 - GROOVE BALL BEARING 15x32x9
BSD-1900905162.A108
1900905162
|
£18.96
|
£22.75
|
|
|
25 - INTERMEDIATE RING
BSD-1600206018.A60
1600206018
|
-
|
|
|
|
26 - CYLINDRICAL GEAR Z=29
BSD-1606320028.A3
1606320028
|
£72.18
|
£86.62
|
|
|
27 - SHIM WASHER 0.4 MM
BSD-1600101600.A39
1600101600
|
£1.75
|
£2.10
|
|
|
28 - COVER DISC
BSD-1600101016.A23
1600101016
|
£5.30
|
£6.36
|
|
|
29 - MANUFACTURER'S NAMEPLATE
BSD-1601110003.A188
1601110003
|
-
|
|
|
|
31 - SUPPRESSION FILTER
BSD-1607328034.A66
1607328034
|
£4.26
|
£5.11
|
|
|
34 - GROOVE BALL BEARING 15x42x13
BSD-1900900351.A51
1900900351
|
£24.45
|
£29.34
|
|
|
36 - SEALING CORD
BSD-1601014000.A266
1601014000
|
£2.80
|
£3.36
|
|
|
38 - SOCKET HEAD CAP SCREW DIN 84-AM5x28-8.8
BSD-2910021165.A65
2910021165
|
-
|
|
|
|
39 - SPRING LOCK WASHER DIN 127-B 5
BSD-2916680006.A37
2916680006
|
-
|
|
|
|
40 - TAPPING SCREW DIN 7971-BZ2.9x13
BSD-2910211006.A144
2910211006
|
£1.75
|
£2.10
|
|
|
41 - SOCKET HEAD CAP SCREW DIN 84-AM4x12-8.8
BSD-2910021122.A37
2910021122
|
£2.16
|
£2.59
|
|
|
42 - PLAIN WASHER DIN 433-3.2-ST 50
BSD-2916011005.A188
2916011005
|
£1.75
|
£2.10
|
|
|
43 - SOCKET HEAD CAP SCREW DIN 84-AM4x15-8.8
BSD-2910021125.A840
2910021125
|
£1.75
|
£2.10
|
|
|
45 - PLAIN WASHER DIN 125-A3.2-ST
BSD-2916011006.A137
2916011006
|
£1.75
|
£2.10
|
|
|
47 - SOCKET HEAD CAP SCREW
BSD-1603410008.A64
1603410008
|
-
|
|
|
|
49 - REFERENCE PLATE
BSD-1601110058.A97
1601110058
|
£1.75
|
£2.10
|
|
|
51 - SPRING WASHER DIN 137-A4
BSD-1600150006.A669
1600150006
|
-
|
|
|
|
52 - SOCKET HEAD CAP SCREW DIN 84-AM4x10-8.8
BSD-2910021120.A148
2910021120
|
£1.75
|
£2.10
|
|
|
54 - TAPPING SCREW DIN 7971-ST3.9x16-F
BSD-2910211019.A136
2910211019
|
£1.75
|
£2.10
|
|
|
55 - TAPPING SCREW DIN 7971-BZ2.9x6.5
BSD-2910211004.A96
2910211004
|
-
|
|
|
|
56 - FASTENING CLAMP
BSD-1601302014.A313
1601302014
|
£2.61
|
£3.13
|
|
|
57 - PLAIN WASHER A 4.3 DIN 125-ST
BSD-2916010410.A333
2916010410
|
-
|
|
|
|
59 - PAN HEAD SCREW DIN 85 AM 4x6-MS
BSD-2910110116.A280
2910110116
|
£1.75
|
£2.10
|
|
|
61 - ROUND NUT
BSD-1603345009.A29
1603345009
|
-
|
|
|
|
69 - FELT WASHER
BSD-1600205008.A344
1600205008
|
£1.75
|
£2.10
|
|
|
73 - FELT DISC
BSD-1600108018.A273
1600108018
|
£2.61
|
£3.13
|
|
|
74 - BEARING COVER
BSD-1600501019.A243
1600501019
|
£23.86
|
£28.63
|
|
|
75 - GROOVE BALL BEARING 17x35x10
BSD-1600900020.A82
1600900020
|
-
|
|
|
|
76 - THREADED RING
BSD-1603344031.A35
1603344031
|
£59.53
|
£71.44
|
|
|
77 - SHIM
BSD-1600102002.A72
1600102002
|
-
|
|
|
|
78 - BEARING FLANGE
BSD-1605820100.A33
1605820100
|
-
|
|
|
|
79 - COVER DISC
BSD-1600501024.A217
1600501024
|
£16.41
|
£19.69
|
|
|
80 - COUNTERSUNK-HEAD SCREW DIN 63-AM4x20-8.8
BSD-2910511130.A63
2910511130
|
-
|
|
|
|
81 - SHIM 0.10 MM
BSD-1420100023.A165
1420100023
|
-
|
|
|
|
81 - SHIM 0.2 MM
BSD-1600100632.A310
1600100632
|
£1.75
|
£2.10
|
|
|
82 - BALL BEARING 7x22x7
BSD-1900905018.A438
1900905018
|
£18.96
|
£22.75
|
|
|
83 - RETAINING RING 35 DIN 9045
BSD-2916603018.A22
2916603018
|
-
|
|
|
|
84 - PLAIN WASHER
BSD-1600101002.A15
1600101002
|
£13.12
|
£15.75
|
|
|
801 - CARBON-BRUSH SET
BSD-1607014102.A150
1607014102
|
-
|
|
|
