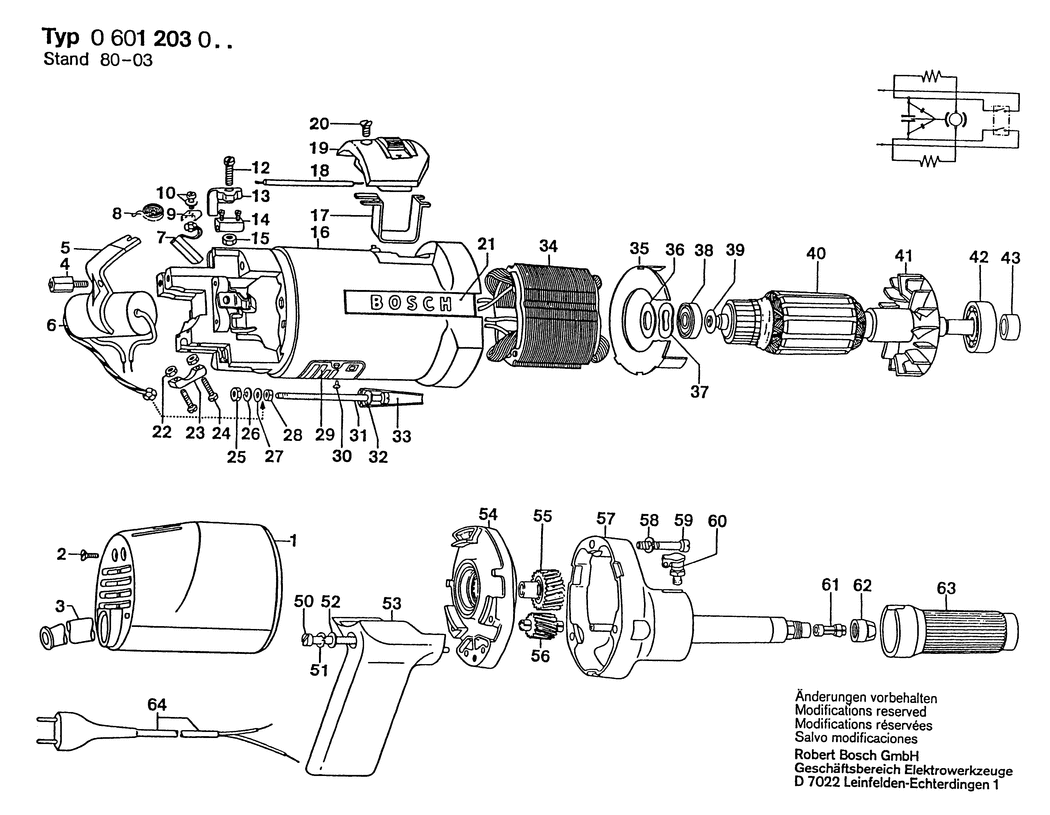

1 - HOUSING COVER
BSD-3600508023.A10
3600508023
|
£13.41
|
£16.09
|
|
|
2 - COUNTERSUNK-HEAD SCREW DIN 63-AM3.5x8-5.8
BSD-2910501084.A8
2910501084
|
-
|
|
|
|
3 - GROMMET dia7 MM
BSD-2600703007.A60
2600703007
|
-
|
|
|
|
3 - GROMMET dia8.2 MM
BSD-2600703008.A95
2600703008
|
£1.75
|
£2.10
|
|
|
3 - GROMMET dia9.5 MM
BSD-2600703006.A229
2600703006
|
-
|
|
|
|
4 - HEX SCREW
BSD-2603527004.A21
2603527004
|
£1.75
|
£2.10
|
|
|
5 - FASTENING CLAMP
BSD-2601301002.A25
2601301002
|
£2.16
|
£2.59
|
|
|
6 - SUPPRESSION FILTER
BSD-2607329048.A21
2607329048
|
-
|
|
|
|
7 - CARBON-BRUSH SET
BSD-2604320905.A21
2604320905
|
-
|
|
|
|
8 - SPIRAL SPRING
BSD-2604652000.A49
2604652000
|
-
|
|
|
|
9 - CLAMPING SADDLE
BSD-2601321005.A21
2601321005
|
-
|
|
|
|
10 - SOCKET HEAD CAP SCREW
BSD-2603410010.A106
2603410010
|
-
|
|
|
|
12 - SOCKET HEAD CAP SCREW M 2.6x5 DIN 84
BSD-2910011028.A12
2910011028
|
-
|
|
|
|
13 - CLAMPING PIECE
BSD-2602305034.A39
2602305034
|
-
|
|
|
|
14 - CONNECTING TERMINAL
BSD-2604490003.A96
2604490003
|
-
|
|
|
|
15 - HEX NUT M 2.6 DIN 934-M-6
BSD-2915011002.A87
2915011002
|
-
|
|
|
|
16 - MOTOR HOUSING
BSD-2605108032.A23
2605108032
|
-
|
|
|
|
17 - INSULATING PART
BSD-2601322002.A35
2601322002
|
£1.75
|
£2.10
|
|
|
18 - CABLE
BSD-2604411061.A49
2604411061
|
-
|
|
|
|
19 - SWITCH
BSD-2607200045.A61
2607200045
|
-
|
|
|
|
20 - COUNTERSUNK-HEAD SCREW M 3x6 DIN 63-5.8
BSD-2910501048.A57
2910501048
|
-
|
|
|
|
21 - MANUFACTURER'S NAMEPLATE
BSD-2601007003.A60
2601007003
|
-
|
|
|
|
22 - HEX NUT M 2.6 DIN 934-M-6
BSD-2915011002.A88
2915011002
|
-
|
|
|
|
23 - CABLE CLIP
BSD-2601035005.A58
2601035005
|
£1.75
|
£2.10
|
|
|
24 - SOCKET HEAD CAP SCREW DIN 84-AM2.6x15-5.8
BSD-2910011033.A36
2910011033
|
-
|
|
|
|
25 - HEX NUT DIN 439-BM 3
BSD-2915051103.A60
2915051103
|
£1.75
|
£2.10
|
|
|
26 - SPRING LOCK WASHER A3-FSt
BSD-2916690001.A5
2916690001
|
-
|
|
|
|
27 - PLAIN WASHER DIN 433-3.2-ST 50
BSD-2916011005.A620
2916011005
|
£1.75
|
£2.10
|
|
|
28 - HEX NUT DIN 934-M 3-m-8
BSD-2915011003.A29
2915011003
|
£1.75
|
£2.10
|
|
|
29 - NAMEPLATE
BSD-160111A3H3.A549
160111A3H3
|
£2.61
|
£3.13
|
|
|
30 - ROUND-HEAD GROOVED PIN 2x3 DIN 1476 ST
BSD-2917724031.A92
2917724031
|
-
|
|
|
|
31 - SOCKET HEAD CAP SCREW DIN 84-BM3x50-5.8
BSD-2910011074.A19
2910011074
|
£1.75
|
£2.10
|
|
|
32 - PLAIN WASHER DIN 433-3.2-ST 50
BSD-2916011005.A619
2916011005
|
£1.75
|
£2.10
|
|
|
33 - CABLE CLIP
BSD-2601099015.A72
2601099015
|
£1.75
|
£2.10
|
|
|
34 - FIELD 220-230V
BSD-2604220269.A20
2604220269
|
-
|
|
|
|
34 - POLE SHOE 220V
BSD-2604220241.A1
2604220241
|
-
|
|
|
|
35 - SEAL RING
BSD-2600113019.A79
2600113019
|
£2.80
|
£3.36
|
|
|
36 - SHIM
BSD-2600100699.A20
2600100699
|
£1.75
|
£2.10
|
|
|
37 - SHIM
BSD-2600150002.A19
2600150002
|
-
|
|
|
|
38 - GROOVE BALL BEARING 625-2Z DIN 625
BSD-1900905015.A238
1900905015
|
£30.42
|
£36.51
|
|
|
39 - SHIM 0.3 MM
BSD-2600100612.A39
2600100612
|
£2.61
|
£3.13
|
|
|
40 - ARMATURE WITH FAN 220V
BSD-2604010303.A0
2604010303
|
-
|
|
|
|
41 - FAN
BSD-2606610037.A7
2606610037
|
-
|
|
|
|
42 - GROOVE BALL BEARING 609-ZY DIN 625
BSD-1900905007.A2
1900905007
|
-
|
|
|
|
43 - BEARING SLEEVE
BSD-2600300043.A42
2600300043
|
-
|
|
|
|
50 - SOCKET HEAD CAP SCREW DIN 84-BM4x30-8.8
BSD-2910021134.A136
2910021134
|
£1.75
|
£2.10
|
|
|
51 - SPRING LOCK WASHER DIN 128-A4-FST
BSD-2916690003.A290
2916690003
|
£1.75
|
£2.10
|
|
|
52 - PLAIN WASHER 4.3 DIN 433-ST
BSD-2916011009.A8
2916011009
|
-
|
|
|
|
53 - HANDLE
BSD-3602025001.A3
3602025001
|
£63.50
|
£76.20
|
|
|
54 - INTERMEDIATE FLANGE
BSD-2605700136.A7
2605700136
|
-
|
|
|
|
55 - TOOTHED GEAR Z=25
BSD-1606329006.A6
1606329006
|
-
|
|
|
|
56 - CYLINDRICAL GEAR Z=12
BSD-1606329002.A3
1606329002
|
-
|
|
|
|
57 - GRINDING SPINDLE
BSD-2606120900.A2
2606120900
|
-
|
|
|
|
58 - SPRING LOCK WASHER DIN 128-A4-FST
BSD-2916690003.A291
2916690003
|
£1.75
|
£2.10
|
|
|
59 - SOCKET HEAD CAP SCREW DIN 84-AM4x25-8.8
BSD-2910021132.A6
2910021132
|
£1.75
|
£2.10
|
|
|
60 - OILER
BSD-1607400000.A8
1607400000
|
-
|
|
|
|
61 - COLLET dia 3 MM
BSD-1608570010.A11
1608570010
|
£33.74
|
£40.49
|
|
|
62 - UNION NUT
BSD-1603314001.A15
1603314001
|
£63.50
|
£76.20
|
|
|
63 - PROTECTION SLEEVE
BSD-1600329003.A11
1600329003
|
-
|
|
|
|
64 - POWER SUPPLY CORD GB 110V 2.65m 2 x 1.0mm H05 VV-F
BSD-3604460069.A1
3604460069
|
£37.72
|
£45.27
|
|
