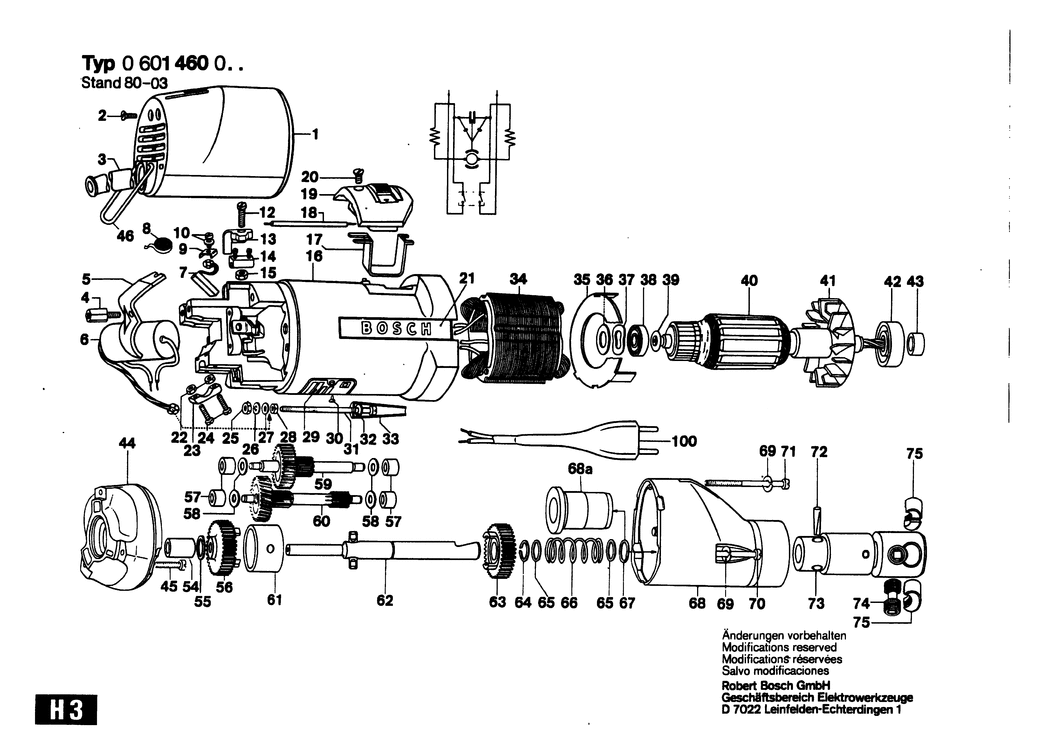

An exploded drawing and listing for the Bosch ---- / 0601460001 / EU 110 Volt
Ex VAT Inc VAT
1 - HOUSING COVER BSD-3600508023.A34 3600508023 £13.41 £16.09
2 - COUNTERSUNK-HEAD SCREW DIN 63-AM3.5x8-5.8 BSD-2910501084.A27 2910501084 -
3 - GROMMET dia7 MM BSD-2600703007.A45 2600703007 -
3 - GROMMET dia8.2 MM BSD-2600703008.A114 2600703008 £1.75 £2.10
3 - GROMMET dia9.5 MM BSD-2600703006.A252 2600703006 -
4 - HEX SCREW BSD-2603527004.A36 2603527004 £1.75 £2.10
5 - FASTENING CLAMP BSD-2601301002.A5 2601301002 £2.16 £2.59
6 - SUPPRESSION FILTER BSD-2607329048.A3 2607329048 -
7 - CARBON-BRUSH SET BSD-2604320905.A49 2604320905 -
8 - SPIRAL SPRING BSD-2604652000.A3 2604652000 -
9 - CLAMPING SADDLE BSD-2601321005.A9 2601321005 -
10 - SOCKET HEAD CAP SCREW BSD-2603410010.A1 2603410010 -
12 - SOCKET HEAD CAP SCREW M 2.6x5 DIN 84 BSD-2910011028.A2 2910011028 -
13 - CLAMPING PIECE BSD-2602305034.A45 2602305034 -
14 - CONNECTING TERMINAL BSD-2604490003.A104 2604490003 -
15 - HEX NUT M 2.6 DIN 934-M-6 BSD-2915011002.A71 2915011002 -
16 - MOTOR HOUSING BSD-2605108032.A32 2605108032 -
17 - INSULATING PART BSD-2601322002.A6 2601322002 £1.75 £2.10
18 - CABLE BSD-2604411061.A70 2604411061 -
19 - SWITCH BSD-2607200045.A70 2607200045 -
20 - COUNTERSUNK-HEAD SCREW M 3x6 DIN 63-5.8 BSD-2910501048.A51 2910501048 -
21 - MANUFACTURER'S NAMEPLATE BSD-2601007003.A96 2601007003 -
22 - HEX NUT M 2.6 DIN 934-M-6 BSD-2915011002.A72 2915011002 -
23 - CABLE CLIP BSD-2601035005.A90 2601035005 £1.75 £2.10
24 - SOCKET HEAD CAP SCREW DIN 84-AM2.6x15-5.8 BSD-2910011033.A50 2910011033 -
25 - HEX NUT DIN 439-BM 3 BSD-2915051103.A93 2915051103 £1.75 £2.10
26 - SPRING LOCK WASHER A3-FSt BSD-2916690001.A70 2916690001 -
27 - PLAIN WASHER DIN 433-3.2-ST 50 BSD-2916011005.A555 2916011005 £1.75 £2.10
28 - HEX NUT DIN 934-M 3-m-8 BSD-2915011003.A41 2915011003 £1.75 £2.10
29 - NAMEPLATE BSD-2601100038.A26 2601100038 -
29 - NAMEPLATE BSD-160111A3H3.A1117 160111A3H3 £2.61 £3.13
30 - ROUND-HEAD GROOVED PIN 2x3 DIN 1476 ST BSD-2917724031.A74 2917724031 -
31 - SOCKET HEAD CAP SCREW DIN 84-BM3x50-5.8 BSD-2910011074.A46 2910011074 £1.75 £2.10
32 - PLAIN WASHER DIN 433-3.2-ST 50 BSD-2916011005.A556 2916011005 £1.75 £2.10
33 - CABLE CLIP BSD-2601099015.A51 2601099015 £1.75 £2.10
34 - FIELD 110V BSD-2604220268.A13 2604220268 -
35 - SEAL RING BSD-2600113019.A56 2600113019 £2.80 £3.36
36 - SHIM BSD-2600100699.A34 2600100699 £1.75 £2.10
37 - SHIM BSD-2600150002.A30 2600150002 -
38 - GROOVE BALL BEARING 625-2Z DIN 625 BSD-1900905015.A208 1900905015 £30.42 £36.51
39 - SHIM 0.3 MM BSD-2600100612.A13 2600100612 £2.61 £3.13
40 - ARMATURE 100-115V BSD-2604010332.A0 2604010332 -
41 - FAN BSD-2606610037.A10 2606610037 -
42 - GROOVE BALL BEARING 609-ZY DIN 625 BSD-1900905007.A44 1900905007 -
43 - BEARING SLEEVE BSD-2600300044.A0 2600300044 -
44 - INTERMEDIATE FLANGE BSD-2605820017.A3 2605820017 -
45 - SOCKET HEAD CAP SCREW DIN 84-AM4x15-8.8 BSD-2910021125.A298 2910021125 £1.75 £2.10
46 - SUSPENSION LOOP BSD-1604682003.A26 1604682003 -
54 - BUSHING BSD-3600328036.A7 3600328036 -
55 - SHIM 0.5 MM BSD-2600100505.A44 2600100505 £1.32 £1.58
56 - CYLINDRICAL GEAR Z=41 BSD-2606325004.A17 2606325004 -
57 - BUSHING BSD-2600300058.A78 2600300058 -
58 - SHIM 0.50 MM BSD-2600100613.A177 2600100613 £1.75 £2.10
59 - SPINDLE WITH GEAR Z=13/35 BSD-2606328900.A0 2606328900 -
60 - SPINDLE WITH GEAR Z=9/11 BSD-2606328901.A20 2606328901 -
61 - SPACER BUSHING BSD-2600400023.A11 2600400023 -
62 - DRIVE SHAFT BSD-2603124066.A12 2603124066 -
63 - CYLINDRICAL GEAR Z=42 BSD-2606325003.A2 2606325003 -
64 - RETAINING RING BSD-1600224025.A50 1600224025 £2.61 £3.13
65 - PLAIN WASHER BSD-2600101513.A47 2600101513 £1.75 £2.10
66 - COMPRESSION SPRING BSD-2604630000.A12 2604630000 -
67 - O-RING 12x2 MM BSD-1900210009.A0 1900210009 -
68 - GEAR HOUSING BSD-2605806097.A6 2605806097 -
68/1 - BUSHING BSD-2600322043.A0 2600322043 -
69 - SPRING LOCK WASHER DIN 128-A4-FST BSD-2916690003.A20 2916690003 £1.75 £2.10
70 - SOCKET HEAD CAP SCREW DIN 84-BM4x45-5.8 BSD-2910011140.A22 2910011140 -
71 - SOCKET HEAD CAP SCREW DIN 84-BM4x45-8.8 BSD-2910021142.A22 2910021142 -
72 - GRIPPING WEDGE dia 5x18 MM/3.6 MM BSD-1603110000.A10 1603110000 -
73 - TWO-JAW DRILL JUCK M4-M12 BSD-1608573002.A15 1608573002 -
73 - HEXAGON SOCKET WRENCH BSD-1607950002.A0 1607950002 -
74 - STUD BOLT BSD-1603502000.A21 1603502000 £21.52 £25.83
75 - CLAMPING JAWS M 12x1.5 BSD-1600390002.A31 1600390002 -
75 - CLAMPING JAWS M 12x1.5 BSD-1600390003.A2 1600390003 -
75 - CLAMPING JAWS M 12x1.5 BSD-1600390004.A19 1600390004 -
75 - CLAMPING JAWS M 12x1.5 BSD-1600390005.A2 1600390005 -
