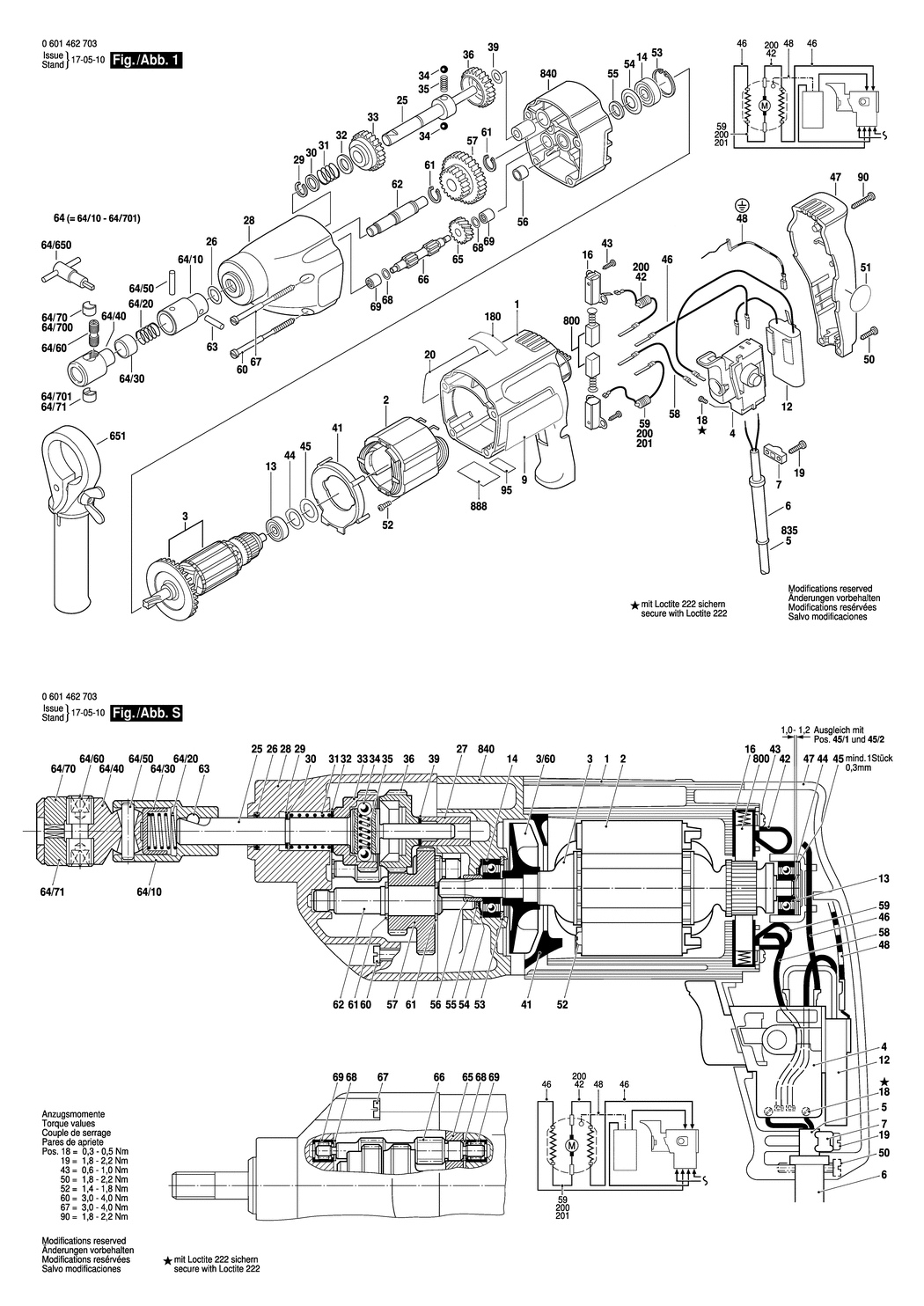

An exploded drawing and listing for the Bosch ELECTRONIC / 0601462741 / GB 110 Volt
Ex VAT Inc VAT
1 - MOTOR HOUSING BSD-2605104116.A52 2605104116 -
2 - FIELD 110-120V BSD-2604220428.A11 2604220428 £27.23 £32.68
3 - ARMATURE 110V BSD-2604010611.A1 2604010611 £57.02 £68.42
4 - ON-OFF SWITCH BSD-2607200138.A1 2607200138 -
5 - POWER SUPPLY CORD GB 110V 2.65m 2 x 1.0mm H05 VV-F BSD-3604460069.A6 3604460069 £37.72 £45.27
6 - GROMMET dia6.5-dia6.9x95 MM BSD-2600703012.A1325 2600703012 £2.80 £3.36
7 - CABLE CLIP BSD-2601035001.A312 2601035001 £1.75 £2.10
12 - SUPPRESSION CAPACITOR BSD-2607329110.A1 2607329110 -
13 - BALL BEARING 7x22x7 BSD-1900905018.A826 1900905018 £18.96 £22.75
14 - GROOVE BALL BEARING 9x24x7 BSD-2600905021.A459 2600905021 £8.67 £10.41
16 - BRUSH HOLDER BSD-2604337003.A311 2604337003 £2.16 £2.59
18 - SOCKET HEAD CAP SCREW M3x6.5-4.8 BSD-2603410001.A202 2603410001 £1.75 £2.10
19 - TAPPING SCREW DIN 7971-ST3.9x16-F BSD-2910211019.A1650 2910211019 £1.75 £2.10
20 - STICKER BSD-2601110093.A112 2601110093 -
25 - DRILLING SPINDLE BSD-3606135000.A0 3606135000 -
26 - O-RING 12x2 MM BSD-1900210009.A8 1900210009 -
28 - GEAR HOUSING BSD-3605190091.A2 3605190091 -
29 - RETAINING RING BSD-1600224025.A67 1600224025 £2.61 £3.13
30 - PLAIN WASHER BSD-2600101513.A54 2600101513 £1.75 £2.10
31 - COMPRESSION SPRING BSD-3604616007.A8 3604616007 -
32 - SHIM BSD-2600101601.A38 2600101601 £1.75 £2.10
33 - CYLINDRICAL GEAR Z=42 BSD-3606316019.A4 3606316019 -
34 - BALL DIN 5401-6 G28 BSD-1903230011.A221 1903230011 £2.61 £3.13
35 - COMPRESSION SPRING BSD-3604610018.A0 3604610018 £1.95 £2.34
36 - CYLINDRICAL GEAR Z=42 BSD-3606316020.A0 3606316020 £81.81 £98.17
39 - SHIM 0.5 MM BSD-2600100505.A54 2600100505 £1.32 £1.58
41 - COVER DISC BSD-2601328033.A51 2601328033 -
42 - SUPPRESSION FILTER BSD-2604465068.A20 2604465068 -
43 - TORX OVAL-HEAD SCREW 3x10 BSD-2603490017.A1210 2603490017 £2.16 £2.59
44 - SHIM BSD-2600150004.A92 2600150004 £2.16 £2.59
45 - SHIM 0.3 MM BSD-2600101023.A110 2600101023 £1.75 £2.10
45 - SHIM 0.2 MM BSD-2600101022.A540 2600101022 £1.75 £2.10
45 - SHIM 0.5 MM BSD-2600101020.A110 2600101020 £1.75 £2.10
46 - CABLE L=130 MM BSD-2604448005.A357 2604448005 £1.75 £2.10
47 - HOUSING COVER BSD-2605132040.A108 2605132040 -
48 - CABLE BSD-2604448003.A217 2604448003 -
50 - TAPPING SCREW DIN 7971-ST3.9x22-F BSD-2910211021.A665 2910211021 £1.75 £2.10
51 - STICKER BSD-2601110230.A118 2601110230 -
52 - RECESSED-HEAD SCREW DIN 7981-ST3.5x9.5-F BSD-2603435015.A5 2603435015 £2.16 £2.59
53 - SPRING RETAINING RING DIN 472-24x1.2 MM BSD-2916660008.A543 2916660008 £2.16 £2.59
54 - CUPPED WASHER BSD-2600500002.A302 2600500002 £1.75 £2.10
55 - FELT WASHER BSD-2600108077.A217 2600108077 £1.75 £2.10
56 - RECEPTACLE BSD-2600400008.A61 2600400008 £1.75 £2.10
57 - CYLINDRICAL GEAR Z=33/56 BSD-3606328000.A3 3606328000 £102.57 £123.08
58 - CONNECTING CABLE L=98 MM BSD-2604448074.A59 2604448074 £2.16 £2.59
59 - SUPPRESSION FILTER L=148 MM BSD-2604465086.A100 2604465086 £5.58 £6.70
60 - TAPPING SCREW BZ 4.8x78 MM BSD-1603435019.A3 1603435019 -
61 - SPRING RETAINING RING DIN 471-12x1-FSt BSD-2916650003.A246 2916650003 £1.75 £2.10
62 - AXLE BSD-3603124000.A7 3603124000 £48.38 £58.06
63 - GRIPPING WEDGE dia 5x18 MM/3.6 MM BSD-1603110000.A28 1603110000 -
63 - GRIPPING WEDGE dia 5x18 MM/3.0 MM BSD-1603110003.A4 1603110003 -
63 - GRIPPING WEDGE dia 5x18 MM/3.3 MM BSD-1603110004.A12 1603110004 -
64 - TWO-JAW DRILL JUCK M4-M12 BSD-2608573000.A5 2608573000 £134.16 £160.99
64/10 - CARRIER BSD-1600328021.A11 1600328021 £68.42 £82.10
64/20 - COMPRESSION SPRING BSD-1604617002.A14 1604617002 £2.80 £3.36
64/30 - SPRING RETAINER BSD-1600506000.A14 1600506000 £8.49 £10.19
64/40 - CARRIER BSD-1603219006.A13 1603219006 £116.15 £139.38
64/50 - STRAIGHT PIN BSD-1613100012.A266 1613100012 £2.61 £3.13
64/60 - STUD BOLT BSD-1603502000.A3 1603502000 £21.52 £25.83
64/70 - CLAMPING JAWS M 12x1.5 BSD-1600390002.A17 1600390002 -
64/71 - CLAMPING JAWS M 12x1.5 BSD-1600390003.A16 1600390003 -
64/650 - CHUCK WRENCH BSD-2607950012.A2 2607950012 £16.41 £19.69
64/700 - CLAMPING JAWS M 12x1.5 BSD-1600390004.A5 1600390004 -
64/701 - CLAMPING JAWS M 12x1.5 BSD-1600390005.A16 1600390005 -
65 - CYLINDRICAL GEAR Z=28 BSD-3606316021.A8 3606316021 £48.38 £58.06
66 - SPINDLE WITH GEAR Z=11 BSD-3606337062.A7 3606337062 £48.38 £58.06
67 - TAPPING SCREW 79 MM BSD-2603435012.A137 2603435012 -
68 - SHIM 0.50 MM BSD-2600100613.A171 2600100613 £1.75 £2.10
69 - NEEDLE BEARING BSD-9001140359.A57 9001140359 £6.52 £7.83
90 - TAPPING SCREW DIN 7971-BZ3.9x25 BSD-2910211022.A37 2910211022 £1.75 £2.10
180 - NAMEPLATE BSD-1601110449.A8 1601110449 -
800 - CARBON-BRUSH SET BSD-2604321905.A548 2604321905 £11.30 £13.56
840 - INTERMEDIATE FLANGE BSD-3605700054.A3 3605700054 £134.16 £160.99
888 - NAMEPLATE BSD-160111A3H3.A1099 160111A3H3 £2.61 £3.13
