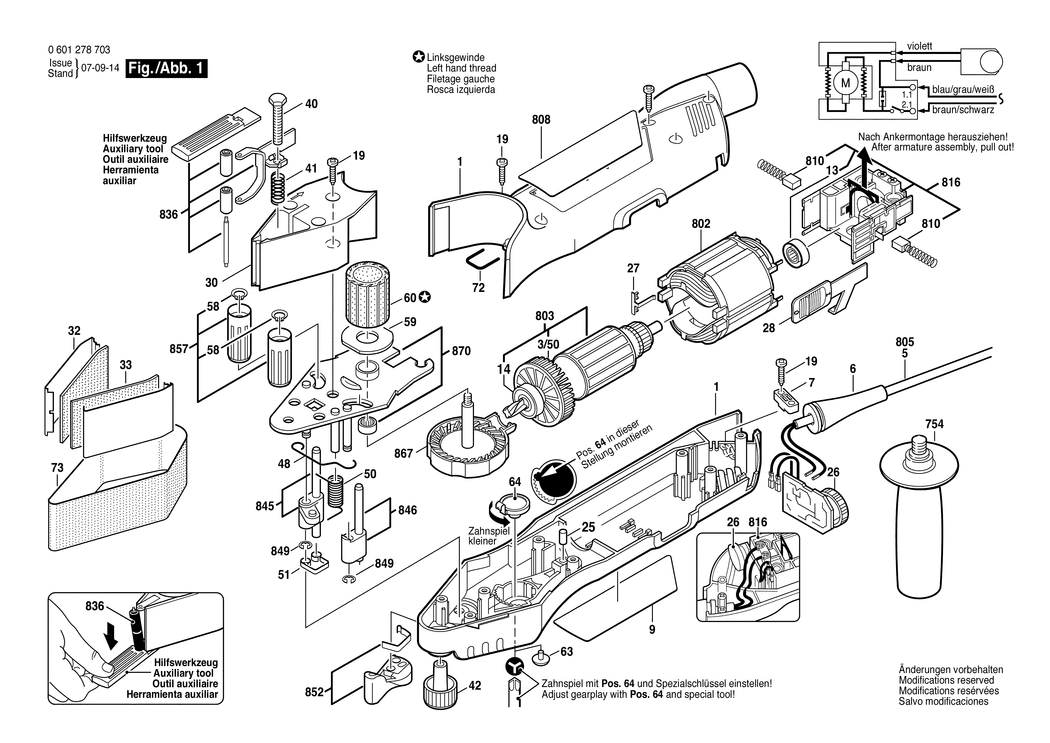

1 - HOUSING SECTION
BSD-2605104576.A4
2605104576
|
-
|
|
|
|
3/50 - FAN
BSD-2606610090.A16
2606610090
|
£1.75
|
£2.10
|
|
|
5 - POWER SUPPLY CORD CH 230V 4.15m 2 x 1.0mm H05 RN-F
BSD-1604460403.A132
1604460403
|
£16.41
|
£19.69
|
|
|
6 - GROMMET dia6.4-dia7.2x76 MM
BSD-2600703017.A383
2600703017
|
£2.61
|
£3.13
|
|
|
7 - CABLE CLIP
BSD-2601035001.A2423
2601035001
|
£1.75
|
£2.10
|
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-2601119137.A0
2601119137
|
-
|
|
|
|
13 - FLANGED BEARING
BSD-2605805008.A71
2605805008
|
£5.30
|
£6.36
|
|
|
14 - GROOVE BALL BEARING 9x24x7
BSD-2600905065.A35
2600905065
|
-
|
|
|
|
19 - SCREW 4x16
BSD-2603490022.A2268
2603490022
|
£1.75
|
£2.10
|
|
|
25 - DAMPING RUBBER
BSD-2603100056.A80
2603100056
|
£1.75
|
£2.10
|
|
|
26 - RPM ACTUATOR 230-240V
BSD-2607233029.A3
2607233029
|
£27.23
|
£32.68
|
|
|
27 - CONTACT SPRING
BSD-2601329037.A125
2601329037
|
£1.75
|
£2.10
|
|
|
28 - SWITCH SLIDE
BSD-2602319014.A13
2602319014
|
£2.80
|
£3.36
|
|
|
29 - SUPPRESSION FILTER
BSD-2604465109.A51
2604465109
|
-
|
|
|
|
30 - WEDGE
BSD-2608000209.A1
2608000209
|
-
|
|
|
|
32 - SLIDE PLATE
BSD-2601098045.A14
2601098045
|
-
|
|
|
|
33 - FELT STRIP
BSD-2601005019.A4
2601005019
|
-
|
|
|
|
40 - HEX SCREW M 6x35 DIN 933-8.8
BSD-2911061207.A11
2911061207
|
£1.75
|
£2.10
|
|
|
41 - COMPRESSION SPRING
BSD-2604612006.A9
2604612006
|
£2.80
|
£3.36
|
|
|
42 - CONTROL KNOB
BSD-2606621011.A14
2606621011
|
£2.80
|
£3.36
|
|
|
48 - RELEASE LEVER
BSD-2601990018.A9
2601990018
|
-
|
|
|
|
50 - COILED SPRING
BSD-2604651009.A14
2604651009
|
-
|
|
|
|
51 - RETAINING SPRING
BSD-2604680002.A0
2604680002
|
£1.32
|
£1.58
|
|
|
58 - CLAMPING RING
BSD-2600118008.A5
2600118008
|
£2.33
|
£2.80
|
|
|
59 - CERAMIC PLATE
BSD-2601010059.A10
2601010059
|
£5.58
|
£6.70
|
|
|
60 - DRIVE ROLLER
BSD-2606625026.A9
2606625026
|
-
|
|
|
|
63 - PLUG
BSD-2600591011.A0
2600591011
|
£2.16
|
£2.59
|
|
|
64 - ADJUSTING PLATE
BSD-2605500138.A1
2605500138
|
£2.80
|
£3.36
|
|
|
72 - SEALING CORD
BSD-2603239027.A13
2603239027
|
£3.72
|
£4.47
|
|
|
73 - ABRASIVE BELT
BSD-2608604893.A9
2608604893
|
-
|
|
|
|
720 - BASE
BSD-0603999012.A1
0603999012
|
£45.49
|
£54.59
|
|
|
754 - AUXILIARY HANDLE M10. dia32.5x105 MM
BSD-160202509T.A20
160202509T
|
£3.72
|
£4.47
|
|
|
802 - FIELD 230-240V
BSD-2604220588.A10
2604220588
|
£18.96
|
£22.75
|
|
|
803 - ARMATURE 230V
BSD-2604010948.A0
2604010948
|
-
|
|
|
|
808 - MARKING PLATE
BSD-2601119522.A0
2601119522
|
-
|
|
|
|
810 - CARBON-BRUSH SET
BSD-2604321921.A4
2604321921
|
£14.91
|
£17.89
|
|
|
816 - BRUSH PLATE
BSD-2604337900.A5
2604337900
|
-
|
|
|
|
836 - DEFLECTION PULLEY
BSD-2606625902.A14
2606625902
|
£31.64
|
£37.97
|
|
|
845 - TAPE STRETCHING LEVER
BSD-2601990900.A5
2601990900
|
£5.30
|
£6.36
|
|
|
846 - TAPE STRETCHING LEVER
BSD-2601990901.A10
2601990901
|
£4.26
|
£5.11
|
|
|
849 - LOCKING WASHER DIN 6799-4-FSt
BSD-2916080007.A610
2916080007
|
£2.61
|
£3.13
|
|
|
852 - RELEASE LEVER
BSD-2601990902.A5
2601990902
|
£1.95
|
£2.34
|
|
|
857 - ROLLER
BSD-2606625903.A0
2606625903
|
£16.74
|
£20.09
|
|
|
867 - CROWN GEAR
BSD-2606334902.A3
2606334902
|
£27.23
|
£32.68
|
|
|
870 - GEAR COVER
BSD-2605500907.A12
2605500907
|
-
|
|
|
