Bosch GNF 20 CA / 0601612642 / GB 240 Volt Spare Parts

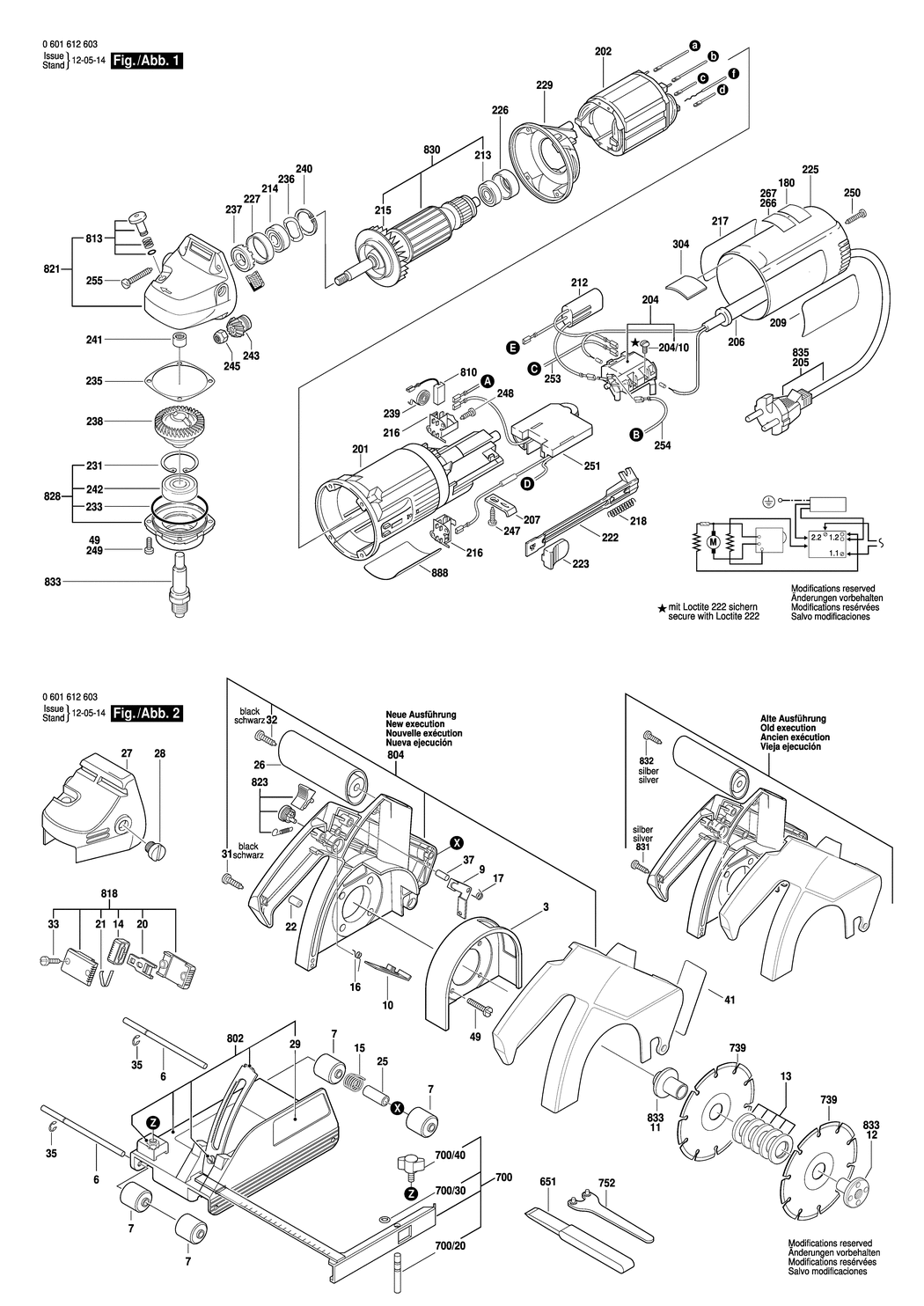

An exploded drawing and listing for the Bosch GNF 20 CA / 0601612642 / GB 240 Volt

	Ex VAT	Inc VAT
3 - PROTECTIVE COVER BSD-3605500081.A1 3605500081	£12.04	£14.45
6 - BEARING SHAFT BSD-3603105005.A8 3603105005	£6.52	£7.83
7 - ROLLER BSD-3600309003.A12 3600309003	£5.30	£6.36
9 - LOCKING LEVER BSD-3601902012.A8 3601902012	£10.10	£12.12
10 - REJECTION SLIDE BSD-3601923001.A8 3601923001	£8.67	£10.41
11 - CLAMPING-FLANGE BSD-3600390023.A8 3600390023	£40.80	£48.96
12 - ROUND NUT M14 BSD-3603345005.A4 3603345005	£21.52	£25.83
13 - PLAIN WASHER dia 42X22.2X4 MM BSD-3609202041.A18 3609202041	£5.58	£6.70
14 - PUSH-BUTTON BSD-3602305011.A11 3602305011	£2.16	£2.59
15 - TORSION SPRING BSD-3604651004.A11 3604651004	£5.30	£6.36
16 - COILED SPRING BSD-3604651006.A15 3604651006	£2.80	£3.36
17 - COILED SPRING BSD-3604651005.A1 3604651005	£2.61	£3.13
20 - SAFETY CATCH BSD-3601023003.A8 3601023003	£2.80	£3.36
21 - SHAPED SPRING BSD-3604680002.A12 3604680002	£2.61	£3.13
22 - SPACER TUBE BSD-3600300029.A4 3600300029	£4.26	£5.11
25 - SPACER SLEEVE BSD-3600300028.A8 3600300028	£2.80	£3.36
26 - HANDLE BSD-3601990002.A3 3601990002	£10.10	£12.12
27 - PROTECTIVE CAP BSD-3605500078.A11 3605500078	£6.52	£7.83
28 - PAN HEAD SCREW M 10x12 MM BSD-3603490015.A11 3603490015	£4.26	£5.11
29 - MANUFACTURER'S NAMEPLATE BSD-3601119425.A7 3601119425	£2.61	£3.13
31 - TORX OVAL-HEAD SCREW 4x20 BSD-2603490023.A1659 2603490023	£1.75	£2.10
32 - TORX OVAL-HEAD SCREW 4x40 BSD-2603490027.A170 2603490027	£1.75	£2.10
33 - TORX OVAL-HEAD SCREW 3x10 BSD-2603490017.A1394 2603490017	£2.16	£2.59
35 - LOCKING WASHER BSD-2916089079.A15 2916089079	£2.61	£3.13
37 - STRAIGHT PIN DIN 7-4MM6x28-C35K-RIKO BSD-2917511104.A3 2917511104	£1.75	£2.10
41 - REFERENCE PLATE BSD-3601119076.A3 3601119076	£2.61	£3.13
49 - THREAD-FORMING TAP. SCREW M4x30 DIN7500-1 T-20 BSD-1613490017.A41 1613490017	£2.61	£3.13
201 - MOTOR HOUSING BSD-16051082CC.A12 16051082CC	£13.12	£15.75
202 - FIELD 240V BSD-1604220223.A7 1604220223	-
204 - ON-OFF SWITCH BSD-1607200086.A269 1607200086	£11.30	£13.56
204/10 - PAN HEAD SCREW DIN 85-AM3x6-CUZN BSD-2910110048.A515 2910110048	£1.75	£2.10
205 - POWER SUPPLY CORD GB 240V 4.15m 2 x 1.0mm H05VV-F BSD-1604460156.A1 1604460156	£23.86	£28.63
206 - GROMMET dia7.6-dia8.2x95 MM BSD-2600703013.A132 2600703013	£2.61	£3.13
207 - FASTENING CLAMP BSD-1601302017.A1034 1601302017	£1.75	£2.10
209 - MANUFACTURER'S NAMEPLATE BSD-1601110665.A5 1601110665	£3.34	£4.01
212 - SUPPRESSION FILTER BSD-1607328029.A36 1607328029	-
213 - BALL BEARING 7x19x6 BSD-2600905032.A1090 2600905032	£5.30	£6.36
214 - GROOVE BALL BEARING 8x22x7 BSD-1600905011.A98 1600905011	£5.58	£6.70
215 - FAN BSD-1606610121.A200 1606610121	£1.75	£2.10
216 - BRUSH HOLDER BSD-1600A003G4.A322 1600A003G4	£3.72	£4.47
217 - REFERENCE PLATE BSD-3601110396.A5 3601110396	£3.72	£4.47
218 - COMPRESSION SPRING BSD-1604611026.A631 1604611026	£1.75	£2.10
222 - ADJUSTING SLIDE BSD-1602319002.A84 1602319002	£2.61	£3.13
223 - SWITCH HANDLE BSD-1602026057.A343 1602026057	£1.97	£2.36
225 - HOUSING COVER BSD-1600508010.A48 1600508010	£7.36	£8.83
226 - RUBBER BUSHING BSD-1600502020.A6 1600502020	£2.61	£3.13
227 - RUBBER RING BSD-1600206025.A868 1600206025	£2.16	£2.59
229 - AIR-DEFLECTOR RING BSD-1601328005.A163 1601328005	£2.61	£3.13
231 - RETAINING CLIP DIN 472-32x1.2 MM BSD-2916660013.A69 2916660013	£2.16	£2.59
233 - O-RING 46.0x1.1 MM BSD-3600210124.A316 3600210124	£2.80	£3.36
235 - SHIM 0.1 MM BSD-1600136012.A151 1600136012	£1.75	£2.10
235 - SHIM 0.2 MM BSD-1600136010.A157 1600136010	£2.61	£3.13
235 - SHIM 0.3 MM BSD-1600136011.A172 1600136011	£2.16	£2.59
236 - SPRING WASHER BSD-1600150011.A265 1600150011	£1.75	£2.10
237 - ROTARY SHAFT LIP SEAL BSD-1600290016.A23 1600290016	£2.61	£3.13
238 - CROWN GEAR Z=35 BSD-1606333235.A17 1606333235	£63.50	£76.20
239 - SPIRAL SPRING BSD-1604652013.A974 1604652013	£1.75	£2.10
240 - SPRING RETAINING RING DIN 472-25x1.2MM BSD-2916660009.A56 2916660009	£2.16	£2.59
241 - NEEDLE BEARING dia8xdia12x8 MM BSD-1600910018.A521 1600910018	£5.30	£6.36
242 - GROOVE BALL BEARING 12x32x10 BSD-1600905006.A94 1600905006	£12.04	£14.45
243 - BEVEL GEAR Z=9 BSD-1606333234.A7 1606333234	£37.27	£44.72
245 - HEX NUT M7. SW10 BSD-1603300016.A443 1603300016	£1.75	£2.10
247 - TAPPING SCREW DIN 7971-ST3.9x13-F BSD-2910211018.A198 2910211018	£1.75	£2.10
248 - LENS HEAD SCREW 3x10 ST BSD-1613435034.A408 1613435034	£1.75	£2.10
249 - THREAD-FORMING TAP. SCREW BSD-1603435026.A67 1603435026	£2.16	£2.59
250 - TORX OVAL-HEAD SCREW BSD-2914201508.A117 2914201508	£1.75	£2.10
251 - SPEED GOVERNOR 240V BSD-1607233011.A3 1607233011	£63.50	£76.20
253 - CONNECTING CABLE L=95 MM BSD-1604448005.A91 1604448005	£2.80	£3.36
254 - CONNECTING CABLE L=40 MM BSD-1604448006.A29 1604448006	£2.61	£3.13
255 - TORX OVAL-HEAD SCREW BSD-2914201508.A116 2914201508	£1.75	£2.10
651 - SPLITTING TOOL BSD-3607959005.A1 3607959005	£21.68	£26.01
700 - PARALLEL-GUIDE BSD-3607000060.A8 3607000060	£16.68	£20.01
700/20 - STOP PIN BSD-3603101002.A5 3603101002	-
700/30 - O-RING 5.94x3.53 MM BSD-3600210024.A25 3600210024	£2.16	£2.59
700/40 - WING SCREW M 6x16 MM BSD-2603480003.A186 2603480003	£2.61	£3.13
739 - WALL CHASER dia 115x22.2x2.2 MM BSD-3608640001.A5 3608640001	-
752 - PIN-TYPE FACE-WRENCH BSD-1607950043.A151 1607950043	£4.02	£4.83
802 - PARTS SET BSD-3607031206.A2 3607031206	£40.80	£48.96
804 - PARTS SET BSD-3607031656.A2 3607031656	£48.38	£58.06
810 - CARBON-BRUSH SET BSD-1607014116.A252 1607014116	£11.30	£13.56
813 - PUSH-BUTTON BSD-1607000253.A223 1607000253	£2.49	£2.99
818 - PARTS SET BSD-3607031207.A10 3607031207	£23.86	£28.63
821 - GEAR HOUSING BSD-1605806480.A92 1605806480	£48.38	£58.06
823 - ROTARY KNOB BSD-3607031547.A10 3607031547	£11.30	£13.56
828 - BEARING FLANGE BSD-1607000936.A20 1607000936	£27.23	£32.68
830 - ARMATURE WITH FAN 240V BSD-1604010251.A6 1604010251	£72.18	£86.62
831 - TORX OVAL-HEAD SCREW BSD-2914201508.A115 2914201508	£1.75	£2.10
832 - TAPPING SCREW DIN 7971-BZ3.9x38 BSD-2910211093.A6 2910211093	£1.75	£2.10
833 - PARTS SET BSD-3607031208.A2 3607031208	£63.50	£76.20
888 - NAMEPLATE BSD-160111A3H3.A2810 160111A3H3	£2.61	£3.13
