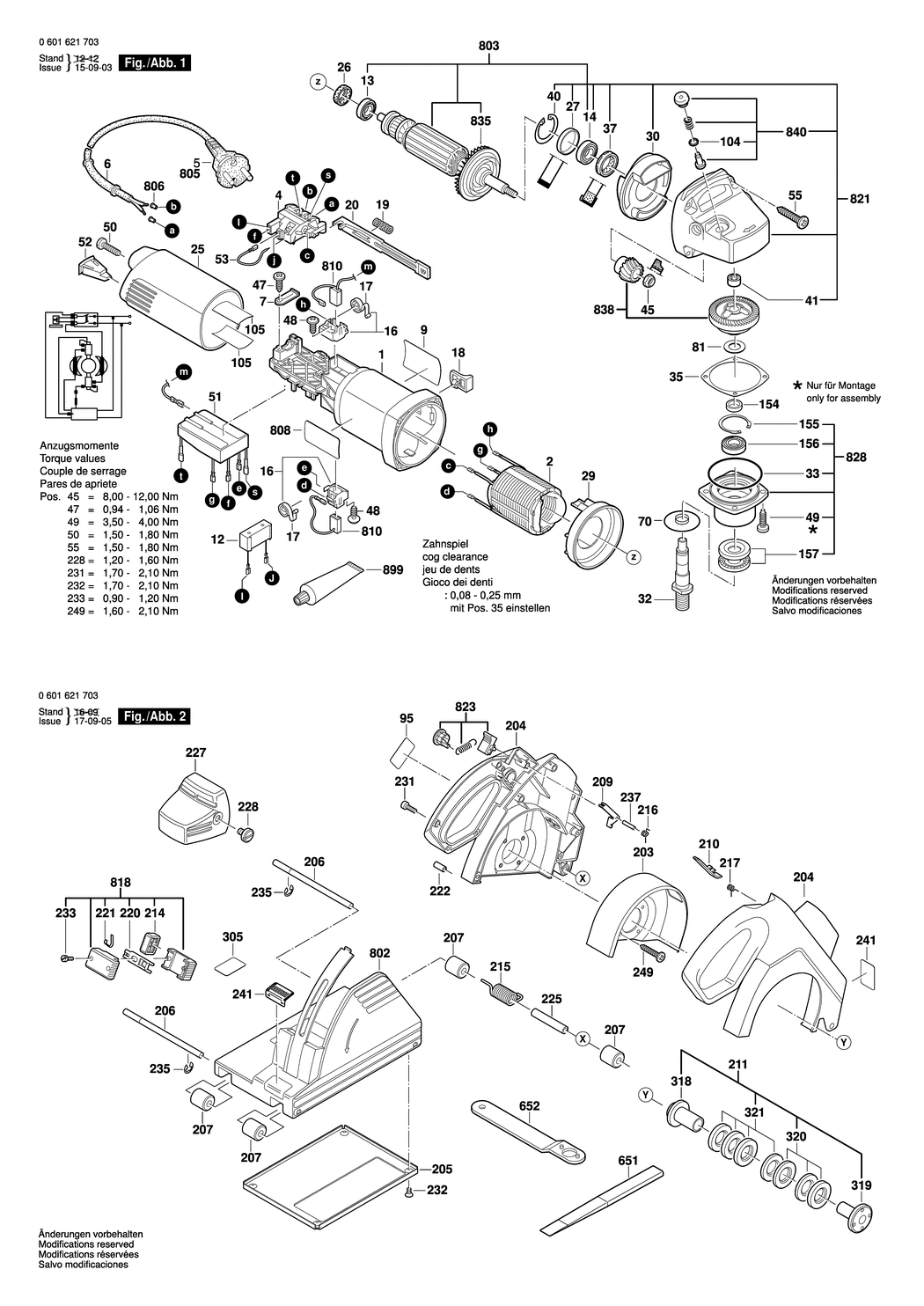

An exploded drawing and listing for the Bosch GNF 35 CA / 0601621703 / EU 230 Volt
Ex VAT Inc VAT
1 - MOTOR HOUSING BSD-1605108208.A81 1605108208 £11.30 £13.56
2 - FIELD 220-230V BSD-1604220284.A90 1604220284 £30.28 £36.33
4 - SWITCH BSD-1607200150.A17 1607200150 £21.52 £25.83
6 - GROMMET dia7.6-dia8.2x95 MM BSD-2600703013.A674 2600703013 £2.61 £3.13
7 - FASTENING CLAMP BSD-1601302017.A372 1601302017 £1.75 £2.10
9 - MANUFACTURER'S NAMEPLATE BSD-3601119179.A0 3601119179 £4.75 £5.70
12 - SUPPRESSION FILTER BSD-1607328042.A78 1607328042 £6.52 £7.83
13 - BALL BEARING 7x19x6 BSD-2600905032.A1945 2600905032 £5.30 £6.36
14 - GROOVE BALL BEARING 8x22x7 BSD-1600905032.A143 1600905032 £5.58 £6.70
16 - BRUSH HOLDER BSD-1601323025.A121 1601323025 £3.72 £4.47
17 - SPIRAL SPRING BSD-1604652013.A126 1604652013 £1.75 £2.10
18 - SWITCH HANDLE BSD-3602025023.A0 3602025023 £5.30 £6.36
19 - COMPRESSION SPRING BSD-1604611026.A226 1604611026 £1.75 £2.10
20 - ADJUSTING SLIDE BSD-1602319011.A133 1602319011 £1.75 £2.10
25 - HOUSING COVER BSD-1600508016.A21 1600508016 £6.52 £7.83
26 - RUBBER RING BSD-1600206036.A195 1600206036 £1.75 £2.10
27 - RUBBER RING BSD-1600206025.A29 1600206025 £2.16 £2.59
29 - AIR-DEFLECTOR RING BSD-1600591025.A194 1600591025 £2.61 £3.13
30 - AIR-DEFLECTOR RING BSD-1600591014.A17 1600591014 £2.61 £3.13
32 - GRINDING SPINDLE M14 BSD-3603523041.A19 3603523041 £40.80 £48.96
33 - O-RING 46.0x1.1 MM BSD-3600210124.A116 3600210124 £2.80 £3.36
35 - SHIM 0.1 MM BSD-1600136013.A64 1600136013 £2.61 £3.13
35 - SHIM 0.2 MM BSD-1600136014.A456 1600136014 £2.61 £3.13
35 - SHIM 0.3 MM BSD-1600136015.A64 1600136015 £2.61 £3.13
35 - SHIM 0.15 MM BSD-1600136020.A426 1600136020 £3.72 £4.47
37 - ROTARY SHAFT LIP SEAL BSD-1600290016.A619 1600290016 £2.61 £3.13
40 - RETAINING CLIP BSD-1600119011.A148 1600119011 £2.16 £2.59
41 - PLAIN BEARING BSD-1600200029.A16 1600200029 £4.26 £5.11
45 - HEX NUT M7. SW10 BSD-1603300016.A716 1603300016 £1.75 £2.10
47 - TORX OVAL-HEAD SCREW 4x12 BSD-2603490021.A206 2603490021 £1.75 £2.10
48 - LENS HEAD SCREW 3x10 ST BSD-1613435034.A558 1613435034 £1.75 £2.10
49 - THREAD-FORMING TAP. SCREW BSD-1603435026.A424 1603435026 £2.16 £2.59
50 - TORX OVAL-HEAD SCREW 4x20 BSD-2603490023.A687 2603490023 £1.75 £2.10
51 - SPEED GOVERNOR 220-240V BSD-1607233148.A2 1607233148 £54.42 £65.30
52 - LIGHT CONDUCTOR BSD-3604460117.A18 3604460117 £2.80 £3.36
53 - CONNECTING CABLE L=50 MM BSD-3604438020.A18 3604438020 £3.72 £4.47
55 - TORX OVAL-HEAD SCREW 4x25 BSD-2603490024.A515 2603490024 £1.75 £2.10
70 - COVER DISC BSD-3600150023.A3 3600150023 £2.80 £3.36
81 - SHIM 0.2 MM BSD-2600101022.A8 2600101022 £1.75 £2.10
95 - STICKER BSD-161111C043.A2 161111C043 -
104 - O-RING 4.5x1.0 MM BSD-1600210044.A652 1600210044 £1.75 £2.10
105 - INSULATING PLATE BSD-1601008005.A282 1601008005 £4.26 £5.11
154 - DISTANCE PIPE BSD-3600913010.A0 3600913010 £5.58 £6.70
155 - RETAINING CLIP DIN 472-32x1.2 MM BSD-2916660013.A614 2916660013 £2.16 £2.59
156 - GROOVE BALL BEARING 12x32x10 BSD-3600905130.A30 3600905130 £12.04 £14.45
157 - SEAL RING BSD-3600105009.A0 3600105009 £6.52 £7.83
203 - PROTECTIVE COVER BSD-3605108193.A1 3605108193 £37.27 £44.72
204 - HOUSING SECTION BSD-3605108194.A2 3605108194 £54.42 £65.30
205 - SLIDING PLATE BSD-3600150029.A0 3600150029 £33.74 £40.49
206 - BEARING SHAFT BSD-3603105010.A2 3603105010 £3.72 £4.47
207 - ROLLER BSD-3600309003.A0 3600309003 £5.30 £6.36
209 - LOCKING LEVER BSD-3601902012.A1 3601902012 £10.10 £12.12
210 - REJECTION SLIDE BSD-3601923001.A15 3601923001 £8.67 £10.41
211 - TENSIONER PARTS SET BSD-3609202043.A5 3609202043 £63.50 £76.20
214 - PUSH-BUTTON BSD-3602305011.A1 3602305011 £2.16 £2.59
215 - TORSION SPRING BSD-3604651016.A1 3604651016 £3.72 £4.47
216 - COILED SPRING BSD-3604651006.A2 3604651006 £2.80 £3.36
217 - COILED SPRING BSD-3604651005.A14 3604651005 £2.61 £3.13
220 - SAFETY CATCH BSD-3601023003.A16 3601023003 £2.80 £3.36
221 - SHAPED SPRING BSD-3604680002.A2 3604680002 £2.61 £3.13
222 - SPACER TUBE BSD-3600300060.A0 3600300060 £2.80 £3.36
225 - SPACER SLEEVE BSD-3600300061.A3 3600300061 £12.04 £14.45
227 - PROTECTIVE CAP BSD-3605500164.A1 3605500164 £12.04 £14.45
228 - PAN HEAD SCREW M 10x12 MM BSD-3603490015.A23 3603490015 £4.26 £5.11
231 - TORX OVAL-HEAD SCREW 4x20 BSD-2603490023.A688 2603490023 £1.75 £2.10
232 - COUNTERSUNK-HEAD SCREW BSD-2918370504.A3 2918370504 £2.16 £2.59
233 - LENS HEAD SCREW 3x10 ST BSD-1613435034.A557 1613435034 £1.75 £2.10
235 - LOCKING WASHER BSD-2916089079.A1 2916089079 £2.61 £3.13
237 - STRAIGHT PIN DIN 7-4MM6x28-C35K-RIKO BSD-2917511104.A8 2917511104 £1.75 £2.10
241 - REFERENCE PLATE BSD-3601119180.A2 3601119180 £5.30 £6.36
249 - THREAD-FORMING TAP. SCREW M4x30 DIN7500-1 T-20 BSD-1613490017.A48 1613490017 £2.61 £3.13
305 - REFERENCE PLATE BSD-3601119236.A67 3601119236 £3.72 £4.47
318 - CLAMPING-FLANGE dia 42 MM. SW17 BSD-3609202039.A5 3609202039 £21.68 £26.01
319 - ROUND NUT dia 45 MM. M14 BSD-3609202040.A2 3609202040 £40.80 £48.96
320 - PLAIN WASHER dia 42X22.2X4 MM BSD-3609202041.A11 3609202041 £5.58 £6.70
321 - PLAIN WASHER dia 42X22.2X6 MM BSD-3609202042.A2 3609202042 £3.80 £4.56
651 - SPLITTING TOOL BSD-3607959005.A14 3607959005 £21.68 £26.01
652 - PIN-TYPE FACE-WRENCH BSD-3607950016.A1 3607950016 £14.91 £17.89
802 - PARTS SET BSD-3607031545.A0 3607031545 £59.53 £71.44
803 - ARMATURE WITH FAN 220-240V BSD-1604010654.A14 1604010654 £72.18 £86.62
805 - POWER SUPPLY CORD EU 4.15m 2 x 1.0mm H07 RN-F BSD-1607000392.A38 1607000392 £21.52 £25.83
806 - END SPLICE DIN 46 228-A1-6 BSD-1900452012.A288 1900452012 £1.75 £2.10
808 - NAMEPLATE BSD-160111A3H3.A4790 160111A3H3 £2.61 £3.13
810 - CARBON-BRUSH SET BSD-3607014010.A14 3607014010 £21.68 £26.01
810 - CARBON-BRUSH SET 10 x 3 607 014 010 BSD-1607000500.A3 1607000500 £120.11 £144.13
818 - PARTS SET BSD-3607031207.A15 3607031207 £23.86 £28.63
821 - GEAR HOUSING BSD-1605806451.A168 1605806451 £37.27 £44.72
823 - ROTARY KNOB BSD-3607031547.A15 3607031547 £11.30 £13.56
828 - BEARING FLANGE BSD-3605700158.A2 3605700158 £54.42 £65.30
835 - FAN BSD-1606610132.A242 1606610132 £2.16 £2.59
838 - GEAR UNIT BSD-1607000D4Z.A7 1607000D4Z £21.52 £25.83
840 - PUSH-BUTTON BSD-1607000253.A547 1607000253 £2.49 £2.99
899 - SILICONE SEALING SILASTIC 7091 BSD-3605430011.A18 3605430011 £23.86 £28.63
