Bosch GNF 65 A / 0601368765 / F 230 Volt Spare Parts

Home Details Reviews Delivery

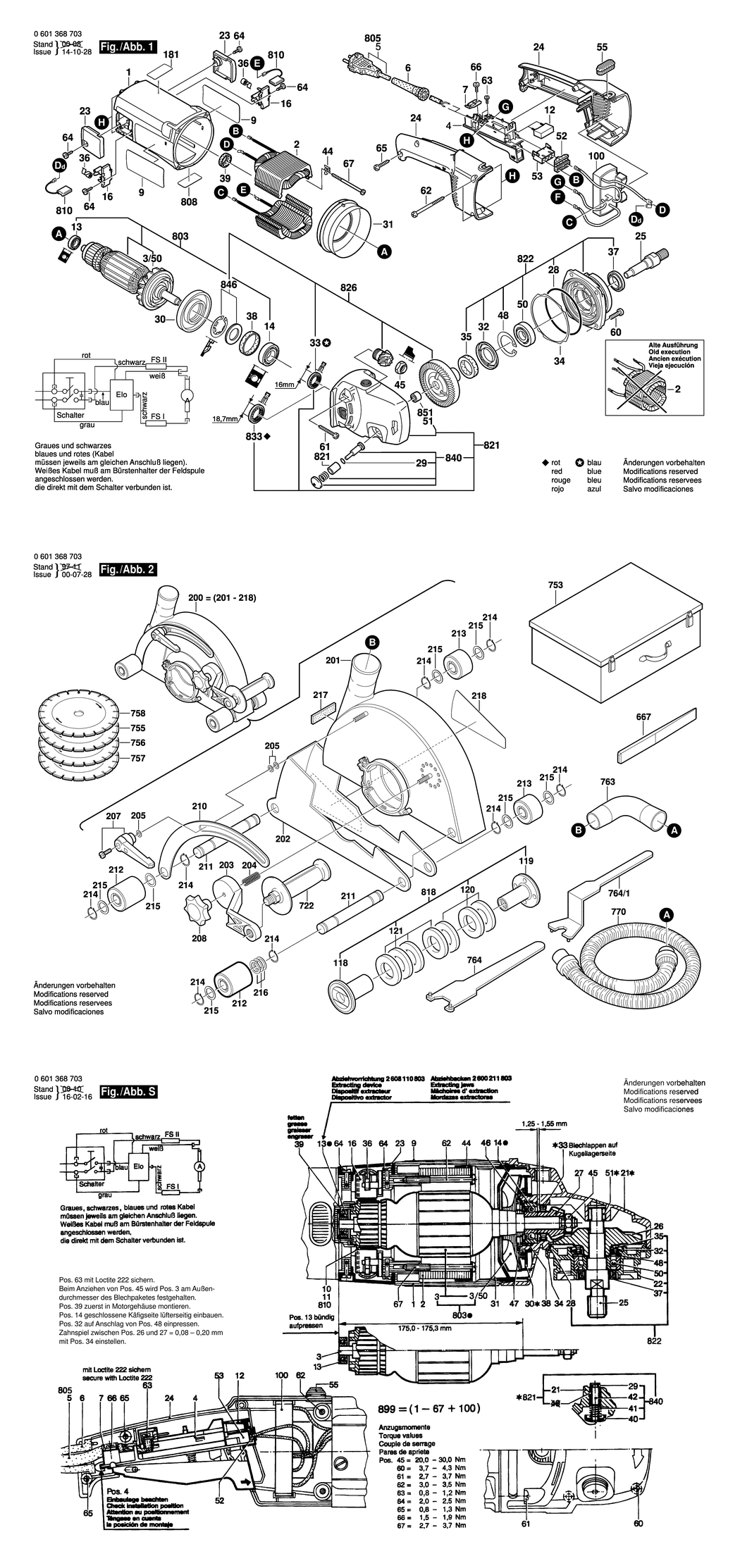

An exploded drawing and listing for the Bosch GNF 65 A / 0601368765 / F 230 Volt

	Ex VAT	Inc VAT
1 - MOTOR HOUSING BSD-1605108145.A28 1605108145	£23.86	£28.63
2 - FIELD 220-230V BSD-160422051P.A70 160422051P	£45.67	£54.80
3/50 - FAN BSD-1606610127.A196 1606610127	£2.80	£3.36
4 - SWITCH BSD-3607200065.A0 3607200065	£33.74	£40.49
6 - GROMMET dia 10.5-dia11.0x100 MM BSD-1600703023.A30 1600703023	£2.61	£3.13
7 - FASTENING CLAMP BSD-1601302018.A820 1601302018	£1.75	£2.10
9 - MANUFACTURER'S NAMEPLATE GNF 65A BSD-3601119292.A0 3601119292	£5.58	£6.70
12 - SUPPRESSION FILTER BSD-1607328035.A130 1607328035	£4.26	£5.11
13 - GROOVE BALL BEARING 8x22x7 BSD-1600905011.A575 1600905011	£5.58	£6.70
14 - GROOVE BALL BEARING 10x35x11 BSD-1600905023.A158 1600905023	£12.04	£14.45
16 - BRUSH HOLDER BSD-1604336021.A98 1604336021	£2.80	£3.36
23 - SEALING CAP BSD-1605500150.A89 1605500150	£3.72	£4.47
24 - HANDLE BSD-1605132122.A0 1605132122	£14.91	£17.89
25 - GRINDING SPINDLE M14. SW17 BSD-1603523100.A103 1603523100	£14.91	£17.89
28 - O-RING 79.0x1.78 MM BSD-1600210033.A658 1600210033	£1.75	£2.10
29 - O-RING 4.0x1.0 MM BSD-1600210034.A82 1600210034	£1.75	£2.10
30 - AIR-DEFLECTOR RING BSD-1600591010.A103 1600591010	£2.16	£2.59
31 - AIR-DEFLECTOR RING BSD-1600591011.A75 1600591011	£1.75	£2.10
32 - RETAINING SNAP RING BSD-1600290019.A634 1600290019	£1.75	£2.10
33 - ROTARY SHAFT LIP SEAL 16 MM BSD-1600290064.A370 1600290064	£2.16	£2.59
34 - SHIM 0.15 MM BSD-1600190020.A27 1600190020	£1.75	£2.10
34 - SHIM 0.3 MM BSD-1600190021.A800 1600190021	£2.61	£3.13
34 - SHIM 0.1 MM BSD-1600190022.A27 1600190022	£1.75	£2.10
34 - SHIM 0.2 MM BSD-1600190037.A396 1600190037	£1.75	£2.10
35 - FELT WASHER BSD-1600205034.A46 1600205034	£1.75	£2.10
36 - SPIRAL SPRING BSD-1604652015.A340 1604652015	£2.80	£3.36
37 - SEAL RING BSD-1600290020.A46 1600290020	£1.75	£2.10
38 - RUBBER RING 7 MM BSD-1600206020.A670 1600206020	£1.75	£2.10
39 - RUBBER RING BSD-1600206030.A25 1600206030	£1.75	£2.10
44 - HOLDING BRACKET BSD-1601334008.A45 1601334008	£2.61	£3.13
45 - HEX NUT M10. SW14 BSD-1603300019.A130 1603300019	£1.75	£2.10
48 - RETAINING CLIP BSD-1600119010.A644 1600119010	£1.75	£2.10
50 - GROOVE BALL BEARING BSD-3600905134.A117 3600905134	£11.30	£13.56
51 - PLAIN BEARING dia14 MM BSD-1600200031.A495 1600200031	£2.80	£3.36
52 - CABLE ROUTING BSD-1602388027.A332 1602388027	£2.61	£3.13
53 - SOCKET HOUSING BSD-1605190038.A39 1605190038	£1.75	£2.10
55 - STORAGE LEDGE BSD-1602388029.A266 1602388029	£1.75	£2.10
60 - THREAD-FORMING TAP. SCREW BSD-1603435076.A152 1603435076	£2.61	£3.13
61 - TAPPING SCREW DIN 7981-4.8x38-C-Z-ST BSD-2912401038.A9 2912401038	£1.75	£2.10
62 - TAPPING SCREW C4.8x63 MM BSD-1603435024.A244 1603435024	£1.75	£2.10
63 - PAN HEAD SCREW M 3.5x10 MM BSD-3603410009.A7 3603410009	£1.32	£1.58
64 - PLASTIC-CUTTING SCREW St3.9x12 BSD-1603435042.A605 1603435042	£1.75	£2.10
65 - TAPPING SCREW DIN 7981-3.9x19-C-Z-ST BSD-2912401020.A89 2912401020	£2.16	£2.59
66 - TAPPING SCREW DIN 7971-ST3.9x16-F BSD-2910211019.A190 2910211019	£1.75	£2.10
67 - LENS HEAD SCREW BSD-3603435040.A21 3603435040	£1.75	£2.10
100 - SPEED GOVERNOR 220-240V BSD-1607233040.A5 1607233040	£68.42	£82.10
118 - CLAMPING-FLANGE dia 42 MM. SW17 BSD-3609202039.A2 3609202039	£21.68	£26.01
119 - ROUND NUT dia 45 MM. M14 BSD-3609202040.A5 3609202040	£40.80	£48.96
120 - PLAIN WASHER dia 42X22.2X4 MM BSD-3609202041.A2 3609202041	£5.58	£6.70
121 - PLAIN WASHER dia 42X22.2X6 MM BSD-3609202042.A11 3609202042	£3.80	£4.56
200 - PROTECTIVE COVER BSD-3605500127.A3 3605500127	£410.78	£492.94
201 - PROTECTIVE COVER BSD-3605500128.A0 3605500128	-
202 - LATERAL GUARD BSD-3605500129.A3 3605500129	-
203 - SWIVEL ARM BSD-3609202033.A2 3609202033	£37.27	£44.72
204 - COMPRESSION SPRING BSD-3609202034.A1 3609202034	£2.61	£3.13
205 - PLAIN WASHER 8.4 DIN 433-ST BSD-2916011015.A34 2916011015	£1.75	£2.10
207 - CLAMPING LEVER BSD-1907904721.A1 1907904721	£14.91	£17.89
208 - STAR KNOB DIN 6336-K40-M8 BSD-1905621105.A2 1905621105	£16.41	£19.69
210 - MOUNTING RAIL BSD-3609202035.A2 3609202035	£48.38	£58.06
211 - AXLE BSD-3609202036.A1 3609202036	£27.23	£32.68
212 - ROLLER dia 36X50 MM BSD-3609202037.A2 3609202037	£23.86	£28.63
213 - ROLLER dia 36X28 MM BSD-3609202038.A1 3609202038	£21.52	£25.83
214 - SPRING RETAINING RING DIN 471-12x1-FSt BSD-2916650003.A59 2916650003	£1.75	£2.10
215 - SHIM RING BSD-3603435021.A0 3603435021	£2.61	£3.13
216 - SHIM RING BSD-3603435022.A3 3603435022	£2.80	£3.36
217 - SEAL BSD-3601010045.A0 3601010045	£5.30	£6.36
218 - MANUFACTURER'S NAMEPLATE BSD-3601119110.A3 3601119110	-
667 - SPLITTING TOOL BSD-3607959005.A17 3607959005	£21.68	£26.01
722 - AUXILIARY HANDLE M14x1.5 MM BSD-2602025075.A152 2602025075	£10.30	£12.36
753 - CARRYING CASE BSD-2605438348.A3 2605438348	-
755 - DIAMOND CUTTING BLADE dia 230x22.2x2.8 MM BSD-2608600037.A2 2608600037	-
755 - DIAMOND CUTTING BLADE dia 230X22.2X2.8 MM BSD-2608600141.A1 2608600141	-
756 - DIAMOND CUTTING BLADE dia 230x22.2x2.8 MM BSD-2608600035.A1 2608600035	-
756 - DIAMOND CUTTING BLADE dia 230X22.2X2.8 MM BSD-2608600142.A2 2608600142	-
757 - DIAMOND CUTTING BLADE dia 230X22.2X2.8 MM BSD-2608600126.A3 2608600126	-
758 - DIAMOND CUTTING BLADE dia 230x22.2x2.8 MM BSD-2608600039.A1 2608600039	-
763 - SUCTION BEND dia 35 MM BSD-1600793007.A22 1600793007	£19.24	£23.09
764 - PIN-TYPE FACE-WRENCH BSD-1607950004.A190 1607950004	£8.33	£10.00
770 - AIR HOSE dia 35 MM. L=5 M BSD-1609202230.A144 1609202230	£85.74	£102.89
803 - ARMATURE 230-240V BSD-1604011156.A18 1604011156	£135.25	£162.30
805 - POWER SUPPLY CORD EU 4.15m 2 x 1.5mm H07 RN-F BSD-1607000228.A275 1607000228	£23.86	£28.63
808 - NAMEPLATE BSD-160111A3H3.A3672 160111A3H3	£2.61	£3.13
810 - CARBON-BRUSH SET BSD-1607014171.A486 1607014171	£14.91	£17.89
818 - TENSIONER PARTS SET BSD-3609202043.A2 3609202043	£63.50	£76.20
821 - GEAR HOUSING BSD-1605805592.A54 1605805592	£72.18	£86.62
822 - BEARING FLANGE dia 230 MM BSD-1607000922.A69 1607000922	£45.67	£54.80
826 - ASSEMBLY OF SERVICE PARTS BSD-1600A005BH.A89 1600A005BH	£45.67	£54.80
833 - ROTARY SHAFT LIP SEAL 18.7 MM BSD-1600290013.A185 1600290013	£2.61	£3.13
840 - PUSH-BUTTON BSD-1607000206.A185 1607000206	£11.30	£13.56
846 - RETAINING WASHER BSD-1607000C3E.A257 1607000C3E	£12.04	£14.45
851 - NEEDLE-ROLLER BEARING dia14 MM BSD-2600910001.A164 2600910001	£4.26	£5.11
