Bostitch RAB-19-E Type REV A Carton Sealer Spare Parts

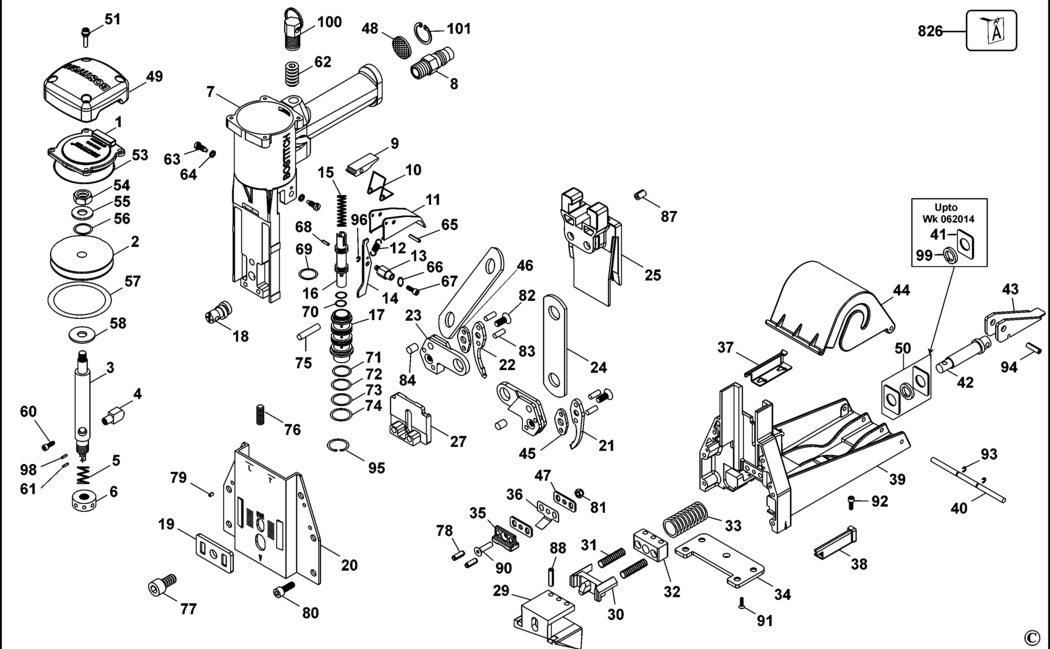

An exploded drawing and spare parts listing for the Bostitch RAB-19-E Type REV A Carton Sealer

	Ex VAT	Inc VAT
1 - CAP BDE-A01200110.A3 A01200110	£17.48	£20.97
2 - PISTON BDE-A02800201.A1 A02800201	£9.41	£11.29
3 - ROD BDE-A02800301.A7 A02800301	£37.35	£44.82
4 - BLOCK BDE-A00100401.A4 A00100401	£9.41	£11.29
5 - SPRING BDE-A00100501.A5 A00100501	£1.50	£1.80
6 - COLLAR BDE-A00100601.A5 A00100601	£5.88	£7.06
8 - CONNECTOR MALE BDE-A00100802.A0 A00100802	£3.30	£3.96
9 - BLOCK BDE-A00100902.A3 A00100902	£3.80	£4.56
10 - SPRING BDE-A00101001.A7 A00101001	£1.50	£1.80
11 - TRIGGER BDE-A00101101.A3 A00101101	£3.30	£3.96
12 - SPRING BDE-A00101201.A7 A00101201	£1.50	£1.80
13 - ROD BDE-A00101301.A2 A00101301	£3.30	£3.96
14 - ARM LINK BDE-A00101402.A7 A00101402	£2.78	£3.34
15 - SPRING COMPRESSION BDE-A00101501.A3 A00101501	£1.50	£1.80
16 - VALVE BDE-A00101601.A7 A00101601	£12.17	£14.60
17 - TUBE BDE-A00101702.A3 A00101702	£16.03	£19.24
18 - ROD BDE-A00101801.A7 A00101801	£12.17	£14.60
19 - PLATE BDE-A00101901.A2 A00101901	£3.30	£3.96
20 - PLATE BDE-A01102501.A2 A01102501	£7.85	£9.42
21 - HOOK RIGHT BDE-A00102102.A3 A00102102	£7.18	£8.62
22 - HOOK LEFT BDE-A00102202.A3 A00102202	£7.18	£8.62
23 - SEAT BDE-A00102301.A6 A00102301	£24.39	£29.27
24 - LINK BDE-A00102401.A7 A00102401	£2.26	£2.71
25 - DRIVER BDE-A03700902 A03700902	£99.47	£119.36
27 - GUIDE BDE-A03600102 A03600102	£25.70	£30.84
29 - ANVIL BDE-A02300404.A2 A02300404	£38.80	£46.56
30 - PUSH BLOCK BDE-A03600202.A0 A03600202	£24.39	£29.27
31 - SPRING COMPRESSION BDE-A02201101.A1 A02201101	£2.78	£3.34
32 - CAP BDE-A02200501.A2 A02200501	£17.48	£20.97
33 - SPRING BDE-A02201201.A4 A02201201	£4.69	£5.63
34 - PLATE BDE-A02200901.A1 A02200901	£14.57	£17.48
35 - GUIDE BDE-A02202901.A1 A02202901	£16.03	£19.24
36 - LEAF SPRING BDE-A02201803.A1 A02201803	£2.26	£2.71
37 - GUIDE BDE-A02300603 A02300603	£4.69	£5.63
38 - GUIDE BDE-A02300703 A02300703	£4.69	£5.63
39 - SEAT BDE-A03600505.A2 A03600505	£80.98	£97.18
40 - SHAFT BDE-A02201301.A1 A02201301	£1.50	£1.80
41 - FSO KIT BDE-C0363001.A9 C0363001	£5.88	£7.06
42 - SHAFT BDE-A02200801.A4 A02200801	£10.85	£13.02
43 - LEVER BDE-A02201001.A4 A02201001	£7.85	£9.42
44 - COVER BDE-A02201402.A3 A02201402	£5.88	£7.06
45 - HOLDER RH BDE-A03701001.A0 A03701001	£18.91	£22.69
46 - HOLDER LH BDE-A03701101.A2 A03701101	£18.91	£22.69
47 - WASHER BDE-A02202402.A2 A02202402	£2.78	£3.34
48 - SILENCER BDE-BAI1401.A7 BAI1401	£3.30	£3.96
49 - COVER BDE-A07600801.A3 A07600801	£5.88	£7.06
50 - FSO KIT >062014 BDE-C0363001.A11 C0363001	£5.88	£7.06
51 - BOLT BDE-A07600901.A4 A07600901	£1.50	£1.80
53 - O RING BDE-BAB017537.A3 BAB017537	£1.50	£1.80
54 - NUT BDE-BAD02061.A4 BAD02061	£1.50	£1.80
55 - WASHER BDE-BAE06094.A8 BAE06094	£1.50	£1.80
56 - O RING BDE-BAB017076.A9 BAB017076	£1.50	£1.80
57 - O RING BDE-BAB057476.A3 BAB057476	£1.50	£1.80
58 - WASHER BDE-A00104101.A3 A00104101	£1.50	£1.80
60 - BOLT BDE-BAC0604102.A4 BAC0604102	£1.50	£1.80
61 - PIN BDE-BAA025014.A3 BAA025014	£1.50	£1.80
62 - BOLT BDE-BAC0312122.A8 BAC0312122	£1.50	£1.80
63 - SCREW BDE-A00104401.A7 A00104401	£1.50	£1.80
64 - WASHER SPRING BDE-BAE01042.A11 BAE01042	£1.50	£1.80
65 - PIN BDE-BAA030020.A1 BAA030020	£1.50	£1.80
66 - WASHER LOCK BDE-BAE02042.A5 BAE02042	£1.50	£1.80
67 - PIN BDE-BAA030018.A1 BAA030018	£1.50	£1.80
68 - SPRING BDE-BAA030010.A15 BAA030010	£1.50	£1.80
69 - O RING BDE-BAB017124.A0 BAB017124	£1.50	£1.80
70 - O RING BDE-BAB017076.A8 BAB017076	£1.50	£1.80
71 - O RING BDE-BAB016145.A3 BAB016145	£1.50	£1.80
72 - O RING BDE-BAB016150.A7 BAB016150	£1.50	£1.80
73 - O RING BDE-BAB016155.A3 BAB016155	£1.50	£1.80
74 - O RING BDE-BAB016160.A7 BAB016160	£1.50	£1.80
75 - ROD BDE-A00104702.A2 A00104702	£1.50	£1.80
76 - BOLT BDE-BAC0306142.A0 BAC0306142	£1.50	£1.80
77 - BOLT BDE-BAC0608162.A10 BAC0608162	£1.50	£1.80
78 - PIN BDE-BAA050014.A3 BAA050014	£1.50	£1.80
79 - SPRING BDE-BAA030010.A16 BAA030010	£1.50	£1.80
80 - BOLT BDE-BAC0605142.A15 BAC0605142	£1.50	£1.80
81 - NUT BDE-BAD01051.A6 BAD01051	£1.50	£1.80
82 - SCREW BDE-A03702201.A2 A03702201	£1.50	£1.80
83 - PIN BDE-A03701801.A2 A03701801	£3.80	£4.56
84 - PIN BDE-A00104602.A14 A00104602	£1.50	£1.80
87 - PIN BDE-BAA060016-R.A1 BAA060016-R	£1.50	£1.80
88 - PIN BDE-BAA040022.A1 BAA040022	£1.50	£1.80
90 - SCREW BDE-BAC0205202.A4 BAC0205202	£1.50	£1.80
91 - SCREW BDE-bac0205082.A0 bac0205082	£1.50	£1.80
92 - SCREW BDE-BAC0703063.A3 BAC0703063	£1.50	£1.80
93 - CIRCLIP BDE-BAF10252.A5 BAF10252	£1.50	£1.80
94 - PIN BDE-BAA040020.A4 BAA040020	£1.50	£1.80
95 - RETAINER BDE-BAF22002.A9 BAF22002	£1.50	£1.80
96 - CIRCLIP BDE-BAF10252.A6 BAF10252	£1.50	£1.80
98 - PIN BDE-A00104901.A2 A00104901	£1.50	£1.80
99 - FSO KIT BDE-C0363001.A10 C0363001	£5.88	£7.06
100 - PLUG BDE-C0011201A.A1 C0011201A	£12.17	£14.60
101 - RETAINER BDE-BAF22002.A10 BAF22002	£1.50	£1.80
826 - SPANNER SPECIAL BDE-C0010701.A14 C0010701	£5.88	£7.06

Attribute Name	Value
Brand	Bostitch
