Bostitch KN85PP Type REV A Full Round Head Framing Nailer Spare Parts

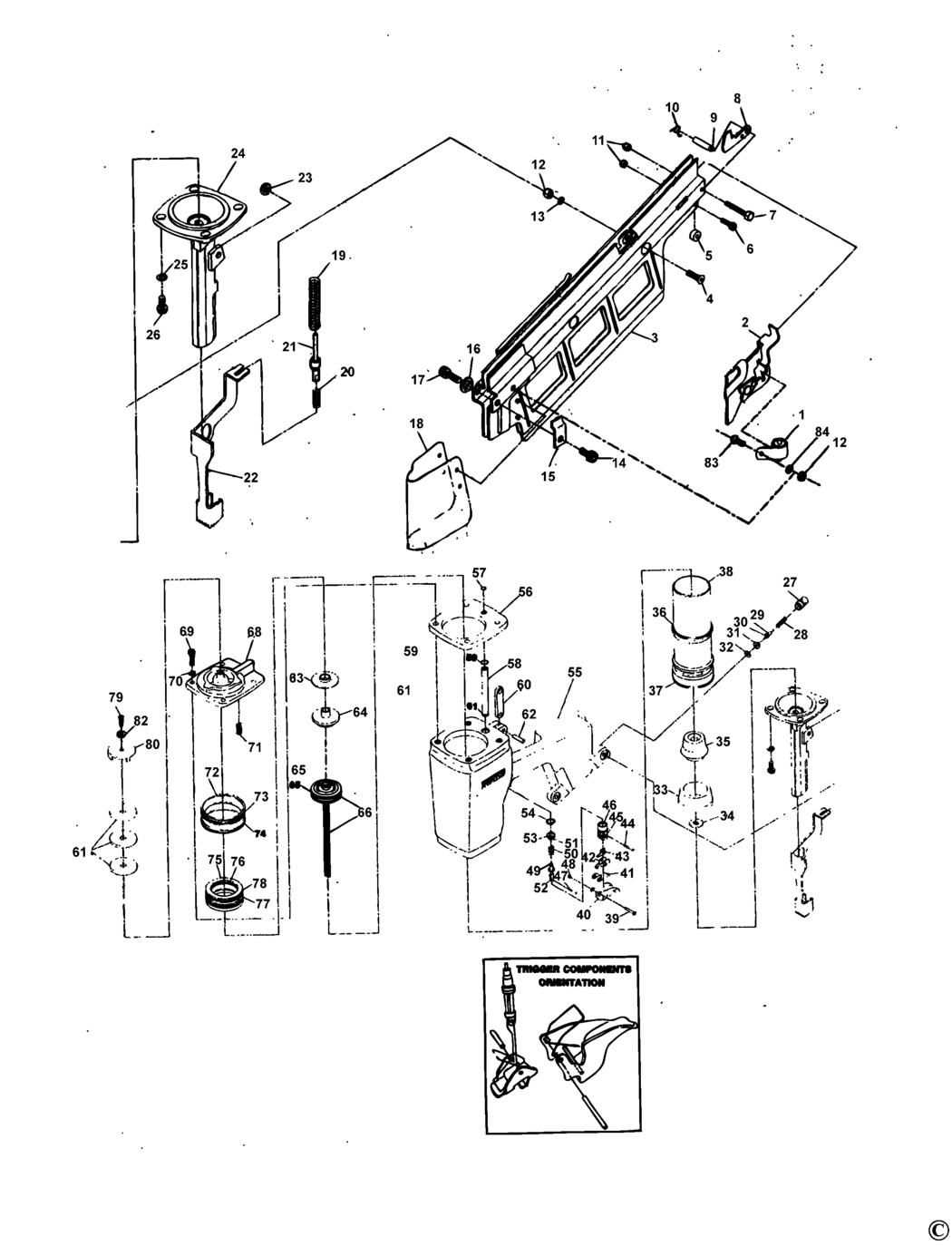

An exploded drawing and spare parts listing for the Bostitch KN85PP Type REV A Full Round Head Framing Nailer

	Ex VAT	Inc VAT
1 - NO LONGER AVAILABLE BDE-000000-00.A30847 000000-00	-
2 - NO LONGER AVAILABLE BDE-000000-00.A30848 000000-00	-
3 - NO LONGER AVAILABLE BDE-000000-00.A30849 000000-00	-
4 - NO LONGER AVAILABLE BDE-000000-00.A30850 000000-00	-
5 - NO LONGER AVAILABLE BDE-000000-00.A30851 000000-00	-
6 - SCREW BDE-MSC5080-16.A6 MSC5080-16	£1.50	£1.80
7 - NO LONGER AVAILABLE BDE-000000-00.A30852 000000-00	-
8 - NO LONGER AVAILABLE BDE-000000-00.A30853 000000-00	-
9 - NO LONGER AVAILABLE BDE-000000-00.A30854 000000-00	-
10 - NO LONGER AVAILABLE BDE-000000-00.A30855 000000-00	-
11 - LOCK-NUT BDE-MHE5080-100.A14 MHE5080-100	£1.50	£1.80
12 - NUT BDE-MHE6100-100.A52 MHE6100-100	£1.50	£1.80
13 - NO LONGER AVAILABLE BDE-000000-00.A30856 000000-00	-
14 - NO LONGER AVAILABLE BDE-000000-00.A30857 000000-00	-
15 - NO LONGER AVAILABLE BDE-000000-00.A30858 000000-00	-
16 - NO LONGER AVAILABLE BDE-000000-00.A30859 000000-00	-
17 - NO LONGER AVAILABLE BDE-000000-00.A30860 000000-00	-
18 - NO LONGER AVAILABLE BDE-000000-00.A30861 000000-00	-
19 - NO LONGER AVAILABLE BDE-000000-00.A30862 000000-00	-
20 - NO LONGER AVAILABLE BDE-000000-00.A30863 000000-00	-
21 - NO LONGER AVAILABLE BDE-000000-00.A30864 000000-00	-
22 - NO LONGER AVAILABLE BDE-000000-00.A30865 000000-00	-
23 - NUT BDE-N70120.A5 N70120	-
24 - NO LONGER AVAILABLE BDE-000000-00.A30866 000000-00	-
25 - NO LONGER AVAILABLE BDE-000000-00.A30867 000000-00	-
26 - NO LONGER AVAILABLE BDE-000000-00.A30868 000000-00	-
27 - NO LONGER AVAILABLE BDE-000000-00.A30869 000000-00	-
28 - NO LONGER AVAILABLE BDE-000000-00.A30870 000000-00	-
29 - NO LONGER AVAILABLE BDE-000000-00.A30871 000000-00	-
30 - O RING BDE-MRG002514.A27 MRG002514	£4.69	£5.63
31 - NO LONGER AVAILABLE BDE-000000-00.A30872 000000-00	-
32 - NO LONGER AVAILABLE BDE-000000-00.A30873 000000-00	-
33 - NO LONGER AVAILABLE BDE-000000-00.A30874 000000-00	-
34 - NO LONGER AVAILABLE BDE-000000-00.A30875 000000-00	-
35 - NO LONGER AVAILABLE BDE-000000-00.A30876 000000-00	-
36 - NO LONGER AVAILABLE BDE-000000-00.A30877 000000-00	-
37 - O RING BDE-RG273710.A2 RG273710	£1.42	£1.70
38 - NO LONGER AVAILABLE BDE-000000-00.A30878 000000-00	-
39 - NO LONGER AVAILABLE BDE-000000-00.A30879 000000-00	-
40 - NO LONGER AVAILABLE BDE-000000-00.A30880 000000-00	-
41 - NO LONGER AVAILABLE BDE-000000-00.A30881 000000-00	-
42 - NO LONGER AVAILABLE BDE-000000-00.A30882 000000-00	-
43 - NO LONGER AVAILABLE BDE-000000-00.A30883 000000-00	-
44 - NO LONGER AVAILABLE BDE-000000-00.A30884 000000-00	-
45 - O RING BDE-86998.A0 86998	-
46 - NO LONGER AVAILABLE BDE-000000-00.A30897 000000-00	-
47 - NO LONGER AVAILABLE BDE-000000-00.A30898 000000-00	-
48 - NO LONGER AVAILABLE BDE-000000-00.A30899 000000-00	-
49 - O RING BDE-89013.A0 89013	£1.42	£1.70
50 - NO LONGER AVAILABLE BDE-000000-00.A30885 000000-00	-
51 - NO LONGER AVAILABLE BDE-000000-00.A30886 000000-00	-
52 - NO LONGER AVAILABLE BDE-000000-00.A30887 000000-00	-
53 - NO LONGER AVAILABLE BDE-000000-00.A30888 000000-00	-
54 - NO LONGER AVAILABLE BDE-000000-00.A30889 000000-00	-
55 - NO LONGER AVAILABLE BDE-000000-00.A30890 000000-00	-
56 - NO LONGER AVAILABLE BDE-000000-00.A30891 000000-00	-
57 - NO LONGER AVAILABLE BDE-000000-00.A30892 000000-00	-
58 - NO LONGER AVAILABLE BDE-000000-00.A30893 000000-00	-
59 - NO LONGER AVAILABLE BDE-000000-00.A30894 000000-00	-
60 - NO LONGER AVAILABLE BDE-000000-00.A30895 000000-00	-
61 - NO LONGER AVAILABLE BDE-000000-00.A30896 000000-00	-
62 - NO LONGER AVAILABLE BDE-000000-00.A96766 000000-00	-
63 - NO LONGER AVAILABLE BDE-000000-00.A96767 000000-00	-
64 - NO LONGER AVAILABLE BDE-000000-00.A96768 000000-00	-
65 - NO LONGER AVAILABLE BDE-000000-00.A96769 000000-00	-
66 - NO LONGER AVAILABLE BDE-000000-00.A96770 000000-00	-
67 - NO LONGER AVAILABLE BDE-000000-00.A96771 000000-00	-
68 - NO LONGER AVAILABLE BDE-000000-00.A96772 000000-00	-
69 - NO LONGER AVAILABLE BDE-000000-00.A96773 000000-00	-
70 - NO LONGER AVAILABLE BDE-000000-00.A96774 000000-00	-
71 - NO LONGER AVAILABLE BDE-000000-00.A96775 000000-00	-
72 - NO LONGER AVAILABLE BDE-000000-00.A96776 000000-00	-
73 - NO LONGER AVAILABLE BDE-000000-00.A96777 000000-00	-
74 - NO LONGER AVAILABLE BDE-000000-00.A96778 000000-00	-
75 - NO LONGER AVAILABLE BDE-000000-00.A96779 000000-00	-
76 - O RING BDE-850626.A1 850626	£14.57	£17.48
77 - NO LONGER AVAILABLE BDE-000000-00.A96786 000000-00	-
78 - O RING BDE-850766.A7 850766	£5.88	£7.06
79 - SCREW BDE-MSC6100-12.A0 MSC6100-12	£1.50	£1.80
80 - NO LONGER AVAILABLE BDE-000000-00.A96780 000000-00	-
81 - NO LONGER AVAILABLE BDE-000000-00.A96781 000000-00	-
82 - NO LONGER AVAILABLE BDE-000000-00.A96782 000000-00	-
83 - BOLT BDE-MSB6100-12.A3 MSB6100-12	£1.50	£1.80
84 - NO LONGER AVAILABLE BDE-000000-00.A96783 000000-00	-
85 - NO LONGER AVAILABLE BDE-000000-00.A96784 000000-00	-
86 - NO LONGER AVAILABLE BDE-000000-00.A96785 000000-00	-

Attribute Name	Value
Brand	Bostitch
