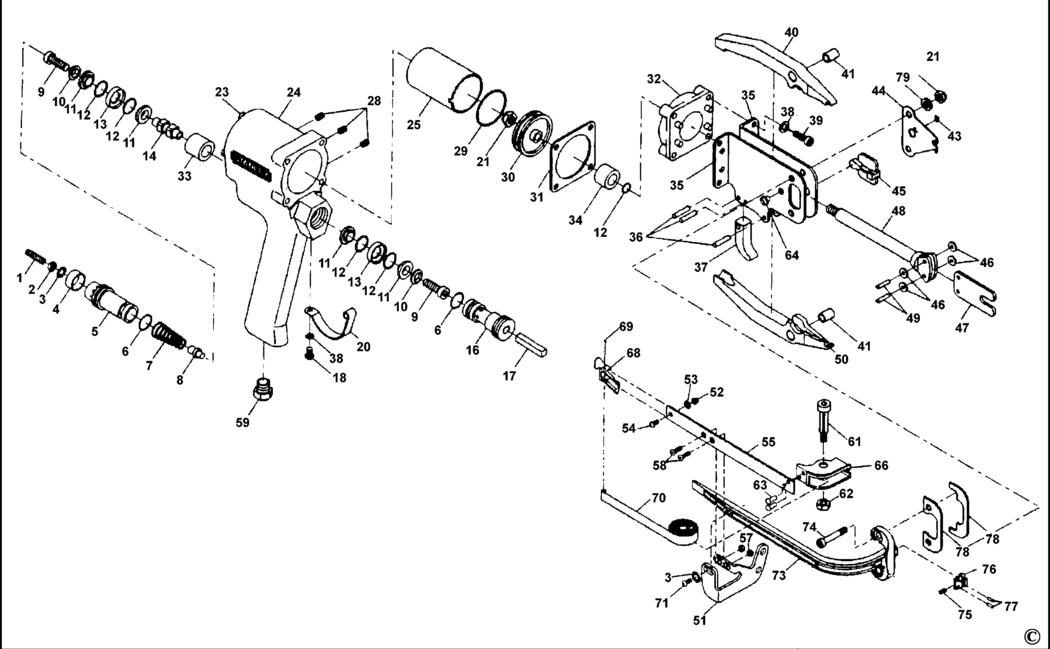

An exploded drawing and spare parts listing for the Bostitch SC443 Type REV 0 Ringer
Ex VAT Inc VAT
1 - SCREW BDE-SC18.A1 SC18 £1.50 £1.80
2 - LOCK NUT BDE-SC15.A4 SC15 £1.42 £1.70
3 - WASHER BDE-SC28.A17 SC28 £1.42 £1.70
4 - DEFLECTOR BDE-B01426.A10 B01426 £3.80 £4.56
5 - VALVE SEAT BDE-B03043.A9 B03043 £17.48 £20.97
6 - O RING BDE-SC09.A18 SC09 £7.18 £8.62
7 - SPRING BDE-B04587.A7 B04587 £10.85 £13.02
8 - LOCATOR BDE-B01420.A6 B01420 £9.17 £11.00
9 - SCREW BDE-SC21.A25 SC21 £7.18 £8.62
10 - WASHER BDE-B01455.A23 B01455 £1.50 £1.80
11 - SUPPORT BDE-B01421.A17 B01421 £1.50 £1.80
12 - O RING BDE-SC08.A8 SC08 £1.50 £1.80
13 - NO LONGER AVAILABLE BDE-000000-00.A64574 000000-00 -
14 - SPACER BDE-B03044.A15 B03044 £9.41 £11.29
16 - VALVE SEAT BDE-B03042.A15 B03042 £14.57 £17.48
17 - PIN BDE-B01425F.A16 B01425F £2.26 £2.71
18 - SCREW BDE-SC18.A2 SC18 £1.50 £1.80
20 - GUARD BDE-B01435F.A15 B01435F £7.18 £8.62
21 - LOCK NUT BDE-SC13.A18 SC13 £1.42 £1.70
23 - STUD BDE-B01510.A4 B01510 £10.57 £12.68
24 - NO LONGER AVAILABLE BDE-000000-00.A64575 000000-00 -
25 - LINER BDE-B01413.A12 B01413 -
28 - SCREW BDE-SC23.A17 SC23 £1.42 £1.70
29 - O RING BDE-SC10.A6 SC10 £1.50 £1.80
30 - PISTON BDE-B01414F.A4 B01414F £37.82 £45.38
31 - GASKET BDE-B01443.A13 B01443 £1.42 £1.70
32 - NO LONGER AVAILABLE BDE-000000-00.A64576 000000-00 -
33 - BUSHING BDE-B01417.A12 B01417 £9.41 £11.29
34 - NO LONGER AVAILABLE BDE-000000-00.A64577 000000-00 -
35 - NO LONGER AVAILABLE BDE-000000-00.A64578 000000-00 -
36 - ROLL PIN BDE-SC05.A18 SC05 £14.57 £17.48
37 - TRIGGER BDE-A02073F.A23 A02073F £7.18 £8.62
38 - WASHER LOCK BDE-SC32.A12 SC32 £1.42 £1.70
39 - NO LONGER AVAILABLE BDE-000000-00.A64579 000000-00 -
40 - JAW BDE-C01850F.A5 C01850F -
41 - BUSHING BDE-B01441.A19 B01441 £17.48 £20.97
43 - NO LONGER AVAILABLE BDE-000000-00.A64580 000000-00 -
44 - SPRING BDE-B01438F.A5 B01438F £9.41 £11.29
45 - LATCH BDE-C00716F.A2 C00716F £58.69 £70.43
46 - ROLLER BDE-B01854.A9 B01854 £9.17 £11.00
47 - BLADE BDE-B01687F.A4 B01687F £10.85 £13.02
49 - ROLLER BDE-SC01.A19 SC01 £1.50 £1.80
51 - NO LONGER AVAILABLE BDE-000000-00.A64581 000000-00 -
52 - NO LONGER AVAILABLE BDE-000000-00.A64582 000000-00 -
53 - NO LONGER AVAILABLE BDE-000000-00.A64583 000000-00 -
54 - NO LONGER AVAILABLE BDE-000000-00.A64584 000000-00 -
55 - NO LONGER AVAILABLE BDE-000000-00.A64585 000000-00 -
57 - NO LONGER AVAILABLE BDE-000000-00.A64586 000000-00 -
58 - NO LONGER AVAILABLE BDE-000000-00.A64587 000000-00 -
59 - INLET BDE-AB01473F.A2 AB01473F £18.42 £22.10
61 - PIN BDE-A02592.A3 A02592 £10.57 £12.68
62 - NUT BDE-TL727200.A10 TL727200 £2.71 £3.25
63 - NO LONGER AVAILABLE BDE-000000-00.A64588 000000-00 -
64 - SCREW BDE-B01684.A3 B01684 £4.58 £5.49
66 - NO LONGER AVAILABLE BDE-000000-00.A64589 000000-00 -
68 - PUSHER BDE-C01515F.A1 C01515F £50.60 £60.72
69 - PIN BDE-SC12.A4 SC12 £1.42 £1.70
70 - NO LONGER AVAILABLE BDE-000000-00.A64590 000000-00 -
71 - SCREW BDE-SC17.A4 SC17 -
73 - NO LONGER AVAILABLE sc443 BDE-000000-00.A64591 000000-00 -
73 - MAGAZINE sc442 BDE-AC015132F.A0 AC015132F -
75 - SPRING BDE-B01516.A9 B01516 £1.42 £1.70
76 - SHOE BDE-C01509F.A7 C01509F £18.42 £22.10
77 - PIN BDE-SC04.A2 SC04 £1.42 £1.70
78 - SHIM BDE-B1545010.A9 B1545010 £7.85 £9.42
79 - WASHER BDE-B01442.A3 B01442 £1.50 £1.80
80 - SHIM BDE-A03116.A4 A03116 £4.58 £5.49
