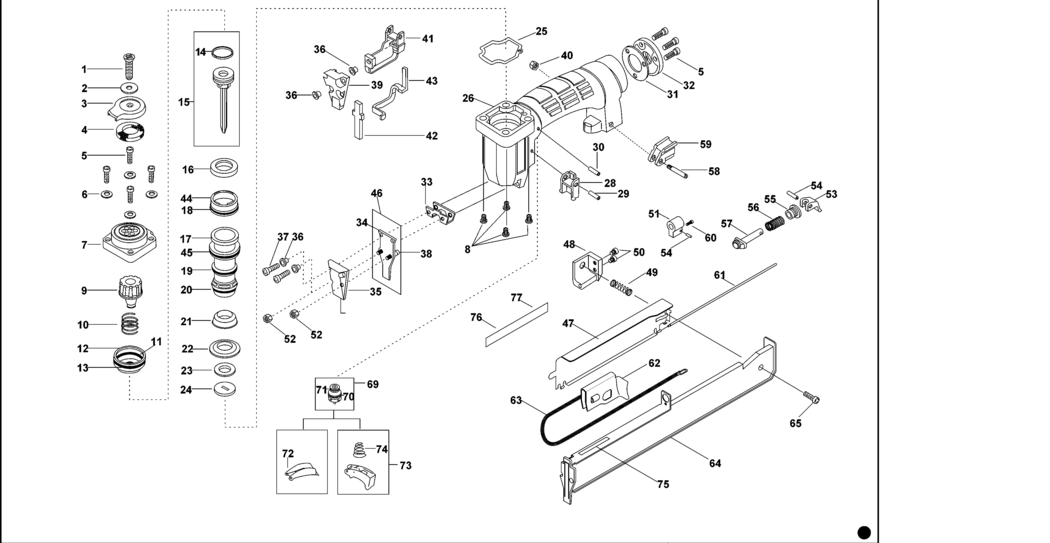

An exploded drawing and spare parts listing for the Bostitch S32SLLM Type REV 0 Stapler
Ex VAT Inc VAT
1 - SCREW BDE-100297.A5 100297 £1.50 £1.80
2 - WASHER SPECIAL BDE-S32030.A7 S32030 £1.50 £1.80
3 - COVER BDE-S32032.A3 S32032 £10.85 £13.02
4 - MUFFLER BDE-S32045.A7 S32045 £2.26 £2.71
5 - SCREW BDE-100260.A3 100260 £1.50 £1.80
6 - WASHER SPECIAL BDE-S32186.A3 S32186 £1.50 £1.80
7 - CAP BDE-T32010.A2 T32010 £24.39 £29.27
8 - INSERT BDE-S32011.A3 S32011 £1.50 £1.80
9 - BUMPER BDE-T32007.A2 T32007 £3.30 £3.96
10 - VALVE SPRING BDE-9R198719.A6 9R198719 £2.26 £2.71
11 - O RING BDE-108572.A4 108572 £7.85 £9.42
12 - KIT BDE-9R198720.A3 9R198720 £34.00 £40.80
13 - O RING BDE-MRG035020.A2 MRG035020 £16.03 £19.24
14 - PISTON RING BDE-S32109.A12 S32109 £12.17 £14.60
15 - DRIVER SA BDE-S32084A.A1 S32084A £71.44 £85.73
16 - SEAL BDE-T32031.A6 T32031 £1.50 £1.80
17 - CYLINDER BDE-S32208.A0 S32208 £24.39 £29.27
18 - O RING BDE-RG161210.A5 RG161210 £1.50 £1.80
19 - SEAL BDE-T32080.A3 T32080 £1.42 £1.70
20 - O RING BDE-100353.A3 100353 £1.50 £1.80
21 - BUMPER BDE-102882.A3 102882 £10.85 £13.02
22 - PLATE BDE-S32187.A10 S32187 £17.48 £20.97
23 - WASHER SPECIAL BDE-S32001.A1 S32001 £1.50 £1.80
24 - GUIDE BDE-S32088.A0 S32088 £7.18 £8.62
25 - GASKET BDE-T32046.A4 T32046 £1.50 £1.80
26 - FRAME BDE-T32008A.A6 T32008A £74.15 £88.98
27 - NO LONGER AVAILABLE BDE-000000-00.A97060 000000-00 -
28 - STOP BDE-106173.A13 106173 £2.26 £2.71
29 - PIN BDE-100298.A47 100298 £1.50 £1.80
30 - PIN BDE-102549.A46 102549 £1.50 £1.80
31 - GASKET BDE-S32141.A6 S32141 £12.17 £14.60
32 - END CAP BDE-S32140.A4 S32140 £14.57 £17.48
33 - PLATE BDE-S32017A.A8 S32017A £9.41 £11.29
34 - NO LONGER AVAILABLE BDE-000000-00.A97061 000000-00 -
35 - NO LONGER AVAILABLE BDE-000000-00.A97062 000000-00 -
36 - SPACER BDE-S32184.A8 S32184 £1.50 £1.80
37 - SCREW BDE-100258.A6 100258 £1.50 £1.80
38 - NO LONGER AVAILABLE BDE-000000-00.A97064 000000-00 -
39 - NO LONGER AVAILABLE BDE-000000-00.A97065 000000-00 -
40 - NUT M4 BDE-MHE4070-100.A29 MHE4070-100 £1.50 £1.80
41 - NO LONGER AVAILABLE BDE-000000-00.A97063 000000-00 -
42 - ARM BDE-S32120.A3 S32120 £5.88 £7.06
43 - CONTACT BDE-S32127.A3 S32127 £4.69 £5.63
44 - CYLINDER BDE-S32211.A2 S32211 £5.72 £6.87
45 - O RING BDE-100817.A27 100817 £1.50 £1.80
46 - NO LONGER AVAILABLE BDE-000000-00.A97066 000000-00 -
47 - NO LONGER AVAILABLE BDE-000000-00.A97067 000000-00 -
48 - NO LONGER AVAILABLE BDE-000000-00.A97068 000000-00 -
49 - NO LONGER AVAILABLE ` BDE-000000-00.A97069 000000-00 -
50 - SCREW BDE-MSC4070-6.A1 MSC4070-6 £1.50 £1.80
51 - NO LONGER AVAILABLE BDE-000000-00.A97075 000000-00 -
52 - LOCK-NUT BDE-MHE5080-100.A32 MHE5080-100 £1.50 £1.80
53 - NO LONGER AVAILABLE BDE-000000-00.A97070 000000-00 -
54 - NO LONGER AVAILABLE BDE-000000-00.A97071 000000-00 -
55 - NO LONGER AVAILABLE BDE-000000-00.A97072 000000-00 -
56 - NO LONGER AVAILABLE BDE-000000-00.A97073 000000-00 -
57 - NO LONGER AVAILABLE BDE-000000-00.A97074 000000-00 -
58 - PIN BDE-S32066.A8 S32066 £17.48 £20.97
59 - NO LONGER AVAILABLE BDE-000000-00.A97076 000000-00 -
60 - SCREW BDE-MSC4070-10.A1 MSC4070-10 £1.50 £1.80
61 - NO LONGER AVAILABLE BDE-000000-00.A97077 000000-00 -
62 - NO LONGER AVAILABLE BDE-000000-00.A97078 000000-00 -
63 - NO LONGER AVAILABLE BDE-000000-00.A97079 000000-00 -
64 - NO LONGER AVAILABLE BDE-000000-00.A97080 000000-00 -
65 - NO LONGER AVAILABLE BDE-000000-00.A97081 000000-00 -
70 - O RING BDE-851554.A25 851554 £4.69 £5.63
71 - O RING BDE-86459.A53 86459 £1.50 £1.80
72 - KIT BDE-CNTK2.A15 CNTK2 £5.88 £7.06
73 - KIT BDE-SEQ6.A16 SEQ6 £10.85 £13.02
74 - SPRING BDE-100387.A54 100387 £1.50 £1.80
75 - NO LONGER AVAILABLE BDE-000000-00.A97082 000000-00 -
76 - NO LONGER AVAILABLE BDE-000000-00.A97083 000000-00 -
77 - LABEL BDE-159914.A1 159914 -
