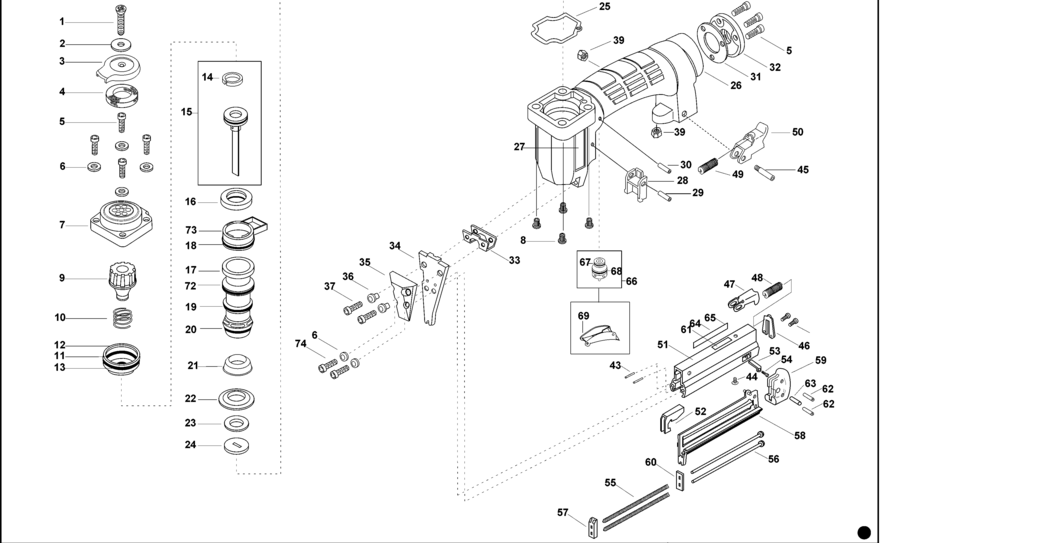

An exploded drawing and spare parts listing for the Bostitch S32SX-CS Type REV 0 Stapler
Ex VAT Inc VAT
1 - SCREW BDE-100297.A4 100297 £1.50 £1.80
2 - WASHER SPECIAL BDE-S32030.A6 S32030 £1.50 £1.80
3 - COVER BDE-S32032.A4 S32032 £10.85 £13.02
4 - MUFFLER BDE-S32045.A6 S32045 £2.26 £2.71
5 - SCREW BDE-100260.A2 100260 £1.50 £1.80
6 - WASHER SPECIAL BDE-S32186.A2 S32186 £1.50 £1.80
7 - CAP BDE-T32010.A6 T32010 £24.39 £29.27
8 - INSERT BDE-S32011.A2 S32011 £1.50 £1.80
9 - BUMPER BDE-T32007.A6 T32007 £3.30 £3.96
10 - VALVE SPRING BDE-9R198719.A4 9R198719 £2.26 £2.71
11 - O RING BDE-108572.A8 108572 £7.85 £9.42
12 - KIT BDE-9R198720.A6 9R198720 £34.00 £40.80
13 - O RING BDE-MRG035020.A6 MRG035020 £16.03 £19.24
14 - PISTON RING BDE-S32109.A11 S32109 £12.17 £14.60
15 - NO LONGER AVAILABLE BDE-000000-00.A97124 000000-00 -
16 - SEAL BDE-T32031.A4 T32031 £1.50 £1.80
17 - CYLINDER BDE-S32208.A3 S32208 £24.39 £29.27
18 - O RING BDE-RG161210.A15 RG161210 £1.50 £1.80
19 - SEAL BDE-T32080.A6 T32080 £1.42 £1.70
20 - O RING BDE-100353.A21 100353 £1.50 £1.80
21 - BUMPER BDE-102882.A7 102882 £10.85 £13.02
22 - PLATE BDE-S32187.A3 S32187 £17.48 £20.97
23 - WASHER SPECIAL BDE-S32001.A7 S32001 £1.50 £1.80
24 - GUIDE BDE-S32018.A1 S32018 £7.01 £8.41
25 - GASKET BDE-T32046.A10 T32046 £1.50 £1.80
26 - FRAME BDE-T32008A.A1 T32008A £74.15 £88.98
27 - NO LONGER AVAILABLE BDE-000000-00.A129965 000000-00 -
28 - NO LONGER AVAILABLE BDE-000000-00.A129966 000000-00 -
29 - PIN BDE-100298.A68 100298 £1.50 £1.80
30 - PIN BDE-102549.A33 102549 £1.50 £1.80
31 - GASKET BDE-S32141.A0 S32141 £12.17 £14.60
32 - END CAP BDE-S32140.A10 S32140 £14.57 £17.48
33 - PLATE BDE-S32017A.A4 S32017A £9.41 £11.29
34 - NO LONGER AVAILABLE BDE-000000-00.A129967 000000-00 -
35 - COVER BDE-S32182.A3 S32182 £3.30 £3.96
36 - SPACER BDE-S32184.A2 S32184 £1.50 £1.80
37 - SCREW BDE-100258.A8 100258 £1.50 £1.80
39 - NUT M4 BDE-MHE4070-100.A6 MHE4070-100 £1.50 £1.80
43 - PIN BDE-110071.A2 110071 £1.50 £1.80
44 - SCREW BDE-100364.A3 100364 £1.50 £1.80
45 - PIN BDE-S32066.A3 S32066 £17.48 £20.97
46 - PLATE BDE-S32072.A2 S32072 £2.71 £3.25
47 - LATCH BDE-S32009.A3 S32009 £25.70 £30.84
48 - SPRING COMPRESSION BDE-T27160.A3 T27160 £3.80 £4.56
49 - SPRING COMPRESSION BDE-S32024.A2 S32024 £1.50 £1.80
50 - HANDLE BDE-S32025.A4 S32025 £10.57 £12.68
52 - PUSHER BDE-S32059.A1 S32059 £18.42 £22.10
53 - STOP BDE-S32177.A1 S32177 £1.50 £1.80
54 - SCREW BDE-MSC4070-8.A12 MSC4070-8 £1.50 £1.80
55 - SPRING BDE-S32065.A2 S32065 £1.42 £1.70
56 - ROD BDE-S32061A.A2 S32061A £78.12 £93.74
57 - SUPPORT BDE-S32064.A1 S32064 £3.22 £3.86
58 - NO LONGER AVAILABLE BDE-000000-00.A129968 000000-00 -
59 - END CAP BDE-S32063.A3 S32063 £16.03 £19.24
60 - WASHER BDE-S32178.A4 S32178 £4.69 £5.63
61 - LABEL BDE-100299.A2 100299 £1.42 £1.70
62 - SPIROL PIN BDE-100263.A4 100263 £1.42 £1.70
63 - SPIROL PIN BDE-100264.A1 100264 £1.42 £1.70
64 - NO LONGER AVAILABLE BDE-000000-00.A129969 000000-00 -
65 - LABEL BDE-159914.A4 159914 -
66 - VALVE KIT BDE-TVA5.A9 TVA5 £65.52 £78.62
67 - O RING BDE-86459.A66 86459 £1.50 £1.80
68 - O RING BDE-851554.A16 851554 £4.69 £5.63
69 - KIT BDE-CNTK2.A7 CNTK2 £5.88 £7.06
72 - O RING BDE-100817.A21 100817 £1.50 £1.80
73 - NO LONGER AVAILABLE BDE-000000-00.A129970 000000-00 -
74 - SCREW BDE-105235.A6 105235 £1.50 £1.80
