Dewalt DWV902M Type 1 Dust Extractor Spare Parts

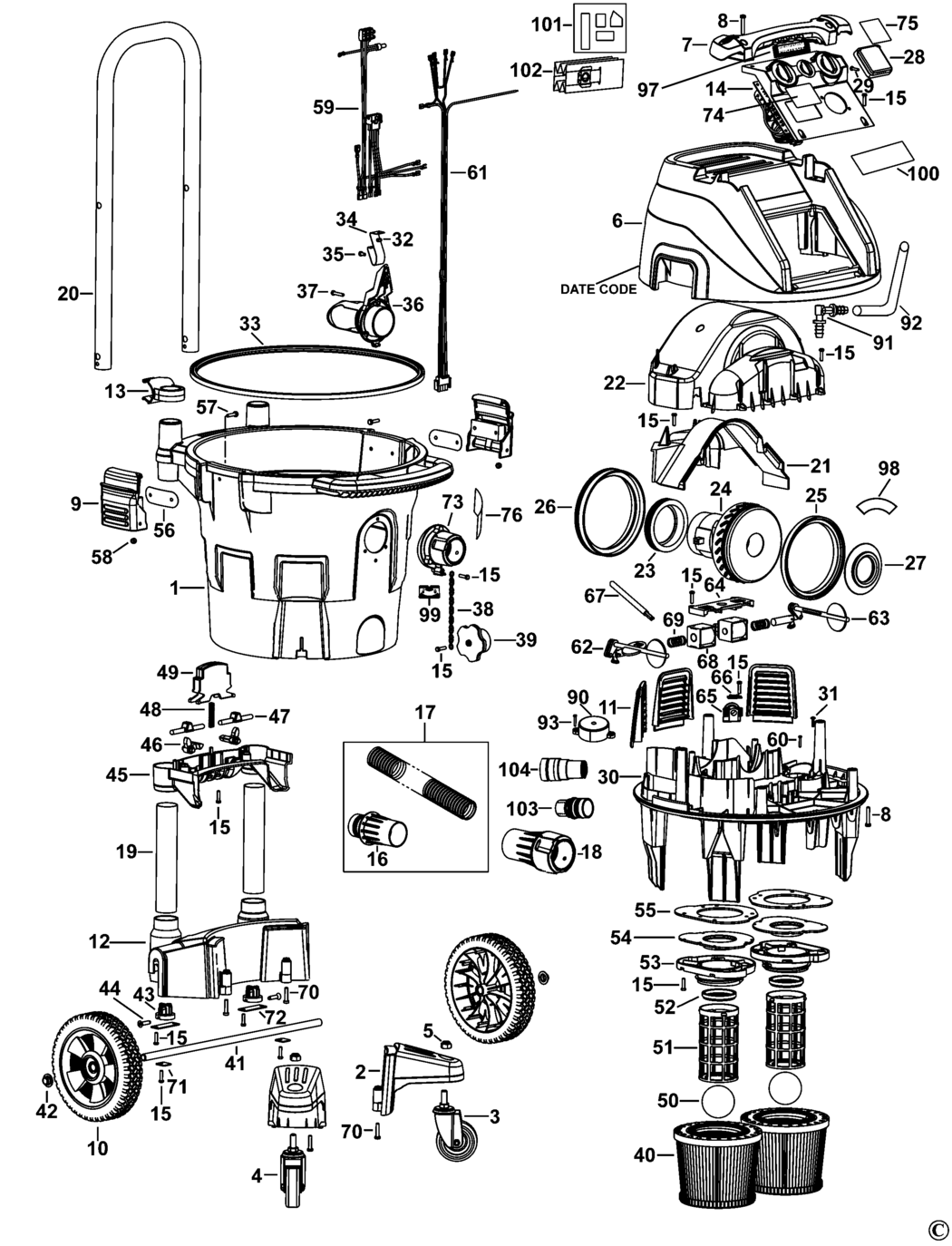

An exploded drawing and spare parts listing for the Dewalt DWV902M Type 1 Dust Extractor

	Ex VAT	Inc VAT
1 - TANK BDE-N116019.A0 N116019	£108.20	£129.84
2 - MOUNT BDE-N118219.A1 N118219	£9.17	£11.00
3 - WHEELS PAIR WITHOUT BRAKE BDE-N489744.A2 N489744	£51.90	£62.28
4 - WHEEL LOCK WITH BRAKE BDE-N118221.A2 N118221	£29.32	£35.18
5 - LOCK NUT BDE-N148438.A3 N148438	£1.42	£1.70
6 - HEAD BDE-N316266.A4 N316266	£51.90	£62.28
7 - HANDLE BDE-N135179.A0 N135179	£7.18	£8.62
8 - SCREW.TEMP BDE-330019-21.A21 330019-21	£1.50	£1.80
9 - LATCH BDE-1004771-97.A0 1004771-97	£7.85	£9.42
10 - WHEEL REAR BDE-N417079.A2 N417079	£17.48	£20.97
11 - VENT BDE-N135170.A6 N135170	£2.78	£3.34
12 - MOUNTING BRACKET BDE-N118223.A4 N118223	£25.70	£30.84
13 - CLAMP BDE-N147540.A2 N147540	£1.50	£1.80
14 - CONTROL PANEL GB BDE-N243566 N243566	-
14 - CONTROL PANEL LX BDE-1004772-13.A0 1004772-13	£174.64	£209.57
15 - SCREW BDE-330019-13.A449 330019-13	£1.50	£1.80
16 - HOSE PLATE BDE-N145597.A0 N145597	£9.41	£11.29
17 - HOSE SA INCL 16 BDE-N208032.A3 N208032	£65.52	£78.62
18 - CONNECTOR BDE-N071898.A1 N071898	£24.39	£29.27
19 - TUBE BDE-N139272.A0 N139272	£4.69	£5.63
20 - HANDLE UPPER BDE-N138912.A3 N138912	£24.39	£29.27
21 - MOTOR COVER BDE-N226858.A1 N226858	£7.64	£9.17
22 - COVER SA BDE-N226857.A0 N226857	£23.75	£28.50
23 - GASKET REAR BDE-N137849.A3 N137849	£7.18	£8.62
24 - MOTOR SA 120V LX BDE-1004772-01.A4 1004772-01	£93.62	£112.35
24 - MOTOR SA 230V GB BDE-1004772-00.A0 1004772-00	£113.07	£135.68
25 - RING GASKET MIDDLE BDE-N250119.A4 N250119	£3.30	£3.96
26 - RING GASKET BDE-N250119.A5 N250119	£3.30	£3.96
27 - GASKET FRONT BDE-N137847.A0 N137847	£3.80	£4.56
28 - OUTLET LX BDE-N145358.A4 N145358	-
28 - OUTLET GB BDE-N135487.A6 N135487	£44.14	£52.97
29 - SCREW BDE-330019-03.A357 330019-03	£1.50	£1.80
30 - MOUNT SA BDE-N226859.A2 N226859	£57.22	£68.66
31 - SCREW BDE-N142836.A5 N142836	£1.50	£1.80
32 - LOCK NUT BDE-N142838.A3 N142838	£1.50	£1.80
33 - GASKET TANK BDE-N124753.A3 N124753	£18.91	£22.69
34 - PLATE STATIC DISCHARGE ELE BDE-N137853.A0 N137853	£2.78	£3.34
35 - SCREW BDE-N142827.A3 N142827	£1.50	£1.80
36 - INLET BDE-N133364.A3 N133364	£12.17	£14.60
37 - SCREW BDE-330019-14.A55 330019-14	£1.50	£1.80
38 - CABLE BDE-N185285.A3 N185285	£1.50	£1.80
39 - CAP BDE-N143848.A3 N143848	£1.50	£1.80
40 - FILTER & INLET KIT See SB204 BDE-N498234.A1 N498234	£119.32	£143.19
41 - AXLE BDE-N118225.A3 N118225	£7.18	£8.62
42 - RETAINER BDE-N118234.A3 N118234	£1.50	£1.80
43 - BUNG BDE-N137054.A6 N137054	£1.50	£1.80
44 - SCREW BDE-N147400.A3 N147400	£1.50	£1.80
45 - COVER BDE-N133363.A3 N133363	£7.18	£8.62
46 - LEVER BDE-N139136.A0 N139136	£1.50	£1.80
47 - LOCK PIN BDE-N137872.A0 N137872	£1.50	£1.80
48 - SPRING BDE-N142180.A3 N142180	£1.50	£1.80
49 - BUTTON BDE-N137721.A6 N137721	£2.26	£2.71
50 - VALVE FLOATING BDE-N206771.A4 N206771	£7.18	£8.62
51 - CAGE BDE-N114680.A1 N114680	-
52 - SEAL BDE-N114681.A2 N114681	£1.42	£1.70
53 - MOUNT BDE-N114682.A1 N114682	£4.58	£5.49
54 - SEAT BDE-N139235.A2 N139235	£3.22	£3.86
55 - GASKET BDE-N146653.A4 N146653	£1.50	£1.80
56 - PLATE BDE-N146843.A3 N146843	£1.50	£1.80
57 - SCREW BDE-330045-15.A57 330045-15	£1.50	£1.80
58 - NUT BDE-330021-06.A5 330021-06	£1.50	£1.80
59 - LEAD SA GB BDE-N166680.A4 N166680	£38.80	£46.56
59 - LEAD SA LX BDE-N214392.A2 N214392	£34.00	£40.80
60 - SCREW BDE-330019-24.A37 330019-24	£1.50	£1.80
61 - LEAD SA BDE-N142779.A2 N142779	£23.75	£28.50
62 - VALVE BDE-N243564.A0 N243564	-
63 - VALVE BDE-N243563.A3 N243563	£14.19	£17.03
64 - COVER BDE-N182342.A1 N182342	£4.58	£5.49
65 - CORD PROTECTOR BDE-N135151.A3 N135151	£1.50	£1.80
66 - CORD CLAMP BDE-450877-00.A28 450877-00	£1.50	£1.80
67 - CORDSET LX BDE-N136837.A0 N136837	£93.62	£112.35
67 - CORDSET (M/PLUG) GB GB BDE-N251739.A1 N251739	£60.94	£73.13
68 - SOLENOID ASSEMBLY LX BDE-N118779.A0 N118779	£29.32	£35.18
68 - SOLENOID ASSEMBLY GB BDE-N119324.A1 N119324	£29.32	£35.18
69 - SPRING BDE-N137860.A1 N137860	£1.50	£1.80
70 - SCREW BDE-330019-20.A14 330019-20	£1.50	£1.80
71 - PLATE BDE-N118226.A3 N118226	£1.50	£1.80
72 - PLATE BDE-N134941.A1 N134941	£1.50	£1.80
73 - INLET BDE-N150546.A0 N150546	£16.03	£19.24
74 - RATING PLATE LX BDE-N161017 N161017	£1.42	£1.70
74 - RATING PLATE GB BDE-N161018 N161018	£1.42	£1.70
75 - WARNING LABEL GB BDE-N155016.A1 N155016	£1.50	£1.80
75 - LABEL LX BDE-N162702.A2 N162702	-
76 - BRAND LABEL BDE-N147780.A1 N147780	£1.42	£1.70
90 - SIREN BDE-N139903.A0 N139903	£7.85	£9.42
91 - CONNECTOR BDE-N149299.A3 N149299	£1.50	£1.80
92 - TUBE PLASTIC BDE-N149246.A0 N149246	£1.82	£2.19
93 - SCREW BDE-330019-02.A3 330019-02	£1.50	£1.80
97 - LABEL BDE-N177322.A0 N177322	£1.50	£1.80
98 - LABEL BDE-N183923.A6 N183923	£1.50	£1.80
99 - LABEL BDE-N199361.A2 N199361	£1.50	£1.80
100 - WARNING LABEL BDE-N154132.A0 N154132	£1.50	£1.80
101 - FOAM BDE-N177921.A2 N177921	£2.78	£3.34
102 - DUST BAG SA BDE-N194931.A2 N194931	£9.41	£11.29
103 - ADAPTOR BDE-N070902.A3 N070902	£7.85	£9.42
104 - CONNECTOR BDE-N243560.A6 N243560	£12.17	£14.60
