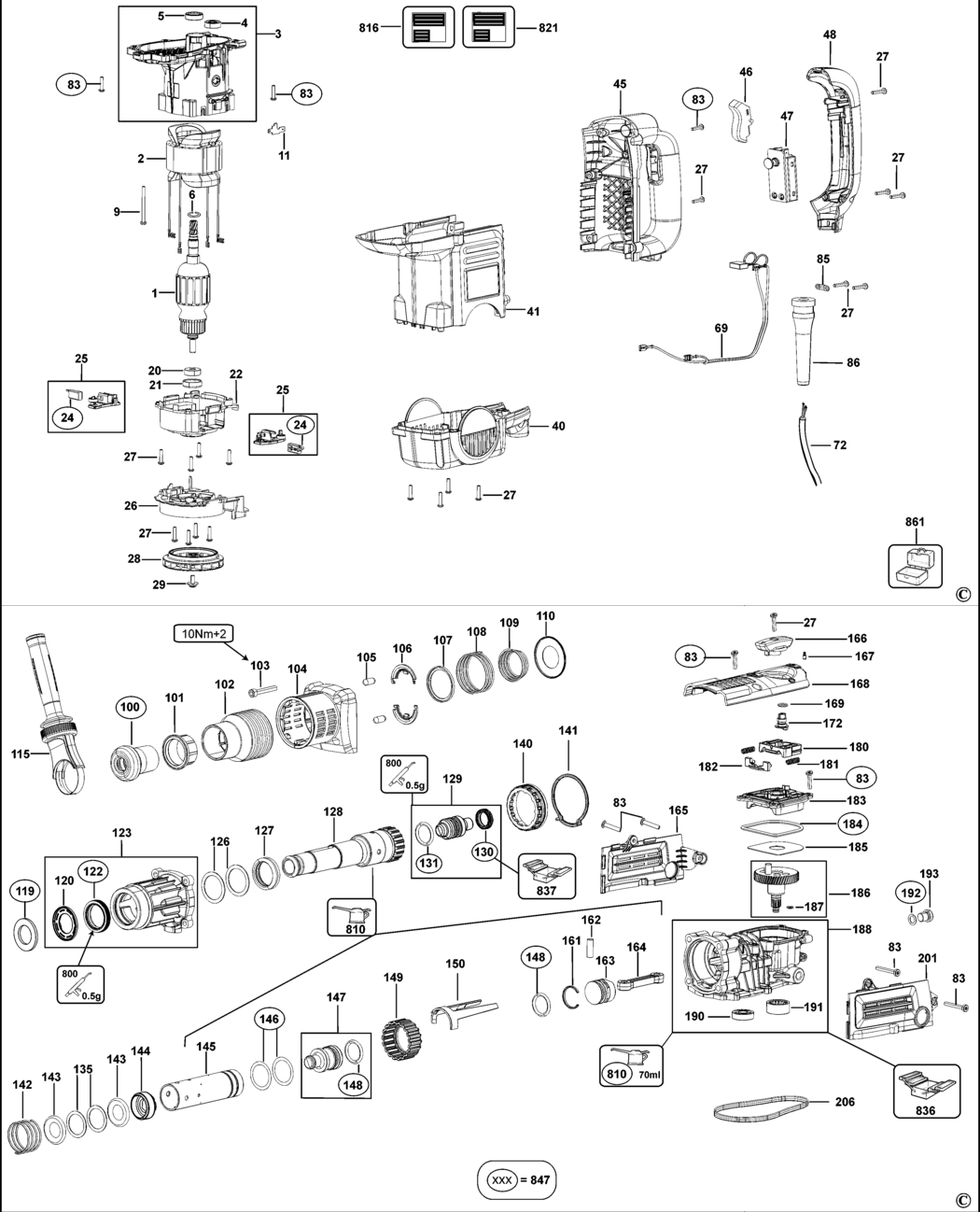

1 - ARMATURE 230V GB
BDE-N046420.A8
N046420
|
£144.10
|
£172.92
|
|
|
2 - FIELD 230V GB
BDE-N046421.A1
N046421
|
£80.98
|
£97.18
|
|
|
3 - HOUSING MOTOR
BDE-N082756.A3
N082756
|
£30.08
|
£36.10
|
|
|
4 - BEARING
BDE-330003-39.A2
330003-39
|
£2.78
|
£3.34
|
|
|
5 - SEAL
BDE-327141-03.A25
327141-03
|
£12.17
|
£14.60
|
|
|
6 - RING
BDE-577746-00.A20
577746-00
|
£1.50
|
£1.80
|
|
|
9 - SCREW
BDE-330065-21.A36
330065-21
|
£1.50
|
£1.80
|
|
|
11 - CONNECTOR
BDE-1007970-00.A9
1007970-00
|
£1.50
|
£1.80
|
|
|
20 - BEARING
BDE-330003-60.A206
330003-60
|
£2.78
|
£3.34
|
|
|
21 - SLEEVE
BDE-1007732-00.A17
1007732-00
|
£1.50
|
£1.80
|
|
|
22 - BRIDGE
BDE-1007798-00.A11
1007798-00
|
£7.18
|
£8.62
|
|
|
24 - BRUSH PAIR 230V GB
BDE-N047426.A1
N047426
|
£14.57
|
£17.48
|
|
|
25 - BRUSH & HOLDER 230V GB
BDE-N047446.A9
N047446
|
£14.57
|
£17.48
|
|
|
26 - BAFFLE FAN
BDE-N016920.A3
N016920
|
£5.88
|
£7.06
|
|
|
27 - SCREW
BDE-330065-08.A363
330065-08
|
£1.50
|
£1.80
|
|
|
28 - FAN
BDE-1006592-00.A1
1006592-00
|
£12.17
|
£14.60
|
|
|
29 - SCREW
BDE-324119-02.A111
324119-02
|
£1.50
|
£1.80
|
|
|
40 - END CAP
BDE-N021935.A0
N021935
|
£10.85
|
£13.02
|
|
|
41 - MOTOR COVER
BDE-1006576-02.A0
1006576-02
|
£14.57
|
£17.48
|
|
|
45 - HOUSING HANDLE
BDE-1008798-00.A4
1008798-00
|
£14.19
|
£17.03
|
|
|
46 - TRIGGER
BDE-488065-01.A3
488065-01
|
£2.26
|
£2.71
|
|
|
47 - SWITCH
BDE-587274-00.A14
587274-00
|
£34.00
|
£40.80
|
|
|
48 - HANDLE COVER
BDE-1008682-00.A3
1008682-00
|
£16.03
|
£19.24
|
|
|
69 - SET OF LEAD WIRES GB
BDE-N047305.A2
N047305
|
£9.41
|
£11.29
|
|
|
72 - CORDSET GB
BDE-582319-42.A2
582319-42
|
£34.00
|
£40.80
|
|
|
83 - SCREW TORX
BDE-324007-11.A161
324007-11
|
£1.50
|
£1.80
|
|
|
85 - CORD CLAMP
BDE-821070.A232
821070
|
£1.50
|
£1.80
|
|
|
86 - CORD PROTECTOR
BDE-323091-01.A17
323091-01
|
£1.50
|
£1.80
|
|
|
100 - LIP SEAL
BDE-329816-00.A55
329816-00
|
£3.30
|
£3.96
|
|
|
101 - COLLAR
BDE-326575-01.A13
326575-01
|
£5.88
|
£7.06
|
|
|
102 - SLEEVE SA
BDE-479247-00.A55
479247-00
|
£7.18
|
£8.62
|
|
|
103 - SCREW
BDE-918825-02.A76
918825-02
|
£1.50
|
£1.80
|
|
|
104 - COVER
BDE-1006572-00.A0
1006572-00
|
£5.88
|
£7.06
|
|
|
105 - ROLLER
BDE-325878-00.A33
325878-00
|
£1.50
|
£1.80
|
|
|
106 - HALF WASHER
BDE-325929-00.A54
325929-00
|
£1.50
|
£1.80
|
|
|
107 - GUIDE
BDE-327208-00.A54
327208-00
|
£1.50
|
£1.80
|
|
|
108 - SPRING
BDE-323395-06.A60
323395-06
|
£1.50
|
£1.80
|
|
|
109 - SPRING
BDE-487118-00.A34
487118-00
|
£1.50
|
£1.80
|
|
|
110 - GUIDE
BDE-N313860.A7
N313860
|
£4.69
|
£5.63
|
|
|
115 - SIDE HANDLE
BDE-N501145.A13
N501145
|
£34.00
|
£40.80
|
|
|
119 - FELT
BDE-N038151.A7
N038151
|
£1.50
|
£1.80
|
|
|
120 - BUSH
BDE-N045793.A15
N045793
|
£1.50
|
£1.80
|
|
|
122 - SEAL
BDE-1007828-00.A19
1007828-00
|
£16.03
|
£19.24
|
|
|
123 - HOUSING
BDE-N041835.A11
N041835
|
£71.44
|
£85.73
|
|
|
126 - WASHER
BDE-1005982-00.A10
1005982-00
|
£1.50
|
£1.80
|
|
|
127 - DAMPER
BDE-496191-00.A8
496191-00
|
£2.26
|
£2.71
|
|
|
128 - SPINDLE
BDE-N041834.A3
N041834
|
£165.92
|
£199.11
|
|
|
129 - BEAT PIECE
BDE-N041847.A4
N041847
|
£71.44
|
£85.73
|
|
|
130 - SEAL
BDE-577484-00.A24
577484-00
|
£16.03
|
£19.24
|
|
|
131 - O RING
BDE-323711-10.A11
323711-10
|
£1.50
|
£1.80
|
|
|
135 - WASHER
BDE-N064329.A10
N064329
|
£1.50
|
£1.80
|
|
|
140 - BUSH
BDE-494857-00.A3
494857-00
|
£2.78
|
£3.34
|
|
|
141 - GASKET
BDE-1006283-00.A11
1006283-00
|
£2.78
|
£3.34
|
|
|
142 - SPRING
BDE-1005748-00.A13
1005748-00
|
£1.50
|
£1.80
|
|
|
143 - O RING
BDE-N210233.A56
N210233
|
£1.50
|
£1.80
|
|
|
144 - BUSH
BDE-1006778-00.A16
1006778-00
|
£1.50
|
£1.80
|
|
|
145 - CYLINDER
BDE-N041846.A11
N041846
|
£41.24
|
£49.49
|
|
|
146 - O RING
BDE-577744-00.A65
577744-00
|
£1.82
|
£2.19
|
|
|
147 - RAM
BDE-N041845.A5
N041845
|
£38.80
|
£46.56
|
|
|
148 - O RING
BDE-576232-01.A35
576232-01
|
£5.88
|
£7.06
|
|
|
149 - SLEEVE
BDE-N041844.A11
N041844
|
£19.90
|
£23.88
|
|
|
150 - SELECTOR FORK
BDE-1005749-00.A5
1005749-00
|
£1.50
|
£1.80
|
|
|
161 - RETAINER
BDE-325905-00.A38
325905-00
|
£1.50
|
£1.80
|
|
|
162 - PIN
BDE-330041-22.A65
330041-22
|
£1.50
|
£1.80
|
|
|
163 - PISTON
BDE-N041843.A5
N041843
|
£12.17
|
£14.60
|
|
|
164 - CON ROD
BDE-494724-00.A9
494724-00
|
£5.88
|
£7.06
|
|
|
165 - COVER RH
BDE-N511772.A2
N511772
|
£5.88
|
£7.06
|
|
|
166 - SELECTOR
BDE-1006786-00.A14
1006786-00
|
£2.26
|
£2.71
|
|
|
167 - DETENT
BDE-326467-00.A281
326467-00
|
£1.50
|
£1.80
|
|
|
168 - COVER-TOP
BDE-1006575-01.A2
1006575-01
|
£7.18
|
£8.62
|
|
|
169 - O RING
BDE-323711-57.A5
323711-57
|
£1.50
|
£1.80
|
|
|
172 - ECCENTRIC
BDE-496856-00.A8
496856-00
|
£1.50
|
£1.80
|
|
|
180 - SLIDER
BDE-1006784-00.A15
1006784-00
|
£1.50
|
£1.80
|
|
|
181 - SPRING
BDE-323395-32.A6
323395-32
|
£2.26
|
£2.71
|
|
|
182 - CONNECTOR
BDE-1006783-00.A1
1006783-00
|
£1.50
|
£1.80
|
|
|
183 - COVER
BDE-496857-00.A8
496857-00
|
£4.69
|
£5.63
|
|
|
184 - O RING
BDE-323711-59.A3
323711-59
|
£1.50
|
£1.80
|
|
|
185 - PLATE
BDE-1006785-00.A1
1006785-00
|
£3.30
|
£3.96
|
|
|
186 - CRANKSHAFT
BDE-N041841.A7
N041841
|
£84.42
|
£101.30
|
|
|
187 - O RING
BDE-323711-26.A21
323711-26
|
£1.50
|
£1.80
|
|
|
188 - HOUSING SA
BDE-N527066.A6
N527066
|
£126.63
|
£151.96
|
|
|
190 - BEARING BALL
BDE-577745-01.A17
577745-01
|
£7.85
|
£9.42
|
|
|
191 - BEARING NEEDLE
BDE-586301-00.A15
586301-00
|
£9.41
|
£11.29
|
|
|
192 - O RING
BDE-323711-57.A4
323711-57
|
£1.50
|
£1.80
|
|
|
193 - SCREW.SPECIAL
BDE-1008427-00.A4
1008427-00
|
£1.50
|
£1.80
|
|
|
201 - COVER LH
BDE-N511771.A0
N511771
|
£5.88
|
£7.06
|
|
|
206 - GASKET
BDE-1006282-00.A7
1006282-00
|
£3.80
|
£4.56
|
|
|
800 - GREASE
BDE-870889-03.A5
870889-03
|
£7.85
|
£9.42
|
|
|
810 - TUBE OIL
BDE-N040237.A10
N040237
|
£30.08
|
£36.10
|
|
|
816 - BRAND LABEL
BDE-N064908.A10
N064908
|
£1.50
|
£1.80
|
|
|
821 - RATING LABEL GB
BDE-N486484
N486484
|
£2.26
|
£2.71
|
|
|
836 - SERVICE TOOL
BDE-1003938-99.A7
1003938-99
|
£112.86
|
£135.43
|
|
|
837 - S.T.SEAL FITTING TOOL
BDE-559645-99.A13
559645-99
|
£25.70
|
£30.84
|
|
|
847 - SERVICE KIT 230V GB
BDE-N095941.A1
N095941
|
£110.62
|
£132.74
|
|
