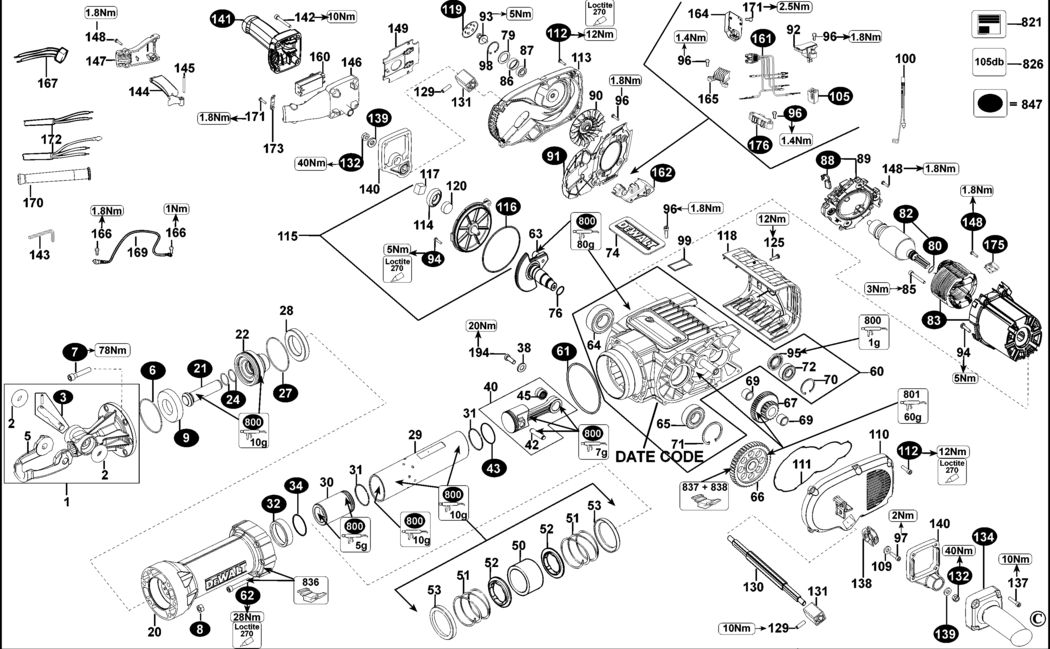

1 - HOLDER SA
BDE-494568-00.A1
494568-00
|
£371.62
|
£445.95
|
|
|
2 - DAMPER
BDE-478063-00.A2
478063-00
|
£5.88
|
£7.06
|
|
|
3 - REPAIR KIT
BDE-N500415.A4
N500415
|
£41.24
|
£49.49
|
|
|
5 - RETAINER
BDE-494570-00.A1
494570-00
|
£183.42
|
£220.10
|
|
|
6 - O RING
BDE-478116-00.A2
478116-00
|
£1.50
|
£1.80
|
|
|
7 - BOLT
BDE-949886-34.A1
949886-34
|
£1.50
|
£1.80
|
|
|
8 - NUT
BDE-496261-00.A0
496261-00
|
£1.50
|
£1.80
|
|
|
9 - FELT SEAL
BDE-490534-00.A1
490534-00
|
£4.69
|
£5.63
|
|
|
20 - HOUSING FRONT
BDE-494566-00.A1
494566-00
|
£174.63
|
£209.56
|
|
|
21 - BEAT PIECE
BDE-494567-00.A1
494567-00
|
£71.44
|
£85.73
|
|
|
22 - GUIDE SA
BDE-494562-00.A1
494562-00
|
£96.55
|
£115.86
|
|
|
24 - O RING
BDE-584706-00.A14
584706-00
|
£3.30
|
£3.96
|
|
|
27 - O RING
BDE-478119-00.A2
478119-00
|
£1.50
|
£1.80
|
|
|
28 - DAMPER
BDE-478071-00.A2
478071-00
|
£7.85
|
£9.42
|
|
|
29 - CYLINDER
BDE-494571-00.A3
494571-00
|
£218.32
|
£261.98
|
|
|
30 - RAM
BDE-1005669-00.A1
1005669-00
|
£144.10
|
£172.92
|
|
|
31 - PISTON RING
BDE-494543-00.A1
494543-00
|
£30.08
|
£36.10
|
|
|
32 - RING
BDE-494560-00.A3
494560-00
|
£19.90
|
£23.88
|
|
|
34 - O RING
BDE-494354-00.A0
494354-00
|
£3.30
|
£3.96
|
|
|
38 - WASHER
BDE-493421-00.A1
493421-00
|
£3.30
|
£3.96
|
|
|
40 - PISTON KIT
BDE-496978-00.A0
496978-00
|
£119.32
|
£143.19
|
|
|
42 - PIN
BDE-494559-00.A1
494559-00
|
£14.57
|
£17.48
|
|
|
43 - O RING
BDE-494355-01.A4
494355-01
|
£1.50
|
£1.80
|
|
|
45 - BEARING NEEDLE
BDE-494558-00.A3
494558-00
|
£19.90
|
£23.88
|
|
|
50 - CONNTERWEIGHT
BDE-494565-00.A1
494565-00
|
£59.41
|
£71.29
|
|
|
51 - SPRING
BDE-478080-00.A2
478080-00
|
£44.14
|
£52.97
|
|
|
52 - GUIDE
BDE-478081-00.A2
478081-00
|
£2.78
|
£3.34
|
|
|
53 - GUIDE
BDE-478082-00.A2
478082-00
|
£2.78
|
£3.34
|
|
|
60 - HOUSING SA
BDE-N040341.A1
N040341
|
£96.55
|
£115.86
|
|
|
61 - O RING
BDE-478120-00.A2
478120-00
|
£1.50
|
£1.80
|
|
|
62 - SCREW
BDE-949886-35.A3
949886-35
|
£3.30
|
£3.96
|
|
|
63 - CRANKSHAFT
BDE-494572-01.A1
494572-01
|
£119.32
|
£143.19
|
|
|
64 - BEARING BALL
BDE-577745-04.A0
577745-04
|
£17.48
|
£20.97
|
|
|
65 - BEARING BALL
BDE-577745-03.A5
577745-03
|
£7.85
|
£9.42
|
|
|
66 - GEAR
BDE-494576-00.A2
494576-00
|
£84.42
|
£101.30
|
|
|
67 - GEAR SA
BDE-494573-00.A3
494573-00
|
£104.31
|
£125.17
|
|
|
69 - BEARING SET
BDE-494549-00.A4
494549-00
|
£37.35
|
£44.82
|
|
|
70 - RETAINER
BDE-616726-00.A12
616726-00
|
£1.50
|
£1.80
|
|
|
71 - CIRCLIP
BDE-324821-05.A2
324821-05
|
£1.50
|
£1.80
|
|
|
72 - BEARING
BDE-330003-69.A2
330003-69
|
£9.41
|
£11.29
|
|
|
74 - NAMEPLATE
BDE-487668-00.A2
487668-00
|
£7.18
|
£8.62
|
|
|
76 - O RING
BDE-492448-00.A1
492448-00
|
£1.50
|
£1.80
|
|
|
79 - WASHER
BDE-491851-00.A1
491851-00
|
£1.50
|
£1.80
|
|
|
80 - RING
BDE-577746-01.A1
577746-01
|
£1.50
|
£1.80
|
|
|
82 - ARMATURE 230V GB
BDE-494578-01.A2
494578-01
|
£125.16
|
£150.19
|
|
|
82 - ARMATURE 120V LX
BDE-494578-00.A0
494578-00
|
£125.16
|
£150.19
|
|
|
83 - FIELD SA 230V GB
BDE-496846-01.A1
496846-01
|
£144.10
|
£172.92
|
|
|
83 - FIELD SA 115V LX
BDE-496846-00.A1
496846-00
|
£135.36
|
£162.43
|
|
|
85 - SCREW
BDE-330019-33.A18
330019-33
|
£1.50
|
£1.80
|
|
|
86 - SLEEVE
BDE-N236019.A2
N236019
|
£7.18
|
£8.62
|
|
|
87 - BEARING
BDE-577745-00.A36
577745-00
|
£7.85
|
£9.42
|
|
|
88 - BRUSH PAIR 115V LX
BDE-1005550-03.A3
1005550-03
|
£24.39
|
£29.27
|
|
|
88 - BRUSH PAIR 230V GB
BDE-1005550-02.A6
1005550-02
|
£34.00
|
£40.80
|
|
|
89 - BRUSH PLATE SA LX
BDE-N184443.A3
N184443
|
£44.14
|
£52.97
|
|
|
89 - BRUSH PLATE SA LX
BDE-N184444.A1
N184444
|
£55.30
|
£66.36
|
|
|
89 - BRUSH PLATE SA GB
BDE-N184443.A2
N184443
|
£44.14
|
£52.97
|
|
|
90 - FAN SA
BDE-491666-00.A2
491666-00
|
£24.39
|
£29.27
|
|
|
91 - BAFFLE
BDE-491639-00.A2
491639-00
|
£7.85
|
£9.42
|
|
|
92 - PICK UP
BDE-491640-00.A2
491640-00
|
£24.39
|
£29.27
|
|
|
93 - SCREW
BDE-324119-02.A104
324119-02
|
£1.50
|
£1.80
|
|
|
94 - SCREW TORX
BDE-324007-11.A188
324007-11
|
£1.50
|
£1.80
|
|
|
95 - SEAL
BDE-1006625-00.A4
1006625-00
|
£7.18
|
£8.62
|
|
|
96 - SCREW
BDE-330065-06.A393
330065-06
|
£1.50
|
£1.80
|
|
|
97 - SCREW
BDE-324006-14.A33
324006-14
|
£1.50
|
£1.80
|
|
|
98 - CIRCLIP
BDE-496097-00.A1
496097-00
|
£1.50
|
£1.80
|
|
|
99 - COVER BRUSH
BDE-491772-00.A1
491772-00
|
£1.50
|
£1.80
|
|
|
100 - FILTER GB
BDE-327517-01.A0
327517-01
|
£10.85
|
£13.02
|
|
|
100 - FILTER LX
BDE-327517-01.A1
327517-01
|
£10.85
|
£13.02
|
|
|
105 - SOCKET
BDE-491651-00.A2
491651-00
|
£1.50
|
£1.80
|
|
|
109 - WASHER
BDE-860075-01.A15
860075-01
|
£1.50
|
£1.80
|
|
|
110 - COVER GEARCASE
BDE-478096-00.A2
478096-00
|
£25.70
|
£30.84
|
|
|
111 - SEAL
BDE-478097-00.A2
478097-00
|
£9.41
|
£11.29
|
|
|
112 - SCREW
BDE-493968-00.A3
493968-00
|
£1.50
|
£1.80
|
|
|
113 - MOTOR COVER
BDE-478098-00.A2
478098-00
|
£16.03
|
£19.24
|
|
|
114 - CAP
BDE-487438-00.A0
487438-00
|
£1.50
|
£1.80
|
|
|
115 - COVER
BDE-491368-00.A1
491368-00
|
£12.17
|
£14.60
|
|
|
116 - O RING
BDE-478122-00.A2
478122-00
|
£1.50
|
£1.80
|
|
|
117 - RUBBER PAD
BDE-494786-00.A3
494786-00
|
£1.50
|
£1.80
|
|
|
118 - COVER REAR
BDE-479964-00.A2
479964-00
|
£12.17
|
£14.60
|
|
|
119 - END CAP
BDE-492668-00.A1
492668-00
|
£3.30
|
£3.96
|
|
|
120 - FILTER
BDE-487229-00.A9
487229-00
|
£1.50
|
£1.80
|
|
|
125 - SCREW
BDE-330045-24.A21
330045-24
|
£1.50
|
£1.80
|
|
|
129 - SCREW
BDE-153576-00.A3
153576-00
|
£1.50
|
£1.80
|
|
|
130 - REPAIR KIT
BDE-N141636.A7
N141636
|
£218.32
|
£261.98
|
|
|
131 - SPRING SA
BDE-478101-00.A2
478101-00
|
£24.39
|
£29.27
|
|
|
132 - NUT
BDE-494471-00.A1
494471-00
|
£1.50
|
£1.80
|
|
|
134 - HANDLE
BDE-N167287.A3
N167287
|
£41.24
|
£49.49
|
|
|
137 - SCREW
BDE-949886-37.A3
949886-37
|
£1.50
|
£1.80
|
|
|
138 - STOP RUBBER
BDE-478104-00.A2
478104-00
|
£3.80
|
£4.56
|
|
|
139 - WASHER CLAMP
BDE-495104-00.A2
495104-00
|
£1.50
|
£1.80
|
|
|
140 - REPAIR KIT
BDE-N141636.A6
N141636
|
£218.32
|
£261.98
|
|
|
141 - HANDLE RH
BDE-N167282.A2
N167282
|
£30.08
|
£36.10
|
|
|
142 - SCREW
BDE-949886-36.A1
949886-36
|
£1.50
|
£1.80
|
|
|
143 - HEX KEY 5 MM
BDE-930574-00.A82
930574-00
|
£1.50
|
£1.80
|
|
|
144 - TRIGGER
BDE-478107-00.A2
478107-00
|
£3.30
|
£3.96
|
|
|
145 - PIN
BDE-377374.A7
377374
|
£1.50
|
£1.80
|
|
|
146 - HOUSING SWITCH GB
BDE-N167284.A2
N167284
|
£18.91
|
£22.69
|
|
|
146 - HOUSING SWITCH LX
BDE-N167284.A3
N167284
|
£18.91
|
£22.69
|
|
|
147 - SWITCH COVER
BDE-N167324.A1
N167324
|
£5.88
|
£7.06
|
|
|
148 - SCREW
BDE-330065-08.A444
330065-08
|
£1.50
|
£1.80
|
|
|
149 - PROTECTOR
BDE-N167286.A1
N167286
|
£2.78
|
£3.34
|
|
|
160 - SWITCH
BDE-326087-04.A2
326087-04
|
£30.08
|
£36.10
|
|
|
161 - SET OF LEAD WIRES
BDE-494552-00.A1
494552-00
|
£30.08
|
£36.10
|
|
|
162 - COVER
BDE-495975-00.A3
495975-00
|
£3.80
|
£4.56
|
|
|
164 - GACC MODULE 230V GB
BDE-N127691.A1
N127691
|
£74.15
|
£88.98
|
|
|
164 - GACC MODULE 115V LX
BDE-N127692.A1
N127692
|
£80.98
|
£97.18
|
|
|
165 - HEATSINK
BDE-490796-00.A1
490796-00
|
£2.78
|
£3.34
|
|
|
166 - SCREW
BDE-326619-00.A1
326619-00
|
£1.50
|
£1.80
|
|
|
167 - CAPACITOR LX
BDE-807285-16.A2
807285-16
|
£7.18
|
£8.62
|
|
|
167 - CAPACITOR GB
BDE-807285-16.A3
807285-16
|
£7.18
|
£8.62
|
|
|
170 - CORD PROTECTOR LX
BDE-947964-01.A102
947964-01
|
£3.80
|
£4.56
|
|
|
170 - CORD PROTECTOR GB
BDE-947964-00.A8
947964-00
|
£10.85
|
£13.02
|
|
|
171 - SCREW
BDE-324006-02.A36
324006-02
|
£1.50
|
£1.80
|
|
|
172 - CORDSET LX
BDE-562226-69.A1
562226-69
|
£58.69
|
£70.43
|
|
|
172 - NO LONGER AVAILABLE GB
BDE-000000-00.A128886
000000-00
|
-
|
|
|
|
173 - CORD CLAMP LX
BDE-821070.A25
821070
|
£1.50
|
£1.80
|
|
|
173 - CORD CLAMP GB
BDE-821070.A26
821070
|
£1.50
|
£1.80
|
|
|
175 - SOCKET
BDE-490914-00.A2
490914-00
|
£1.50
|
£1.80
|
|
|
176 - PLUG
BDE-491650-00.A2
491650-00
|
£1.50
|
£1.80
|
|
|
194 - SCREW
BDE-494356-00.A0
494356-00
|
£1.50
|
£1.80
|
|
|
800 - GREASE 150 GMS 145gms
BDE-578970-06.A10
578970-06
|
£55.32
|
£66.38
|
|
|
801 - GREASE 90 GMS
BDE-870889-02.A589
870889-02
|
£7.85
|
£9.42
|
|
|
821 - NO LONGER AVAILABLE LX
BDE-000000-00.A128887
000000-00
|
-
|
|
|
|
821 - NO LONGER AVAILABLE GB
BDE-000000-00.A128888
000000-00
|
-
|
|
|
|
826 - LABEL
BDE-487395-01.A59
487395-01
|
£1.50
|
£1.80
|
|
|
836 - S.T.REMOVAL TOOL
BDE-559667-99.A2
559667-99
|
£71.44
|
£85.73
|
|
|
837 - S.T.REMOVAL TOOL
BDE-559668-99.A2
559668-99
|
£34.00
|
£40.80
|
|
|
838 - S.T.PISTON JAMMER
BDE-559669-99.A2
559669-99
|
£24.39
|
£29.27
|
|
|
847 - 300HR 230V SERVICE KIT W/OUT MOTOR GB
BDE-1005620-02.A1
1005620-02
|
£157.18
|
£188.61
|
|
|
847 - 300HR 120V SERVICE KIT W/OUT MOTOR LX
BDE-1005620-03.A1
1005620-03
|
£157.18
|
£188.61
|
|
