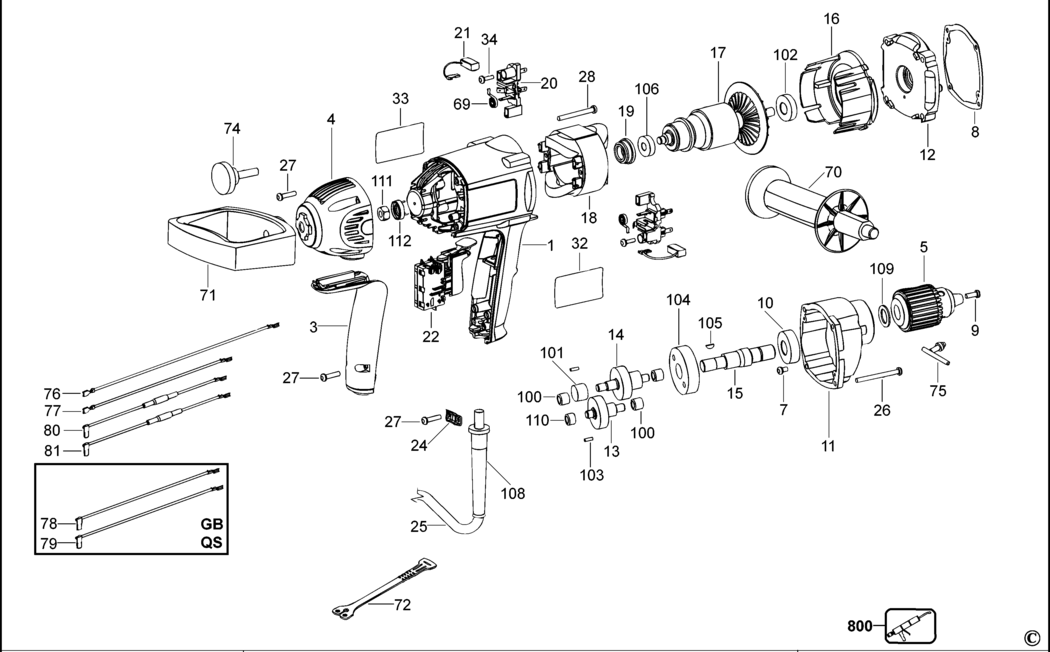

1 - FIELDCASE GB
BDE-616828-06.A4
616828-06
|
£16.03
|
£19.24
|
|
|
3 - HANDLE COVER GB
BDE-624114-00.A1
624114-00
|
£5.88
|
£7.06
|
|
|
4 - END CAP
BDE-622397-01.A3
622397-01
|
£4.69
|
£5.63
|
|
|
5 - CHUCK & KEY
BDE-5140204-44.A0
5140204-44
|
£19.90
|
£23.88
|
|
|
7 - SCREW
BDE-52819-00.A9
52819-00
|
£1.50
|
£1.80
|
|
|
8 - GASKET
BDE-450485-00.A3
450485-00
|
£2.26
|
£2.71
|
|
|
9 - SCREW
BDE-447735-02.A5
447735-02
|
£1.50
|
£1.80
|
|
|
10 - BEARING
BDE-605040-25.A105
605040-25
|
£4.69
|
£5.63
|
|
|
11 - GEARCASE SA
BDE-N209034.A6
N209034
|
£24.39
|
£29.27
|
|
|
12 - GEARCASE COVER SA
BDE-623442-00.A3
623442-00
|
£41.24
|
£49.49
|
|
|
13 - PINION & GEAR SA
BDE-449486-00.A1
449486-00
|
£47.08
|
£56.49
|
|
|
14 - PINION & GEAR SA
BDE-449489-00.A2
449489-00
|
£30.08
|
£36.10
|
|
|
15 - SPINDLE
BDE-147195-00.A5
147195-00
|
£34.00
|
£40.80
|
|
|
16 - BAFFLE FAN
BDE-655537-00.A8
655537-00
|
£3.80
|
£4.56
|
|
|
17 - ARMATURE 230V GB
BDE-658752-01SV.A0
658752-01SV
|
£71.44
|
£85.73
|
|
|
18 - FIELD 230V GB
BDE-624841-01SV.A0
624841-01SV
|
£17.48
|
£20.97
|
|
|
19 - SLEEVE
BDE-445217-02.A41
445217-02
|
£1.50
|
£1.80
|
|
|
20 - BRUSH HOLDER
BDE-616857-00.A1
616857-00
|
£7.18
|
£8.62
|
|
|
21 - BRUSH 230V GB
BDE-617848-03.A0
617848-03
|
£7.18
|
£8.62
|
|
|
22 - SWITCH SA GB
BDE-625228-00.A1
625228-00
|
£34.00
|
£40.80
|
|
|
24 - CORD CLAMP
BDE-450877-00.A37
450877-00
|
£1.50
|
£1.80
|
|
|
25 - CORDSET (M/PLUG) GB GB
BDE-330060-95.A0
330060-95
|
£41.24
|
£49.49
|
|
|
26 - SCREW
BDE-330019-30.A58
330019-30
|
£1.50
|
£1.80
|
|
|
27 - SCREW
BDE-330019-13.A187
330019-13
|
£1.50
|
£1.80
|
|
|
28 - SCREW
BDE-330019-17.A29
330019-17
|
£1.50
|
£1.80
|
|
|
32 - RATING PLATE GB
BDE-N041024
N041024
|
£14.57
|
£17.48
|
|
|
33 - IDENTITY LABEL
BDE-605523-00.A18
605523-00
|
£1.50
|
£1.80
|
|
|
34 - SCREW
BDE-176951-00.A64
176951-00
|
£1.50
|
£1.80
|
|
|
69 - BRUSH SPRING
BDE-383387-00.A18
383387-00
|
£3.80
|
£4.56
|
|
|
70 - SIDE HANDLE
BDE-625712-00.A3
625712-00
|
£9.41
|
£11.29
|
|
|
71 - HANDLE
BDE-628037-00.A1
628037-00
|
£14.57
|
£17.48
|
|
|
72 - HOLDER CHUCK KEY
BDE-065288-01.A1
065288-01
|
£1.50
|
£1.80
|
|
|
74 - KNOB
BDE-382531-00.A0
382531-00
|
£16.03
|
£19.24
|
|
|
75 - CHUCK KEY
BDE-330034-03.A1
330034-03
|
£7.85
|
£9.42
|
|
|
76 - LEAD BLUE GB
BDE-616852-00.A1
616852-00
|
£1.50
|
£1.80
|
|
|
77 - LEAD WHITE GB
BDE-616852-01.A7
616852-01
|
£1.50
|
£1.80
|
|
|
78 - NO LONGER AVAILABLE GB
BDE-000000-00.A63486
000000-00
|
-
|
|
|
|
79 - NO LONGER AVAILABLE GB
BDE-000000-00.A63487
000000-00
|
-
|
|
|
|
80 - CHOKE LEAD SA GB
BDE-N038758.A4
N038758
|
£16.03
|
£19.24
|
|
|
81 - CHOKE LEAD RED
BDE-616853-01.A7
616853-01
|
£7.18
|
£8.62
|
|
|
100 - BEARING NEEDLE
BDE-330004-02.A94
330004-02
|
£1.50
|
£1.80
|
|
|
101 - BEARING
BDE-135937-00.A10
135937-00
|
£3.30
|
£3.96
|
|
|
102 - BEARING
BDE-605040-20.A112
605040-20
|
£4.69
|
£5.63
|
|
|
103 - PIN
BDE-91286-00.A3
91286-00
|
£1.42
|
£1.70
|
|
|
104 - GEAR
BDE-400147-00.A0
400147-00
|
£3.80
|
£4.56
|
|
|
105 - KEY
BDE-7027-00.A1
7027-00
|
£1.50
|
£1.80
|
|
|
106 - BEARING
BDE-605040-06.A334
605040-06
|
£3.80
|
£4.56
|
|
|
108 - CORD PROTECTOR GB
BDE-N542553.A34
N542553
|
£3.80
|
£4.56
|
|
|
109 - WASHER
BDE-147196-00.A1
147196-00
|
£3.80
|
£4.56
|
|
|
110 - BEARING
BDE-449493-00.A3
449493-00
|
£1.82
|
£2.19
|
|
|
111 - NUT
BDE-99371-06.A1
99371-06
|
£1.50
|
£1.80
|
|
|
112 - CAP
BDE-623785-00.A4
623785-00
|
£1.50
|
£1.80
|
|
|
800 - GREASE
BDE-429698-00.A47
429698-00
|
£84.42
|
£101.30
|
|
