Dewalt D25012K Type 1 Rotary Hammer Spare Parts

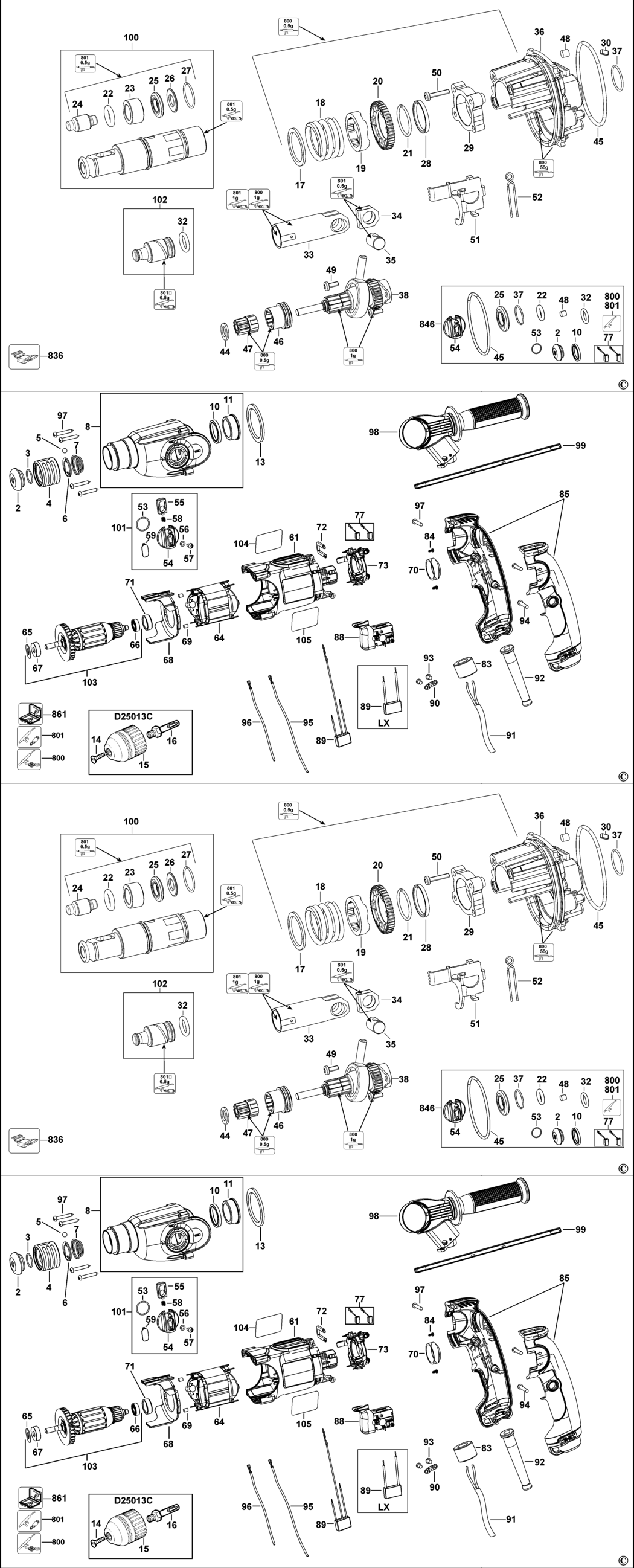

An exploded drawing and spare parts listing for the Dewalt D25012K Type 1 Rotary Hammer

	Ex VAT	Inc VAT
2 - CAP BDE-323489-00.A240 323489-00	£1.66	£1.99
2 - CAP BDE-323489-00.A241 323489-00	£1.66	£1.99
3 - RING BDE-579212-00.A105 579212-00	£1.66	£1.99
3 - RING BDE-579212-00.A106 579212-00	£1.66	£1.99
4 - COLLAR BDE-1005813-00.A2 1005813-00	£3.80	£4.56
4 - COLLAR BDE-1005813-00.A3 1005813-00	£3.80	£4.56
5 - BALL 7MM BDE-583890-00.A102 583890-00	£1.66	£1.99
5 - BALL 7MM BDE-583890-00.A103 583890-00	£1.66	£1.99
6 - WASHER BDE-578387-00.A152 578387-00	£1.66	£1.99
6 - WASHER BDE-578387-00.A153 578387-00	£1.66	£1.99
7 - SPRING BDE-871690.A157 871690	£1.66	£1.99
7 - SPRING BDE-871690.A158 871690	£1.66	£1.99
8 - HOUSING GEAR SA BDE-N034183.A2 N034183	£30.08	£36.10
8 - HOUSING GEAR SA BDE-N034183.A3 N034183	£30.08	£36.10
10 - SEAL BDE-N496180.A3 N496180	£3.30	£3.96
10 - SEAL BDE-327141-06.A11 327141-06	£3.30	£3.96
11 - BEARING SPINDLE BDE-N020023.A16 N020023	£7.18	£8.62
11 - BEARING SPINDLE BDE-N020023.A17 N020023	£7.18	£8.62
13 - WASHER BDE-589350-00.A17 589350-00	£1.50	£1.80
13 - WASHER BDE-589350-00.A18 589350-00	£1.50	£1.80
17 - WASHER BDE-589350-00.A19 589350-00	£1.50	£1.80
17 - WASHER BDE-589350-00.A20 589350-00	£1.50	£1.80
18 - SPRING BDE-589346-00.A11 589346-00	£4.69	£5.63
18 - SPRING BDE-589346-00.A12 589346-00	£4.69	£5.63
19 - RING BDE-N031765.A5 N031765	£7.85	£9.42
19 - RING BDE-N031765.A6 N031765	£7.85	£9.42
20 - GEAR BDE-N031766.A1 N031766	£16.03	£19.24
20 - GEAR BDE-N031766.A2 N031766	£16.03	£19.24
21 - CIRCLIP BDE-323762-02.A14 323762-02	£1.50	£1.80
21 - CIRCLIP BDE-323762-02.A15 323762-02	£1.50	£1.80
22 - O RING BDE-1005809-00.A2 1005809-00	£1.50	£1.80
22 - O RING BDE-1005809-00.A3 1005809-00	£1.50	£1.80
23 - TUBE GUIDE BDE-N470388.A19 N470388	£2.78	£3.34
23 - TUBE GUIDE BDE-N470388.A21 N470388	£2.78	£3.34
24 - BEAT PIECE BDE-N031767.A5 N031767	£5.72	£6.87
24 - BEAT PIECE BDE-N031767.A6 N031767	£5.72	£6.87
25 - RING BDE-1005808-00.A15 1005808-00	£3.30	£3.96
25 - RING BDE-1005808-00.A16 1005808-00	£3.30	£3.96
26 - WASHER BDE-327087-00.A3 327087-00	£1.82	£2.19
26 - WASHER BDE-327087-00.A4 327087-00	£1.82	£2.19
27 - RING <2014 WK16 BDE-323762-07.A38 323762-07	£1.50	£1.80
27 - RING >=2014 WK16 BDE-N294259.A15 N294259	£1.50	£1.80
27 - RING <2014-WK16 BDE-323762-07.A39 323762-07	£1.50	£1.80
27 - RING >=2014-WK16 BDE-N294259.A14 N294259	£1.50	£1.80
28 - RING BDE-1005837-00.A4 1005837-00	£1.50	£1.80
28 - RING BDE-1005837-00.A5 1005837-00	£1.50	£1.80
29 - BEARING BDE-N031768.A1 N031768	£5.72	£6.87
29 - BEARING BDE-N031768.A2 N031768	£5.72	£6.87
30 - FELT BDE-N399611.A6 N399611	£14.57	£17.48
30 - FELT BDE-N399611.A7 N399611	£14.57	£17.48
32 - O RING BDE-577168-00.A41 577168-00	£1.50	£1.80
32 - O RING BDE-577168-00.A42 577168-00	£1.50	£1.80
33 - PISTON BDE-N031769.A5 N031769	£18.91	£22.69
33 - PISTON BDE-N031769.A6 N031769	£18.91	£22.69
34 - WASHER BDE-1005842-00.A2 1005842-00	£1.50	£1.80
34 - WASHER BDE-1005842-00.A3 1005842-00	£1.50	£1.80
35 - BOLT BDE-1005843-00.A4 1005843-00	£3.30	£3.96
35 - BOLT BDE-1005843-00.A5 1005843-00	£3.30	£3.96
36 - HOUSING BEARING BDE-N407630.A6 N407630	£15.63	£18.76
36 - HOUSING BEARING BDE-N407630.A7 N407630	£15.63	£18.76
37 - O RING BDE-1005810-00.A2 1005810-00	£1.50	£1.80
37 - O RING BDE-1005810-00.A3 1005810-00	£1.50	£1.80
38 - INTERSHAFT SA BDE-N402884.A0 N402884	-
38 - INTERSHAFT SA BDE-N031514.A4 N031514	£51.90	£62.28
44 - WASHER BDE-1005844-00.A8 1005844-00	£1.50	£1.80
44 - WASHER BDE-1005844-00.A9 1005844-00	£1.50	£1.80
45 - SEAL BDE-1005807-00.A2 1005807-00	£1.50	£1.80
45 - SEAL BDE-1005807-00.A3 1005807-00	£1.50	£1.80
46 - COLLAR BDE-N031771.A1 N031771	£7.18	£8.62
46 - COLLAR BDE-N031771.A2 N031771	£7.18	£8.62
47 - GEAR BDE-N031772.A5 N031772	£7.85	£9.42
47 - GEAR BDE-N031772.A6 N031772	£7.85	£9.42
48 - FELT BDE-1005812-00.A23 1005812-00	£1.50	£1.80
48 - FELT BDE-1005812-00.A24 1005812-00	£1.50	£1.80
49 - SCREW BDE-324006-14.A36 324006-14	£1.50	£1.80
49 - SCREW BDE-N445171.A62 N445171	£1.50	£1.80
50 - SCREW BDE-324006-15.A51 324006-15	£1.50	£1.80
50 - SCREW BDE-324006-15.A52 324006-15	£1.50	£1.80
51 - SELECTOR FORK BDE-1005796-00.A2 1005796-00	£3.30	£3.96
51 - SELECTOR FORK BDE-1005796-00.A3 1005796-00	£3.30	£3.96
52 - SPRING BDE-1005795-00.A24 1005795-00	£1.50	£1.80
52 - SPRING BDE-1005795-00.A25 1005795-00	£1.50	£1.80
53 - O RING BDE-1005821-00.A2 1005821-00	£2.26	£2.71
53 - O RING BDE-1005821-00.A3 1005821-00	£2.26	£2.71
54 - SELECTOR BDE-1005822-00.A4 1005822-00	£1.50	£1.80
54 - SELECTOR BDE-1005822-00.A5 1005822-00	£1.50	£1.80
55 - BUTTON BDE-1005823-00.A2 1005823-00	£1.42	£1.70
55 - BUTTON BDE-1005823-00.A3 1005823-00	£1.42	£1.70
56 - SEAL BDE-1005811-00.A6 1005811-00	£1.50	£1.80
56 - SEAL BDE-1005811-00.A7 1005811-00	£1.50	£1.80
57 - SCREW BDE-330065-05.A6 330065-05	£1.50	£1.80
57 - SCREW BDE-330065-05.A7 330065-05	£1.50	£1.80
58 - SPRING BDE-1005824-00.A4 1005824-00	£1.50	£1.80
58 - SPRING BDE-1005824-00.A5 1005824-00	£1.50	£1.80
59 - CAP BDE-1005825-00.A2 1005825-00	£1.50	£1.80
59 - CAP BDE-1005825-00.A3 1005825-00	£1.50	£1.80
61 - HOUSING MOTOR BDE-1005866-00.A4 1005866-00	£12.17	£14.60
61 - HOUSING MOTOR BDE-1005866-00.A5 1005866-00	£12.17	£14.60
64 - FIELD SA 115V LX BDE-N032580.A0 N032580	£34.00	£40.80
64 - FIELD SA 230V GB BDE-N032579.A2 N032579	£34.00	£40.80
65 - WASHER BDE-N245239.A9 N245239	£1.50	£1.80
66 - BEARING BDE-1005895-00.A31 1005895-00	£2.78	£3.34
66 - BEARING BDE-1005895-00.A32 1005895-00	£2.78	£3.34
67 - BEARING BDE-330003-60.A174 330003-60	£2.78	£3.34
67 - BEARING BDE-330003-60.A175 330003-60	£2.78	£3.34
68 - BAFFLE FAN BDE-1005869-00.A2 1005869-00	£1.42	£1.70
68 - BAFFLE FAN BDE-1005869-00.A3 1005869-00	£1.42	£1.70
69 - RUBBER PAD BDE-N012971.A4 N012971	£1.50	£1.80
69 - RUBBER PAD BDE-N012971.A5 N012971	£1.50	£1.80
70 - RING BDE-1005856-00.A8 1005856-00	£1.50	£1.80
70 - RING BDE-1005856-00.A9 1005856-00	£1.50	£1.80
71 - COVER BEARING BDE-1005865-00.A3 1005865-00	£1.50	£1.80
71 - COVER BEARING BDE-1005865-00.A4 1005865-00	£1.50	£1.80
72 - CLIP BDE-1005894-00.A2 1005894-00	£1.50	£1.80
72 - CLIP BDE-1005894-00.A3 1005894-00	£1.50	£1.80
73 - BRUSH HOLDER SA LX BDE-N031774.A2 N031774	-
73 - BRUSH HOLDER SA GB BDE-N031773.A0 N031773	-
77 - BRUSH PAIR 120V LX BDE-N090738.A1 N090738	£9.41	£11.29
77 - BRUSH PAIR 230V GB BDE-N090737.A1 N090737	£9.41	£11.29
83 - BUSH BDE-388414-01.A52 388414-01	£1.50	£1.80
84 - SCREW BDE-330065-35.A17 330065-35	£1.50	£1.80
84 - SCREW BDE-330065-35.A18 330065-35	£1.50	£1.80
85 - CLAMSHELL SET BDE-N031775.A0 N031775	£19.90	£23.88
85 - CLAMSHELL SET BDE-N031775.A1 N031775	£19.90	£23.88
88 - SWITCH LOCK-ON to wk46 2012 LX BDE-N031777.A0 N031777	£16.03	£19.24
88 - SWITCH LOCK-ON from wk46 2012 GB BDE-N166238.A2 N166238	£16.03	£19.24
88 - SWITCH LOCK-ON from wk46 2012 LX BDE-N166239.A1 N166239	£16.03	£19.24
88 - SWITCH LOCK-ON to wk46 2012 GB BDE-N031776.A1 N031776	£16.03	£19.24
89 - CAPACITOR 115V LX BDE-1005863-00.A1 1005863-00	£1.42	£1.70
89 - CAPACITOR 220V GB BDE-1005873-00.A1 1005873-00	£3.80	£4.56
90 - CORD CLAMP BDE-821070.A37 821070	£1.50	£1.80
90 - CORD CLAMP BDE-821070.A38 821070	£1.50	£1.80
91 - CORDSET LX BDE-1005753-00.A1 1005753-00	£50.60	£60.72
91 - CORDSET GB BDE-1005756-00.A1 1005756-00	£25.05	£30.06
92 - CORD PROTECTOR BDE-403395-00.A2 403395-00	£1.50	£1.80
92 - CORD PROTECTOR BDE-403395-00.A3 403395-00	£1.50	£1.80
93 - SCREW BDE-330065-06.A242 330065-06	£1.50	£1.80
93 - SCREW BDE-330065-06.A243 330065-06	£1.50	£1.80
94 - SCREW BDE-330065-09.A44 330065-09	£1.50	£1.80
94 - SCREW BDE-330065-09.A45 330065-09	£1.50	£1.80
95 - LEAD RED BDE-1005879-01.A13 1005879-01	£1.50	£1.80
95 - LEAD RED BDE-1005879-01.A14 1005879-01	£1.50	£1.80
96 - LEAD BLUE BDE-1005879-00.A8 1005879-00	£1.50	£1.80
96 - LEAD BLUE BDE-1005879-00.A9 1005879-00	£1.50	£1.80
97 - SCREW BDE-330065-28.A33 330065-28	£1.50	£1.80
97 - SCREW BDE-330065-28.A34 330065-28	£1.50	£1.80
98 - SIDE HANDLE BDE-1005896-00.A5 1005896-00	£10.85	£13.02
98 - SIDE HANDLE BDE-1005896-00.A6 1005896-00	£10.85	£13.02
99 - DEPTH STOP BDE-798846-02.A35 798846-02	£1.50	£1.80
99 - DEPTH STOP BDE-798846-02.A36 798846-02	£1.50	£1.80
100 - SPINDLE SA <2014-WK16 BDE-N385791.A3 N385791	£37.82	£45.38
100 - SPINDLE SA >=2014 WK16 BDE-N385791.A4 N385791	£37.82	£45.38
100 - SPINDLE SA <2014 WK16 BDE-N031512.A2 N031512	£55.30	£66.36
100 - SPINDLE SA >=2014-WK16 BDE-N385791.A2 N385791	£37.82	£45.38
101 - SELECTOR SA BDE-N031515.A5 N031515	£9.41	£11.29
101 - SELECTOR SA BDE-N031515.A6 N031515	£9.41	£11.29
102 - RAM SA BDE-N031513.A0 N031513	£11.87	£14.24
102 - RAM SA BDE-N031513.A1 N031513	£11.87	£14.24
103 - ARMATURE 115V LX BDE-N404428.A0 N404428	£43.02	£51.63
103 - ARMATURE SA GB BDE-N404429.A2 N404429	£44.14	£52.97
104 - RATING PLATE LX BDE-1005781-00 1005781-00	£1.42	£1.70
104 - RATING PLATE GB BDE-1005782-00 1005782-00	£1.42	£1.70
105 - BRAND LABEL BDE-1005767-00.A0 1005767-00	£1.50	£1.80
105 - BRAND LABEL BDE-1005767-00.A1 1005767-00	£1.50	£1.80
800 - GREASE 90 GMS BDE-870889-02.A488 870889-02	£7.85	£9.42
800 - GREASE 90 GMS BDE-870889-02.A489 870889-02	£7.85	£9.42
801 - GREASE 10 GMS BDE-487130-04.A62 487130-04	£3.80	£4.56
801 - GREASE 10 GMS BDE-487130-04.A63 487130-04	£3.80	£4.56
836 - S.T.CIRCLIP REMOVER BDE-596005-99.A16 596005-99	£84.42	£101.30
836 - S.T.CIRCLIP REMOVER BDE-596006-99.A36 596006-99	£37.35	£44.82
836 - S.T.CIRCLIP REMOVER BDE-596006-99.A37 596006-99	£37.35	£44.82
836 - S.T.CIRCLIP INSERTER BDE-596008-99.A4 596008-99	£17.48	£20.97
836 - S.T.CIRCLIP REMOVER BDE-596005-99.A17 596005-99	£84.42	£101.30
836 - S.T.CIRCLIP INSERTER BDE-596008-99.A5 596008-99	£17.48	£20.97
846 - SERVICE KIT 115V LX BDE-N032839.A0 N032839	£44.00	£52.80
846 - SERVICE KIT 230V GB BDE-N032833.A2 N032833	£45.14	£54.17
861 - KITBOX BDE-1005857-00.A3 1005857-00	£36.42	£43.70
861 - KITBOX BDE-1005857-00.A4 1005857-00	£36.42	£43.70
