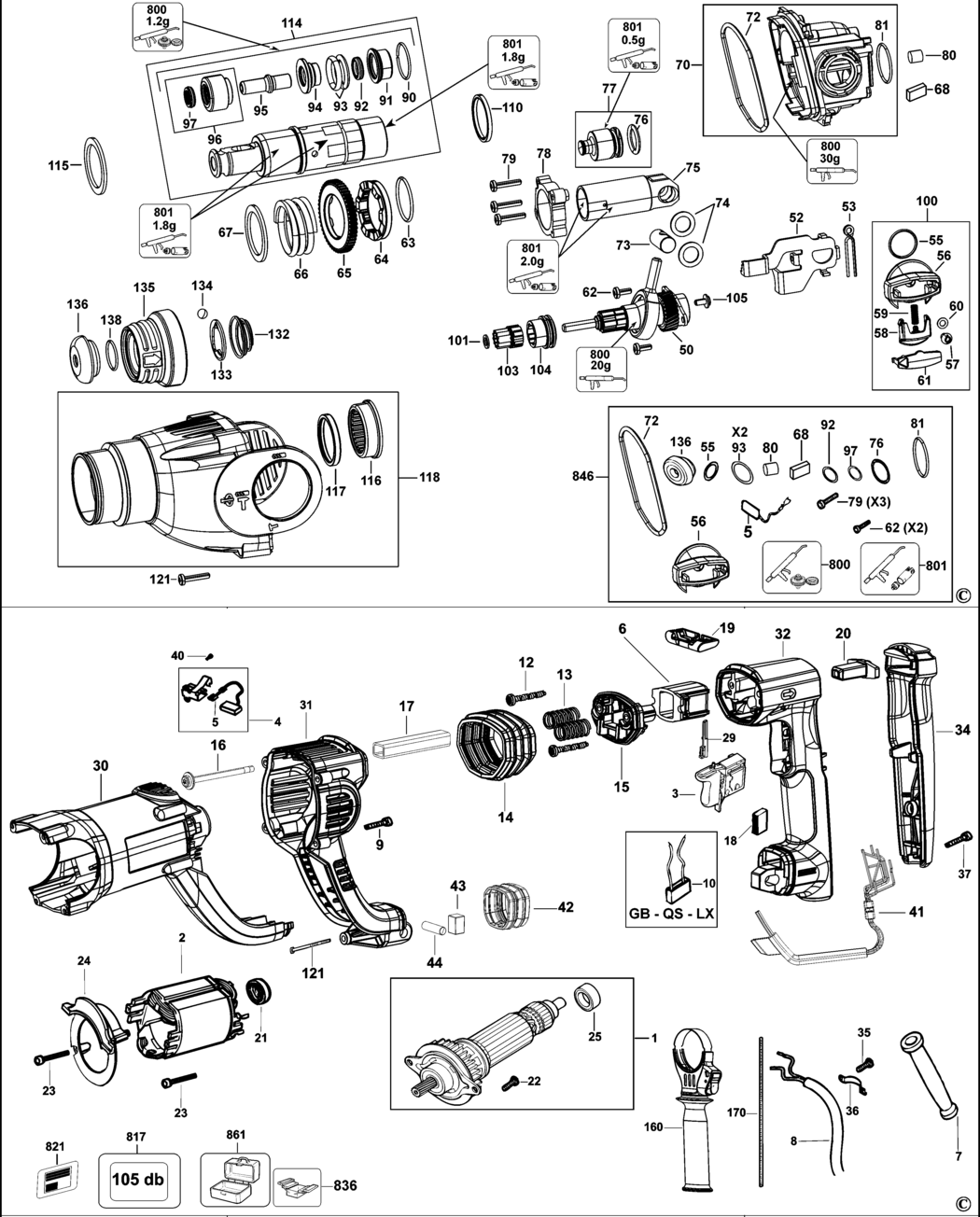

1 - ARMATURE SA LX
BDE-N076031.A2
N076031
|
£93.62
|
£112.35
|
|
|
1 - ARMATURE 230V GB
BDE-N076023.A0
N076023
|
£91.27
|
£109.53
|
|
|
2 - FIELD 120V LX
BDE-496247-00.A2
496247-00
|
£24.39
|
£29.27
|
|
|
2 - FIELD 230V GB
BDE-576690-05.A28
576690-05
|
£30.08
|
£36.10
|
|
|
3 - SWITCH LOCK-ON GB
BDE-1006749-00.A3
1006749-00
|
£41.24
|
£49.49
|
|
|
3 - SWITCH LX
BDE-1006749-01.A1
1006749-01
|
£41.24
|
£49.49
|
|
|
4 - BRUSH HOLDER SA GB
BDE-N028619.A1
N028619
|
£7.85
|
£9.42
|
|
|
4 - BRUSH HOLDER SA LX
BDE-N028620.A7
N028620
|
£9.41
|
£11.29
|
|
|
5 - BRUSH PAIR 230V GB
BDE-N058083.A0
N058083
|
£10.85
|
£13.02
|
|
|
5 - BRUSH PAIR 115V LX
BDE-N058084.A8
N058084
|
£17.03
|
£20.44
|
|
|
6 - GUIDE BUSH
BDE-1007502-00.A6
1007502-00
|
£4.69
|
£5.63
|
|
|
7 - CORD PROTECTOR
BDE-584090-00.A57
584090-00
|
£1.50
|
£1.80
|
|
|
8 - CORDSET GB
BDE-582319-42.A8
582319-42
|
£34.00
|
£40.80
|
|
|
8 - CORDSET LX
BDE-582319-43.A1
582319-43
|
£43.02
|
£51.63
|
|
|
9 - SCREW
BDE-330065-09.A46
330065-09
|
£1.50
|
£1.80
|
|
|
10 - CAPACITOR LX
BDE-320842-19.A29
320842-19
|
£1.50
|
£1.80
|
|
|
10 - CAPACITOR GB
BDE-320842-19.A30
320842-19
|
£1.50
|
£1.80
|
|
|
12 - SCREW
BDE-330065-13.A36
330065-13
|
£1.50
|
£1.80
|
|
|
13 - SPRING
BDE-1006421-00.A8
1006421-00
|
£1.50
|
£1.80
|
|
|
14 - BELLOWS
BDE-1006418-00.A8
1006418-00
|
£1.50
|
£1.80
|
|
|
15 - BEARING HOLDER
BDE-1007508-00.A6
1007508-00
|
-
|
|
|
|
16 - SCREW
BDE-324119-04.A4
324119-04
|
£1.50
|
£1.80
|
|
|
17 - TUBE GUIDE
BDE-1005646-00.A10
1005646-00
|
£7.18
|
£8.62
|
|
|
18 - BUMPER
BDE-930026-01.A156
930026-01
|
£1.50
|
£1.80
|
|
|
19 - LEVER
BDE-1006423-00.A1
1006423-00
|
£1.50
|
£1.80
|
|
|
20 - STOP NUT
BDE-1007503-00.A2
1007503-00
|
£4.69
|
£5.63
|
|
|
21 - SLEEVE
BDE-870052.A82
870052
|
£1.50
|
£1.80
|
|
|
22 - SCREW
BDE-324006-14.A71
324006-14
|
£1.50
|
£1.80
|
|
|
23 - SCREW
BDE-326519-03.A51
326519-03
|
£1.50
|
£1.80
|
|
|
24 - BAFFLE
BDE-582144-00.A6
582144-00
|
£1.78
|
£2.13
|
|
|
25 - BEARING
BDE-1005895-00.A20
1005895-00
|
£2.78
|
£3.34
|
|
|
29 - INSERT GB
BDE-584551-00.A1
584551-00
|
£2.26
|
£2.71
|
|
|
29 - INSERT LX
BDE-584551-00.A2
584551-00
|
£2.26
|
£2.71
|
|
|
30 - HOUSING MOTOR
BDE-1007092-00.A0
1007092-00
|
£18.42
|
£22.10
|
|
|
31 - HOUSING HANDLE
BDE-1007135-00.A1
1007135-00
|
£10.57
|
£12.68
|
|
|
32 - HANDLE
BDE-1007136-00.A0
1007136-00
|
£14.19
|
£17.03
|
|
|
34 - HANDLE COVER
BDE-1007137-00.A1
1007137-00
|
£11.87
|
£14.24
|
|
|
35 - SCREW
BDE-330065-08.A267
330065-08
|
£1.50
|
£1.80
|
|
|
36 - CORD CLAMP
BDE-821070.A446
821070
|
£1.50
|
£1.80
|
|
|
37 - SCREW
BDE-330065-08.A266
330065-08
|
£1.50
|
£1.80
|
|
|
40 - SCREW
BDE-330065-25.A54
330065-25
|
£1.50
|
£1.80
|
|
|
41 - SET OF LEAD WIRES GB
BDE-N020437.A1
N020437
|
£153.22
|
£183.86
|
|
|
41 - SET OF LEAD WIRES LX
BDE-N031250.A1
N031250
|
£29.32
|
£35.18
|
|
|
42 - BELLOWS
BDE-1007890-00.A1
1007890-00
|
£1.42
|
£1.70
|
|
|
43 - DAMPER
BDE-1008355-00.A0
1008355-00
|
£1.42
|
£1.70
|
|
|
44 - AXLE
BDE-1007869-00.A0
1007869-00
|
£1.42
|
£1.70
|
|
|
50 - INTERSHAFT SA
BDE-N076098.A4
N076098
|
£58.69
|
£70.43
|
|
|
52 - PLATE
BDE-N029727.A6
N029727
|
£2.78
|
£3.34
|
|
|
53 - SPRING
BDE-N042799.A6
N042799
|
£1.50
|
£1.80
|
|
|
55 - LEVER SA GB
BDE-N104814.A4
N104814
|
£3.22
|
£3.86
|
|
|
55 - LEVER SA LX
BDE-N104814.A5
N104814
|
£3.22
|
£3.86
|
|
|
56 - LEVER SA LX
BDE-N104814.A6
N104814
|
£3.22
|
£3.86
|
|
|
56 - LEVER SA GB
BDE-N104814.A7
N104814
|
£3.22
|
£3.86
|
|
|
57 - SCREW
BDE-330065-05.A61
330065-05
|
£1.50
|
£1.80
|
|
|
58 - LOCK BUTTON
BDE-N034136.A10
N034136
|
£1.42
|
£1.70
|
|
|
59 - SPRING
BDE-N074923.A22
N074923
|
£1.50
|
£1.80
|
|
|
60 - SEAL
BDE-1005811-00.A11
1005811-00
|
£1.50
|
£1.80
|
|
|
61 - COVER
BDE-N034134.A2
N034134
|
£1.50
|
£1.80
|
|
|
62 - SCREW
BDE-324006-14.A72
324006-14
|
£1.50
|
£1.80
|
|
|
63 - LOCKING RING
BDE-581836-00.A16
581836-00
|
£1.50
|
£1.80
|
|
|
64 - RING
BDE-N076101.A0
N076101
|
£14.19
|
£17.03
|
|
|
65 - GEAR
BDE-N076102.A5
N076102
|
£18.42
|
£22.10
|
|
|
66 - SPRING
BDE-N029717.A6
N029717
|
£3.80
|
£4.56
|
|
|
67 - WASHER
BDE-577814-00.A78
577814-00
|
£2.26
|
£2.71
|
|
|
68 - FELT
BDE-N081515.A0
N081515
|
£1.50
|
£1.80
|
|
|
70 - GEARCASE SA
BDE-N076103.A0
N076103
|
£25.70
|
£30.84
|
|
|
72 - SEAL
BDE-578229-00.A17
578229-00
|
£1.50
|
£1.80
|
|
|
73 - BEARING BLOCK
BDE-577801-00.A15
577801-00
|
£5.88
|
£7.06
|
|
|
74 - WASHER SHIM
BDE-577802-00.A79
577802-00
|
£2.21
|
£2.65
|
|
|
75 - PISTON
BDE-496246-00.A35
496246-00
|
£18.91
|
£22.69
|
|
|
76 - O RING
BDE-579699-00.A34
579699-00
|
£1.50
|
£1.80
|
|
|
77 - RAM
BDE-496245-00.A3
496245-00
|
£17.48
|
£20.97
|
|
|
78 - BEARING BUSH
BDE-N029731.A6
N029731
|
£4.58
|
£5.49
|
|
|
79 - SCREW
BDE-324006-15.A18
324006-15
|
£1.50
|
£1.80
|
|
|
80 - FELT
BDE-N038257.A5
N038257
|
£1.50
|
£1.80
|
|
|
81 - O RING
BDE-N042496.A6
N042496
|
£1.50
|
£1.80
|
|
|
90 - CLIP
BDE-577793-00.A66
577793-00
|
£1.50
|
£1.80
|
|
|
91 - BUSH
BDE-584426-00.A38
584426-00
|
£16.03
|
£19.24
|
|
|
92 - O RING
BDE-580990-00.A42
580990-00
|
£1.50
|
£1.80
|
|
|
93 - O RING
BDE-577135-00.A9
577135-00
|
£3.30
|
£3.96
|
|
|
94 - DAMPER
BDE-584425-00.A28
584425-00
|
£16.03
|
£19.24
|
|
|
95 - BEAT PIECE
BDE-584424-00.A20
584424-00
|
£17.48
|
£20.97
|
|
|
96 - BEARING & SEAL
BDE-584423-00.A24
584423-00
|
£18.91
|
£22.69
|
|
|
97 - SEAL
BDE-577139-00.A87
577139-00
|
£1.50
|
£1.80
|
|
|
100 - LEVER KIT GB
BDE-N099541.A0
N099541
|
£7.64
|
£9.17
|
|
|
100 - LEVER KIT LX
BDE-N099541.A1
N099541
|
£7.64
|
£9.17
|
|
|
101 - WASHER
BDE-1005844-00.A17
1005844-00
|
£1.50
|
£1.80
|
|
|
103 - PINION GEAR
BDE-N029726.A6
N029726
|
£11.87
|
£14.24
|
|
|
104 - COLLAR
BDE-N029725.A6
N029725
|
£3.80
|
£4.56
|
|
|
105 - SCREW
BDE-329794-00.A58
329794-00
|
£1.50
|
£1.80
|
|
|
110 - WASHER
BDE-N059509.A12
N059509
|
£1.50
|
£1.80
|
|
|
114 - SPINDLE SA
BDE-N076105.A1
N076105
|
£78.95
|
£94.74
|
|
|
115 - WASHER
BDE-577814-00.A73
577814-00
|
£2.26
|
£2.71
|
|
|
116 - BEARING NEEDLE
BDE-577813-00.A5
577813-00
|
£7.85
|
£9.42
|
|
|
117 - SEAL
BDE-577812-00.A16
577812-00
|
£2.78
|
£3.34
|
|
|
118 - GEARCASE SA
BDE-N076107.A1
N076107
|
£37.35
|
£44.82
|
|
|
121 - SCREW
BDE-330019-81.A4
330019-81
|
£1.50
|
£1.80
|
|
|
132 - SPRING
BDE-871690.A207
871690
|
£1.66
|
£1.99
|
|
|
133 - WASHER
BDE-578387-00.A250
578387-00
|
£1.66
|
£1.99
|
|
|
134 - BALL 7MM
BDE-583890-00.A13
583890-00
|
£1.66
|
£1.99
|
|
|
135 - TUBE
BDE-N774198.A4
N774198
|
£12.17
|
£14.60
|
|
|
136 - CAP
BDE-323489-00.A148
323489-00
|
£1.66
|
£1.99
|
|
|
138 - RING
BDE-579212-00.A141
579212-00
|
£1.66
|
£1.99
|
|
|
160 - HANDLE SIDE SA
BDE-1008956-00.A9
1008956-00
|
£24.39
|
£29.27
|
|
|
170 - DEPTH STOP
BDE-495699-00.A28
495699-00
|
£7.85
|
£9.42
|
|
|
800 - GREASE 90 GMS
BDE-870889-02.A475
870889-02
|
£7.85
|
£9.42
|
|
|
801 - GREASE 10 GMS
BDE-487130-04.A58
487130-04
|
£3.80
|
£4.56
|
|
|
817 - LABEL
BDE-496620-00.A22
496620-00
|
£1.50
|
£1.80
|
|
|
821 - RATING PLATE GB
BDE-N075052
N075052
|
£1.42
|
£1.70
|
|
|
821 - RATING PLATE LX
BDE-N075053
N075053
|
£1.42
|
£1.70
|
|
|
836 - S.T.CIRCLIP REMOVER
BDE-596005-99.A25
596005-99
|
£84.42
|
£101.30
|
|
|
836 - S.T.CIRCLIP INSERTER
BDE-1003925-99.A17
1003925-99
|
£144.10
|
£172.92
|
|
|
836 - S.T.INSERT
BDE-1003926-99.A2
1003926-99
|
£51.90
|
£62.28
|
|
|
836 - S.T.CIRCLIP REMOVER
BDE-1003924-99.A2
1003924-99
|
£157.18
|
£188.61
|
|
|
846 - SERVICE KIT 120V LX
BDE-N104815.A2
N104815
|
£47.08
|
£56.49
|
|
|
846 - SERVICE KIT 230V GB
BDE-N104816.A1
N104816
|
£47.08
|
£56.49
|
|
|
861 - KITBOX
BDE-N328939.A3
N328939
|
£25.05
|
£30.06
|
|
