Dewalt D25414K Type 2 Rotary Hammer Drill Spare Parts

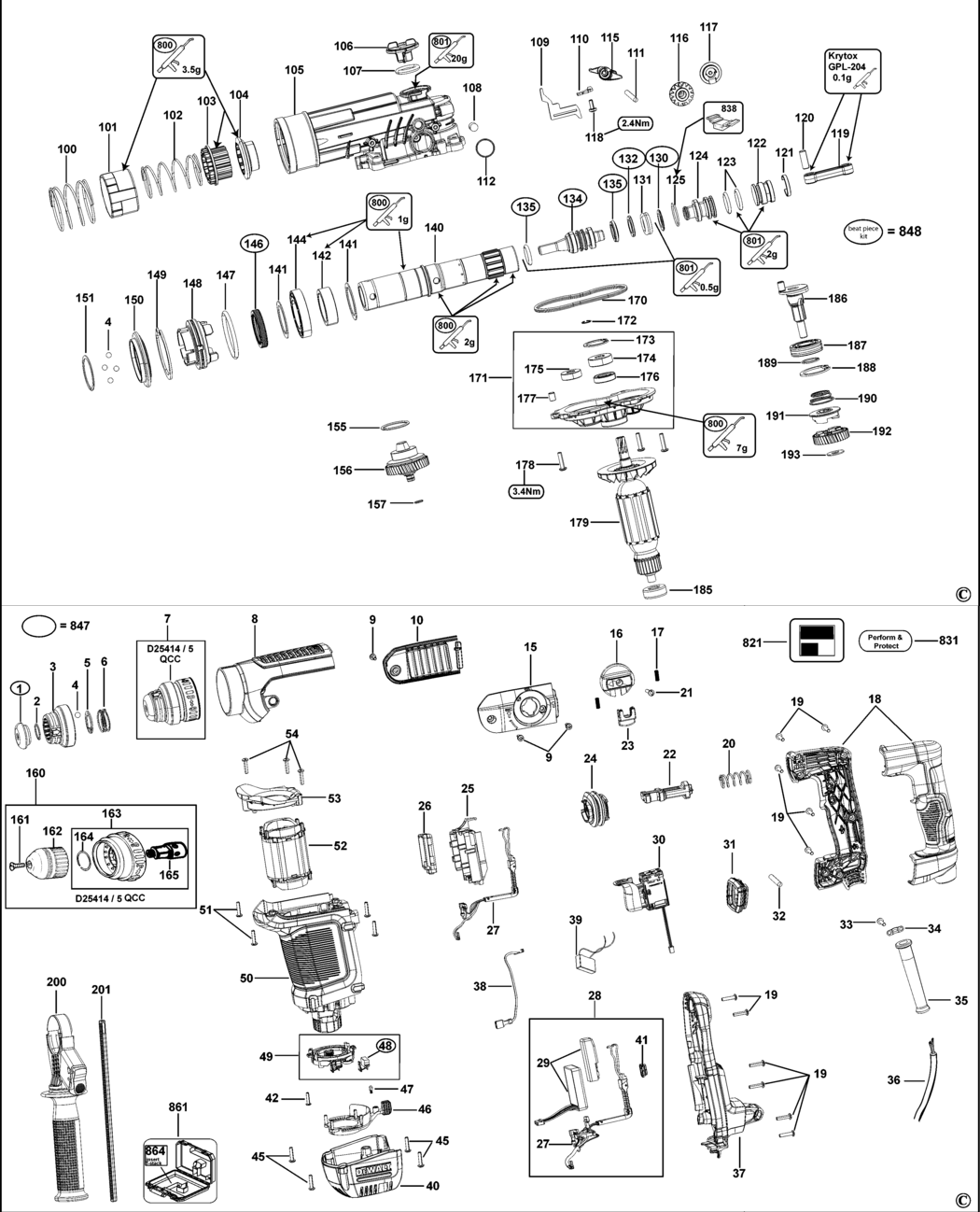

An exploded drawing and spare parts listing for the Dewalt D25414K Type 2 Rotary Hammer Drill

	Ex VAT	Inc VAT
1 - CAP BDE-323489-00.A185 323489-00	£1.66	£1.99
2 - RING BDE-579212-00.A167 579212-00	£1.66	£1.99
3 - TUBE BDE-N910599.A12 N910599	£14.57	£17.48
4 - BALL 7MM BDE-583890-00.A69 583890-00	£1.66	£1.99
5 - WASHER BDE-578387-00.A221 578387-00	£1.66	£1.99
6 - SPRING BDE-N038938.A6 N038938	£1.50	£1.80
7 - CHUCK SA BDE-N569321.A1 N569321	-
8 - COVER BDE-N106154.A8 N106154	£7.85	£9.42
9 - SCREW BDE-324006-14.A79 324006-14	£1.50	£1.80
10 - COVER RH BDE-N106172-00.A5 N106172-00	£3.30	£3.96
15 - COVER LH BDE-N106173-00.A1 N106173-00	£2.78	£3.34
16 - KNOB BDE-N150304.A1 N150304	£1.50	£1.80
17 - SPRING BDE-1008957-00.A15 1008957-00	£1.50	£1.80
18 - HANDLE SA BDE-N379400.A3 N379400	£16.03	£19.24
19 - SCREW BDE-330065-08.A289 330065-08	£1.50	£1.80
20 - SPRING COMPRESSION BDE-N106188.A2 N106188	£1.50	£1.80
21 - SCREW BDE-330065-08.A290 330065-08	£1.50	£1.80
22 - STOP BDE-N152623.A22 N152623	£5.88	£7.06
23 - BUTTON RELEASE BDE-N192178.A2 N192178	£1.50	£1.80
24 - BELLOWS BDE-N106221-00.A1 N106221-00	£4.69	£5.63
25 - HOLDER BDE-N186074.A5 N186074	£10.85	£13.02
26 - GACC MODULE 115V LX BDE-N274641.A2 N274641	£47.08	£56.49
26 - GACC MODULE 230V GB BDE-N556427.A0 N556427	£60.94	£73.13
27 - SET OF LEAD WIRES BDE-N379403.A5 N379403	£16.03	£19.24
30 - SWITCH GB BDE-N524745.A2 N524745	£18.91	£22.69
30 - SWITCH LX BDE-N524745.A3 N524745	£18.91	£22.69
31 - BELLOWS BDE-N106222.A2 N106222	£3.80	£4.56
32 - AXIS BDE-N159443.A10 N159443	£1.50	£1.80
33 - SCREW BDE-330065-08.A291 330065-08	£1.50	£1.80
34 - CORD CLAMP BDE-821070.A260 821070	£1.50	£1.80
35 - CORD PROTECTOR GB BDE-584090-00.A65 584090-00	£1.50	£1.80
35 - CORD PROTECTOR BDE-403395-00.A22 403395-00	£1.50	£1.80
35 - CORD PROTECTOR LX BDE-584090-00.A64 584090-00	£1.50	£1.80
36 - CORDSET GB BDE-582319-42.A5 582319-42	£34.00	£40.80
36 - CORDSET LX BDE-582319-40.A2 582319-40	£41.24	£49.49
37 - PLATE BDE-N106186-01.A1 N106186-01	£12.17	£14.60
38 - CONNECTING WIRE BDE-N578054.A1 N578054	£3.80	£4.56
39 - CAPACITOR LX BDE-N272900.A4 N272900	£1.82	£2.19
39 - CAPACITOR GB BDE-N272900.A5 N272900	£1.82	£2.19
40 - END CAP BDE-N106181-00.A5 N106181-00	£7.18	£8.62
42 - SCREW BDE-330065-35.A5 330065-35	£1.50	£1.80
45 - SCREW BDE-330065-08.A288 330065-08	£1.50	£1.80
46 - SELECTOR BDE-N135728.A1 N135728	£1.50	£1.80
47 - DETENT BDE-326467-00.A381 326467-00	£1.50	£1.80
48 - BRUSH PAIR 120V LX BDE-N379405.A2 N379405	£5.88	£7.06
48 - BRUSH KIT GB BDE-N544178.A2 N544178	£7.18	£8.62
49 - BRUSHPLATE GB BDE-N379406.A1 N379406	£19.90	£23.88
49 - BRUSH PLATE LX BDE-N379407.A2 N379407	£19.90	£23.88
50 - HOUSING MOTOR BDE-N106153.A1 N106153	£16.03	£19.24
51 - SCREW BDE-324006-14.A78 324006-14	£1.50	£1.80
52 - FIELD 120V LX BDE-N379408.A3 N379408	£51.90	£62.28
52 - FIELD 230V GB BDE-N379409.A1 N379409	£110.62	£132.74
53 - BAFFLE FAN BDE-N137273.A9 N137273	£5.88	£7.06
54 - SCREW BDE-330065-08.A287 330065-08	£1.50	£1.80
100 - SPRING BDE-323395-07.A13 323395-07	£1.50	£1.80
101 - SLEEVE BDE-N106220.A8 N106220	£3.30	£3.96
102 - SPRING COMPRESSION BDE-N106166.A7 N106166	£1.50	£1.80
103 - SLEEVE BDE-N106162.A7 N106162	£12.17	£14.60
104 - BEVEL GEAR BDE-N379410.A3 N379410	£37.35	£44.82
105 - HOUSING GEAR SA BDE-N379411.A3 N379411	£110.62	£132.74
106 - CAP BDE-N106179.A1 N106179	£1.82	£2.19
107 - O RING BDE-N252839.A1 N252839	£9.41	£11.29
108 - FILTER BDE-582865-00.A28 582865-00	£1.50	£1.80
109 - PLATE BDE-N147987.A1 N147987	£2.78	£3.34
110 - LEVER BDE-N106187.A7 N106187	£1.50	£1.80
111 - PIN BDE-330041-44.A9 330041-44	£1.50	£1.80
112 - O RING BDE-323711-05.A5 323711-05	£1.50	£1.80
115 - SELECTOR FORK BDE-N149242.A2 N149242	£1.50	£1.80
116 - ECCENTRIC BDE-N149241.A7 N149241	£2.26	£2.71
117 - GEAR BDE-N150303.A7 N150303	£1.50	£1.80
118 - SCREW BDE-324006-14.A77 324006-14	£1.50	£1.80
119 - CON ROD BDE-N407255.A1 N407255	£2.26	£2.71
120 - PIN BDE-N123257.A2 N123257	£3.30	£3.96
121 - PISTON RING BDE-325905-01.A18 325905-01	£1.50	£1.80
122 - PISTON BDE-N379413.A7 N379413	£12.17	£14.60
123 - O RING BDE-N106150.A8 N106150	£2.26	£2.71
124 - RAM BDE-N407083.A8 N407083	£16.03	£19.24
130 - WASHER Service Packed BDE-N515032.A3 N515032	£12.17	£14.60
130 - WASHER BDE-N511780.A8 N511780	£3.80	£4.56
131 - DAMPER BDE-N179781.A2 N179781	£3.80	£4.56
132 - WASHER BDE-N511566.A0 N511566	£3.80	£4.56
134 - BEAT PIECE BDE-N534183.A0 N534183	£34.00	£40.80
135 - O RING BDE-N181843.A8 N181843	£3.30	£3.96
140 - SPINDLE BDE-N525737.A9 N525737	£119.32	£143.19
141 - WASHER BDE-1005982-00.A22 1005982-00	£1.50	£1.80
142 - DAMPER BDE-N218372.A8 N218372	£3.30	£3.96
144 - SLEEVE BEARING BDE-N106168.A1 N106168	£7.18	£8.62
146 - SEAL BDE-1007828-00.A8 1007828-00	£16.03	£19.24
147 - O RING BDE-N218672.A7 N218672	£14.57	£17.48
148 - BEARING HOLDER BDE-N122310.A7 N122310	£3.80	£4.56
149 - LOCKING RING BDE-N181847.A8 N181847	£1.50	£1.80
150 - CAP BDE-N184524.A8 N184524	£2.78	£3.34
151 - RING BDE-577795-00.A9 577795-00	£1.50	£1.80
155 - O RING BDE-N252840.A7 N252840	£12.17	£14.60
156 - CLUTCH SA BDE-N379416.A2 N379416	£74.15	£88.98
157 - O RING BDE-323711-26.A60 323711-26	£1.50	£1.80
160 - CHUCK & SPINDLE SA BDE-N591847.A29 N591847	£51.90	£62.28
161 - SCREW BDE-605256-02.A207 605256-02	£1.50	£1.80
162 - CHUCK KEYLESS BDE-582512-02.A19 582512-02	£24.39	£29.27
163 - SPINDLE SA BDE-N403284.A2 N403284	£18.91	£22.69
164 - RING BDE-579212-00.A168 579212-00	£1.66	£1.99
165 - SPINDLE BDE-N403112.A8 N403112	£16.03	£19.24
170 - SEAL BDE-N106217.A0 N106217	£1.50	£1.80
171 - HOUSING GEAR BDE-N379417.A4 N379417	£65.52	£78.62
172 - CLIP BDE-N148663.A8 N148663	£1.50	£1.80
173 - RING BDE-N219512.A1 N219512	£1.50	£1.80
174 - BEARING BALL BDE-330003-96.A9 330003-96	£4.69	£5.63
175 - BEARING BDE-330003-39.A29 330003-39	£2.78	£3.34
176 - SEAL BDE-327141-05.A9 327141-05	£7.18	£8.62
177 - SLEEVE BDE-327575-00.A14 327575-00	£1.50	£1.80
178 - SCREW TORX BDE-324007-11.A140 324007-11	£1.50	£1.80
179 - ARMATURE KIT 120V LX BDE-N379419.A3 N379419	£47.08	£56.49
179 - ARMATURE KIT 240V GB BDE-N379420.A1 N379420	£58.69	£70.43
185 - BEARING & SEAL BDE-N381533.A2 N381533	£3.30	£3.96
186 - CRANKSHAFT BDE-N379421.A8 N379421	£47.08	£56.49
187 - BEARING BALL BDE-323872-06.A14 323872-06	£14.57	£17.48
188 - CIRCLIP BDE-324821-04.A11 324821-04	£1.50	£1.80
189 - RING BDE-N181846.A1 N181846	£1.50	£1.80
190 - SPRING BDE-N199272.A0 N199272	£1.50	£1.80
191 - SLEEVE BDE-N106160.A1 N106160	£41.24	£49.49
192 - GEAR BDE-N379422.A1 N379422	£17.48	£20.97
193 - WASHER BDE-N106163.A1 N106163	£1.50	£1.80
200 - HANDLE SIDE SA BDE-N276149.A9 N276149	£19.90	£23.88
201 - DEPTH STOP BDE-798846-02.A46 798846-02	£1.50	£1.80
800 - GREASE BDE-870889-03.A94 870889-03	£7.85	£9.42
801 - GREASE 10 GMS BDE-487130-04.A39 487130-04	£3.80	£4.56
821 - RATING LABEL GB BDE-N524332 N524332	£1.82	£2.19
821 - RATING LABEL LX BDE-N524335 N524335	£1.82	£2.19
831 - LABEL BDE-N376894.A0 N376894	£1.50	£1.80
837 - SERVICE TOOL Seal fitting tool BDE-1003957-99.A2 1003957-99	£96.55	£115.86
838 - SERVICE TOOL C Clip drift. BDE-1003958-99.A0 1003958-99	£65.52	£78.62
847 - SERVICE KIT 115V LX BDE-N392848.A0 N392848	£51.90	£62.28
847 - SERVICE KIT 230V GB BDE-N392849.A3 N392849	£51.90	£62.28
848 - SERVICE KIT BDE-N536059.A1 N536059	£47.08	£56.49
861 - KITBOX BDE-N377020.A1 N377020	£45.14	£54.17
864 - INSERT D25414KT TSTAK BDE-N361841.A0 N361841	£34.00	£40.80
