Dewalt D28132 Type 1 Small Angle Grinder Spare Parts

Home Details Reviews Delivery

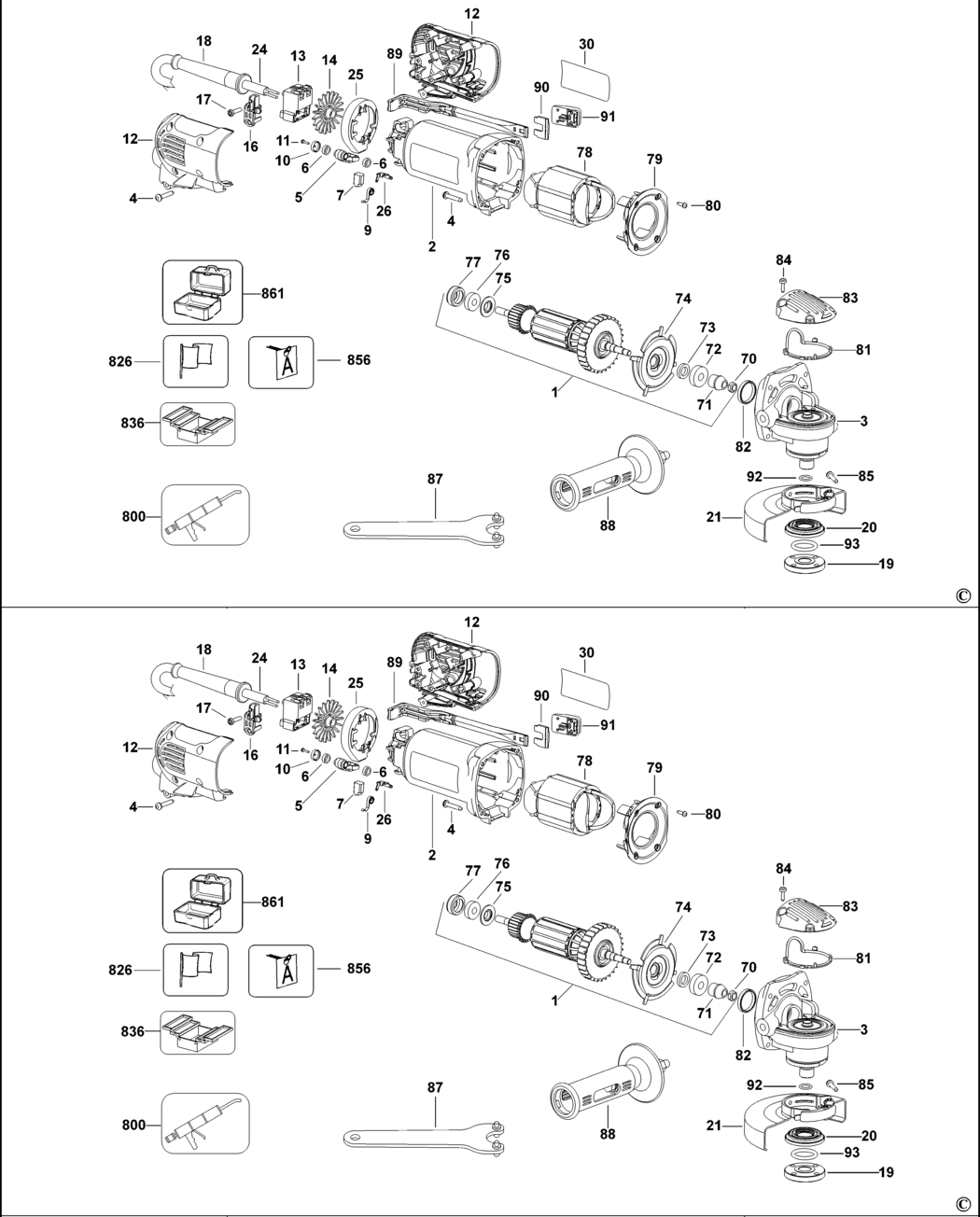

An exploded drawing and spare parts listing for the Dewalt D28132 Type 1 Small Angle Grinder

	Ex VAT	Inc VAT
2 - FIELDCASE BDE-623599-03.A2 623599-03	£9.41	£11.29
3 - GEARCASE SA BDE-N015541.A7 N015541	£37.35	£44.82
4 - PLASTIC SCREW BDE-330065-31.A76 330065-31	£1.50	£1.80
5 - ARM BDE-648743-00.A73 648743-00	£1.50	£1.80
6 - FELT SEAL BDE-623592-00.A21 623592-00	£1.50	£1.80
9 - BRUSH SPRING BDE-623589-00.A10 623589-00	£1.50	£1.80
10 - BRUSH CAP BDE-623591-00.A53 623591-00	£1.50	£1.80
11 - SCREW BDE-593685-00.A24 593685-00	£1.50	£1.80
12 - HANDLE SA BDE-625243-03.A0 625243-03	£9.41	£11.29
13 - SWITCH BDE-945614-00.A123 945614-00	-
14 - SEPARATOR BDE-N055787.A34 N055787	£1.50	£1.80
16 - CORD CLAMP BDE-623612-00.A6 623612-00	£1.42	£1.70
17 - SCREW BDE-330019-03.A234 330019-03	£1.50	£1.80
18 - CORD PROTECTOR BDE-N542553.A403 N542553	£3.80	£4.56
19 - OUTER FLANGE BDE-622613-02.A6 622613-02	£4.69	£5.63
20 - INNER FLANGE SA BDE-633257-00SV.A59 633257-00SV	£5.88	£7.06
25 - BAFFLE BDE-637616-00.A16 637616-00	£1.50	£1.80
26 - TERMINAL BDE-623593-00.A53 623593-00	£1.50	£1.80
30 - BRAND LABEL BDE-635892-00.A5 635892-00	£1.50	£1.80
70 - NUT BDE-604484-00.A110 604484-00	£1.50	£1.80
71 - PINION BDE-623564-00.A19 623564-00	£10.85	£13.02
72 - BEARING BALL BDE-605040-11.A7 605040-11	£2.78	£3.34
73 - FELT SEAL BDE-623617-00.A85 623617-00	£1.50	£1.80
74 - RETAINER BDE-N422242.A23 N422242	£1.50	£1.80
75 - WASHER BDE-623613-00.A2 623613-00	£1.50	£1.80
76 - BEARING BDE-605040-02.A120 605040-02	£2.26	£2.71
77 - SLEEVE BDE-641823-00.A62 641823-00	£1.50	£1.80
79 - BAFFLE FAN BDE-623572-00.A22 623572-00	£1.50	£1.80
80 - SCREW BDE-626360-00.A32 626360-00	£1.50	£1.80
81 - GASKET BDE-623618-00.A1 623618-00	£1.50	£1.80
82 - SLEEVE BDE-611492-00.A30 611492-00	£1.50	£1.80
83 - GEARCASE COVER BDE-623562-00.A16 623562-00	£3.80	£4.56
84 - SCREW BDE-385676-01.A63 385676-01	£1.50	£1.80
85 - SCREW BDE-631609-02.A7 631609-02	£1.50	£1.80
87 - WRENCH BDE-401680-00.A57 401680-00	£4.69	£5.63
88 - SIDE HANDLE BDE-614796-00.A25 614796-00	£14.57	£17.48
89 - ARM LINK BDE-623610-00.A3 623610-00	£3.30	£3.96
90 - BAR LOCKING BDE-644326-00.A23 644326-00	£1.50	£1.80
91 - BUTTON START BDE-623608-00.A20 623608-00	£1.50	£1.80
92 - O RING BDE-633045-00.A38 633045-00	£1.50	£1.80
93 - O RING BDE-633043-00.A1 633043-00	£1.50	£1.80
800 - GREASE 50 GMS BDE-583534-00.A26 583534-00	£144.10	£172.92
836 - DRIVER BDE-233804-36.A28 233804-36	£30.08	£36.10
